DtExecConsoleWidget Class Reference

Provides the GUI for a console which displays the contents of an rtiexec log. More...

Inheritance diagram for DtExecConsoleWidget:

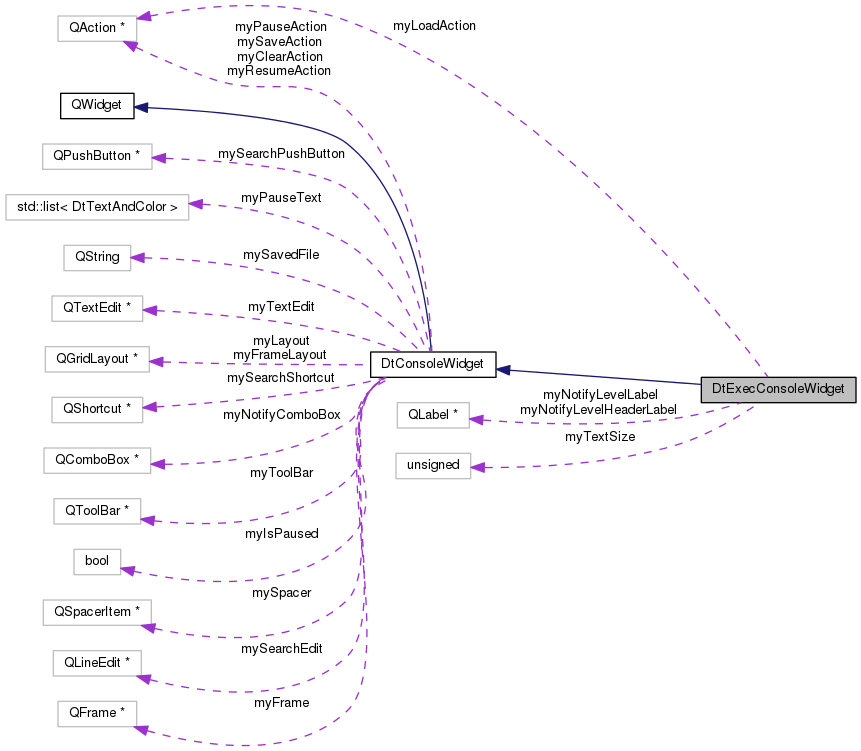

Collaboration diagram for DtExecConsoleWidget:

Signals
void	loadLog ()
	Emitted when the user requests a load of the full log. More...
Signals inherited from DtConsoleWidget
void	notifyLevelUpdated (MAKRti::DtNotifyLevelType notifyLevel)
	Signals that the notify level has been updated by the user. More...

Public Member Functions
	DtExecConsoleWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtExecConsoleWidget ()
	Destructor. More...
virtual void	writeText (const QString &st, QColor color=Qt::black)
	Writes the text to the display in the specified color. More...
virtual void	clear ()
	Clears all of the text from the display. More...
virtual unsigned	textSize () const
	Gets the size of the text which has been written to this console. More...
virtual void	setNotifyLevel (MAKRti::DtNotifyLevelType notifyLevel)
	Sets the displayed notify level. More...
virtual void	clearNotifyLevel ()
	Clears the displayed notify level. More...
Public Member Functions inherited from DtConsoleWidget
	DtConsoleWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtConsoleWidget ()
	Destructor. More...
virtual void	setMaximumLines (int max)
	Sets the maximum number of lines which can be in the buffer. More...
virtual void	setDocument (QTextDocument *document)
	Sets the given document to be the document of the text edit. More...
virtual void	removeNotifyComboBox ()
	removes the notify level combo box More...
virtual void	showToolBar (bool showBar=true)
	Shows or hides the tool bar items. More...
virtual void	showClearButton (bool showButton=true)
	Shows or hides the tool bar items. More...
virtual void	showSaveButton (bool showButton=true)
	Shows or hides the tool bar items. More...
virtual void	showPauseResumeButton (bool showButton=true)
	Shows or hides the tool bar items. More...
virtual void	showNotifyLevelBox (bool showBox=true)
	Shows or hides the tool bar items. More...

Protected Attributes
QAction *	myLoadAction
	The tool bar action which loads the most recent rtiexec log entries to the console. More...
QLabel *	myNotifyLevelHeaderLabel
	The header label for the notify level. More...
QLabel *	myNotifyLevelLabel
	The label that indicates the notify level of the viewed rtiexec. More...
unsigned	myTextSize
	Size of the currently displayed (and stored if paused) text in bytes. More...
Protected Attributes inherited from DtConsoleWidget
QToolBar *	myToolBar
	The tool bar for a console widget. More...
QAction *	myClearAction
	The tool bar action which clears the console. More...
QAction *	mySaveAction
	The tool bar action which saves the full log to a file. More...
QAction *	myPauseAction
	The tool bar action which pauses the console, preventing it from updating and scrolling. More...
QAction *	myResumeAction
	The tool bar action which resumes the console after it has been paused. More...
QComboBox *	myNotifyComboBox
	The tool bar combo box which will update the notify level. More...
QTextEdit *	myTextEdit
	The text edit box which displays the log. More...
QFrame *	myFrame
	The frame of the widget. More...
QGridLayout *	myLayout
	The layout of the widget. More...
QGridLayout *	myFrameLayout
	The layout of the frame. More...
QString	mySavedFile
	The previously saved file. More...
QLineEdit *	mySearchEdit
	The search edit box. More...
QPushButton *	mySearchPushButton
	The search button. More...
QSpacerItem *	mySpacer
	Spacer item for the grid layout. More...
QShortcut *	mySearchShortcut
	Search edit shortcut. More...
bool	myIsPaused
	Indicates if the console is currently paused. More...
DtTextAndColorList	myPauseText
	Used to store text while pause is on. More...

Private Member Functions
	DtExecConsoleWidget (DtExecConsoleWidget const &)
	Copy constructor not implemented. More...
DtExecConsoleWidget &	operator= (DtExecConsoleWidget const &)
	Assignment operator not implemented. More...

Additional Inherited Members
Public Slots inherited from DtConsoleWidget
virtual void	processNotifyComboxBoxUpdate (int level)
	Catches the notify level combo box update and emits the notifyLevelUpdated signal with the new notifyLevel. More...
virtual void	processSave ()
	Processes the pressing of the save button. More...
virtual void	processPause ()
	Processes the pressing of the pause button. More...
virtual void	processResume ()
	Processes the pressing of the resume button. More...
virtual void	processSearch ()
	Processes the pressing of the search button. More...
virtual void	focusSearchEdit ()
	Focus on the search. More...
Protected Types inherited from DtConsoleWidget
typedef std::list< DtTextAndColor >	DtTextAndColorList
Protected Member Functions inherited from DtConsoleWidget
virtual void	saveToFile ()
	Saves the console output to a file. More...

Detailed Description

Provides the GUI for a console which displays the contents of an rtiexec log.

DtExecConsoleWidget is derived from DtConsoleWidget.

Constructor & Destructor Documentation

DtExecConsoleWidget::DtExecConsoleWidget	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual DtExecConsoleWidget::~DtExecConsoleWidget ( )

virtual

Destructor.

DtExecConsoleWidget::DtExecConsoleWidget ( DtExecConsoleWidget const &  )

private

Copy constructor not implemented.

Member Function Documentation

virtual void DtExecConsoleWidget::clear ( )

virtual

Clears all of the text from the display.

Reimplemented from DtConsoleWidget.

virtual void DtExecConsoleWidget::clearNotifyLevel ( )

virtual

Clears the displayed notify level.

void DtExecConsoleWidget::loadLog ( )

signal

Emitted when the user requests a load of the full log.

DtExecConsoleWidget& DtExecConsoleWidget::operator= ( DtExecConsoleWidget const &  )

private

Assignment operator not implemented.

virtual void DtExecConsoleWidget::setNotifyLevel ( MAKRti::DtNotifyLevelType  notifyLevel )

virtual

Sets the displayed notify level.

Reimplemented from DtConsoleWidget.

virtual unsigned DtExecConsoleWidget::textSize ( ) const

virtual

Gets the size of the text which has been written to this console.

virtual void DtExecConsoleWidget::writeText ( const QString &  st, QColor  color = Qt::black  )

virtual

Writes the text to the display in the specified color.

The default is black if no color is specified.

Reimplemented from DtConsoleWidget.

Member Data Documentation

QAction* DtExecConsoleWidget::myLoadAction

protected

The tool bar action which loads the most recent rtiexec log entries to the console.

QLabel* DtExecConsoleWidget::myNotifyLevelHeaderLabel

protected

The header label for the notify level.

QLabel* DtExecConsoleWidget::myNotifyLevelLabel

protected

The label that indicates the notify level of the viewed rtiexec.

unsigned DtExecConsoleWidget::myTextSize

protected

Size of the currently displayed (and stored if paused) text in bytes.

---

The documentation for this class was generated from the following file:

• execConsoleWidget.h
