Inheritance diagram for DtFomClassMgr:

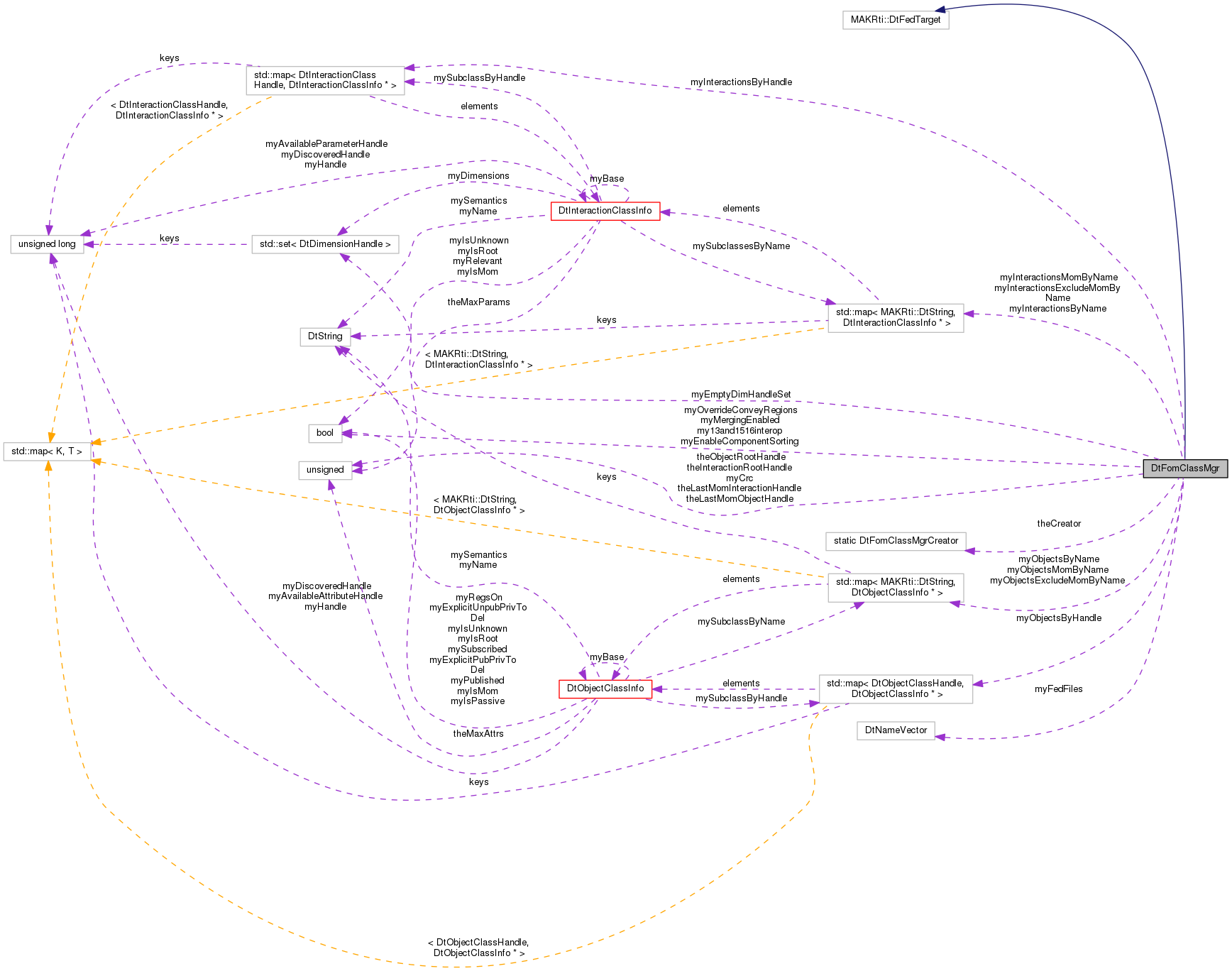

Collaboration diagram for DtFomClassMgr:

Public Member Functions
	DtFomClassMgr ()
	Constructor - Do not use this publicly. More...

	DtFomClassMgr (const DtFomClassMgr &orig)
	Copy Constructor - must use clone instead. More...

virtual	~DtFomClassMgr ()
	Destructor. More...

virtual void	addSpace (const char *name)
	FED file loading functions. More...

virtual void	addDimension (const char spaceName, const char dimName)
	Define a dimension within a routing space. More...

virtual void	addDimension (const char *dimName, unsigned long upperBound, unsigned long defaultLowerBound, unsigned long defaultUpperBound, bool excluded, const MAKRti::DtString &normalization)
	Define a dimension. Used when initializing from FED file. More...

virtual bool	addInteractionDimension (const char interactionName, const char dimension)
	Add dimensions to the interaction class Return true if add was successful (i.e., dimension is valid) More...

virtual bool	addInteractionClass (const char name, const char baseName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharing, const MAKRti::DtString &semantics, const char *space=NULL)
	Define a class. Used when initializing from FED file. More...

virtual bool	addInterClass (const char name, const char baseName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, const char *spaceName=NULL)

virtual bool	addObjectDimension (const char objectClassName, const char dimension)
	Add dimension to the object class Return true if add was successful (i.e., dimension is valid) More...

virtual bool	addObjectClass (const char name, const char baseName, DtSharingType sharing, const MAKRti::DtString &semantics)

virtual bool	addObjClass (const char name, const char baseName)
	Define a class. Used when initializing from FED file. More...

virtual void	addHandleForUnknownObjectClass (DtObjectClassHandle handle, DtObjectClassHandle baseClassHandle)
	Adds a known class handle for which we have no other information other than its base class. More...

virtual void	addParameter (const char className, const char paramName)

virtual void	addParameter (const char className, const char paramName, const char *semantics)
	Define an parameter of a class. More...

virtual bool	addAttributeDimension (const char className, const char attributeName, const char *dimName)
	Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid) More...

virtual void	addAttribute (const char className, const char attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharing, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownershipType, const MAKRti::DtString &semantics, const char *spaceName=NULL)
	Define an attribute of a class. More...

virtual void	addAttribute (const char className, const char attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, const char *spaceName=NULL)

virtual void	initUpdateRates (DtRIDParameters *params)
	Initialize the updates rates using the given RID parameters. More...

const MAKRti::DtUpdateRateSetT &	getUpdateRates () const
	Get a set of the update Rates. More...

float	updateRateByName (const char *name)
	Get the rate (Float) from an Update rate by its name. More...

int	positionOfRate (float rate) const
	Get the position of this rate (sorted ascending). More...

bool	knownUpdateRate (const MAKRti::DtString &rateName) const
	Check to see if an update rate with this name exists. More...

virtual DtMergeFomStatus	mergeObjectClasses (DtFedTarget const &module)
	Merge the contents of the specified FomMgr with this. More...

virtual DtMergeFomStatus	mergeObjectInfo (DtObjectClassInfo const &classInfo, DtAttributeByHandleMap &attributesToMerge)
	Merge the contents of the specified objectClass with this. More...

virtual void	mergeAttributes (DtObjectClassInfo const &classInfo, const DtAttributeByHandleMap &attributesToMerge, DtFomClassMgr const &module)
	Merge the attributes of the given class into the same class in this FOM. More...

virtual DtMergeFomStatus	mergeInteractionClasses (DtFedTarget const &module)
	Merge the contents of the specified interactionClasses with this. More...

virtual DtMergeFomStatus	mergeInteractionInfo (DtInteractionClassInfo const &interInfo, const char *spaceName, DtParameterByHandleMap &parametersToMerge)
	Merge the contents of the specified InteractionInfo with this. More...

virtual void	mergeParameters (DtInteractionClassInfo const &interInfo, const DtParameterByHandleMap &parametersToMerge)
	Merge the given interaction parameters into the same class in this FOM. More...

virtual DtMergeFomStatus	mergeSpaces (DtFedTarget const &module)
	Merge the given routing spaces with this. More...

virtual DtMergeFomStatus	mergeDimensions (DtSpaceInfo const &spaceInfo)
	Merge the given dimensions into the same space in this FOM. More...

virtual DtObjectClassHandle	classHandle (const char *theName, bool throwException=true) const
	Querying functions. More...

virtual const char *	className (DtObjectClassHandle theHandle, const char *defaultName="ObjectClassNotDefined") const
	Get class name from handle. More...

virtual DtObjectClassInfo *	classByName (const char *name)
	Returns the class descriptor for the name. More...

virtual const DtObjectClassInfo *	classByName (const char *name) const

virtual DtObjectClassInfo *	classByHandle (DtObjectClassHandle handle)
	Returns the class descriptor for the handle. More...

virtual const DtObjectClassInfo *	classByHandle (DtObjectClassHandle handle) const

virtual DtObjectClassInfo *	objectRootClass ()
	Returns the root object class descriptor. More...

virtual const DtObjectClassInfo *	objectRootClass () const

virtual DtObjectClassHandle	objectRootHandle () const
	Returns the handle of the root object. More...

virtual int	numClasses () const
	Get the number of classes. More...

virtual int	firstFomObjectClassHandle ()
	Get the first FOM object class handle (excluding ObjectRoot and MOM); Returns -1 if no FOM object classes exist. More...

virtual int	lastFomObjectClassHandle ()
	Get the last FOM object handle (excluding ObjectRoot and MOM); Returns -1 if no FOM object classes exist. More...

virtual std::set< const DtObjectClassInfo * > &	getObjectClassDifferences (const DtFomClassMgr &otherFom, std::set< const DtObjectClassInfo * > &diffSet) const
	Get the object classes from the given FOM that are not in this FOM. More...

virtual std::set< const DtInteractionClassInfo * > &	getInteractionClassDifferences (const DtFomClassMgr &otherFom, std::set< const DtInteractionClassInfo * > &diffSet) const
	Get the interaction classes from the given FOM that are not in this FOM. More...

virtual DtAttributeHandle	attrHandle (const char *theName, DtObjectClassHandle whichClass, bool throwException=true) const
	Get attribute handle from name. More...

virtual const char *	attrName (DtAttributeHandle theHandle, DtObjectClassHandle whichClass, bool throwException=true) const
	Get attribute name from handle Returns pointer to internal memory. More...

virtual DtInteractionClassHandle	interactionRootHandle () const
	Returns the handle of the root interaction. More...

virtual DtInteractionClassHandle	interactionHandle (const char *theName, bool throwException=true) const
	Get class handle from name. More...

virtual const char *	interactionName (DtInteractionClassHandle theHandle, const char *defaultName="InteractionClassNotDefined") const
	Get class name from handle. More...

virtual int	numInteractions () const
	Get number of interactions. More...

virtual int	firstFomInteractionClassHandle ()
	Get the first FOM interaction handle (not InteractionRoot nor MOM); Returns -1 if no FOM interactions exist. More...

virtual int	lastFomInteractionClassHandle ()
	Get the last FOM interaction handle (not InteractionRoot nor MOM); Returns -1 if no FOM interactions exist. More...

virtual void	addHandleForUnknownInteractionClass (DtInteractionClassHandle handle, DtInteractionClassHandle baseClassHandle)
	Adds a known class handle for which we have no other information other than its base class. More...

virtual DtParameterHandle	paramHandle (const char *theName, DtInteractionClassHandle whichClass, bool throwException=true)
	Get parameter handle from name. More...

virtual const char *	paramName (DtParameterHandle theHandle, DtInteractionClassHandle whichClass, bool throwException=true)
	Get parameter name from handle Returns pointer to internal memory. More...

virtual void	initDMFilteringParameters (const DtRIDParameters *params)
	DM Filtering. More...

virtual void	printDMSubscriptions ()

virtual bool	save (DtRtiSaveFile &file)
	save and restore More...

virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data). More...

virtual bool	restore (DtRtiSaveFile &file)
	Restore the state information from the given file. More...

virtual void	setExtend13and1516interop (bool enable)
	set/get 1.3 and 1516 interoperability status More...

virtual bool	extend13and1516interop () const

virtual void	print () const
	Print the contents. More...

virtual DtFomClassMgr *	clone ()
	Return a copy of this instance. More...

virtual void	setConveyRegionDesignatorSets (bool value)
	switches More...

virtual void	addFedFileName (const MAKRti::DtString &name)

virtual const MAKRti::DtNameVector &	fedFiles () const


virtual DtInteractionClassInfo *	interactionByName (const char *name)
	Returns the class descriptor for the name. More...

virtual const DtInteractionClassInfo *	interactionByName (const char *name) const
	Returns the class descriptor for the name. More...


virtual DtInteractionClassInfo *	interactionByHandle (DtInteractionClassHandle handle)
	Returns the class descriptor for the handle. More...

virtual const DtInteractionClassInfo *	interactionByHandle (DtInteractionClassHandle handle) const
	Returns the class descriptor for the handle. More...


virtual DtInteractionClassInfo *	interactionRootClass ()
	Returns the root interaction class descriptor. More...

virtual const DtInteractionClassInfo *	interactionRootClass () const
	Returns the root interaction class descriptor. More...

Static Public Member Functions
static DtFomClassMgr *	create (DtRIDParameters *p)
	Creates an instance of a DtFomClassMgr. More...

static void	setCreatorFunction (DtFomClassMgrCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtFomClassMgr with their own derived class. More...

Public Attributes
unsigned long	myCrc
	This is 0 by default. More...

Protected Types
typedef std::map < DtObjectClassHandle, DtObjectClassInfo * >	DtObjectClassByHandleMap
	Maintain classes as a list of pointers that are hierarchically linked. More...

typedef std::map < MAKRti::DtString, DtObjectClassInfo * >	DtObjectClassByNameMap

typedef std::map < DtInteractionClassHandle, DtInteractionClassInfo * >	DtInteractionClassByHandleMap

typedef std::map < MAKRti::DtString, DtInteractionClassInfo * >	DtInteractionClassByNameMap

Protected Member Functions
	DtFomClassMgr (DtRIDParameters *params)
	Constructor - used by create. More...

DtFomClassMgr &	operator= (const DtFomClassMgr &orig)
	assignment operator (not implemented) More...

void	init ()

virtual void	adjustInteractionHandlesByName (DtInteractionClassInfo *classInfo)
	The given interaction class was just added to the end. More...

virtual void	adjustObjectHandlesByName (DtObjectClassInfo *classInfo)
	The given object class was just added to the end. More...

virtual DtMergeFomStatus	mergeObjectDimensions (DtFomClassMgr const &module, DtObjectClassInfo const &objectInfo)
	Merge the dimension from the given object class taken from the given module into the associated interaction in this module. More...

virtual DtMergeFomStatus	mergeInteractionDimensions (DtFomClassMgr const &module, DtInteractionClassInfo const &interInfo)
	Merge the dimension from the given interaction taken from the given module into the associated interaction in this module. More...

virtual void	addAttrInfoToChildren (DtObjectClassInfo *classDesc, const MAKRti::DtString &attributeName, DtDimensionHandle dimensionHandle)
	Helper functions for resolving. More...

virtual bool	componentSortingIsActive () const
	When adding components should they be sorted? More...


virtual bool	resolveObjectDimensions (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveAttributeDimensions (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveInteractionDimensions (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveAttributeTransportations (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveInteractionTransportations (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveObjectClasses (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveInteractionClasses (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveAttributes (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveParameters (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

virtual bool	resolveDimensions (MAKRti::DtString &errorString, bool &fomReadError)
	After all the tables have been processed attempt to resolve references to between components that were not fully processed yet. More...

Protected Attributes
DtObjectClassByHandleMap	myObjectsByHandle
	Object classes. More...

DtObjectClassByNameMap	myObjectsByName

DtObjectClassByNameMap	myObjectsExcludeMomByName

DtObjectClassByNameMap	myObjectsMomByName

DtInteractionClassByHandleMap	myInteractionsByHandle
	Interaction classes. More...

DtInteractionClassByNameMap	myInteractionsByName

DtInteractionClassByNameMap	myInteractionsExcludeMomByName

DtInteractionClassByNameMap	myInteractionsMomByName

bool	my13and1516interop
	Indicates that 13 and 1516 interoperability is enabled. More...

bool	myEnableComponentSorting
	Indicates that FOM component sorting is enabled. More...

bool	myMergingEnabled
	Indicates if FOM Module Merging is enabled. More...

MAKRti::DtNameVector	myFedFiles

bool	myOverrideConveyRegions
	RID file specifies to override the FOM convey regions switch. More...

const DtDimensionHandleStdSet	myEmptyDimHandleSet

Static Protected Attributes
static const unsigned int	theLastMomObjectHandle
	Last class handle of MOM objects Block of handles up to this value are reserved for MOM object classes. More...

static const unsigned int	theLastMomInteractionHandle
	Last class handle of MOM interactions Block of handles up to this value are reserved for MOM interaction classes. More...

static const unsigned int	theInteractionRootHandle
	The interaction root handle This value is reserved for the root interaction class handle. More...

static const unsigned int	theObjectRootHandle
	The object root handle This value is reserved for the root object class handle. More...

static DtFomClassMgrCreator	theCreator
	Creator function creates instance of this class or subclass. More...

Member Typedef Documentation

typedef std::map<DtInteractionClassHandle, DtInteractionClassInfo*> DtFomClassMgr::DtInteractionClassByHandleMap

protected

typedef std::map<MAKRti::DtString, DtInteractionClassInfo*> DtFomClassMgr::DtInteractionClassByNameMap

protected

typedef std::map<DtObjectClassHandle, DtObjectClassInfo*> DtFomClassMgr::DtObjectClassByHandleMap

protected

Maintain classes as a list of pointers that are hierarchically linked.

typedef std::map<MAKRti::DtString, DtObjectClassInfo*> DtFomClassMgr::DtObjectClassByNameMap

protected

Constructor & Destructor Documentation

DtFomClassMgr::DtFomClassMgr ( DtRIDParameters * params )

protected

Constructor - used by create.

DtFomClassMgr::DtFomClassMgr ( )

Constructor - Do not use this publicly.

This needed to be public so std::map of these objects as values could be created. Use create method or the protected constructor that create uses.

DtFomClassMgr::DtFomClassMgr ( const DtFomClassMgr & orig )

Copy Constructor - must use clone instead.

virtual DtFomClassMgr::~DtFomClassMgr ( )

virtual

Destructor.

Member Function Documentation

virtual void DtFomClassMgr::addAttribute	(	const char *	className,
		const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharing,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownershipType,
		const MAKRti::DtString &	semantics,
		const char *	spaceName = `NULL`
	)

virtual

Define an attribute of a class.

Used when initializing from FED file.

virtual void DtFomClassMgr::addAttribute	(	const char *	className,
		const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		const char *	spaceName = `NULL`
	)

virtual

virtual bool DtFomClassMgr::addAttributeDimension	(	const char *	className,
		const char *	attributeName,
		const char *	dimName
	)

virtual

Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)

virtual void DtFomClassMgr::addAttrInfoToChildren	(	DtObjectClassInfo *	classDesc,
		const MAKRti::DtString &	attributeName,
		DtDimensionHandle	dimensionHandle
	)

protectedvirtual

Helper functions for resolving.

virtual void DtFomClassMgr::addDimension	(	const char *	spaceName,
		const char *	dimName
	)

virtual

Define a dimension within a routing space.

Used when initializing from FED file.

virtual void DtFomClassMgr::addDimension	(	const char *	dimName,
		unsigned long	upperBound,
		unsigned long	defaultLowerBound,
		unsigned long	defaultUpperBound,
		bool	excluded,
		const MAKRti::DtString &	normalization
	)

virtual

Define a dimension. Used when initializing from FED file.

virtual void DtFomClassMgr::addFedFileName ( const MAKRti::DtString & name )

virtual

virtual void DtFomClassMgr::addHandleForUnknownInteractionClass	(	DtInteractionClassHandle	handle,
		DtInteractionClassHandle	baseClassHandle
	)

virtual

Adds a known class handle for which we have no other information other than its base class.

This is necessary with FOM module merging. We may not have full information about modules added to the federation after we joined, but we need to know if those classes are subclasses of the classes we are subscribed to. Will not add info for classes which are already known.

virtual void DtFomClassMgr::addHandleForUnknownObjectClass	(	DtObjectClassHandle	handle,
		DtObjectClassHandle	baseClassHandle
	)

virtual

Adds a known class handle for which we have no other information other than its base class.

This is necessary with FOM module merging. We may not have full information about modules added to the federation after we joined, but we need to know if those classes are subclasses of the classes we are subscribed to. Will not add info for classes which are already known.

virtual bool DtFomClassMgr::addInteractionClass	(	const char *	name,
		const char *	baseName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharing,
		const MAKRti::DtString &	semantics,
		const char *	space = `NULL`
	)

virtual

Define a class. Used when initializing from FED file.

virtual bool DtFomClassMgr::addInteractionDimension	(	const char *	interactionName,
		const char *	dimension
	)

virtual

Add dimensions to the interaction class Return true if add was successful (i.e., dimension is valid)

virtual bool DtFomClassMgr::addInterClass	(	const char *	name,
		const char *	baseName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		const char *	spaceName = `NULL`
	)

virtual

virtual bool DtFomClassMgr::addObjClass	(	const char *	name,
		const char *	baseName
	)

virtual

Define a class. Used when initializing from FED file.

virtual bool DtFomClassMgr::addObjectClass	(	const char *	name,
		const char *	baseName,
		DtSharingType	sharing,
		const MAKRti::DtString &	semantics
	)

virtual

virtual bool DtFomClassMgr::addObjectDimension	(	const char *	objectClassName,
		const char *	dimension
	)

virtual

Add dimension to the object class Return true if add was successful (i.e., dimension is valid)

virtual void DtFomClassMgr::addParameter	(	const char *	className,
		const char *	paramName
	)

virtual

virtual void DtFomClassMgr::addParameter	(	const char *	className,
		const char *	paramName,
		const char *	semantics
	)

virtual

Define an parameter of a class.

Used when initializing from FED file.

virtual void DtFomClassMgr::addSpace ( const char * name )

virtual

FED file loading functions.

Define a routing space. Used when initializing from FED file.

virtual void DtFomClassMgr::adjustInteractionHandlesByName ( DtInteractionClassInfo * classInfo )

protectedvirtual

The given interaction class was just added to the end.

Reinsert it in sorted order adjusting handles as necessary.

virtual void DtFomClassMgr::adjustObjectHandlesByName ( DtObjectClassInfo * classInfo )

protectedvirtual

The given object class was just added to the end.

Reinsert it in sorted order adjusting handles as necessary.

virtual DtAttributeHandle DtFomClassMgr::attrHandle	(	const char *	theName,
		DtObjectClassHandle	whichClass,
		bool	throwException = `true`
	)		const

virtual

Get attribute handle from name.

virtual const char* DtFomClassMgr::attrName	(	DtAttributeHandle	theHandle,
		DtObjectClassHandle	whichClass,
		bool	throwException = `true`
	)		const

virtual

Get attribute name from handle Returns pointer to internal memory.

virtual DtObjectClassInfo* DtFomClassMgr::classByHandle ( DtObjectClassHandle handle )

virtual

Returns the class descriptor for the handle.

virtual const DtObjectClassInfo* DtFomClassMgr::classByHandle ( DtObjectClassHandle handle ) const

virtual

virtual DtObjectClassInfo* DtFomClassMgr::classByName ( const char * name )

virtual

Returns the class descriptor for the name.

virtual const DtObjectClassInfo* DtFomClassMgr::classByName ( const char * name ) const

virtual

virtual DtObjectClassHandle DtFomClassMgr::classHandle	(	const char *	theName,
		bool	throwException = `true`
	)		const

virtual

Querying functions.

Get class handle from name

virtual const char* DtFomClassMgr::className	(	DtObjectClassHandle	theHandle,
		const char *	defaultName = `"ObjectClassNotDefined"`
	)		const

virtual

Get class name from handle.

Use default name if not found; throw exception if default name is NULL. Returns pointer to internal memory.

virtual DtFomClassMgr* DtFomClassMgr::clone ( )

virtual

Return a copy of this instance.

virtual bool DtFomClassMgr::componentSortingIsActive ( ) const

protectedvirtual

When adding components should they be sorted?

static DtFomClassMgr* DtFomClassMgr::create ( DtRIDParameters * p )

static

Creates an instance of a DtFomClassMgr.

virtual bool DtFomClassMgr::extend13and1516interop ( ) const

virtual

virtual const MAKRti::DtNameVector& DtFomClassMgr::fedFiles ( ) const

virtual

virtual int DtFomClassMgr::firstFomInteractionClassHandle ( )

virtual

Get the first FOM interaction handle (not InteractionRoot nor MOM); Returns -1 if no FOM interactions exist.

virtual int DtFomClassMgr::firstFomObjectClassHandle ( )

virtual

Get the first FOM object class handle (excluding ObjectRoot and MOM); Returns -1 if no FOM object classes exist.

virtual std::set<const DtInteractionClassInfo*>& DtFomClassMgr::getInteractionClassDifferences	(	const DtFomClassMgr &	otherFom,
		std::set< const DtInteractionClassInfo * > &	diffSet
	)		const

virtual

Get the interaction classes from the given FOM that are not in this FOM.

Return the retrieved set

virtual std::set<const DtObjectClassInfo*>& DtFomClassMgr::getObjectClassDifferences	(	const DtFomClassMgr &	otherFom,
		std::set< const DtObjectClassInfo * > &	diffSet
	)		const

virtual

Get the object classes from the given FOM that are not in this FOM.

Return the retrieved set

const MAKRti::DtUpdateRateSetT& DtFomClassMgr::getUpdateRates ( ) const

Get a set of the update Rates.

void DtFomClassMgr::init ( )

protected

virtual void DtFomClassMgr::initDMFilteringParameters ( const DtRIDParameters * params )

virtual

DM Filtering.

virtual void DtFomClassMgr::initUpdateRates ( DtRIDParameters * params )

virtual

Initialize the updates rates using the given RID parameters.

virtual DtInteractionClassInfo* DtFomClassMgr::interactionByHandle ( DtInteractionClassHandle handle )

virtual

Returns the class descriptor for the handle.

virtual const DtInteractionClassInfo* DtFomClassMgr::interactionByHandle ( DtInteractionClassHandle handle ) const

virtual

Returns the class descriptor for the handle.

virtual DtInteractionClassInfo* DtFomClassMgr::interactionByName ( const char * name )

virtual

Returns the class descriptor for the name.

virtual const DtInteractionClassInfo* DtFomClassMgr::interactionByName ( const char * name ) const

virtual

Returns the class descriptor for the name.

virtual DtInteractionClassHandle DtFomClassMgr::interactionHandle	(	const char *	theName,
		bool	throwException = `true`
	)		const

virtual

Get class handle from name.

virtual const char* DtFomClassMgr::interactionName	(	DtInteractionClassHandle	theHandle,
		const char *	defaultName = `"InteractionClassNotDefined"`
	)		const

virtual

Get class name from handle.

Use default name if not found; throw exception if default name is NULL. Returns pointer to internal memory.

virtual DtInteractionClassInfo* DtFomClassMgr::interactionRootClass ( )

virtual

Returns the root interaction class descriptor.

virtual const DtInteractionClassInfo* DtFomClassMgr::interactionRootClass ( ) const

virtual

Returns the root interaction class descriptor.

virtual DtInteractionClassHandle DtFomClassMgr::interactionRootHandle ( ) const

virtual

Returns the handle of the root interaction.

bool DtFomClassMgr::knownUpdateRate ( const MAKRti::DtString & rateName ) const

Check to see if an update rate with this name exists.

virtual int DtFomClassMgr::lastFomInteractionClassHandle ( )

virtual

Get the last FOM interaction handle (not InteractionRoot nor MOM); Returns -1 if no FOM interactions exist.

virtual int DtFomClassMgr::lastFomObjectClassHandle ( )

virtual

Get the last FOM object handle (excluding ObjectRoot and MOM); Returns -1 if no FOM object classes exist.

virtual void DtFomClassMgr::mergeAttributes	(	DtObjectClassInfo const &	classInfo,
		const DtAttributeByHandleMap &	attributesToMerge,
		DtFomClassMgr const &	module
	)

virtual

Merge the attributes of the given class into the same class in this FOM.

virtual DtMergeFomStatus DtFomClassMgr::mergeDimensions ( DtSpaceInfo const & spaceInfo )

virtual

Merge the given dimensions into the same space in this FOM.

virtual DtMergeFomStatus DtFomClassMgr::mergeInteractionClasses ( DtFedTarget const & module )

virtual

Merge the contents of the specified interactionClasses with this.

virtual DtMergeFomStatus DtFomClassMgr::mergeInteractionDimensions	(	DtFomClassMgr const &	module,
		DtInteractionClassInfo const &	interInfo
	)

protectedvirtual

Merge the dimension from the given interaction taken from the given module into the associated interaction in this module.

virtual DtMergeFomStatus DtFomClassMgr::mergeInteractionInfo	(	DtInteractionClassInfo const &	interInfo,
		const char *	spaceName,
		DtParameterByHandleMap &	parametersToMerge
	)

virtual

Merge the contents of the specified InteractionInfo with this.

virtual DtMergeFomStatus DtFomClassMgr::mergeObjectClasses ( DtFedTarget const & module )

virtual

Merge the contents of the specified FomMgr with this.

virtual DtMergeFomStatus DtFomClassMgr::mergeObjectDimensions	(	DtFomClassMgr const &	module,
		DtObjectClassInfo const &	objectInfo
	)

protectedvirtual

Merge the dimension from the given object class taken from the given module into the associated interaction in this module.

virtual DtMergeFomStatus DtFomClassMgr::mergeObjectInfo	(	DtObjectClassInfo const &	classInfo,
		DtAttributeByHandleMap &	attributesToMerge
	)

virtual

Merge the contents of the specified objectClass with this.

Attributes needed to be merged are passed back

virtual void DtFomClassMgr::mergeParameters	(	DtInteractionClassInfo const &	interInfo,
		const DtParameterByHandleMap &	parametersToMerge
	)

virtual

Merge the given interaction parameters into the same class in this FOM.

virtual DtMergeFomStatus DtFomClassMgr::mergeSpaces ( DtFedTarget const & module )

virtual

Merge the given routing spaces with this.

virtual int DtFomClassMgr::numClasses ( ) const

virtual

Get the number of classes.

virtual int DtFomClassMgr::numInteractions ( ) const

virtual

Get number of interactions.

virtual DtObjectClassInfo* DtFomClassMgr::objectRootClass ( )

virtual

Returns the root object class descriptor.

virtual const DtObjectClassInfo* DtFomClassMgr::objectRootClass ( ) const

virtual

virtual DtObjectClassHandle DtFomClassMgr::objectRootHandle ( ) const

virtual

Returns the handle of the root object.

DtFomClassMgr& DtFomClassMgr::operator= ( const DtFomClassMgr & orig )

protected

assignment operator (not implemented)

virtual DtParameterHandle DtFomClassMgr::paramHandle	(	const char *	theName,
		DtInteractionClassHandle	whichClass,
		bool	throwException = `true`
	)

virtual

Get parameter handle from name.

virtual const char* DtFomClassMgr::paramName	(	DtParameterHandle	theHandle,
		DtInteractionClassHandle	whichClass,
		bool	throwException = `true`
	)

virtual

Get parameter name from handle Returns pointer to internal memory.

int DtFomClassMgr::positionOfRate ( float rate ) const

Get the position of this rate (sorted ascending).

First position is 1 and 0 indicates rate not found.

virtual void DtFomClassMgr::prepareToRestore ( )

virtual

Prepare the state information to be restored (i.e., clear out existing data).

virtual void DtFomClassMgr::print ( ) const

virtual

Print the contents.

virtual void DtFomClassMgr::printDMSubscriptions ( )

virtual

virtual bool DtFomClassMgr::resolveAttributeDimensions	(	MAKRti::DtString &	errorString,
		bool &	fomReadError
	)

protectedvirtual
