The client connection to the RTI Assistant for an LRC. More...

Inheritance diagram for DtRtiAssistantLrcClient:

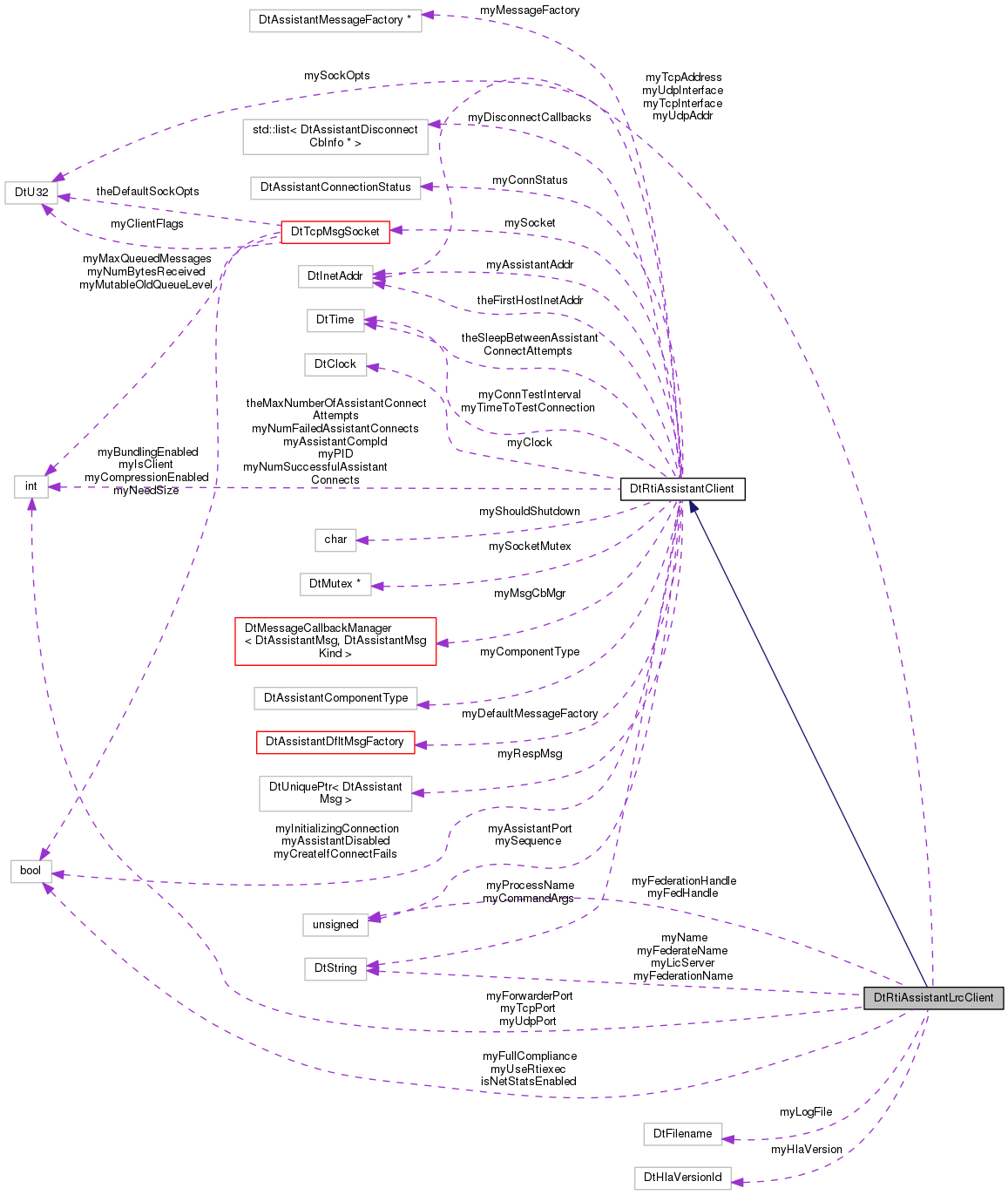

Collaboration diagram for DtRtiAssistantLrcClient:

Public Member Functions
	DtRtiAssistantLrcClient (int port=0)

virtual	~DtRtiAssistantLrcClient ()

virtual void	updateLrcName (const MAKRti::DtString &name)
	Updates the name used by the Assistant to identify this LRC. More...

virtual void	updateFederateName (const MAKRti::DtString &fedName)
	Updates the federate name used by the assistant. More...

virtual void	updateFederationInfo (unsigned long federationHandle, const MAKRti::DtString &federationName, unsigned long fedHandle, DtHlaVersionId hlaVersion)
	Updates the federation name and federate handle used by the Assistant to help identify this LRC. More...

virtual void	updateLrcLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this LRC. More...

virtual void	updateLicenseServer (const MAKRti::DtString &server)
	Updates the license server used by this LRC. More...

virtual void	updateConnInfo (const MAKRti::DtInetAddr &tcpAddr, int tcpPort, const MAKRti::DtInetAddr &tcpIntf, const MAKRti::DtInetAddr &udpAddr, int udpPort, const MAKRti::DtInetAddr &udpIntf, int forwarderPort, bool useRtiexec, bool fullCompliance)
	Updates the information on this LRC's RTI connection. More...

virtual void	updateNetStats (bool enabled)

virtual void	sendClientInfo ()
	Sends the stored LRC information to the Assistant. More...

virtual void	sendNetStatsUpdate (DtFloat64 absTime, const std::vector< DtRtiAmbAPIType > &rtiAmbTypes, const std::vector< DtU32 > &rtiAmbNumCalls, const std::vector< DtFloat64 > &rtiAmbTotalTime, const std::vector< DtFloat64 > &rtiAmbAvgTime, const std::vector< DtFloat64 > &rtiAmbMinTime, const std::vector< DtFloat64 > &rtiAmbMaxTime, const std::vector< DtFedAmbAPIType > &fedAmbTypes, const std::vector< DtU32 > &fedAmbNumCalls, const std::vector< DtFloat64 > &fedAmbTotalTime, const std::vector< DtFloat64 > &fedAmbAvgTime, const std::vector< DtFloat64 > &fedAmbMinTime, const std::vector< DtFloat64 > &fedAmbMaxTime, const std::vector< DtRtiMsgKind > &msgKinds, const std::vector< DtU32 > &msgNumSent, const std::vector< DtU32 > &msgNumReceived, const std::vector< DtU32 > &msgBytesSent, const std::vector< DtU32 > &msgBytesReceived, const std::vector< DtU32 > &interactionClassHandles, const std::vector< DtU32 > &interactionUpdatesReceived, const std::vector< DtU32 > &interactionBytesReceived, const std::vector< DtU32 > &interactionUpdatesSent, const std::vector< DtU32 > &interactionBytesSent)

virtual void	sendNetStatsStringUpdate (const std::vector< DtU32 > &objectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames, const std::vector< DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)

virtual void	sendNetStatsAttrStringUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles)

void	sendNetStatsParamStringUpdate (const std::vector< MAKRti::DtU32 > &interClassHandles, const std::vector< MAKRti::DtU32 > &parameterHandles, const std::vector< MAKRti::DtString > &parameterNames, const std::vector< MAKRti::DtU32 > &parentInterHandles, const std::vector< MAKRti::DtU32 > &totalInterHandles)

virtual void	sendNetStatsAttrParamStringUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< MAKRti::DtString > &attributeNames, const std::vector< MAKRti::DtU32 > &parentClassHandles, const std::vector< MAKRti::DtU32 > &totalObjHandles, DtAssistantHandleType objInterType, DtAssistantHandleType attrParamType, DtAssistantHandleType parentClassType)

virtual void	sendNetStatsFomAttrParamUpdate (DtAssistantHandleType handleType, bool isInit, const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< bool > &attributePub, const std::vector< bool > &attributeSub, const std::vector< DtTransportType > &attributeTransport, const std::vector< DtOrderType > &attributeOrder, const std::vector< bool > &objectPub, const std::vector< bool > &objectSub, const std::vector< MAKRti::DtU32 > &objPubSubHandles)

virtual void	sendObjectInstanceNetStatsStringUpdate (const std::vector< DtU32 > &objectInstanceHandles, const std::vector< MAKRti::DtString > &objectInstanceNames)

virtual void	sendObjectInstanceNetStatsUpdate (DtFloat64 absTime, const std::vector< DtU32 > &objectInstanceHandles, const std::vector< DtU32 > &objectClassHandles, const std::vector< DtU32 > &objectUpdatesReceived, const std::vector< DtU32 > &objectBytesReceived, const std::vector< DtU32 > &objectUpdatesSent, const std::vector< DtU32 > &objectBytesSent)

virtual void	sendFomTreeData (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &parentObjectClassHandles, const std::vector< MAKRti::DtString > &objectClassNames, const std::vector< MAKRti::DtU32 > &interactionClassHandles, const std::vector< MAKRti::DtU32 > &parentInteractionClassHandles, const std::vector< MAKRti::DtString > &interactionClassNames)

virtual void	sendFomUpdate (const std::vector< MAKRti::DtU32 > &objectClassHandles, const std::vector< MAKRti::DtU32 > &attributeHandles, const std::vector< bool > &attributePub, const std::vector< bool > &attributeSub, const std::vector< DtTransportType > &attributeTransport, const std::vector< DtOrderType > &attributeOrder, DtAssistantHandleType handleType, DtFloat64 absTime, bool isFullUpdate)

Public Member Functions inherited from DtRtiAssistantClient
	DtRtiAssistantClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor. More...

virtual	~DtRtiAssistantClient ()
	Destructor. More...

virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing. More...

virtual bool	isConnected ()
	Returns true if the socket is connected. More...

virtual bool	isDisabled ()
	Returns true if the socket is disabled. More...

virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections. More...

virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	addDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
	These functions add callbacks for notification of a socket disconnect. More...

virtual void	removeDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)

virtual bool	sendLRCConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, int &forwarderPort, bool &useRtiexec, bool &forceFullCompliance)
	Send a message querying for the connection parameters. More...

virtual bool	sendForwardingComponentConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, MAKRti::DtInetAddr &forwarderToConnectTo, int &forwarderPort, bool &forceFullCompliance)
	Send a message querying for the rtiexec connection parameters. More...

virtual void	sendLatencyTestMsg (const DtAssistantLatencyReportMsg &msg)
	Send a message to the assistant with latency test measurements. More...

virtual void	sendLatencyTestStatusMsg (const DtAssistantTestMgrStatusMsg &msg)
	Send an updated latency test status message to the assistant. More...

virtual bool	getNewLicenseServerFromAssistant (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &serverName, const MAKRti::DtString &featToCheck)
	Send a message to the assistant to query the user for an alternate license server. More...

virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)
	Send a message to display a pop up notification above the tray icon. More...

virtual void	sendSignalTickedMsg ()
	Send a signal ticked message to the assistant. More...

virtual void	sendDialogBoxMsg (const MAKRti::DtString &text, const MAKRti::DtString &advancedText)
	Send a message to display a dialog notification. More...

virtual void	sendClose ()
	Send connection closed message to Assistant. More...

virtual void	sendRidParamsMsg (const MAKRti::DtString &params, const MAKRti::DtFilename &filename, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHdl=0)
	Send the RID parameters. More...

virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory. More...

virtual DtAssistantMessageFactory *	msgFactory () const

virtual void	shutDownConnection (const char *reason)
	AssistantClientOwner should call this function with the shutdown reason when the Assistant instructs it to shut down (e.g. More...

virtual MAKRti::DtString	getProcessName () const
	get the process name More...

virtual int	getPID () const
	get the PID More...

virtual MAKRti::DtString	getCommandArgs () const
	get the command args More...

bool	testConnectionStatus ()
	test the connection More...

virtual int	componentId () const
	Returns the component ID assigned by the assistant. More...

Protected Attributes
MAKRti::DtString	myName
	The name the Assistant uses to identify this LRC. More...

unsigned long	myFedHandle
	This LRC's federate handle. More...

unsigned long	myFederationHandle
	This LRC's federation handle. More...

MAKRti::DtString	myFederationName
	This LRC's federation name. More...

MAKRti::DtFilename	myLogFile
	The name and full path of the log file. More...

MAKRti::DtString	myLicServer
	The license server used by this LRC. More...

bool	isNetStatsEnabled

MAKRti::DtInetAddr	myTcpAddress
	The RTI TCP IP address (used for reliable communication). More...

MAKRti::DtInetAddr	myTcpInterface
	The address of the network interface being used for UDP. More...

MAKRti::DtInetAddr	myUdpAddr
	The RTI UDP IP address (used for best effort communication). More...

MAKRti::DtInetAddr	myUdpInterface
	The address of the network interface being used for UDP. More...

int	myUdpPort
	The RTI UDP port. More...

int	myTcpPort
	The RTI TCP port. More...

bool	myUseRtiexec
	Whether use of an rtiexec is enabled. More...

bool	myFullCompliance
	Whether full compliance is enabled. More...

int	myForwarderPort
	The port the forwarder uses to connect to other forwarders. More...

MAKRti::DtString	myFederateName
	The federate name. More...

DtHlaVersionId	myHlaVersion
	The federate's HLA version. More...

Protected Attributes inherited from DtRtiAssistantClient
bool	myAssistantDisabled
	Set to true if the Assistant is disabled. More...

MAKRti::DtInetAddr	myAssistantAddr
	The IP address of the Assistant. More...

unsigned int	myAssistantPort
	The port on which the RTI Assistant listens for connections. More...

DtTcpMsgSocket *	mySocket
	The socket to the RTI Assistant. More...

bool	myCreateIfConnectFails
	Indicates whether an Assistant should be created if a connection cannot be established. More...

DtAssistantConnectionStatus	myConnStatus
	The current connection status. More...

bool	myInitializingConnection
	Is connection being initialized. More...

MAKRti::DtU32	mySockOpts
	The socket options to be used when connecting to the Assistant. More...

DtAssistantMessageFactory *	myMessageFactory
	The message factory. More...

DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory. More...

DtAssistantComponentType	myComponentType
	The component type. (LRC, rtiexec, etc.) More...

MAKRti::DtClock	myClock
	Clock for timeouts. More...

MAKRti::DtTime	myConnTestInterval
	Interval at which connection should be tested. More...

MAKRti::DtTime	myTimeToTestConnection
	Next time to test connection. More...

DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager. More...

DtUniquePtr< DtAssistantMsg >	myRespMsg
	The last response message to be received. More...

std::list < DtAssistantDisconnectCbInfo * >	myDisconnectCallbacks
	Lists of pointers to socket disconnect callbacks. More...

MAKRti::DtMutex *	mySocketMutex
	locks access to the socket connection. More...

const char *	myShouldShutdown
	should be set with reason string when assistant exit msg has been received. More...

int	myNumFailedAssistantConnects
	How many assistant restarts have we attempted. More...

int	myNumSuccessfulAssistantConnects
	How many assistant reconnects occurred. More...

int	myPID
	the Process ID ( PID ) More...

MAKRti::DtString	myProcessName
	the Process Name More...

MAKRti::DtString	myCommandArgs
	the command line arguments More...

int	myAssistantCompId
	The assistant assigned component ID. More...

unsigned long	mySequence
	Message sequence number. More...

Additional Inherited Members
Protected Member Functions inherited from DtRtiAssistantClient
virtual bool	initialize ()
	Attempts to connect to the RTI Assistant. More...

virtual DtAssistantConnectionStatus	connectToAssistant ()
	Attempt to open a connection and handshake with the Assistant. More...

virtual DtAssistantConnectionStatus	makeSingleConnectionAttempt ()

virtual bool	startAssistant ()
	Attempt to start a new Assistant. More...

virtual bool	readAndProcess (MAKRti::DtTime maxTime)
	Read and process any messages on the socket for up to the maxTime. More...

virtual bool	sendMsg (const DtAssistantMsg &msg)
	Send a message to the RTI Assistant. More...

virtual DtAssistantMsg *	sendMsgAndWait (const DtAssistantMsg &msg, DtAssistantMsgKind respKind, unsigned int waitSecs=0)
	Send a message to the RTI Assistant and wait for response of the specified kind. More...

virtual DtAssistantConnectionStatus	sendConnectMsg ()
	Send basic component information to the Assistant for a new connection. More...

virtual void	processRespMsg (const DtAssistantMsg &respMsg)

virtual void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg)

virtual void	processAssistantExitMsg (const DtAssistantExitMsg &inter)

virtual void	processDisconnect ()
	Process Assistant socket disconnect. More...

virtual DtUniquePtr < DtAssistantMsg >	netRead (int *retCode) const
	Attempt to read a new message from the socket. More...

virtual bool	sendLicQueryMsg (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &licServer)
	Send a message querying for the license server. More...

Static Protected Member Functions inherited from DtRtiAssistantClient
static void	processRespMsg (const DtAssistantMsg &respMsg, void *usr)
	Response message callback. More...

static void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg, void *usr)
	Notify level update message callback. More...

static void	processAssistantExitMsg (const DtAssistantExitMsg &inter, void *usr)
	Process the assistant exit message. The assistant is commanding us to exit. More...

Static Protected Attributes inherited from DtRtiAssistantClient
static const int	theMaxNumberOfAssistantConnectAttempts
	either starting up or reconnecting, how many assistant restarts do we tolerate before giving up. More...

static const MAKRti::DtTime	theSleepBetweenAssistantConnectAttempts
	When attempting to connect, this is the number of seconds. More...

static const MAKRti::DtInetAddr	theFirstHostInetAddr
	The first InetAddr when the federate was launched. More...

Detailed Description

The client connection to the RTI Assistant for an LRC.

DtRtiAssistantLrcClient manages the client connection of an LRC to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantLrcClient::DtRtiAssistantLrcClient ( int port = 0 )

virtual DtRtiAssistantLrcClient::~DtRtiAssistantLrcClient ( )

virtual

Member Function Documentation

virtual void DtRtiAssistantLrcClient::sendClientInfo ( )

virtual

Sends the stored LRC information to the Assistant.

Reimplemented from DtRtiAssistantClient.

virtual void DtRtiAssistantLrcClient::sendFomTreeData	(	const std::vector< MAKRti::DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtU32 > &	parentObjectClassHandles,
		const std::vector< MAKRti::DtString > &	objectClassNames,
		const std::vector< MAKRti::DtU32 > &	interactionClassHandles,
		const std::vector< MAKRti::DtU32 > &	parentInteractionClassHandles,
		const std::vector< MAKRti::DtString > &	interactionClassNames
	)

virtual

virtual void DtRtiAssistantLrcClient::sendFomUpdate	(	const std::vector< MAKRti::DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtU32 > &	attributeHandles,
		const std::vector< bool > &	attributePub,
		const std::vector< bool > &	attributeSub,
		const std::vector< DtTransportType > &	attributeTransport,
		const std::vector< DtOrderType > &	attributeOrder,
		DtAssistantHandleType	handleType,
		DtFloat64	absTime,
		bool	isFullUpdate
	)

virtual

virtual void DtRtiAssistantLrcClient::sendNetStatsAttrParamStringUpdate	(	const std::vector< MAKRti::DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtU32 > &	attributeHandles,
		const std::vector< MAKRti::DtString > &	attributeNames,
		const std::vector< MAKRti::DtU32 > &	parentClassHandles,
		const std::vector< MAKRti::DtU32 > &	totalObjHandles,
		DtAssistantHandleType	objInterType,
		DtAssistantHandleType	attrParamType,
		DtAssistantHandleType	parentClassType
	)

virtual

virtual void DtRtiAssistantLrcClient::sendNetStatsAttrStringUpdate	(	const std::vector< MAKRti::DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtU32 > &	attributeHandles,
		const std::vector< MAKRti::DtString > &	attributeNames,
		const std::vector< MAKRti::DtU32 > &	parentClassHandles,
		const std::vector< MAKRti::DtU32 > &	totalObjHandles
	)

virtual

virtual void DtRtiAssistantLrcClient::sendNetStatsFomAttrParamUpdate	(	DtAssistantHandleType	handleType,
		bool	isInit,
		const std::vector< MAKRti::DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtU32 > &	attributeHandles,
		const std::vector< bool > &	attributePub,
		const std::vector< bool > &	attributeSub,
		const std::vector< DtTransportType > &	attributeTransport,
		const std::vector< DtOrderType > &	attributeOrder,
		const std::vector< bool > &	objectPub,
		const std::vector< bool > &	objectSub,
		const std::vector< MAKRti::DtU32 > &	objPubSubHandles
	)

virtual

void DtRtiAssistantLrcClient::sendNetStatsParamStringUpdate	(	const std::vector< MAKRti::DtU32 > &	interClassHandles,
		const std::vector< MAKRti::DtU32 > &	parameterHandles,
		const std::vector< MAKRti::DtString > &	parameterNames,
		const std::vector< MAKRti::DtU32 > &	parentInterHandles,
		const std::vector< MAKRti::DtU32 > &	totalInterHandles
	)

virtual void DtRtiAssistantLrcClient::sendNetStatsStringUpdate	(	const std::vector< DtU32 > &	objectClassHandles,
		const std::vector< MAKRti::DtString > &	objectClassNames,
		const std::vector< DtU32 > &	interactionClassHandles,
		const std::vector< MAKRti::DtString > &	interactionClassNames
	)

virtual

virtual void DtRtiAssistantLrcClient::sendNetStatsUpdate	(	DtFloat64	absTime,
		const std::vector< DtRtiAmbAPIType > &	rtiAmbTypes,
		const std::vector< DtU32 > &	rtiAmbNumCalls,
		const std::vector< DtFloat64 > &	rtiAmbTotalTime,
		const std::vector< DtFloat64 > &	rtiAmbAvgTime,
		const std::vector< DtFloat64 > &	rtiAmbMinTime,
		const std::vector< DtFloat64 > &	rtiAmbMaxTime,
		const std::vector< DtFedAmbAPIType > &	fedAmbTypes,
		const std::vector< DtU32 > &	fedAmbNumCalls,
		const std::vector< DtFloat64 > &	fedAmbTotalTime,
		const std::vector< DtFloat64 > &	fedAmbAvgTime,
		const std::vector< DtFloat64 > &	fedAmbMinTime,
		const std::vector< DtFloat64 > &	fedAmbMaxTime,
		const std::vector< DtRtiMsgKind > &	msgKinds,
		const std::vector< DtU32 > &	msgNumSent,
		const std::vector< DtU32 > &	msgNumReceived,
		const std::vector< DtU32 > &	msgBytesSent,
		const std::vector< DtU32 > &	msgBytesReceived,
		const std::vector< DtU32 > &	interactionClassHandles,
		const std::vector< DtU32 > &	interactionUpdatesReceived,
		const std::vector< DtU32 > &	interactionBytesReceived,
		const std::vector< DtU32 > &	interactionUpdatesSent,
		const std::vector< DtU32 > &	interactionBytesSent
	)

virtual

virtual void DtRtiAssistantLrcClient::sendObjectInstanceNetStatsStringUpdate	(	const std::vector< DtU32 > &	objectInstanceHandles,
		const std::vector< MAKRti::DtString > &	objectInstanceNames
	)

virtual

virtual void DtRtiAssistantLrcClient::sendObjectInstanceNetStatsUpdate	(	DtFloat64	absTime,
		const std::vector< DtU32 > &	objectInstanceHandles,
		const std::vector< DtU32 > &	objectClassHandles,
		const std::vector< DtU32 > &	objectUpdatesReceived,
		const std::vector< DtU32 > &	objectBytesReceived,
		const std::vector< DtU32 > &	objectUpdatesSent,
		const std::vector< DtU32 > &	objectBytesSent
	)

virtual

virtual void DtRtiAssistantLrcClient::updateConnInfo	(	const MAKRti::DtInetAddr &	tcpAddr,
		int	tcpPort,
		const MAKRti::DtInetAddr &	tcpIntf,
		const MAKRti::DtInetAddr &	udpAddr,
		int	udpPort,
		const MAKRti::DtInetAddr &	udpIntf,
		int	forwarderPort,
		bool	useRtiexec,
		bool	fullCompliance
	)

virtual

Updates the information on this LRC's RTI connection.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateFederateName ( const MAKRti::DtString & fedName )

virtual

Updates the federate name used by the assistant.

Note that this method does not send the message to the assistant, just stores the name to be send when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateFederationInfo	(	unsigned long	federationHandle,
		const MAKRti::DtString &	federationName,
		unsigned long	fedHandle,
		DtHlaVersionId	hlaVersion
	)

virtual

Updates the federation name and federate handle used by the Assistant to help identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateLicenseServer ( const MAKRti::DtString & server )

virtual

Updates the license server used by this LRC.

Used by the Assistant to help other LRCs locate a license. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateLrcLogFile ( const MAKRti::DtFilename & file )

virtual

Updates the log file name used by this LRC.

This is sent to the Assistant so that it may display the log to interested users. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateLrcName ( const MAKRti::DtString & name )

virtual

Updates the name used by the Assistant to identify this LRC.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

virtual void DtRtiAssistantLrcClient::updateNetStats ( bool enabled )

virtual

Member Data Documentation

bool DtRtiAssistantLrcClient::isNetStatsEnabled

protected

MAKRti::DtString DtRtiAssistantLrcClient::myFederateName

protected

The federate name.

unsigned long DtRtiAssistantLrcClient::myFederationHandle

protected

This LRC's federation handle.

MAKRti::DtString DtRtiAssistantLrcClient::myFederationName

protected

This LRC's federation name.

unsigned long DtRtiAssistantLrcClient::myFedHandle

protected

This LRC's federate handle.

int DtRtiAssistantLrcClient::myForwarderPort

protected

The port the forwarder uses to connect to other forwarders.

bool DtRtiAssistantLrcClient::myFullCompliance

protected

Whether full compliance is enabled.

DtHlaVersionId DtRtiAssistantLrcClient::myHlaVersion

protected

The federate's HLA version.

MAKRti::DtString DtRtiAssistantLrcClient::myLicServer

protected

The license server used by this LRC.

MAKRti::DtFilename DtRtiAssistantLrcClient::myLogFile

protected

The name and full path of the log file.

MAKRti::DtString DtRtiAssistantLrcClient::myName

protected

The name the Assistant uses to identify this LRC.

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myTcpAddress

protected

The RTI TCP IP address (used for reliable communication).

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myTcpInterface

protected

The address of the network interface being used for UDP.

int DtRtiAssistantLrcClient::myTcpPort

protected

The RTI TCP port.

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myUdpAddr

protected

The RTI UDP IP address (used for best effort communication).

MAKRti::DtInetAddr DtRtiAssistantLrcClient::myUdpInterface

protected

The address of the network interface being used for UDP.

int DtRtiAssistantLrcClient::myUdpPort

protected

The RTI UDP port.

bool DtRtiAssistantLrcClient::myUseRtiexec

protected

Whether use of an rtiexec is enabled.

The documentation for this class was generated from the following file:

rtiAssistantLrcClient.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
