DtAddrMap Class Reference

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups. More...

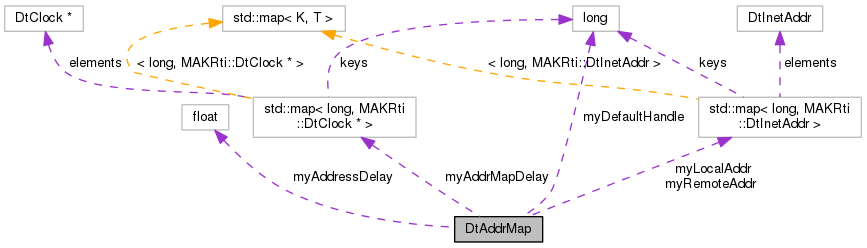

Collaboration diagram for DtAddrMap:

Public Member Functions
	DtAddrMap (long defaultHandle, float delayValue)
	Constructor. More...
virtual	~DtAddrMap ()
	Destructor. More...
virtual void	setDelay (float delayValue)
	Set/Get address delay. More...
virtual float	delay ()
virtual void	addLocalAddrMap (long handle, const MAKRti::DtInetAddr &addr)
	Add/Remove/Get mappings between handles and network addresses. More...
virtual void	removeLocalAddrMap (long handle)
virtual MAKRti::DtInetAddr	localAddrMap (long handle)
virtual void	addRemoteAddrMap (long handle, const MAKRti::DtInetAddr &addr)
virtual void	removeRemoteAddrMap (long handle)
virtual MAKRti::DtInetAddr	remoteAddrMap (long handle)
virtual void	addAddrMapDelay (long handle)
	Add/Remove/Query the delay status of an address map. More...
virtual void	removeAddrMapDelay (long handle)
virtual bool	addrMapDelayExpired (long handle)
virtual void	empty ()
	Empty mappings. More...

Protected Attributes
float	myAddressDelay
long	myDefaultHandle
std::map< long, MAKRti::DtInetAddr >	myLocalAddr
std::map< long, MAKRti::DtInetAddr >	myRemoteAddr
std::map< long, MAKRti::DtClock * >	myAddrMapDelay

Detailed Description

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups.

The mappings are delayed to allow the propgation to take effect.

Constructor & Destructor Documentation

DtAddrMap::DtAddrMap	(	long	defaultHandle,
		float	delayValue
	)

Constructor.

virtual DtAddrMap::~DtAddrMap ( )

virtual

Destructor.

Member Function Documentation

virtual void DtAddrMap::addAddrMapDelay ( long  handle )

virtual

Add/Remove/Query the delay status of an address map.

Address maps require some time to propagate to remote federates. Addresses used for sending data should be added to the delay pool. Query the pool to determine if the address can be used. Deleted or expired addressed should be removed.

virtual void DtAddrMap::addLocalAddrMap ( long  handle, const MAKRti::DtInetAddr &  addr  )

virtual

Add/Remove/Get mappings between handles and network addresses.

virtual void DtAddrMap::addRemoteAddrMap ( long  handle, const MAKRti::DtInetAddr &  addr  )

virtual

virtual bool DtAddrMap::addrMapDelayExpired ( long  handle )

virtual

float DtAddrMap::delay ( )

inlinevirtual

References myAddressDelay.

virtual void DtAddrMap::empty ( )

virtual

Empty mappings.

virtual MAKRti::DtInetAddr DtAddrMap::localAddrMap ( long  handle )

virtual

virtual MAKRti::DtInetAddr DtAddrMap::remoteAddrMap ( long  handle )

virtual

virtual void DtAddrMap::removeAddrMapDelay ( long  handle )

virtual

virtual void DtAddrMap::removeLocalAddrMap ( long  handle )

virtual

virtual void DtAddrMap::removeRemoteAddrMap ( long  handle )

virtual

virtual void DtAddrMap::setDelay ( float  delayValue )

virtual

Set/Get address delay.

Member Data Documentation

float DtAddrMap::myAddressDelay

protected

Referenced by delay().

std::map<long, MAKRti::DtClock*> DtAddrMap::myAddrMapDelay

protected

long DtAddrMap::myDefaultHandle

protected

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myLocalAddr

protected

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myRemoteAddr

protected

---

The documentation for this class was generated from the following file:

• addrMap.h
