Dialog that allows a user to enter connection information. More...

Inheritance diagram for DtAssistantAddLrcConnDialog:

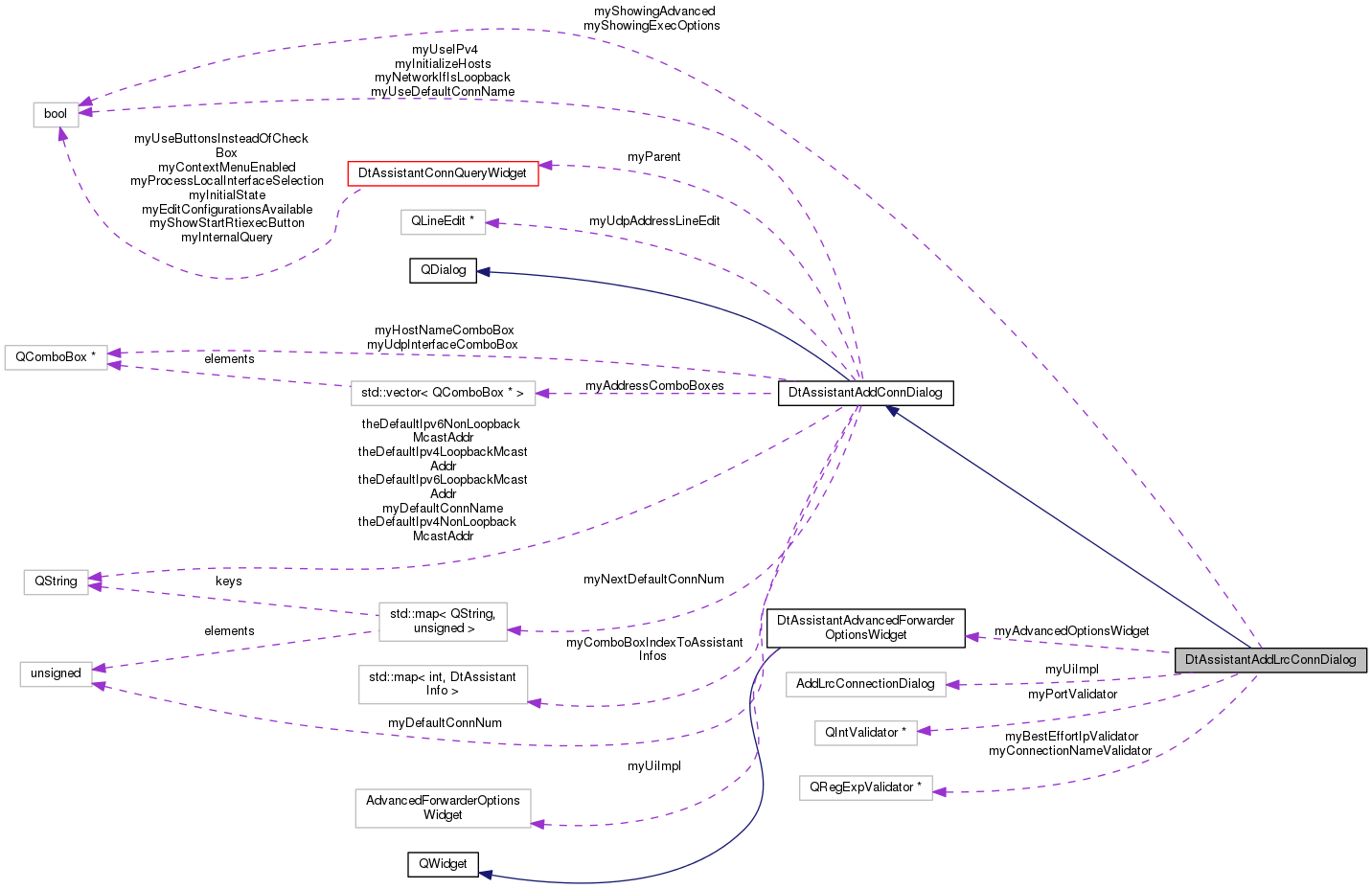

Collaboration diagram for DtAssistantAddLrcConnDialog:

Public Slots
virtual void	udpateDefaultConnName ()
	Updates the default connection name, if in use. More...

void	useRtiExecClicked (bool)
	toggles between showing advanced options and not. More...

void	toggleAdvanced ()
	Toggles between showing and hiding advanced config options. More...

Public Slots inherited from DtAssistantAddConnDialog
virtual void	ipV4Clicked (bool isChecked)
	Enforce IP V4 if checked. More...

virtual void	ipV6Clicked (bool isChecked)
	Enforce IP V6 if checked. More...

virtual void	resetNetworkInterfaces (int hostIndex)
	Reset the network interfaces for the selected host. More...

virtual void	selectUdpInterface (int intfIndex)
	Decides if a new value should be set for the UDP destination address based on a change to the UDP interface address. More...

Public Member Functions
	DtAssistantAddLrcConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor. More...

virtual	~DtAssistantAddLrcConnDialog ()
	Destructor. More...

virtual void	setData (const QString &hostName, const QString &tcpAddress, int tcpPort, const QString &udpAddress, int udpPort, const QString &udpInterface, const QString &additionalForwarderToConnectTo, int forwarderPort, bool useRtiexec, bool isIPv4)
	Sets the data in the dialog. More...

virtual void	setName (const QString &connName)
	Sets the name for the connection in the dialog. More...

virtual void	getData (QString &connName, QString &hostName, QString &tcpAddress, int &tcpPort, QString &udpAddress, int &udpPort, QString &udpInterface, QString &additionalForwarderToConnectTo, int &forwarderPort, bool &useRtiexec)
	Gets the data in the dialog. More...

Public Member Functions inherited from DtAssistantAddConnDialog
	DtAssistantAddConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor. More...

virtual	~DtAssistantAddConnDialog ()
	Destructor. More...

virtual void	enableDefaultConnName ()
	Enables the construction of the default connection name, instead using user entered name. More...

virtual void	disableDefaultConnName ()
	Disables the construction of the default connection name, instead using user entered name. More...

virtual void	storeNextDefaultConnNum ()
	Saves the next default connection number to be used for the current default connection name. More...

virtual void	clearDefaultConnNum ()
	Saves the next connection number to be used for the current default connection name. More...

virtual bool	isLoopbackAddress (const QString &address) const
	Returns true if the given IP address is a loopback address. More...

virtual bool	isIpv6Address (const QString &address) const
	Returns true if the given IP address is an IPv6 address. More...

virtual bool	isLoopbackDestination (const QString &address) const
	Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address. More...

virtual int	addAssistantHost (const DtAssistantInfo &assistant)
	Add the host name of the given assistant to the host name combo box Return the index of the added host name. More...

virtual void	removeAssistantHost (const DtAssistantInfo &assistant)
	Remove the host name of the given assistant from the host name combo box. More...

Protected Member Functions
virtual void	redraw ()
	Redraw the display hiding and showing things as necessary. More...

Protected Member Functions inherited from DtAssistantAddConnDialog
virtual bool	getDefaultRtiexecConnName (QString &name, const QString &host)
	Determines the new default connection name for an rtiexec connection. More...

virtual bool	getDefaultLightweightConnName (QString &name)
	Determines the new default connection name for a lightweight connection. More...

virtual void	setNetworkInterfaceAddrs (const QStringList &networkInterfaceAddrs)
	Set the network interfaces in the appropriate UI combo boxes. More...

virtual int	compatibleUdpInterface (const QString &udpDestinationAddress, QComboBox *comboBox)
	Return the index to a compatible UDP interface. More...

Protected Attributes
Ui::AddLrcConnectionDialog	myUiImpl
	The GUI implementation of the widget. More...

bool	myShowingAdvanced
	Whether or not the advanced options are currently shown. More...

bool	myShowingExecOptions
	Whether or not the exec options are being shown. More...

DtAssistantAdvancedForwarderOptionsWidget *	myAdvancedOptionsWidget
	Widget which displays advanced forwarder options. More...


QRegExpValidator *	myBestEffortIpValidator
	Validators to check the input of the line edit boxes. More...

QIntValidator *	myPortValidator
	Validators to check the input of the line edit boxes. More...

QRegExpValidator *	myConnectionNameValidator
	Validators to check the input of the line edit boxes. More...

Protected Attributes inherited from DtAssistantAddConnDialog
DtAssistantConnQueryWidget *	myParent
	The parent of this dialog. More...

bool	myUseDefaultConnName
	Indicates that no user supplied connection name was specified, so the default should be displayed and used. More...

std::map< QString, unsigned >	myNextDefaultConnNum
	The next number to use to differentiate connections with the same default name, mapped by name. More...

unsigned	myDefaultConnNum
	The default connection name number currently being used. More...

QString	myDefaultConnName
	The base string for the default connection name currently being used. More...

bool	myUseIPv4
	Specify which family of addresses to use (if not IPv4 then IPv6) More...

bool	myInitializeHosts
	Indicates host names are being initialized. More...

bool	myNetworkIfIsLoopback
	Stores whether the previous network interface was a loopback address. More...

std::vector< QComboBox * >	myAddressComboBoxes
	The network interface combo boxes. More...

QComboBox *	myHostNameComboBox
	The host name combo box. More...

QLineEdit *	myUdpAddressLineEdit
	The UDP address line edit. More...

QComboBox *	myUdpInterfaceComboBox
	The UDP interface combo box. More...

DtIndexToAssistantInfoMap	myComboBoxIndexToAssistantInfos

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantAddConnDialog
static const QString	theDefaultIpv4LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv4NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv6LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv6NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

Detailed Description

Dialog that allows a user to enter connection information.

Constructor & Destructor Documentation

DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog	(	DtAssistantConnQueryWidget *	parent,
		Qt::WindowFlags	f = `0`
	)

Constructor.

virtual DtAssistantAddLrcConnDialog::~DtAssistantAddLrcConnDialog ( )

virtual

Destructor.

Member Function Documentation

virtual void DtAssistantAddLrcConnDialog::getData	(	QString &	connName,
		QString &	hostName,
		QString &	tcpAddress,
		int &	tcpPort,
		QString &	udpAddress,
		int &	udpPort,
		QString &	udpInterface,
		QString &	additionalForwarderToConnectTo,
		int &	forwarderPort,
		bool &	useRtiexec
	)

virtual

Gets the data in the dialog.

virtual void DtAssistantAddLrcConnDialog::redraw ( )

protectedvirtual

Redraw the display hiding and showing things as necessary.

virtual void DtAssistantAddLrcConnDialog::setData	(	const QString &	hostName,
		const QString &	tcpAddress,
		int	tcpPort,
		const QString &	udpAddress,
		int	udpPort,
		const QString &	udpInterface,
		const QString &	additionalForwarderToConnectTo,
		int	forwarderPort,
		bool	useRtiexec,
		bool	isIPv4
	)

virtual

Sets the data in the dialog.

virtual void DtAssistantAddLrcConnDialog::setName ( const QString & connName )

virtual

Sets the name for the connection in the dialog.

void DtAssistantAddLrcConnDialog::toggleAdvanced ( )

slot

Toggles between showing and hiding advanced config options.

virtual void DtAssistantAddLrcConnDialog::udpateDefaultConnName ( )

virtualslot

Updates the default connection name, if in use.

void DtAssistantAddLrcConnDialog::useRtiExecClicked ( bool )

slot

toggles between showing advanced options and not.

Member Data Documentation

DtAssistantAdvancedForwarderOptionsWidget* DtAssistantAddLrcConnDialog::myAdvancedOptionsWidget

protected

Widget which displays advanced forwarder options.

QRegExpValidator* DtAssistantAddLrcConnDialog::myBestEffortIpValidator

protected

Validators to check the input of the line edit boxes.

QRegExpValidator* DtAssistantAddLrcConnDialog::myConnectionNameValidator

protected

Validators to check the input of the line edit boxes.

QIntValidator* DtAssistantAddLrcConnDialog::myPortValidator

protected

Validators to check the input of the line edit boxes.

bool DtAssistantAddLrcConnDialog::myShowingAdvanced

protected

Whether or not the advanced options are currently shown.

bool DtAssistantAddLrcConnDialog::myShowingExecOptions

protected

Whether or not the exec options are being shown.

Ui::AddLrcConnectionDialog DtAssistantAddLrcConnDialog::myUiImpl

protected

The GUI implementation of the widget.

The documentation for this class was generated from the following file:

addLrcConnectionDialog.h
