An abstract base class which must be implemented, and used by a federate. More...

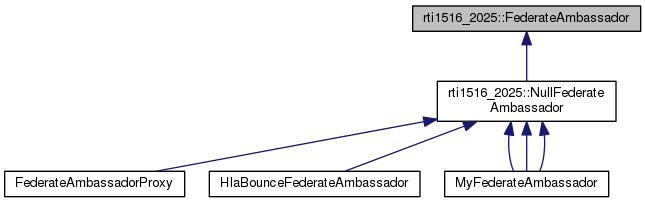

Inheritance diagram for rti1516_2025::FederateAmbassador:

Public Member Functions
virtual	~FederateAmbassador () noexcept=0

virtual void	connectionLost (std::wstring const &faultDescription)=0
	4.4 More...

virtual void	reportFederationExecutions (FederationExecutionInformationVector const &report)=0
	4.8 More...

virtual void	reportFederationExecutionMembers (std::wstring const &federationName, FederationExecutionMemberInformationVector const &report)=0
	4.10 More...

virtual void	reportFederationExecutionDoesNotExist (std::wstring const &federationName)=0
	4.11 More...

virtual void	federateResigned (std::wstring const &reasonForResignDescription)=0
	4.13 More...

virtual void	synchronizationPointRegistrationSucceeded (std::wstring const &synchronizationPointLabel)=0
	4.15 More...

virtual void	synchronizationPointRegistrationFailed (std::wstring const &synchronizationPointLabel, SynchronizationPointFailureReason reason)=0
	4.15 More...

virtual void	announceSynchronizationPoint (std::wstring const &synchronizationPointLabel, VariableLengthData const &userSuppliedTag)=0
	4.16 More...

virtual void	federationSynchronized (std::wstring const &synchronizationPointLabel, FederateHandleSet const &failedToSyncSet)=0
	4.18 More...

virtual void	initiateFederateSave (std::wstring const &label)=0
	4.20 More...

virtual void	initiateFederateSave (std::wstring const &label, LogicalTime const &time)=0
	4.20 More...

virtual void	federationSaved ()=0
	4.23 More...

virtual void	federationNotSaved (SaveFailureReason reason)=0
	4.23 More...

virtual void	federationSaveStatusResponse (FederateHandleSaveStatusPairVector const &response)=0
	4.26 More...

virtual void	requestFederationRestoreSucceeded (std::wstring const &label)=0
	4.28 More...

virtual void	requestFederationRestoreFailed (std::wstring const &label)=0
	4.28 More...

virtual void	federationRestoreBegun ()=0
	4.29 More...

virtual void	initiateFederateRestore (std::wstring const &label, std::wstring const &federateName, FederateHandle const &postRestoreFederateHandle)=0
	4.30 More...

virtual void	federationRestored ()=0
	4.32 More...

virtual void	federationNotRestored (RestoreFailureReason reason)=0
	4.32 More...

virtual void	federationRestoreStatusResponse (FederateRestoreStatusVector const &response)=0
	4.35 More...

virtual void	startRegistrationForObjectClass (ObjectClassHandle const &objectClass)=0
	5.14 More...

virtual void	stopRegistrationForObjectClass (ObjectClassHandle const &objectClass)=0
	5.15 More...

virtual void	turnInteractionsOn (InteractionClassHandle const &interactionClass)=0
	5.16 More...

virtual void	turnInteractionsOff (InteractionClassHandle const &interactionClass)=0
	5.17 More...

virtual void	objectInstanceNameReservationSucceeded (std::wstring const &objectInstanceName)=0
	6.3 More...

virtual void	objectInstanceNameReservationFailed (std::wstring const &objectInstanceName)=0
	6.3 More...

virtual void	multipleObjectInstanceNameReservationSucceeded (std::set< std::wstring > const &objectInstanceNames)=0
	6.6 More...

virtual void	multipleObjectInstanceNameReservationFailed (std::set< std::wstring > const &objectInstanceNames)=0
	6.6 More...

virtual void	discoverObjectInstance (ObjectInstanceHandle const &objectInstance, ObjectClassHandle const &objectClass, std::wstring const &objectInstanceName, FederateHandle const &producingFederate)=0
	6.9 More...

virtual void	reflectAttributeValues (ObjectInstanceHandle const &objectInstance, AttributeHandleValueMap const &attributeValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate, RegionHandleSet const *optionalSentRegions)=0
	6.11 More...

virtual void	reflectAttributeValues (ObjectInstanceHandle const &objectInstance, AttributeHandleValueMap const &attributeValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate, RegionHandleSet const optionalSentRegions, LogicalTime const &time, OrderType sentOrderType, OrderType receivedOrderType, MessageRetractionHandle const optionalRetraction)=0
	6.11 More...

virtual void	receiveInteraction (InteractionClassHandle const &interactionClass, ParameterHandleValueMap const &parameterValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate, const RegionHandleSet *optionalSentRegions)=0
	6.13 More...

virtual void	receiveInteraction (InteractionClassHandle const &interactionClass, ParameterHandleValueMap const &parameterValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate, RegionHandleSet const optionalSentRegions, LogicalTime const &time, OrderType sentOrderType, OrderType receivedOrderType, MessageRetractionHandle const optionalRetraction)=0
	6.13 More...

virtual void	receiveDirectedInteraction (InteractionClassHandle const &interactionClass, ObjectInstanceHandle const &objectInstance, ParameterHandleValueMap const &parameterValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate)=0
	6.15 More...

virtual void	receiveDirectedInteraction (InteractionClassHandle const &interactionClass, ObjectInstanceHandle const &objectInstance, ParameterHandleValueMap const &parameterValues, VariableLengthData const &userSuppliedTag, TransportationTypeHandle const &transportationType, FederateHandle const &producingFederate, LogicalTime const &time, OrderType sentOrderType, OrderType receivedOrderType, MessageRetractionHandle const *optionalRetraction)=0
	6.15 More...

virtual void	removeObjectInstance (ObjectInstanceHandle const &objectInstance, VariableLengthData const &userSuppliedTag, FederateHandle const &producingFederate)=0
	6.17 More...

virtual void	removeObjectInstance (ObjectInstanceHandle const &objectInstance, VariableLengthData const &userSuppliedTag, FederateHandle const &producingFederate, LogicalTime const &time, OrderType sentOrderType, OrderType receivedOrderType, MessageRetractionHandle const *optionalRetraction)=0
	6.17 More...

virtual void	attributesInScope (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	6.19 More...

virtual void	attributesOutOfScope (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	6.20 More...

virtual void	provideAttributeValueUpdate (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes, VariableLengthData const &userSuppliedTag)=0
	6.22 More...

virtual void	turnUpdatesOnForObjectInstance (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	6.23 More...

virtual void	turnUpdatesOnForObjectInstance (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes, std::wstring const &updateRateDesignator)=0
	6.23 More...

virtual void	turnUpdatesOffForObjectInstance (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	6.24 More...

virtual void	confirmAttributeTransportationTypeChange (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes, TransportationTypeHandle const &transportationType)=0
	6.26 More...

virtual void	reportAttributeTransportationType (ObjectInstanceHandle const &objectInstance, AttributeHandle const &attribute, TransportationTypeHandle const &transportationType)=0
	6.29 More...

virtual void	confirmInteractionTransportationTypeChange (InteractionClassHandle const &interactionClass, TransportationTypeHandle const &transportationType)=0
	6.31 More...

virtual void	reportInteractionTransportationType (FederateHandle const &federate, InteractionClassHandle const &interactionClass, TransportationTypeHandle const &transportationType)=0
	6.33 More...

virtual void	requestAttributeOwnershipAssumption (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &offeredAttributes, VariableLengthData const &userSuppliedTag)=0
	7.4 More...

virtual void	requestDivestitureConfirmation (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &releasedAttributes, VariableLengthData const &userSuppliedTag)=0
	7.5 More...

virtual void	attributeOwnershipAcquisitionNotification (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &securedAttributes, VariableLengthData const &userSuppliedTag)=0
	7.7 More...

virtual void	attributeOwnershipUnavailable (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes, VariableLengthData const &userSuppliedTag)=0
	7.10 More...

virtual void	requestAttributeOwnershipRelease (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &candidateAttributes, VariableLengthData const &userSuppliedTag)=0
	7.11 More...

virtual void	confirmAttributeOwnershipAcquisitionCancellation (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	7.16 More...

virtual void	informAttributeOwnership (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes, FederateHandle const &owner)=0
	7.18 More...

virtual void	attributeIsNotOwned (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	7.18 More...

virtual void	attributeIsOwnedByRTI (ObjectInstanceHandle const &objectInstance, AttributeHandleSet const &attributes)=0
	7.18 More...

virtual void	timeRegulationEnabled (LogicalTime const &time)=0
	8.3 More...

virtual void	timeConstrainedEnabled (LogicalTime const &time)=0
	8.6 More...

virtual void	flushQueueGrant (LogicalTime const &time, LogicalTime const &optimisticTime)=0
	8.13 More...

virtual void	timeAdvanceGrant (LogicalTime const &time)=0
	8.14 More...

virtual void	requestRetraction (MessageRetractionHandle const &retraction)=0
	8.23 More...

Protected Member Functions
	FederateAmbassador ()

Detailed Description

An abstract base class which must be implemented, and used by a federate.

This is the second significant class in the C++ specification, which provides the communication mechanisim for the RTI to communicate with the Federate.

Constructor & Destructor Documentation

rti1516_2025::FederateAmbassador::FederateAmbassador ( )

protected

virtual rti1516_2025::FederateAmbassador::~FederateAmbassador ( )

pure virtualnoexcept

Member Function Documentation

virtual void rti1516_2025::FederateAmbassador::announceSynchronizationPoint	(	std::wstring const &	synchronizationPointLabel,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

4.16

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, and rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributeIsNotOwned	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

7.18

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributeIsOwnedByRTI	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

7.18

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributeOwnershipAcquisitionNotification	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	securedAttributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

7.7

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributeOwnershipUnavailable	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

7.10

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributesInScope	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

6.19

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::attributesOutOfScope	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

6.20

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::confirmAttributeOwnershipAcquisitionCancellation	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

7.16

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::confirmAttributeTransportationTypeChange	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes,
		TransportationTypeHandle const &	transportationType
	)

pure virtual

6.26

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::confirmInteractionTransportationTypeChange	(	InteractionClassHandle const &	interactionClass,
		TransportationTypeHandle const &	transportationType
	)

pure virtual

6.31

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::connectionLost ( std::wstring const & faultDescription )

pure virtual

4.4

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, MyFederateAmbassador, FederateAmbassadorProxy, rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::discoverObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		ObjectClassHandle const &	objectClass,
		std::wstring const &	objectInstanceName,
		FederateHandle const &	producingFederate
	)

pure virtual

6.9

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federateResigned ( std::wstring const & reasonForResignDescription )

pure virtual

4.13

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, rti1516_2025::NullFederateAmbassador, FederateAmbassadorProxy, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationNotRestored ( RestoreFailureReason reason )

pure virtual

4.32

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationNotSaved ( SaveFailureReason reason )

pure virtual

4.23

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationRestoreBegun ( )

pure virtual

4.29

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationRestored ( )

pure virtual

4.32

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationRestoreStatusResponse ( FederateRestoreStatusVector const & response )

pure virtual

4.35

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationSaved ( )

pure virtual

4.23

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationSaveStatusResponse ( FederateHandleSaveStatusPairVector const & response )

pure virtual

4.26

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::federationSynchronized	(	std::wstring const &	synchronizationPointLabel,
		FederateHandleSet const &	failedToSyncSet
	)

pure virtual

4.18

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, and rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::flushQueueGrant	(	LogicalTime const &	time,
		LogicalTime const &	optimisticTime
	)

pure virtual

8.13

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::informAttributeOwnership	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes,
		FederateHandle const &	owner
	)

pure virtual

7.18

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::initiateFederateRestore	(	std::wstring const &	label,
		std::wstring const &	federateName,
		FederateHandle const &	postRestoreFederateHandle
	)

pure virtual

4.30

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::initiateFederateSave ( std::wstring const & label )

pure virtual

4.20

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::initiateFederateSave	(	std::wstring const &	label,
		LogicalTime const &	time
	)

pure virtual

4.20

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::multipleObjectInstanceNameReservationFailed ( std::set< std::wstring > const & objectInstanceNames )

pure virtual

6.6

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, FederateAmbassadorProxy, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::multipleObjectInstanceNameReservationSucceeded ( std::set< std::wstring > const & objectInstanceNames )

pure virtual

6.6

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, FederateAmbassadorProxy, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::objectInstanceNameReservationFailed ( std::wstring const & objectInstanceName )

pure virtual

6.3

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, FederateAmbassadorProxy, MyFederateAmbassador, MyFederateAmbassador, HlaBounceFederateAmbassador, HlaBounceFederateAmbassador, and HlaBounceFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::objectInstanceNameReservationSucceeded ( std::wstring const & objectInstanceName )

pure virtual

6.3

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, FederateAmbassadorProxy, MyFederateAmbassador, MyFederateAmbassador, MyFederateAmbassador, HlaBounceFederateAmbassador, HlaBounceFederateAmbassador, and HlaBounceFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::provideAttributeValueUpdate	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

6.22

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::receiveDirectedInteraction	(	InteractionClassHandle const &	interactionClass,
		ObjectInstanceHandle const &	objectInstance,
		ParameterHandleValueMap const &	parameterValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate
	)

pure virtual

6.15

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::receiveDirectedInteraction	(	InteractionClassHandle const &	interactionClass,
		ObjectInstanceHandle const &	objectInstance,
		ParameterHandleValueMap const &	parameterValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate,
		LogicalTime const &	time,
		OrderType	sentOrderType,
		OrderType	receivedOrderType,
		MessageRetractionHandle const *	optionalRetraction
	)

pure virtual

6.15

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::receiveInteraction	(	InteractionClassHandle const &	interactionClass,
		ParameterHandleValueMap const &	parameterValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate,
		const RegionHandleSet *	optionalSentRegions
	)

pure virtual

6.13

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::receiveInteraction	(	InteractionClassHandle const &	interactionClass,
		ParameterHandleValueMap const &	parameterValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate,
		RegionHandleSet const *	optionalSentRegions,
		LogicalTime const &	time,
		OrderType	sentOrderType,
		OrderType	receivedOrderType,
		MessageRetractionHandle const *	optionalRetraction
	)

pure virtual

6.13

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reflectAttributeValues	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleValueMap const &	attributeValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate,
		RegionHandleSet const *	optionalSentRegions
	)

pure virtual

6.11

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reflectAttributeValues	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleValueMap const &	attributeValues,
		VariableLengthData const &	userSuppliedTag,
		TransportationTypeHandle const &	transportationType,
		FederateHandle const &	producingFederate,
		RegionHandleSet const *	optionalSentRegions,
		LogicalTime const &	time,
		OrderType	sentOrderType,
		OrderType	receivedOrderType,
		MessageRetractionHandle const *	optionalRetraction
	)

pure virtual

6.11

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::removeObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		VariableLengthData const &	userSuppliedTag,
		FederateHandle const &	producingFederate
	)

pure virtual

6.17

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::removeObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		VariableLengthData const &	userSuppliedTag,
		FederateHandle const &	producingFederate,
		LogicalTime const &	time,
		OrderType	sentOrderType,
		OrderType	receivedOrderType,
		MessageRetractionHandle const *	optionalRetraction
	)

pure virtual

6.17

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reportAttributeTransportationType	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandle const &	attribute,
		TransportationTypeHandle const &	transportationType
	)

pure virtual

6.29

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reportFederationExecutionDoesNotExist ( std::wstring const & federationName )

pure virtual

4.11

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, FederateAmbassadorProxy, rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reportFederationExecutionMembers	(	std::wstring const &	federationName,
		FederationExecutionMemberInformationVector const &	report
	)

pure virtual

4.10

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, FederateAmbassadorProxy, rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reportFederationExecutions ( FederationExecutionInformationVector const & report )

pure virtual

4.8

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, FederateAmbassadorProxy, rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::reportInteractionTransportationType	(	FederateHandle const &	federate,
		InteractionClassHandle const &	interactionClass,
		TransportationTypeHandle const &	transportationType
	)

pure virtual

6.33

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestAttributeOwnershipAssumption	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	offeredAttributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

7.4

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestAttributeOwnershipRelease	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	candidateAttributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

7.11

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestDivestitureConfirmation	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	releasedAttributes,
		VariableLengthData const &	userSuppliedTag
	)

pure virtual

7.5

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestFederationRestoreFailed ( std::wstring const & label )

pure virtual

4.28

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestFederationRestoreSucceeded ( std::wstring const & label )

pure virtual

4.28

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::requestRetraction ( MessageRetractionHandle const & retraction )

pure virtual

8.23

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::startRegistrationForObjectClass ( ObjectClassHandle const & objectClass )

pure virtual

5.14

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::stopRegistrationForObjectClass ( ObjectClassHandle const & objectClass )

pure virtual

5.15

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::synchronizationPointRegistrationFailed	(	std::wstring const &	synchronizationPointLabel,
		SynchronizationPointFailureReason	reason
	)

pure virtual

4.15

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, and rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::synchronizationPointRegistrationSucceeded ( std::wstring const & synchronizationPointLabel )

pure virtual

4.15

Exceptions

FederateInternalError

Implemented in MyFederateAmbassador, MyFederateAmbassador, and rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::timeAdvanceGrant ( LogicalTime const & time )

pure virtual

8.14

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::timeConstrainedEnabled ( LogicalTime const & time )

pure virtual

8.6

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::timeRegulationEnabled ( LogicalTime const & time )

pure virtual

8.3

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador, and MyFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::turnInteractionsOff ( InteractionClassHandle const & interactionClass )

pure virtual

5.17

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::turnInteractionsOn ( InteractionClassHandle const & interactionClass )

pure virtual

5.16

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::turnUpdatesOffForObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

6.24

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::turnUpdatesOnForObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes
	)

pure virtual

6.23

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

virtual void rti1516_2025::FederateAmbassador::turnUpdatesOnForObjectInstance	(	ObjectInstanceHandle const &	objectInstance,
		AttributeHandleSet const &	attributes,
		std::wstring const &	updateRateDesignator
	)

pure virtual

6.23

Exceptions

FederateInternalError

Implemented in rti1516_2025::NullFederateAmbassador.

The documentation for this class was generated from the following file:

FederateAmbassador.h

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
