DtRtiSmSocket Class Reference

DtRtiSmSocket provides access to shared memory via a subscribable message queue tailored to the need of the RTI. More...

Inheritance diagram for DtRtiSmSocket:

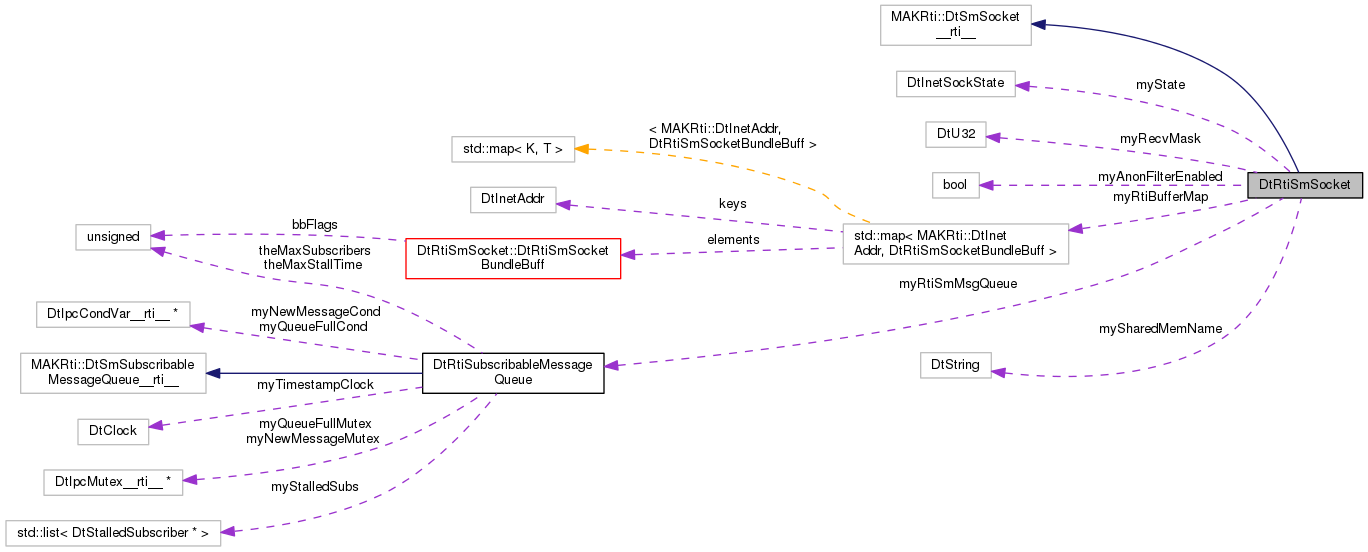

Collaboration diagram for DtRtiSmSocket:

Classes
class	DtRtiSmSocketBundleBuff

Public Member Functions
	DtRtiSmSocket (const char *sharename, std::shared_ptr< DtMsgHeaderReader > hdrReader)
virtual	~DtRtiSmSocket ()
virtual bool	initializeSmQueue (MAKRti::DtU32 id=DtSM_INVALID_SUBSCRIBER_ID, bool forceSubscribe=false)
	Attach to RTI specific variant of shared memory message queue. More...
virtual bool	initializeSmQueue (MAKRti::DtU32 numBuckets, MAKRti::DtU32 payloadSize, bool reliableQueue, MAKRti::DtU32 id=DtSM_INVALID_SUBSCRIBER_ID, bool forceSubscribe=false)
	The following version of initializeSmQueue() is specific to management of the shared memory subscribable message queue which the socket interfaces with. More...
virtual int	sendMessage (caddr_t msg, size_t msgSize, bool deleteAfterSend, unsigned int flags, const MAKRti::DtInetAddr &destAddr=MAKRti::DtInetAddr::inaddrAny())
	The send method takes an extra flags parameter which identifies the transport method (DtReliable or DtBestEffort) and priority. More...
virtual bool	flush ()
	Send buffered messages. More...
virtual int	getMsgTransportInfo (MAKRti::DtInetAddr *addr, MAKRti::DtU32 *transAndPriority)
	This receive method returns the size of the next message in shared memory as well as additional information needed by a forwarder or shared memory queue manager net I/O handler to pass messages to the network. More...
virtual MAKRti::DtSmSubscribableMessageQueue__rti__ *	msgQueue () const
	Return pointer to the attached queue. More...
virtual bool	queueIsReliable () const
	Query the queue to see if it is configured to operate in reliable mode. More...
virtual int	waitForMessages (MAKRti::DtTime waitTime=0.0)
	These methods are substitutes for using 'select()' calls on net sockets to check for messages. More...
virtual int	waitUntilFull (MAKRti::DtTime waitTime=0.0)
	Wait (block) for the specified time until the shared memory is full. More...
virtual void	setReceiveMask (MAKRti::DtU32 rcvMask)
	Set the message retrieval characteristics for this socket. More...
virtual void	setAnonFilter (bool onOrOff)
	Enable or disable filtering of anonymous MOM messages. More...
virtual MAKRti::DtInetSockState	state () const
	Returns the state of the socket. More...

Protected Types
typedef std::vector< char >	Buffer
typedef std::map < MAKRti::DtInetAddr, DtRtiSmSocketBundleBuff >	RtiBufferMap

Protected Member Functions
	DtRtiSmSocket (const DtRtiSmSocket &)
	Not Implemented. More...
DtRtiSmSocket &	operator= (const DtRtiSmSocket &)
	Not Implemented. More...
virtual int	recv (caddr_t *buffptr, MAKRti::DtInetEndpoint *ep)
virtual bool	filterAnonMsgs (caddr_t buffptr, MAKRti::DtU32 msgSenderId)

Protected Attributes
MAKRti::DtString	mySharedMemName
DtRtiSubscribableMessageQueue *	myRtiSmMsgQueue
MAKRti::DtU32	myRecvMask
bool	myAnonFilterEnabled
RtiBufferMap	myRtiBufferMap
MAKRti::DtInetSockState	myState
	The current state of the socket. More...

Friends
class	DtRtiSmSocketBundleBuff

Detailed Description

DtRtiSmSocket provides access to shared memory via a subscribable message queue tailored to the need of the RTI.

DtRtiSmSocket isn't really a socket in the classical 'BSD sockets' sense. It is an interface abstraction that mirrors socket functionality to allow applications to easily use either network I/O or shared memory for communication using the same general interface. Where this flexibility is not a paramount concern direct access to the subscribable message queue is more efficient.

Member Typedef Documentation

typedef std::vector<char> DtRtiSmSocket::Buffer

protected

typedef std::map< MAKRti::DtInetAddr, DtRtiSmSocketBundleBuff > DtRtiSmSocket::RtiBufferMap

protected

Constructor & Destructor Documentation

DtRtiSmSocket::DtRtiSmSocket	(	const char *	sharename,
		std::shared_ptr< DtMsgHeaderReader >	hdrReader
	)

virtual DtRtiSmSocket::~DtRtiSmSocket ( )

virtual

DtRtiSmSocket::DtRtiSmSocket ( const DtRtiSmSocket &  )

protected

Not Implemented.

Member Function Documentation

virtual bool DtRtiSmSocket::filterAnonMsgs ( caddr_t  buffptr, MAKRti::DtU32  msgSenderId  )

protectedvirtual

virtual bool DtRtiSmSocket::flush ( )

virtual

Send buffered messages.

Returns indication of whether flush is complete or incomplete.

virtual int DtRtiSmSocket::getMsgTransportInfo ( MAKRti::DtInetAddr *  addr, MAKRti::DtU32 *  transAndPriority  )

virtual

This receive method returns the size of the next message in shared memory as well as additional information needed by a forwarder or shared memory queue manager net I/O handler to pass messages to the network.

virtual bool DtRtiSmSocket::initializeSmQueue ( MAKRti::DtU32  id = DtSM_INVALID_SUBSCRIBER_ID, bool  forceSubscribe = false  )

virtual

Attach to RTI specific variant of shared memory message queue.

If 'id' is not specified one will be assigned automatically. For use by non- manager subscribers.

virtual bool DtRtiSmSocket::initializeSmQueue ( MAKRti::DtU32  numBuckets, MAKRti::DtU32  payloadSize, bool  reliableQueue, MAKRti::DtU32  id = DtSM_INVALID_SUBSCRIBER_ID, bool  forceSubscribe = false  )

virtual

The following version of initializeSmQueue() is specific to management of the shared memory subscribable message queue which the socket interfaces with.

These should only be used by a queue manager, not by ordinary subscribers. It must be called once and only once prior to use of the message queue.

virtual MAKRti::DtSmSubscribableMessageQueue__rti__* DtRtiSmSocket::msgQueue ( ) const

virtual

Return pointer to the attached queue.

DtRtiSmSocket& DtRtiSmSocket::operator= ( const DtRtiSmSocket &  )

protected

Not Implemented.

virtual bool DtRtiSmSocket::queueIsReliable ( ) const

virtual

Query the queue to see if it is configured to operate in reliable mode.

virtual int DtRtiSmSocket::recv ( caddr_t *  buffptr, MAKRti::DtInetEndpoint *  ep  )

protectedvirtual

virtual int DtRtiSmSocket::sendMessage ( caddr_t  msg, size_t  msgSize, bool  deleteAfterSend, unsigned int  flags, const MAKRti::DtInetAddr &  destAddr = MAKRti::DtInetAddr::inaddrAny()  )

virtual

The send method takes an extra flags parameter which identifies the transport method (DtReliable or DtBestEffort) and priority.

virtual void DtRtiSmSocket::setAnonFilter ( bool  onOrOff )

virtual

Enable or disable filtering of anonymous MOM messages.

Enabled by default for federate LRCs employing shared memory. Must be disabled by shared memory queue manager connection manager to allow these messages to be forwarded to the network.

virtual void DtRtiSmSocket::setReceiveMask ( MAKRti::DtU32  rcvMask )

virtual

Set the message retrieval characteristics for this socket.

Options allow for all messages or only a subset of messages in shared memory to be retrieved based on message originator, transport method, or priority

virtual MAKRti::DtInetSockState DtRtiSmSocket::state ( ) const

virtual

Returns the state of the socket.

virtual int DtRtiSmSocket::waitForMessages ( MAKRti::DtTime  waitTime = 0.0 )

virtual

These methods are substitutes for using 'select()' calls on net sockets to check for messages.

The Win32 implementation of shared memory does not provide a way to get a file descriptor suitable for use in a select() call (shm_open() should work in Unix/Linux). Wait (block) for the specified time until a message can be read. Return status: 0 if messages are ready, > 0 if wait expired, or < 0 if error

virtual int DtRtiSmSocket::waitUntilFull ( MAKRti::DtTime  waitTime = 0.0 )

virtual

Wait (block) for the specified time until the shared memory is full.

Return status: 0 if full, > 0 if wait expired, or < 0 if error

Friends And Related Function Documentation

friend class DtRtiSmSocketBundleBuff

friend

Member Data Documentation

bool DtRtiSmSocket::myAnonFilterEnabled

protected

MAKRti::DtU32 DtRtiSmSocket::myRecvMask

protected

RtiBufferMap DtRtiSmSocket::myRtiBufferMap

protected

DtRtiSubscribableMessageQueue* DtRtiSmSocket::myRtiSmMsgQueue

protected

MAKRti::DtString DtRtiSmSocket::mySharedMemName

protected

MAKRti::DtInetSockState DtRtiSmSocket::myState

protected

The current state of the socket.

---

The documentation for this class was generated from the following file:

• rtiSmSocket.h
