Compiles network component information from RTI Forwarders. More...

Inheritance diagram for DtAssistantForwarderCompInfoMgr:

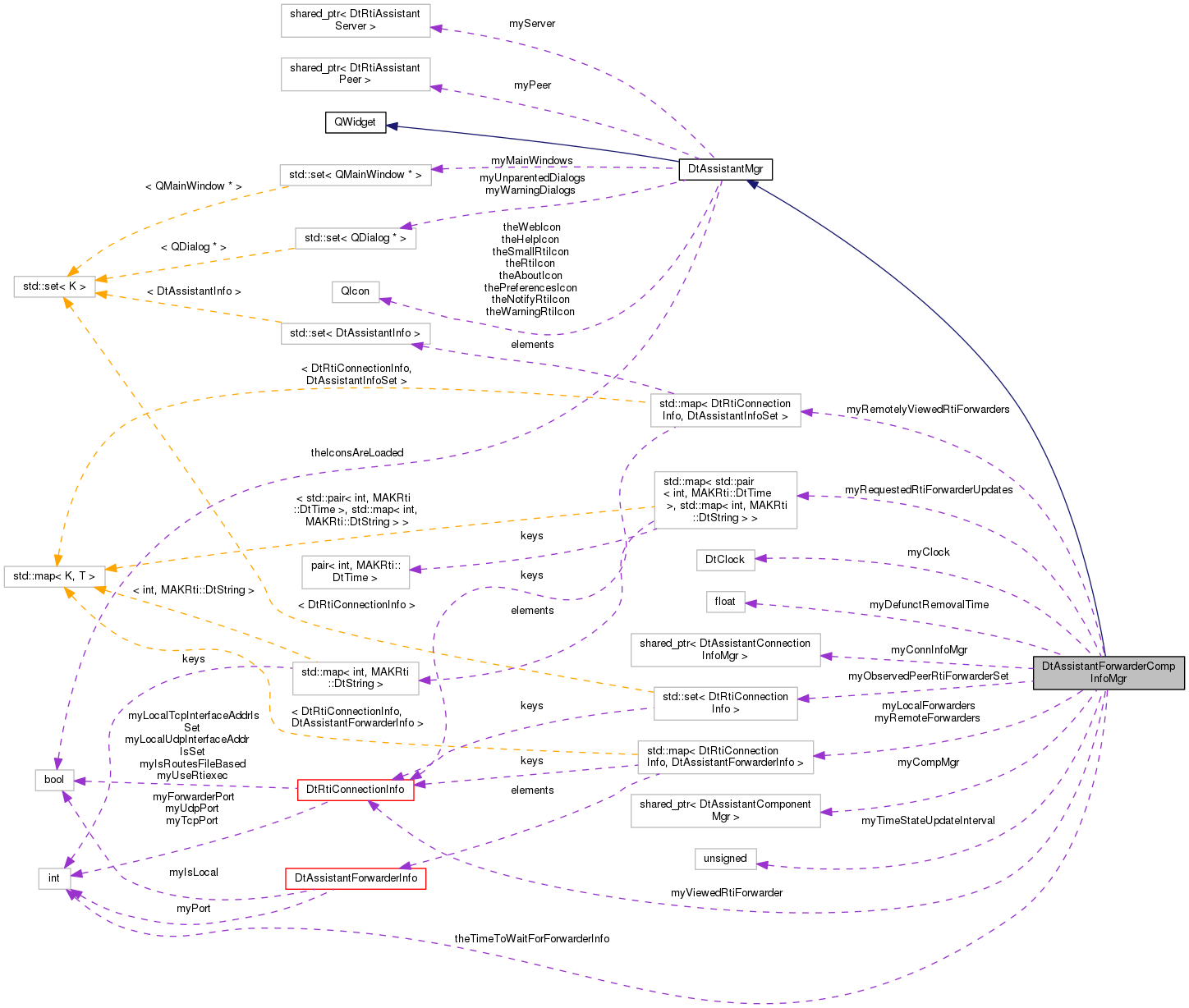

Collaboration diagram for DtAssistantForwarderCompInfoMgr:

Public Slots
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes changes in connection state. More...

void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes removal of known connections. More...

void	sendAllForwarderInfo ()
	Sends udpate message for all local conns to remote assistants. More...

void	sendObserveForwarderMsgToPeer (bool shouldObserve=true)
	This Assistant is viewing or stopped viewing a remote forwarder. More...

void	sendObserveForwarderMsgForViewedPeers (bool shouldObserve=true)
	Sends a message to the peers of the current connection that they are being observed by this assistant. More...

void	federateRemovalTimeChanged (float val)
	Handle a change in the defunct federation removal time. More...

void	provideForwarderInfo (const DtRtiConnectionInfo &conn, const DtAssistantForwarderInfo **info)
	Response to a query for forwarder info. More...

void	providePeerForwarderInfo (const DtRtiConnectionInfo &, std::vector< DtAssistantForwarderInfo > *)
	Response to a query for peer forwarder info. More...

Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs. More...

Signals
void	forwarderAdded (const DtRtiConnectionInfo &conn)
	Emitted when a new forwarder is discovered. More...

void	forwarderConnUpdated (const DtRtiConnectionInfo &conn)
	Emitted when the connection info of a known forwarder is updated. More...

void	forwarderUpdated (const DtRtiConnectionInfo &conn)
	Emitted when a known forwarder is updated. More...

void	forwarderRemoved (const DtRtiConnectionInfo &conn)
	Emitted when a known forwarder is removed. More...

Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed. More...

void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed. More...

void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed. More...

Public Member Functions
	DtAssistantForwarderCompInfoMgr (std::shared_ptr< DtRtiAssistantServer > server, std::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, std::shared_ptr< DtAssistantComponentMgr > compMgr, std::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	Constructor. More...

	~DtAssistantForwarderCompInfoMgr ()
	Destructor. More...

virtual void	tick ()
	Performs tasks that need to be completed periodically. More...

virtual bool	isLocalForwarder (const DtRtiConnectionInfo &conn) const
	Returns true if the given forwarder connection is for an active local forwarder. More...

virtual bool	isRemoteForwarder (const DtRtiConnectionInfo &conn) const
	Returns true if the given forwarder connection is for an active remote forwarder. More...

virtual void	requestSingleUpdateFromConnectedForwarders (int id)
	Performs a single data request of the connected RTI Forwarders. More...

virtual void	viewNetworkComponentsForConnection (const DtRtiConnectionInfo &conn)
	Sets the connection which is currently being viewed. More...

virtual const DtAssistantForwarderInfo *	forwarderInfo (const DtRtiConnectionInfo &conn) const
	Gets the stored information for the given forwarder. More...

const std::set< const DtAssistantForwarderInfo * >	peerForwarderInfos (const DtRtiConnectionInfo &conn) const
	Gets the stored information for the given forwarder's peer forwarders. More...

virtual std::pair < DtRtiConnectionInfo, bool >	forwarderConnectionInfo (const DtAssistantNetworkCompInfo &conn) const
	Searches for Connection info and locality for a forwarder component (used to find peer forwarder connections) More...

virtual bool	isObservedPeerOfViewedConnection (const DtRtiConnectionInfo &conn) const
	Returns whether given connection is an observed peer of viewed connection. More...

virtual void	updateObservedPeers (const DtRtiConnectionInfo &conn, bool addOrRemove)
	Update set of stored observed rtiForwarder connections. More...

virtual int	getPeerForwarders (const DtRtiConnectionInfo &conn, std::set< DtRtiConnectionInfo > &peers) const
	Get the set of peer forwarders Return number of connections in set. More...

virtual bool	isPeerForwarder (const DtRtiConnectionInfo &conn, const DtRtiConnectionInfo &peerConn) const
	Return true if the given connections are peers within a network of forwarders. More...

Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (std::shared_ptr< DtRtiAssistantServer > server, std::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor. More...

virtual	~DtAssistantMgr ()
	Destructor. More...

virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing. More...

virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown. More...

virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible. More...

virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences. More...

virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated. More...

virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget. More...

Protected Types
typedef std::map < DtRtiConnectionInfo, DtAssistantInfoSet >	DtConnectionToObserversMap

typedef std::map < DtRtiConnectionInfo, DtAssistantForwarderInfo >	DtForwarderStateByConnectionMap

Protected Member Functions
virtual void	pruneTimedOutSingleUpdates ()
	If there were RTI Forwarder updates that timed out, we send back the incomplete msg. More...

Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog. More...

void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog. More...

void	showDialog (QDialog *dlg)
	Shows the dialog. More...

void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog. More...

void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow. More...

void	showMainWindow (QMainWindow *dlg)
	Shows the dialog. More...

void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component. More...

void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display. More...

virtual DtAssistantInfo	assistantInfoFromAssistantMsg (const DtAssistantMsg &assistantMsg, DtInetAddrSet *interfaces=0)

Protected Attributes
std::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The local RTI component manager. More...

std::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The connection info manager. More...

DtRtiConnectionInfo	myViewedRtiForwarder
	The forwarder connection currently being viewed at this Assistant. More...

DtConnectionToObserversMap	myRemotelyViewedRtiForwarders
	Local forwarder connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them. More...

DtForwarderStateByConnectionMap	myRemoteForwarders
	information on all known remote forwarders. More...

DtForwarderStateByConnectionMap	myLocalForwarders
	information on all local forwarders. More...

MAKRti::DtClock	myClock
	Clock used to determine if we need to resend lost messages. More...

unsigned int	myTimeStateUpdateInterval
	The interval, in ms, at which local rtiForwarders should be requested to send updated time state information from local rtiForwarders. More...

float	myDefunctRemovalTime
	Defunct removal time for dropped federates. More...

std::map< std::pair< int, MAKRti::DtTime >, std::map < int, MAKRti::DtString > >	myRequestedRtiForwarderUpdates

std::set< DtRtiConnectionInfo >	myObservedPeerRtiForwarderSet

Protected Attributes inherited from DtAssistantMgr
std::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components. More...

std::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants. More...

std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set. More...

std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set. More...

std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed. More...

Static Protected Attributes
static const int	theTimeToWaitForForwarderInfo
	The time, in seconds, to wait for information from the remotely viewed RTI Forwarder before resending the observation request. More...

Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant. More...

static QIcon	theSmallRtiIcon

static QIcon	theWebIcon

static QIcon	theNotifyRtiIcon

static QIcon	theWarningRtiIcon

static QIcon	thePreferencesIcon

static QIcon	theAboutIcon

static QIcon	theHelpIcon

static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded. More...

Private Member Functions
	DtAssistantForwarderCompInfoMgr (DtAssistantForwarderCompInfoMgr const &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtAssistantForwarderCompInfoMgr &	operator= (DtAssistantForwarderCompInfoMgr const &)
	Assignment not implemented – Assignment Not Allowed! More...

Message Callbacks
Callbacks for federation information messages
virtual void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg)
	Called by the callback function to process a forwarder state message. More...

virtual void	processForwarderStateMsgForConnection (const DtAssistantForwarderStateMsg &msg)
	Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data. More...

virtual void	handleRtiCommands (const DtAssistantForwarderStateMsg &msg)
	Called by the callback function to process a forwarder state message. More...

virtual void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg)
	Processes an RTI Assistant command message. More...

static void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg, void *usr)
	Callback to process a forwarder state message. More...

static void	processForwarderStateMsgForConnection (const DtAssistantForwarderStateMsg &msg, void *usr)
	Called to process a forwarder state message on behalf of an rtiAssistanttoAssistantClient that requested the data. More...

static void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg, void *usr)
	Processes an RTI Assistant command message. More...

Detailed Description

Compiles network component information from RTI Forwarders.

Member Typedef Documentation

typedef std::map< DtRtiConnectionInfo, DtAssistantInfoSet > DtAssistantForwarderCompInfoMgr::DtConnectionToObserversMap

protected

typedef std::map< DtRtiConnectionInfo, DtAssistantForwarderInfo > DtAssistantForwarderCompInfoMgr::DtForwarderStateByConnectionMap

protected

Constructor & Destructor Documentation

DtAssistantForwarderCompInfoMgr::DtAssistantForwarderCompInfoMgr	(	std::shared_ptr< DtRtiAssistantServer >	server,
		std::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		std::shared_ptr< DtAssistantComponentMgr >	compMgr,
		std::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

Constructor.

DtAssistantForwarderCompInfoMgr::~DtAssistantForwarderCompInfoMgr ( )

Destructor.

DtAssistantForwarderCompInfoMgr::DtAssistantForwarderCompInfoMgr ( DtAssistantForwarderCompInfoMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantForwarderCompInfoMgr::federateRemovalTimeChanged ( float val )

slot

Handle a change in the defunct federation removal time.

void DtAssistantForwarderCompInfoMgr::forwarderAdded ( const DtRtiConnectionInfo & conn )

signal

Emitted when a new forwarder is discovered.

virtual std::pair<DtRtiConnectionInfo, bool> DtAssistantForwarderCompInfoMgr::forwarderConnectionInfo ( const DtAssistantNetworkCompInfo & conn ) const

virtual

Searches for Connection info and locality for a forwarder component (used to find peer forwarder connections)

void DtAssistantForwarderCompInfoMgr::forwarderConnUpdated ( const DtRtiConnectionInfo & conn )

signal

Emitted when the connection info of a known forwarder is updated.

virtual const DtAssistantForwarderInfo* DtAssistantForwarderCompInfoMgr::forwarderInfo ( const DtRtiConnectionInfo & conn ) const

virtual

Gets the stored information for the given forwarder.

void DtAssistantForwarderCompInfoMgr::forwarderRemoved ( const DtRtiConnectionInfo & conn )

signal

Emitted when a known forwarder is removed.

void DtAssistantForwarderCompInfoMgr::forwarderUpdated ( const DtRtiConnectionInfo & conn )

signal

Emitted when a known forwarder is updated.

virtual int DtAssistantForwarderCompInfoMgr::getPeerForwarders	(	const DtRtiConnectionInfo &	conn,
		std::set< DtRtiConnectionInfo > &	peers
	)		const

virtual

Get the set of peer forwarders Return number of connections in set.

virtual void DtAssistantForwarderCompInfoMgr::handleRtiCommands ( const DtAssistantForwarderStateMsg & msg )

virtual

Called by the callback function to process a forwarder state message.

virtual bool DtAssistantForwarderCompInfoMgr::isLocalForwarder ( const DtRtiConnectionInfo & conn ) const

virtual

Returns true if the given forwarder connection is for an active local forwarder.

virtual bool DtAssistantForwarderCompInfoMgr::isObservedPeerOfViewedConnection ( const DtRtiConnectionInfo & conn ) const

virtual

Returns whether given connection is an observed peer of viewed connection.

virtual bool DtAssistantForwarderCompInfoMgr::isPeerForwarder	(	const DtRtiConnectionInfo &	conn,
		const DtRtiConnectionInfo &	peerConn
	)		const

virtual

Return true if the given connections are peers within a network of forwarders.

virtual bool DtAssistantForwarderCompInfoMgr::isRemoteForwarder ( const DtRtiConnectionInfo & conn ) const

virtual

Returns true if the given forwarder connection is for an active remote forwarder.

DtAssistantForwarderCompInfoMgr& DtAssistantForwarderCompInfoMgr::operator= ( DtAssistantForwarderCompInfoMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

const std::set<const DtAssistantForwarderInfo*> DtAssistantForwarderCompInfoMgr::peerForwarderInfos ( const DtRtiConnectionInfo & conn ) const

Gets the stored information for the given forwarder's peer forwarders.

static void DtAssistantForwarderCompInfoMgr::processAssistantCommandMsg	(	const DtAssistantCommandMsg &	msg,
		void *	usr
	)

static

Processes an RTI Assistant command message.

virtual void DtAssistantForwarderCompInfoMgr::processAssistantCommandMsg ( const DtAssistantCommandMsg & msg )

virtual

Processes an RTI Assistant command message.

void DtAssistantForwarderCompInfoMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes removal of known connections.

void DtAssistantForwarderCompInfoMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration & conns )

slot

Processes changes in connection state.

static void DtAssistantForwarderCompInfoMgr::processForwarderObserveMsg	(	const DtAssistantStateObserveMsg &	msg,
		void *	usr
	)

static

Callback to process a forwarder state message.

virtual void DtAssistantForwarderCompInfoMgr::processForwarderObserveMsg ( const DtAssistantStateObserveMsg & msg )

virtual

Called by the callback function to process a forwarder state message.

static void DtAssistantForwarderCompInfoMgr::processForwarderStateMsgForConnection	(	const DtAssistantForwarderStateMsg &	msg,
		void *	usr
	)

static

Called to process a forwarder state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

virtual void DtAssistantForwarderCompInfoMgr::processForwarderStateMsgForConnection ( const DtAssistantForwarderStateMsg & msg )

virtual

Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

void DtAssistantForwarderCompInfoMgr::provideForwarderInfo	(	const DtRtiConnectionInfo &	conn,
		const DtAssistantForwarderInfo **	info
	)

slot

Response to a query for forwarder info.

void DtAssistantForwarderCompInfoMgr::providePeerForwarderInfo	(	const DtRtiConnectionInfo &	,
		std::vector< DtAssistantForwarderInfo > *
	)

slot

Response to a query for peer forwarder info.

virtual void DtAssistantForwarderCompInfoMgr::pruneTimedOutSingleUpdates ( )

protectedvirtual

If there were RTI Forwarder updates that timed out, we send back the incomplete msg.

virtual void DtAssistantForwarderCompInfoMgr::requestSingleUpdateFromConnectedForwarders ( int id )

virtual

Performs a single data request of the connected RTI Forwarders.

void DtAssistantForwarderCompInfoMgr::sendAllForwarderInfo ( )

slot

Sends udpate message for all local conns to remote assistants.

void DtAssistantForwarderCompInfoMgr::sendObserveForwarderMsgForViewedPeers ( bool shouldObserve = true )

slot

Sends a message to the peers of the current connection that they are being observed by this assistant.

void DtAssistantForwarderCompInfoMgr::sendObserveForwarderMsgToPeer ( bool shouldObserve = true )

slot

This Assistant is viewing or stopped viewing a remote forwarder.

Send an observe forwarder message to the forwarder's assistant.

virtual void DtAssistantForwarderCompInfoMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantForwarderCompInfoMgr::updateObservedPeers	(	const DtRtiConnectionInfo &	conn,
		bool	addOrRemove
	)

virtual

Update set of stored observed rtiForwarder connections.

virtual void DtAssistantForwarderCompInfoMgr::viewNetworkComponentsForConnection ( const DtRtiConnectionInfo & conn )

virtual

Sets the connection which is currently being viewed.

Member Data Documentation

MAKRti::DtClock DtAssistantForwarderCompInfoMgr::myClock

protected

Clock used to determine if we need to resend lost messages.

std::shared_ptr<DtAssistantComponentMgr> DtAssistantForwarderCompInfoMgr::myCompMgr

protected

The local RTI component manager.

std::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantForwarderCompInfoMgr::myConnInfoMgr

protected

The connection info manager.

float DtAssistantForwarderCompInfoMgr::myDefunctRemovalTime

protected

Defunct removal time for dropped federates.

DtForwarderStateByConnectionMap DtAssistantForwarderCompInfoMgr::myLocalForwarders

protected

information on all local forwarders.

std::set<DtRtiConnectionInfo> DtAssistantForwarderCompInfoMgr::myObservedPeerRtiForwarderSet

protected

DtForwarderStateByConnectionMap DtAssistantForwarderCompInfoMgr::myRemoteForwarders

protected

information on all known remote forwarders.

DtConnectionToObserversMap DtAssistantForwarderCompInfoMgr::myRemotelyViewedRtiForwarders

protected

Local forwarder connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them.

std::map<std::pair<int, MAKRti::DtTime>, std::map<int, MAKRti::DtString> > DtAssistantForwarderCompInfoMgr::myRequestedRtiForwarderUpdates

protected

unsigned int DtAssistantForwarderCompInfoMgr::myTimeStateUpdateInterval

protected

The interval, in ms, at which local rtiForwarders should be requested to send updated time state information from local rtiForwarders.

Takes into account remote assistants as well.

DtRtiConnectionInfo DtAssistantForwarderCompInfoMgr::myViewedRtiForwarder

protected

The forwarder connection currently being viewed at this Assistant.

const int DtAssistantForwarderCompInfoMgr::theTimeToWaitForForwarderInfo

staticprotected

The time, in seconds, to wait for information from the remotely viewed RTI Forwarder before resending the observation request.

The documentation for this class was generated from the following file:

networkCompInfoMgr.h

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Message Callbacks

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
