DtMsgBundler Class Reference

The DtMsgBundler class provides a means for bundling and unbundling messages. More...

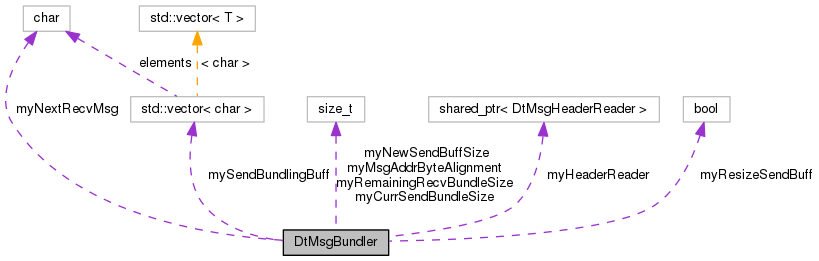

Collaboration diagram for DtMsgBundler:

Public Member Functions
	DtMsgBundler (std::shared_ptr< DtMsgHeaderReader > hdrReader, size_t maxBundleSize=0, size_t byteAlignment=0)
	Constructor. More...
virtual	~DtMsgBundler ()
	Destructor. More...
virtual bool	addToBundle (char *msg, size_t msgSize)
	Adds a message to the current bundle. More...
virtual bool	getBundle (char **bundlePtr, size_t &bundleSize)
	Returns the location and size of the current bundle. More...
virtual bool	isBundled (const char *bufferPtr, size_t size) const
	Returns true if the given message is bundled. More...
virtual bool	unbundle (char *bufferPtr, size_t size)
	Unbundle new packet. More...
virtual bool	isEmpty ()
	Returns true if the msgBundler has no messages. More...
virtual bool	recvNextMsgFromBundle (char **msgPtr, size_t &msgSize)
	Returns the location and size of the next message in the received bundle. More...
virtual size_t	maxSendBundleSize () const
	Get/Set the maximum outgoing bundle size. More...
virtual void	setMaxSendBundleSize (size_t maxSize)

Protected Attributes
std::vector< char >	mySendBundlingBuff
	The buffer for storing messages in the current outgoing bundle. More...
size_t	myCurrSendBundleSize
	The size of the current outgoing bundle. More...
size_t	myRemainingRecvBundleSize
	The remaining size of the current received bundle. More...
char *	myNextRecvMsg
	The location of the next message in the received bundle. More...
bool	myResizeSendBuff
	Whether the maximum send bundle must be resized next time it is emptied. More...
size_t	myNewSendBuffSize
	The new size for the send buffer. More...
std::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	Reads data from message header. More...
size_t	myMsgAddrByteAlignment
	The message address byte alignment. More...

Detailed Description

The DtMsgBundler class provides a means for bundling and unbundling messages.

Constructor & Destructor Documentation

DtMsgBundler::DtMsgBundler	(	std::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	maxBundleSize = 0,
		size_t	byteAlignment = 0
	)

Constructor.

virtual DtMsgBundler::~DtMsgBundler ( )

virtual

Destructor.

Member Function Documentation

virtual bool DtMsgBundler::addToBundle ( char *  msg, size_t  msgSize  )

virtual

Adds a message to the current bundle.

Returns false if message was too large to be added to the bundle.

virtual bool DtMsgBundler::getBundle ( char **  bundlePtr, size_t &  bundleSize  )

virtual

Returns the location and size of the current bundle.

A new bundle will be started the next time addToBundle is called. Return value is false if there are no bundled messages.

virtual bool DtMsgBundler::isBundled ( const char *  bufferPtr, size_t  size  ) const

virtual

Returns true if the given message is bundled.

virtual bool DtMsgBundler::isEmpty ( )

virtual

Returns true if the msgBundler has no messages.

virtual size_t DtMsgBundler::maxSendBundleSize ( ) const

virtual

Get/Set the maximum outgoing bundle size.

Changes may not take affect until after the current bundle is sent.

virtual bool DtMsgBundler::recvNextMsgFromBundle ( char **  msgPtr, size_t &  msgSize  )

virtual

Returns the location and size of the next message in the received bundle.

Returns false if there were no messages left in bundle.

virtual void DtMsgBundler::setMaxSendBundleSize ( size_t  maxSize )

virtual

virtual bool DtMsgBundler::unbundle ( char *  bufferPtr, size_t  size  )

virtual

Unbundle new packet.

Buffer must remain valid until bundle is completely processed. If unbundling already in progress, previous bundle is lost. Returns false if an error occurs.

Member Data Documentation

size_t DtMsgBundler::myCurrSendBundleSize

protected

The size of the current outgoing bundle.

std::shared_ptr<DtMsgHeaderReader> DtMsgBundler::myHeaderReader

protected

Reads data from message header.

size_t DtMsgBundler::myMsgAddrByteAlignment

protected

The message address byte alignment.

size_t DtMsgBundler::myNewSendBuffSize

protected

The new size for the send buffer.

char* DtMsgBundler::myNextRecvMsg

protected

The location of the next message in the received bundle.

size_t DtMsgBundler::myRemainingRecvBundleSize

protected

The remaining size of the current received bundle.

bool DtMsgBundler::myResizeSendBuff

protected

Whether the maximum send bundle must be resized next time it is emptied.

std::vector<char> DtMsgBundler::mySendBundlingBuff

protected

The buffer for storing messages in the current outgoing bundle.

---

The documentation for this class was generated from the following file:

• msgBundler.h
