SimpleFederate Class Reference

Simple federate actions. More...

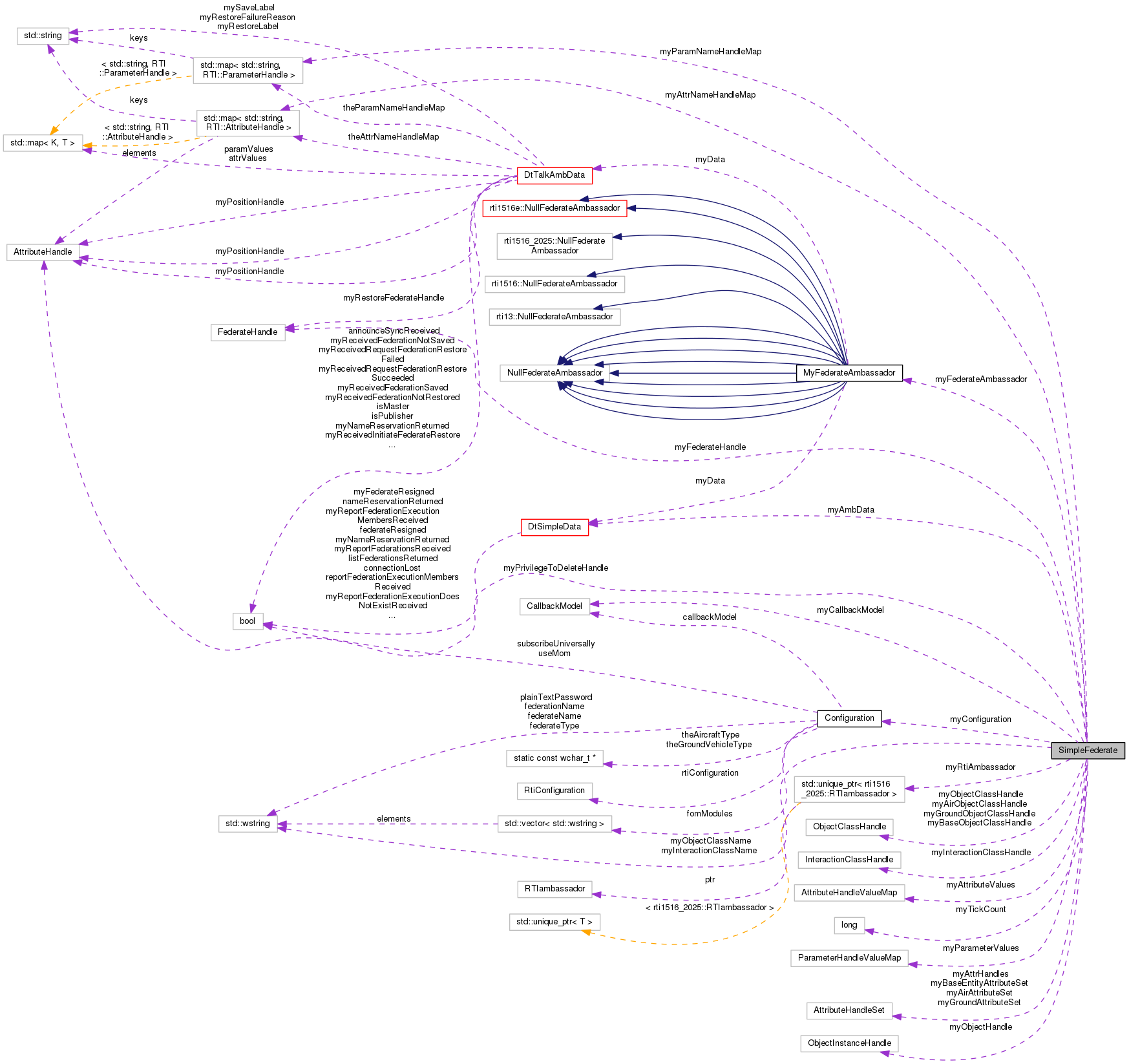

Collaboration diagram for SimpleFederate:

Public Member Functions
	SimpleFederate (const Configuration &configuration)
	Constructor. More...
	~SimpleFederate ()
	Destructor. More...
void	doSleep (double seconds)
bool	isJoined ()
	Return true if federate is joined to the federation; otherwise, false. More...
void	tick (double approximateMinimumTimeInSeconds, double approximateMaximumTimeInSeconds)
	Update and send interactions (periodically) and evoke callbacks Indicate the minimum and maximum time to process callbacks. More...
void	clear ()
	Clear data from previous connect/create/join. More...
bool	connect ()
	Connect. More...
void	disconnect ()
	Disconnect. More...
void	listFederations ()
	List the federation executions. More...
void	createFedEx ()
	Create the federation execution. More...
bool	joinFedEx ()
	Join the federation execution. More...
void	resignAndDestroy ()
	Resign and destroy the federation execution. More...
bool	publishSubscribeAndRegisterObject ()
	Publish and subscribe the object class attributes. More...
bool	publishSubscribeInteraction ()
	Publish and Subscribe to an interaction class. More...
DtSimpleData &	ambData ()
rti1516_2025::RTIambassador *	rtiAmb ()

Protected Member Functions
void	evokeMultipleCallbacks (double approximateMinimumTimeInSeconds, double approximateMaximumTimeInSeconds)

Protected Attributes
std::unique_ptr < rti1516_2025::RTIambassador >	myRtiAmbassador
MyFederateAmbassador	myFederateAmbassador
rti1516_2025::CallbackModel	myCallbackModel
long	myTickCount
rti1516_2025::AttributeHandleValueMap	myAttributeValues
rti1516_2025::ParameterHandleValueMap	myParameterValues
DtSimpleData	myAmbData
rti1516_2025::FederateHandle	myFederateHandle
Configuration	myConfiguration
std::wstring	myObjectClassName
std::wstring	myInteractionClassName
rti1516_2025::ObjectClassHandle	myObjectClassHandle
rti1516_2025::ObjectClassHandle	myBaseObjectClassHandle
rti1516_2025::ObjectClassHandle	myAirObjectClassHandle
rti1516_2025::ObjectClassHandle	myGroundObjectClassHandle
rti1516_2025::InteractionClassHandle	myInteractionClassHandle
DtAttrNameHandleMap	myAttrNameHandleMap
DtParamNameHandleMap	myParamNameHandleMap
rti1516_2025::ObjectInstanceHandle	myObjectHandle
rti1516_2025::AttributeHandle	myPrivilegeToDeleteHandle
rti1516_2025::AttributeHandleSet	myAttrHandles
rti1516_2025::AttributeHandleSet	myBaseEntityAttributeSet
rti1516_2025::AttributeHandleSet	myGroundAttributeSet
rti1516_2025::AttributeHandleSet	myAirAttributeSet

Detailed Description

Simple federate actions.

Constructor & Destructor Documentation

SimpleFederate::SimpleFederate

(

const Configuration &

configuration

)

Constructor.

SimpleFederate::~SimpleFederate

(

)

Destructor.

Member Function Documentation

DtSimpleData& SimpleFederate::ambData ( )

inline

References myAmbData.

void SimpleFederate::clear

(

)

Clear data from previous connect/create/join.

bool SimpleFederate::connect

(

)

Connect.

void SimpleFederate::createFedEx

(

)

Create the federation execution.

void SimpleFederate::disconnect

(

)

Disconnect.

void SimpleFederate::doSleep

(

double

seconds

)

void SimpleFederate::evokeMultipleCallbacks ( double  approximateMinimumTimeInSeconds, double  approximateMaximumTimeInSeconds  )

protected

bool SimpleFederate::isJoined

(

)

Return true if federate is joined to the federation; otherwise, false.

bool SimpleFederate::joinFedEx

(

)

Join the federation execution.

void SimpleFederate::listFederations

(

)

List the federation executions.

bool SimpleFederate::publishSubscribeAndRegisterObject

(

)

Publish and subscribe the object class attributes.

Register an object instance of the class.

bool SimpleFederate::publishSubscribeInteraction

(

)

Publish and Subscribe to an interaction class.

void SimpleFederate::resignAndDestroy

(

)

Resign and destroy the federation execution.

rti1516_2025::RTIambassador* SimpleFederate::rtiAmb ( )

inline

References myRtiAmbassador.

void SimpleFederate::tick	(	double	approximateMinimumTimeInSeconds,
		double	approximateMaximumTimeInSeconds
	)

Update and send interactions (periodically) and evoke callbacks Indicate the minimum and maximum time to process callbacks.

Exceptions result in returning to disconnected state

Member Data Documentation

rti1516_2025::AttributeHandleSet SimpleFederate::myAirAttributeSet

protected

rti1516_2025::ObjectClassHandle SimpleFederate::myAirObjectClassHandle

protected

DtSimpleData SimpleFederate::myAmbData

protected

Referenced by ambData().

rti1516_2025::AttributeHandleSet SimpleFederate::myAttrHandles

protected

rti1516_2025::AttributeHandleValueMap SimpleFederate::myAttributeValues

protected

DtAttrNameHandleMap SimpleFederate::myAttrNameHandleMap

protected

rti1516_2025::AttributeHandleSet SimpleFederate::myBaseEntityAttributeSet

protected

rti1516_2025::ObjectClassHandle SimpleFederate::myBaseObjectClassHandle

protected

rti1516_2025::CallbackModel SimpleFederate::myCallbackModel

protected

Configuration SimpleFederate::myConfiguration

protected

MyFederateAmbassador SimpleFederate::myFederateAmbassador

protected

rti1516_2025::FederateHandle SimpleFederate::myFederateHandle

protected

rti1516_2025::AttributeHandleSet SimpleFederate::myGroundAttributeSet

protected

rti1516_2025::ObjectClassHandle SimpleFederate::myGroundObjectClassHandle

protected

rti1516_2025::InteractionClassHandle SimpleFederate::myInteractionClassHandle

protected

std::wstring SimpleFederate::myInteractionClassName

protected

rti1516_2025::ObjectClassHandle SimpleFederate::myObjectClassHandle

protected

std::wstring SimpleFederate::myObjectClassName

protected

rti1516_2025::ObjectInstanceHandle SimpleFederate::myObjectHandle

protected

rti1516_2025::ParameterHandleValueMap SimpleFederate::myParameterValues

protected

DtParamNameHandleMap SimpleFederate::myParamNameHandleMap

protected

rti1516_2025::AttributeHandle SimpleFederate::myPrivilegeToDeleteHandle

protected

std::unique_ptr<rti1516_2025::RTIambassador> SimpleFederate::myRtiAmbassador

protected

Referenced by rtiAmb().

long SimpleFederate::myTickCount

protected

---

The documentation for this class was generated from the following file:

• simpleFederate.h
