Instances of DtConnectionMgr manage the communication objects that the RTI will use to either communicate over the network or communicate with the LRC application (using the federate ambassador pointer). More...

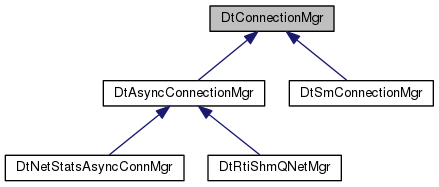

Inheritance diagram for DtConnectionMgr:

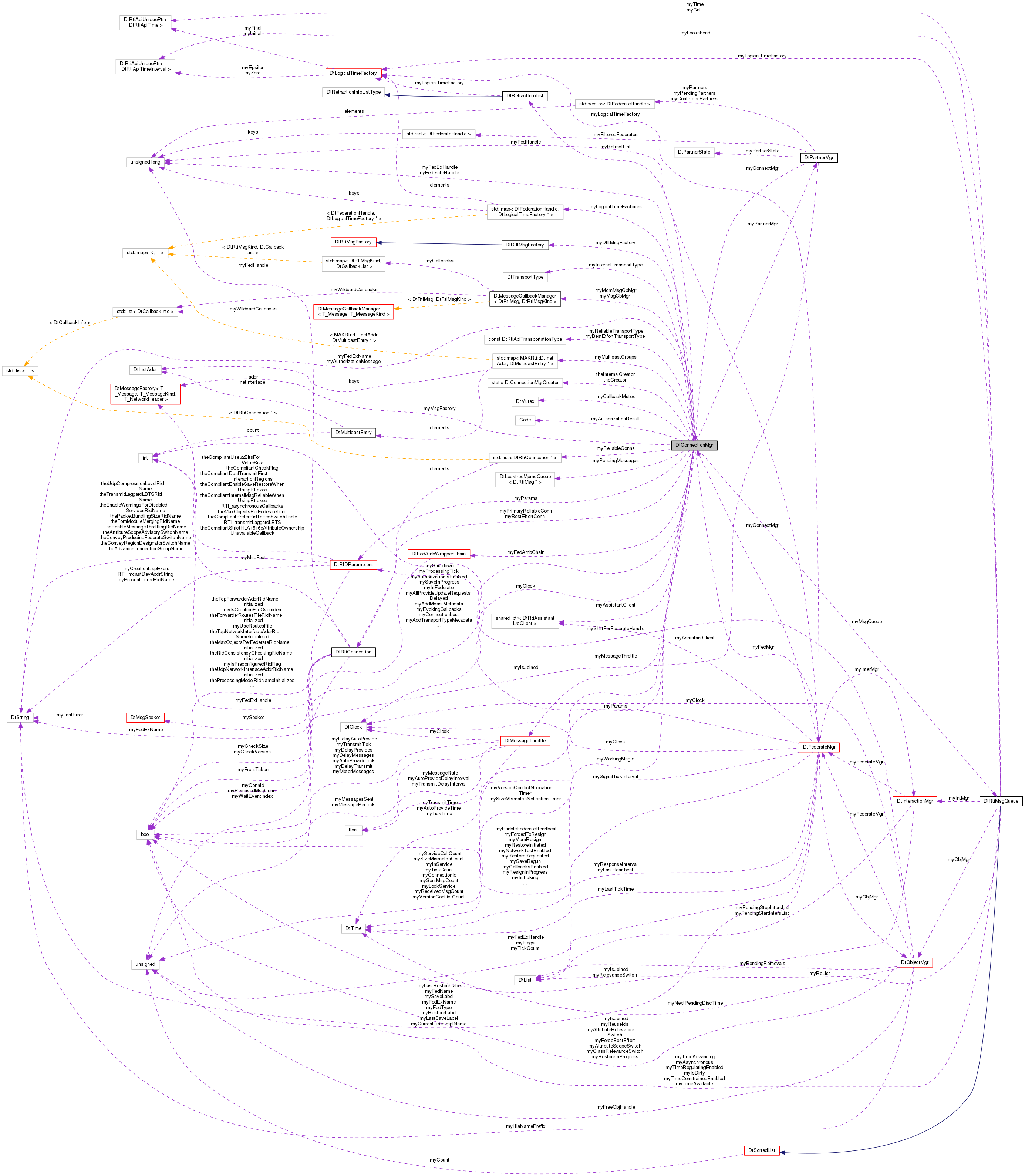

Collaboration diagram for DtConnectionMgr:

Public Types
typedef DtConnectionMgr (	DtConnectionMgrCreator )(DtRIDParameters *p, bool isFederate, std::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Connection Manager Creator. More...

Public Member Functions
virtual	~DtConnectionMgr ()
	Destructor. More...

virtual int	init (DtRIDParameters *params)
	Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections() More...

virtual void	initParams (DtRIDParameters *params)
	Initialize the parameters used by the connection manager. More...

virtual void	enableSmartForwarding (bool enableSmartForwarding, bool enableInternalMessageSmartForwarding, int maxNumFederates)
	Enables or disables smart forwarding. More...

virtual DtRIDParameters *	params ()
	Get a pointer to the RID parameters. More...

virtual void	setFederateMgr (DtFederateMgr *fedMgrPtr)
	Set the federate manager. More...

virtual void	shutdown ()
	Request shutdown of communication activities. More...

virtual bool	isShuttingDown ()
	Shutdown acknowledged. More...

virtual void	setFederateAmbassador (RTI_API::FederateAmbassador *fedAmb)
	Set the federate ambassador. More...

virtual RTI_API::AuthorizationResult::Code	authorizationResult () const
	Connection is authorized? More...

virtual const MAKRti::DtString &	authorizationMessage () const
	Authorization message. More...

virtual bool	authorizationIsEnabled () const
	Return true if authorization is enabled. More...

virtual bool	isAuthorized () const
	Return true if authorized. More...

virtual int	send (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Sending. More...

virtual int	sendStamped (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here. More...

virtual int	sendStampedAnonymous (const DtRtiMsg &msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages. More...

virtual int	sendAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send a message and delete the message after it has been sent Returns the size of the data sent. More...

virtual int	sendDirectedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with federate ID These messages are sent to a specific entity by using internal smart forwarding if enabled. More...

virtual int	sendStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())
	Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here. More...

virtual void	sendLoopback (DtRtiMsg *msg)
	Send a message to be processed by this federate. More...

virtual bool	flush ()
	Send buffered messages. More...

virtual bool	drainBacklog (MAKRti::DtTime timeout=0.0)
	Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires. More...

virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick. More...

virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed. More...

virtual void	testTransmitDelay ()
	Test if retransmit delay time has expired. More...

virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick. More...

virtual bool	delayAutoProvide () const
	Return true if autoprovides should be delayed. More...

bool	allProvideUpdateRequestsDelayed () const
	Return true if all provide update calls should be delayed (not just auto provide). More...

virtual void	testAutoProvideDelay ()
	Test if autoprovide delay time has expired. More...

virtual void	processThrottledMessages ()
	Process messages in throttle queue that are being sent at specified rate. More...

virtual void	flushThrottledMessages ()
	Flush messages in throttle queue. More...

virtual unsigned long	incrementServiceCallCount () const
	Increment a (mutable) counter to identify the service call being processed. More...

virtual unsigned long	serviceCallCount () const
	Return service call counter. More...

virtual bool	tick ()
	Receiving. More...

virtual bool	processConnectionsInCallback ()

virtual bool	processConnection (DtRtiConnection *conn, MAKRti::DtTransportType trans)
	Read from the given connection and process the message (if received) Return boolean: message was received? (i.e. More...

virtual bool	processConnections ()
	Check all the connections and process any incomming messages Return boolean: message was received? (i.e. More...

virtual DtRtiMsg *	getMessage ()
	Get a message if one exists Message must be destroyed by caller. More...

virtual void	updateBufferSizes ()
	Update Buffer sizes from Rid params object. More...

virtual DtNetReadStatus	handleMsg (DtRtiMsg &msg)
	Handle this message by either processing it or queuing it if save pending. More...

virtual DtNetReadStatus	processMsg (const DtRtiMsg &msg)
	this function applies the callbacks to the message More...

virtual DtNetReadStatus	momProcessMsg (const DtRtiMsg &msg)
	apply MOM callbacks to message More...

DtFederateMgr *	fedMgr ()
	The federate manager. More...

DtPartnerMgr *	partnerMgr ()
	Partner manager. More...

virtual int	readFileDescriptor (DtRtiApiTransportationType transport)
	Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read. More...

virtual MAKRti::DtTransportType	internalTransportType () const
	Returns the TransportType associated for the internal connection. More...

virtual bool	setupSelectParams (DtSelectParam *params)
	adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input. More...

virtual bool	hasTransport (MAKRti::DtTransportType trans)
	returns true if the specified transport type is available More...

virtual DtRtiMsg *	create (DtRtiMsgKind kind)
	Request the RTI message factory for a msg. More...

virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Get/Set the message factory. More...

virtual DtRtiMsgFactory *	msgFactory () const

virtual void	forceDropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Override listen count and force drop multicast address. More...

virtual void	connectFederation (DtLogicalTimeFactory *logicalTimeFactoryPtr, MAKRti::DtString fedExName, DtFederateHandle federateHandle, int fedExHandle)
	The LRC associates its federation information with its network connections. More...

virtual void	prepareToDisconnect ()
	Make preparations to disconnect. More...

virtual void	disconnectFederation ()
	The LRC disassociates its connections from the federation. More...

virtual RTI_API::FederateAmbassador *	fedAmb () const
	Return pointer to Federate Ambassador. More...

virtual void	addFedAmbWrapper (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services. More...

virtual bool	addFedAmbWrapperAtFront (MAKRti::DtString const &name, DtFedAmbWrapper *fedAmb)
	When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg. More...

virtual DtFedAmbWrapper *	removeFedAmbWrapper (MAKRti::DtString const &name)
	Remove federate wrapper. More...

virtual unsigned long	connectionId () const
	Return connection ID. More...

virtual DtFederateHandle	fedHandle () const
	Return federate handle. More...

virtual unsigned long	fedExHandle () const
	Return federation execution handle. More...

virtual const MAKRti::DtString &	fedExName () const
	Return federation execution name. More...

virtual void	setFederateHandle (DtFederateHandle handle)
	set federate handle ( this is used by restore and should not be called otherwise ) More...

virtual RTI_API::FederateHandle	apiFederateHandle (DtFederateHandle handle) const
	Return the API federate handle encoded from the given internal handle. More...

virtual RTI_API::FederateHandle	apiFederateHandle () const
	Return the API federate handle encoded from this federate's handle. More...

virtual DtLogicalTimeFactory *	logicalTimeFactory (DtFederationHandle federationHandle=0) const
	Get the factory for the given federation that can create logical time/interval instances. More...

virtual void	addLogicalTimeFactory (DtFederationHandle federationHandle, DtLogicalTimeFactory *timeFactory)
	Add the factory for the given federation that can create logical time/interval instances. More...

virtual void	removeLogicalTimeFactory (DtFederationHandle federationHandle)
	Remove the factory for the given federation that can create logical time/interval instances. More...

virtual DtRtiMsgQueue *	msgQueue ()
	Set/Get the time managed message queue. More...

virtual void	setMsgQueue (DtRtiMsgQueue *msgQueuePtr)

virtual DtRetractInfoList *	retractList ()
	Set/Get the time managed retract list. More...

virtual void	setRetractList (DtRetractInfoList *listPtr)

virtual bool	wait (MAKRti::DtTime periodInSeconds, bool unlockWhileWaiting=false)
	Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading? More...

virtual void	yield ()
	Yield processing to allow more data to arrive. More...

virtual bool	saveInProgress () const
	Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing. More...

virtual void	setSaveInProgress (bool saveIsInProgress)

virtual bool	restoreInProgress () const
	Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing. More...

virtual void	setRestoreInProgress (bool saveIsInProgress)

virtual bool	saveRestoreInProgress () const
	Return bool: Is save or restore in progress. More...

virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators. More...

virtual bool	isMetadataEnabled (DtMetadataType type)

virtual void	sendShutdownForwarderMsg ()
	Called by the rtiExec when it is exiting, only if it started this forwarder. More...

virtual unsigned long	sequenceNumber () const
	Get the next sequence number. More...

virtual void	incrementSequenceNumber ()
	Increment the sequence number. More...

virtual bool	connectionLost ()
	Indicates that the connection of the RTI has been lost. More...

virtual void	resetConnectionLost ()
	Status Reset For Connection Lost Flag *Should be called after the connection loss has been handled. More...


virtual int	sendDirectedStampedAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())

virtual int	sendDirectedStampedAndDelete (DtRtiMsg msg, MAKRti::DtTransportType transport, DtBitMask sendMask, const MAKRti::DtInetAddr &=MAKRti::DtInetAddr::inaddrAny())


virtual int	sendStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())

virtual int	sendDirectedStampedAnonymousAndDelete (DtRtiMsg *msg, MAKRti::DtTransportType transport, DtFederateHandle fedHandle, const MAKRti::DtInetAddr &addr=MAKRti::DtInetAddr::inaddrAny())


virtual void	setProcessingTick (bool processingTick)
	Set/Get tick processing state. More...

virtual bool	processingTick () const
	Set/Get tick processing state. More...


virtual void	setEvokingCallbacks (bool evokingCbs)
	Set/Get the evoke callbacks state. More...

virtual bool	evokingCallbacks () const
	Set/Get the evoke callbacks state. More...


virtual void	addPendingMsg (DtRtiMsg *msg)
	Add/get/process a pending message Messages will be processed during the next tick. More...

virtual bool	processPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick. More...

virtual DtRtiMsg *	nextPendingMsg ()
	Add/get/process a pending message Messages will be processed during the next tick. More...

virtual void	emptyPendingMsgList ()
	Add/get/process a pending message Messages will be processed during the next tick. More...

bool	isPendingMsgQueueEmpty ()
	Add/get/process a pending message Messages will be processed during the next tick. More...


virtual void	addMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections. More...

virtual void	removeMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections. More...

virtual void	addWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections. More...

virtual void	removeWildcardMsgCallback (DtRtiMsgCbMgr::DtCallbackFcn fcn, void *usr, bool isMomCallback=false)
	Message Callbacks These callback functions operate on all of the connections. More...

Connections
Get pointers to the individual connections. These should be avoided by classes outside of the connectionMgr. For example in a threaded configuration calling the connection directly can cause improper behavior.
virtual DtRtiConnection *	reliableConn () const
	Returns the connection created by createTcpConn(). More...

virtual DtRtiConnection *	bestEffortConn () const
	Returns the connection created by createBestEffortConn(). More...


virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement. More...

virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &addr, const MAKRti::DtInetAddr &netInterface=MAKRti::DtInetAddr::inaddrAny())
	Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement. More...

AsynchronousLocks
When asynchronous callbacks are enabled, these calls manipulate a mutex for synchronizing access to the RTI Ambassador and the Federate Ambassador. The mutex shall be locked upon entering an RTI Ambassador call and unlocked on exit. It shall also be locked prior to processing RTI messages and unlocked when processing completes. Asynchronous callback mode supports asynchronous message processing that can generate asynchronous Federate Ambassador callbacks and also asynchronous access to RTI Ambassador by separate federate threads.
virtual bool	lockServiceCall ()
	Called by asynchronous processing thread to gain mutually exclusive access to RTI managers. More...

virtual void	unlockServiceCall ()
	Called by asychronous processing thread to release mutually exclusive access to RTI managers. More...

virtual bool	serviceCallLocked ()
	Called by RTI Ambassador services query if mutex was set using lockServiceCall() More...

virtual bool	enterServiceCall ()
	Called by RTI Ambassador services to gain mutually exclusive access to RTI managers. More...

virtual void	exitServiceCall ()
	Called by RTI Ambassador services to release mutually exclusive access to RTI managers. More...

virtual bool	inServiceCall ()
	Called by RTI Ambassador services query if mutex was set using enterServiceCall() More...

Static Public Member Functions
static DtConnectionMgr *	create (DtRIDParameters *p, bool isFederate=false, std::shared_ptr< DtRtiAssistantLrcClient > assistantClient=std::shared_ptr< DtRtiAssistantLrcClient >())
	A Connection Manager instance is created, initialized and its pointer is returned. More...

static void	setCreatorFunction (DtConnectionMgrCreator fn)
	Register a creator function. More...

static void	setInternalCreatorFunction (DtConnectionMgrCreator fn)
	Register alternate internal creators. More...

Protected Types
typedef std::list < DtRtiConnection * >	DtRtiConnectionList
	List of all reliable connections (for forwarder load balancing) More...

Protected Member Functions
	DtConnectionMgr (DtRIDParameters *params, bool isFederate=false, std::shared_ptr< DtRtiAssistantLrcClient > assistantClient=std::shared_ptr< DtRtiAssistantLrcClient >())
	Constructor is performed through create. More...

virtual bool	doWait (MAKRti::DtTime period)
	perform actual wait. Called by wait More...

virtual int	initConnections ()
	Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function. More...

virtual bool	createBestEffortConn ()
	Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used. More...

virtual void	destroyBestEffortConn ()
	Destroy best effort connection. More...

virtual bool	createRelConn ()
	Create reliable connection; Returns true if successful. More...

virtual void	destroyRelConn ()
	Destroy reliable connection. More...

virtual unsigned int	createAncillaryRelConns ()
	Create ancillary reliable connections; Returns count of successful connections. More...

virtual void	destroyAncillaryRelConn (DtRtiConnection *conn)
	Destroy the given ancillary reliable connection. More...

virtual void	destroyAncillaryRelConns ()
	Destroy ancillary reliable connections. More...

virtual unsigned int	ancillaryReliableConnsCount () const
	Report number of ancillary reliable connections successfully established. More...

virtual bool	checkRelConn ()
	Check the reliable connection status. Attempt to reconnect if connection has been lost. More...

virtual bool	repairFederationConnection ()
	Attempt to re-establish a broken connection to the federation Returns true if successful. More...

virtual bool	doConnectionRepair ()
	Do the connection repair. More...

virtual void	processReadResult (int readError)
	Process read result to print error diagnostics for example. More...

virtual int	sendStampedUtilityFunction (DtRtiMsg *msg, MAKRti::DtTransportType transport, bool performDelete, bool isAnonymous, const MAKRti::DtInetAddr &addr)
	Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc. More...

virtual void	handleConnectMessage (const DtConnectMsg *message)
	Handle the connect message from the forwarder. More...

virtual void	handleAuthorizationMessage (const DtAuthorizationResultMsg *resultMessage)
	Handle the authorization result message from the forwarder. More...

Protected Attributes
DtRtiMsgFactory *	myMsgFactory
	The message factory. More...

DtRtiConnection *	myBestEffortConn
	The best effort connection. More...

DtRtiConnection *	myPrimaryReliableConn
	The primary reliable connection. More...

DtRtiConnectionList	myReliableConns

DtRIDParameters *	myParams
	The RTI initialization parameters. More...

DtFederateMgr *	myFedMgr
	The federate manager. More...

std::map< MAKRti::DtInetAddr, DtMulticastEntry * >	myMulticastGroups
	LRC listening to these multicast groups. More...

DtFedAmbWrapperChain	myFedAmbChain
	Chain of Federate Ambassador Wrappers. More...

DtDfltMsgFactory	myDfltMsgFactory
	Default message factory. More...

DtRtiMsgCbMgr	myMsgCbMgr
	Message callback manager. More...

DtRtiMsgCbMgr	myMomMsgCbMgr
	MOM message callback manager. More...

MAKRti::DtTransportType	myInternalTransportType
	Transport type used for internal messages. More...

bool	myAddTransportTypeMetadata
	Metadata control indicators. More...

bool	myAddMcastMetadata

std::map< DtFederationHandle, DtLogicalTimeFactory * >	myLogicalTimeFactories
	Factories for creating logical time instances. More...

DtRtiMsgQueue *	myMsgQueue
	Message queue. More...

DtRetractInfoList *	myRetractList
	Message retractions. More...

DtMessageQueueType	myPendingMessages
	Pending messages. More...

bool	myConnectionLost
	Connection Lost. More...

bool	mySaveInProgress
	Save status. More...

bool	myRestoreInProgress
	Restore status. More...

bool	myAuthorizationIsEnabled
	Is authorization enabled. More...

RTI_API::AuthorizationResult::Code	myAuthorizationResult

MAKRti::DtString	myAuthorizationMessage
	Authorization message (mainly in case of failed authorization) More...

bool	myDisconnectPending
	Disconnect from federation is pending. More...

unsigned long	myConnectionId
	"unique" identifier for this connMgr (if there is a good source of unique ids) More...

MAKRti::DtString	myFedExName
	Federation execution name. More...

DtFederateHandle	myFedExHandle
	Federation execution handle. More...

DtFederateHandle	myFederateHandle
	Federate handle. More...

unsigned long	myReceivedMsgCount
	Number of received messages. More...

unsigned long	mySentMsgCount
	Number of sent messages. More...

MAKRti::DtList	myWorkingMsgId
	Diagnostic message ID stack. More...

DtMessageThrottle *	myMessageThrottle
	Message output throttle. More...

bool	myAllProvideUpdateRequestsDelayed
	Extend auto provide delay to all attribute update requests. More...

DtMutex *	myCallbackMutex
	Mutex to synchronize access to RTI and Federate Ambassadors. More...

unsigned int	myLockService
	RTI is processing a message. More...

unsigned int	myInService
	RTI is processing a service call. More...

MAKRti::DtClock	myClock
	Clock for timing. More...

std::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	The assistant client. More...

bool	myIsFederate
	Whether this manager is for a federate. More...

unsigned long	myVersionConflictCount
	The count of message version conflicts. More...

MAKRti::DtTime	myVersionConflictNoticationTimer

unsigned long	mySizeMismatchCount
	The count of message size mismatches. More...

MAKRti::DtTime	mySizeMismatchNoticationTimer

DtPartnerMgr *	myPartnerMgr

unsigned long	myServiceCallCount
	Service call counter - increment before processing each service call. More...

bool	myProcessingTick
	Tick processing state. More...

bool	myEvokingCallbacks
	Indicates if callbacks are being evoked. More...

bool	myProcessingMessage
	Indicates if message is being processed. More...

bool	myShutdown
	Shutdown requested. More...

bool	mySendShuttingDown
	Shutdown acknowledged. More...

bool	myReceiveShuttingDown
	Shutdown acknowledged. More...

unsigned long	myTickCount

const DtRtiApiTransportationType	myBestEffortTransportType

const DtRtiApiTransportationType	myReliableTransportType

Static Protected Attributes
static DtConnectionMgrCreator	theCreator
	The plugin creator. More...

static DtConnectionMgrCreator	theInternalCreator
	The internal creator. More...

Private Member Functions
	DtConnectionMgr (DtConnectionMgr const &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtConnectionMgr &	operator= (DtConnectionMgr const &)
	Assignment not implemented – Assignment Not Allowed! More...

Detailed Description

Instances of DtConnectionMgr manage the communication objects that the RTI will use to either communicate over the network or communicate with the LRC application (using the federate ambassador pointer).

Override this class to change the way in which the MAK RTI communicates with other LRC components (or the rtiexec). This class also stores the user's federate ambassador pointer and provides a mechanism for monitoring RTI invoked services.

Member Typedef Documentation

typedef DtConnectionMgr*(* DtConnectionMgr::DtConnectionMgrCreator)(DtRIDParameters *p, bool isFederate, std::shared_ptr< DtRtiAssistantLrcClient > assistantClient)

Connection Manager Creator.

typedef std::list< DtRtiConnection* > DtConnectionMgr::DtRtiConnectionList

protected

List of all reliable connections (for forwarder load balancing)

Constructor & Destructor Documentation

DtConnectionMgr::DtConnectionMgr	(	DtRIDParameters *	params,
		bool	isFederate = `false`,
		std::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `std::shared_ptr< DtRtiAssistantLrcClient >()`
	)

protected

Constructor is performed through create.

virtual DtConnectionMgr::~DtConnectionMgr ( )

virtual

Destructor.

DtConnectionMgr::DtConnectionMgr ( DtConnectionMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual void DtConnectionMgr::activateAutoProvideDelay ( )

virtual

Activate a delay timer (based on RID) used by managers to control timing for autoprovide callbacks Expired delays disable activation for current tick.

virtual void DtConnectionMgr::activateTransmitDelay ( )

virtual

Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.

virtual void DtConnectionMgr::addFedAmbWrapper	(	MAKRti::DtString const &	name,
		DtFedAmbWrapper *	fedAmb
	)

virtual

Register a Federate Wrapper with the RTI A federate wrapper allows your plugin to monitor any RTI invoked services.

Wrappers are set up in a chain: Each DtFedAmbWrapper has a pointer to the next Federate Ambassador pointer in the list. The last pointer in the list is always the one given to the RTI in joinFederationExecution.

virtual bool DtConnectionMgr::addFedAmbWrapperAtFront	(	MAKRti::DtString const &	name,
		DtFedAmbWrapper *	fedAmb
	)

virtual

When the fedAmb Wrapper is installed make certain that this particular wrapper is the first to process the msg.

Returns whether the addition was sucessful, or another wrapper is already designated The wrapper At Front.

virtual void DtConnectionMgr::addLogicalTimeFactory	(	DtFederationHandle	federationHandle,
		DtLogicalTimeFactory *	timeFactory
	)

virtual

Add the factory for the given federation that can create logical time/interval instances.

virtual void DtConnectionMgr::addMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = `false`
	)

virtual

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

virtual void DtConnectionMgr::addPendingMsg ( DtRtiMsg * msg )

virtual

Add/get/process a pending message Messages will be processed during the next tick.

virtual void DtConnectionMgr::addWildcardMsgCallback	(	DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = `false`
	)

virtual

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

bool DtConnectionMgr::allProvideUpdateRequestsDelayed ( ) const

Return true if all provide update calls should be delayed (not just auto provide).

virtual unsigned int DtConnectionMgr::ancillaryReliableConnsCount ( ) const

protectedvirtual

Report number of ancillary reliable connections successfully established.

virtual RTI_API::FederateHandle DtConnectionMgr::apiFederateHandle ( DtFederateHandle handle ) const

virtual

Return the API federate handle encoded from the given internal handle.

virtual RTI_API::FederateHandle DtConnectionMgr::apiFederateHandle ( ) const

virtual

Return the API federate handle encoded from this federate's handle.

virtual bool DtConnectionMgr::authorizationIsEnabled ( ) const

virtual

Return true if authorization is enabled.

virtual const MAKRti::DtString& DtConnectionMgr::authorizationMessage ( ) const

virtual

Authorization message.

virtual RTI_API::AuthorizationResult::Code DtConnectionMgr::authorizationResult ( ) const

virtual

Connection is authorized?

virtual DtRtiConnection* DtConnectionMgr::bestEffortConn ( ) const

virtual

Returns the connection created by createBestEffortConn().

virtual bool DtConnectionMgr::checkRelConn ( )

protectedvirtual

Check the reliable connection status. Attempt to reconnect if connection has been lost.

virtual void DtConnectionMgr::connectFederation	(	DtLogicalTimeFactory *	logicalTimeFactoryPtr,
		MAKRti::DtString	fedExName,
		DtFederateHandle	federateHandle,
		int	fedExHandle
	)

virtual

The LRC associates its federation information with its network connections.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is created here.

Reimplemented in DtAsyncConnectionMgr.

virtual unsigned long DtConnectionMgr::connectionId ( ) const

virtual

Return connection ID.

virtual bool DtConnectionMgr::connectionLost ( )

virtual

Indicates that the connection of the RTI has been lost.

virtual DtRtiMsg* DtConnectionMgr::create ( DtRtiMsgKind kind )

virtual

Request the RTI message factory for a msg.

The caller is responsible for deletion. By default, all exercise connections use the same factory for creating messages. The returned msg is blank and must be filled in before being sent.

static DtConnectionMgr* DtConnectionMgr::create	(	DtRIDParameters *	p,
		bool	isFederate = `false`,
		std::shared_ptr< DtRtiAssistantLrcClient >	assistantClient = `std::shared_ptr< DtRtiAssistantLrcClient >()`
	)

static

A Connection Manager instance is created, initialized and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

virtual unsigned int DtConnectionMgr::createAncillaryRelConns ( )

protectedvirtual

Create ancillary reliable connections; Returns count of successful connections.

virtual bool DtConnectionMgr::createBestEffortConn ( )

protectedvirtual

Create best effort connection; Returns true if successful Could be that it already exist in which case it is still used.

Reimplemented in DtAsyncConnectionMgr.

virtual bool DtConnectionMgr::createRelConn ( )

protectedvirtual

Create reliable connection; Returns true if successful.

virtual bool DtConnectionMgr::delayAutoProvide ( ) const

virtual

Return true if autoprovides should be delayed.

virtual bool DtConnectionMgr::delayTransmit ( ) const

virtual

Return true if retransmission of internal state should be delayed.

virtual void DtConnectionMgr::destroyAncillaryRelConn ( DtRtiConnection * conn )

protectedvirtual

Destroy the given ancillary reliable connection.

Reimplemented in DtAsyncConnectionMgr.

virtual void DtConnectionMgr::destroyAncillaryRelConns ( )

protectedvirtual

Destroy ancillary reliable connections.

Reimplemented in DtAsyncConnectionMgr.

virtual void DtConnectionMgr::destroyBestEffortConn ( )

protectedvirtual

Destroy best effort connection.

virtual void DtConnectionMgr::destroyRelConn ( )

protectedvirtual

Destroy reliable connection.

Reimplemented in DtAsyncConnectionMgr.

virtual void DtConnectionMgr::disconnectFederation ( )

virtual

The LRC disassociates its connections from the federation.

If the LRC is communicating with the rtiexec through a reliable connection, then the best effort connection is destroyed here.

Reimplemented in DtSmConnectionMgr, and DtAsyncConnectionMgr.

virtual bool DtConnectionMgr::doConnectionRepair ( )

protectedvirtual

Do the connection repair.

virtual bool DtConnectionMgr::doWait ( MAKRti::DtTime period )

protectedvirtual

perform actual wait. Called by wait

Reimplemented in DtAsyncConnectionMgr.

virtual bool DtConnectionMgr::drainBacklog ( MAKRti::DtTime timeout = 0.0 )

virtual

Attempts to flush backlogged messages repeatedly until either all messages are sent or the timeout expires.

virtual void DtConnectionMgr::dropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

virtual void DtConnectionMgr::emptyPendingMsgList ( )

virtual

Add/get/process a pending message Messages will be processed during the next tick.

virtual void DtConnectionMgr::enableSmartForwarding	(	bool	enableSmartForwarding,
		bool	enableInternalMessageSmartForwarding,
		int	maxNumFederates
	)

virtual

Enables or disables smart forwarding.

virtual bool DtConnectionMgr::enterServiceCall ( )

virtual

Called by RTI Ambassador services to gain mutually exclusive access to RTI managers.

Return true if lock was obtained; otherwise false (i.e., locks not used)

virtual bool DtConnectionMgr::evokingCallbacks ( ) const

virtual

Set/Get the evoke callbacks state.

virtual void DtConnectionMgr::exitServiceCall ( )

virtual

Called by RTI Ambassador services to release mutually exclusive access to RTI managers.

virtual RTI_API::FederateAmbassador* DtConnectionMgr::fedAmb ( ) const

virtual

Return pointer to Federate Ambassador.

virtual unsigned long DtConnectionMgr::fedExHandle ( ) const

virtual

Return federation execution handle.

virtual const MAKRti::DtString& DtConnectionMgr::fedExName ( ) const

virtual

Return federation execution name.

virtual DtFederateHandle DtConnectionMgr::fedHandle ( ) const

virtual

Return federate handle.

DtFederateMgr* DtConnectionMgr::fedMgr ( )

The federate manager.

Warning: Will return a null pointer when connection manager is not used by an LRC.

virtual bool DtConnectionMgr::flush ( )

virtual

Send buffered messages.

Returns indication of whether the flush is complete or incomplete.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

virtual void DtConnectionMgr::flushThrottledMessages ( )

virtual

Flush messages in throttle queue.

virtual void DtConnectionMgr::forceDropMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Override listen count and force drop multicast address.

Listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

virtual DtRtiMsg* DtConnectionMgr::getMessage ( )

virtual

Get a message if one exists Message must be destroyed by caller.

Reimplemented in DtAsyncConnectionMgr, DtSmConnectionMgr, and DtNetStatsAsyncConnMgr.

virtual void DtConnectionMgr::handleAuthorizationMessage ( const DtAuthorizationResultMsg * resultMessage )

protectedvirtual

Handle the authorization result message from the forwarder.

virtual void DtConnectionMgr::handleConnectMessage ( const DtConnectMsg * message )

protectedvirtual

Handle the connect message from the forwarder.

virtual DtNetReadStatus DtConnectionMgr::handleMsg ( DtRtiMsg & msg )

virtual

Handle this message by either processing it or queuing it if save pending.

Return the status of processing the message

Reimplemented in DtAsyncConnectionMgr.

virtual bool DtConnectionMgr::hasTransport ( MAKRti::DtTransportType trans )

virtual

returns true if the specified transport type is available

virtual void DtConnectionMgr::incrementSequenceNumber ( )

virtual

Increment the sequence number.

virtual unsigned long DtConnectionMgr::incrementServiceCallCount ( ) const

virtual

Increment a (mutable) counter to identify the service call being processed.

Return the incremented value

virtual int DtConnectionMgr::init ( DtRIDParameters * params )

virtual

Initialize the RTI's exercise parameters and connections Users who wish to override the MAK RTI's network connections should override this function or initConnections()

Reimplemented in DtAsyncConnectionMgr, and DtRtiShmQNetMgr.

virtual int DtConnectionMgr::initConnections ( )

protectedvirtual

Initialize the RTI's exercise connections Users who wish to override the MAK RTI's network connections should override this function.

Reimplemented in DtSmConnectionMgr.

virtual void DtConnectionMgr::initParams ( DtRIDParameters * params )

virtual

Initialize the parameters used by the connection manager.

This function is automatically called by init

virtual bool DtConnectionMgr::inServiceCall ( )

virtual

Called by RTI Ambassador services query if mutex was set using enterServiceCall()

virtual MAKRti::DtTransportType DtConnectionMgr::internalTransportType ( ) const

virtual

Returns the TransportType associated for the internal connection.

virtual bool DtConnectionMgr::isAuthorized ( ) const

virtual

Return true if authorized.

virtual bool DtConnectionMgr::isMetadataEnabled ( DtMetadataType type )

virtual

bool DtConnectionMgr::isPendingMsgQueueEmpty ( )

inline

Add/get/process a pending message Messages will be processed during the next tick.

virtual bool DtConnectionMgr::isShuttingDown ( )

virtual

Shutdown acknowledged.

virtual void DtConnectionMgr::listenToMulticastGroup	(	const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtInetAddr &	netInterface = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Add/Drop multicast groups from the best effort connection Listens are accumulated and drops decrement.

The multicast is not actually dropped until the listen count goes to zero.

Reimplemented in DtSmConnectionMgr.

virtual bool DtConnectionMgr::lockServiceCall ( )

virtual

Called by asynchronous processing thread to gain mutually exclusive access to RTI managers.

virtual DtLogicalTimeFactory* DtConnectionMgr::logicalTimeFactory ( DtFederationHandle federationHandle = 0 ) const

virtual

Get the factory for the given federation that can create logical time/interval instances.

virtual DtNetReadStatus DtConnectionMgr::momProcessMsg ( const DtRtiMsg & msg )

virtual

apply MOM callbacks to message

virtual DtRtiMsgFactory* DtConnectionMgr::msgFactory ( ) const

virtual

virtual DtRtiMsgQueue* DtConnectionMgr::msgQueue ( )

virtual

Set/Get the time managed message queue.

virtual DtRtiMsg* DtConnectionMgr::nextPendingMsg ( )

virtual

Add/get/process a pending message Messages will be processed during the next tick.

DtConnectionMgr& DtConnectionMgr::operator= ( DtConnectionMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

virtual DtRIDParameters* DtConnectionMgr::params ( )

virtual

Get a pointer to the RID parameters.

DtPartnerMgr* DtConnectionMgr::partnerMgr ( )

Partner manager.

virtual void DtConnectionMgr::prepareToDisconnect ( )

virtual

Make preparations to disconnect.

virtual bool DtConnectionMgr::processConnection	(	DtRtiConnection *	conn,
		MAKRti::DtTransportType	trans
	)

virtual

Read from the given connection and process the message (if received) Return boolean: message was received? (i.e.

could be more input).

Reimplemented in DtRtiShmQNetMgr, and DtSmConnectionMgr.

virtual bool DtConnectionMgr::processConnections ( )

virtual

Check all the connections and process any incomming messages Return boolean: message was received? (i.e.

could be more input).

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

virtual bool DtConnectionMgr::processConnectionsInCallback ( )

virtual

Reimplemented in DtAsyncConnectionMgr.

virtual bool DtConnectionMgr::processingTick ( ) const

virtual

Set/Get tick processing state.

virtual DtNetReadStatus DtConnectionMgr::processMsg ( const DtRtiMsg & msg )

virtual

this function applies the callbacks to the message

Reimplemented in DtRtiShmQNetMgr, and DtNetStatsAsyncConnMgr.

virtual bool DtConnectionMgr::processPendingMsg ( )

virtual

Add/get/process a pending message Messages will be processed during the next tick.

virtual void DtConnectionMgr::processReadResult ( int readError )

protectedvirtual

Process read result to print error diagnostics for example.

virtual void DtConnectionMgr::processThrottledMessages ( )

virtual

Process messages in throttle queue that are being sent at specified rate.

virtual int DtConnectionMgr::readFileDescriptor ( DtRtiApiTransportationType transport )

virtual

Returns a file descriptor on which data will be present for the given transport type whenever there is incoming data waiting to be read.

Returns -1 if no such file descriptor.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

virtual DtRtiConnection* DtConnectionMgr::reliableConn ( ) const

virtual

Returns the connection created by createTcpConn().

If no TCP/IP connection has been created, this will return NULL

virtual DtFedAmbWrapper* DtConnectionMgr::removeFedAmbWrapper ( MAKRti::DtString const & name )

virtual

Remove federate wrapper.

virtual void DtConnectionMgr::removeLogicalTimeFactory ( DtFederationHandle federationHandle )

virtual

Remove the factory for the given federation that can create logical time/interval instances.

virtual void DtConnectionMgr::removeMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = `false`
	)

virtual

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

virtual void DtConnectionMgr::removeWildcardMsgCallback	(	DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr,
		bool	isMomCallback = `false`
	)

virtual

Message Callbacks These callback functions operate on all of the connections.

MOM callbacks are processed without regard to the federates time status

virtual bool DtConnectionMgr::repairFederationConnection ( )

protectedvirtual

Attempt to re-establish a broken connection to the federation Returns true if successful.

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

virtual void DtConnectionMgr::resetConnectionLost ( )

virtual

Status Reset For Connection Lost Flag *Should be called after the connection loss has been handled.

virtual bool DtConnectionMgr::restoreInProgress ( ) const

virtual

Set/Get the flag indicating whether a restore is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.

virtual DtRetractInfoList* DtConnectionMgr::retractList ( )

virtual

Set/Get the time managed retract list.

virtual bool DtConnectionMgr::saveInProgress ( ) const

virtual

Set/Get the flag indicating whether a save is in progress Unless a message is marked safe to process during a save a received message is queued for later processing.

virtual bool DtConnectionMgr::saveRestoreInProgress ( ) const

virtual

Return bool: Is save or restore in progress.

virtual int DtConnectionMgr::send	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Sending.

Send a message Returns the size of the data sent

Reimplemented in DtAsyncConnectionMgr, and DtSmConnectionMgr.

virtual int DtConnectionMgr::sendAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send a message and delete the message after it has been sent Returns the size of the data sent.

Reimplemented in DtAsyncConnectionMgr.

virtual int DtConnectionMgr::sendDirectedAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		DtFederateHandle	fedHandle,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with federate ID These messages are sent to a specific entity by using internal smart forwarding if enabled.

virtual int DtConnectionMgr::sendDirectedStampedAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		DtFederateHandle	fedHandle,
		const MAKRti::DtInetAddr &	= `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here. These messages are sent to a specific entity by using internal smart forwarding if enabled

virtual int DtConnectionMgr::sendDirectedStampedAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		DtBitMask *	sendMask,
		const MAKRti::DtInetAddr &	= `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here. These messages are sent to a specific entity by using internal smart forwarding if enabled

virtual int DtConnectionMgr::sendDirectedStampedAnonymousAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		DtFederateHandle	fedHandle,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages

virtual void DtConnectionMgr::sendLoopback ( DtRtiMsg * msg )

virtual

Send a message to be processed by this federate.

Will not send to any other federates. NOTE: For now, this only works for TSO messages for time managed federates.

virtual void DtConnectionMgr::sendShutdownForwarderMsg ( )

virtual

Called by the rtiExec when it is exiting, only if it started this forwarder.

virtual int DtConnectionMgr::sendStamped	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	= `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.

virtual int DtConnectionMgr::sendStampedAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	= `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with fedEx name and federate ID Retraction record of timestamped messages made here.

virtual int DtConnectionMgr::sendStampedAnonymous	(	const DtRtiMsg &	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages.

virtual int DtConnectionMgr::sendStampedAnonymousAndDelete	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		const MAKRti::DtInetAddr &	addr = `MAKRti::DtInetAddr::inaddrAny()`
	)

virtual

Send and delete a message stamped with fedEx name, but not federate ID Does not make retraction record of sent messages

virtual int DtConnectionMgr::sendStampedUtilityFunction	(	DtRtiMsg *	msg,
		MAKRti::DtTransportType	transport,
		bool	performDelete,
		bool	isAnonymous,
		const MAKRti::DtInetAddr &	addr
	)

protectedvirtual

Called by sendStamped, sendStampedAndDelete, sendAnonymousStamped, etc.

Performs actual send, stamping, deletion.

virtual unsigned long DtConnectionMgr::sequenceNumber ( ) const

virtual

Get the next sequence number.

virtual unsigned long DtConnectionMgr::serviceCallCount ( ) const

virtual

Return service call counter.

virtual bool DtConnectionMgr::serviceCallLocked ( )

virtual

Called by RTI Ambassador services query if mutex was set using lockServiceCall()

static void DtConnectionMgr::setCreatorFunction ( DtConnectionMgrCreator fn )

static

Register a creator function.

When set, it will be used to create the Connection Manager.

virtual void DtConnectionMgr::setEvokingCallbacks ( bool evokingCbs )

virtual

Set/Get the evoke callbacks state.

virtual void DtConnectionMgr::setFederateAmbassador ( RTI_API::FederateAmbassador * fedAmb )

virtual

Set the federate ambassador.

virtual void DtConnectionMgr::setFederateHandle ( DtFederateHandle handle )

virtual

set federate handle ( this is used by restore and should not be called otherwise )

virtual void DtConnectionMgr::setFederateMgr ( DtFederateMgr * fedMgrPtr )

virtual

Set the federate manager.

Reimplemented in DtAsyncConnectionMgr.

static void DtConnectionMgr::setInternalCreatorFunction ( DtConnectionMgrCreator fn )

static

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

virtual void DtConnectionMgr::setMetadataControl	(	DtMetadataType	type,
		bool	onOff
	)

virtual

Set/Get metadata control indicators.

virtual void DtConnectionMgr::setMsgFactory ( DtRtiMsgFactory * fact )

virtual

Get/Set the message factory.

Reimplemented in DtSmConnectionMgr.

virtual void DtConnectionMgr::setMsgQueue ( DtRtiMsgQueue * msgQueuePtr )

virtual

virtual void DtConnectionMgr::setProcessingTick ( bool processingTick )

virtual

Set/Get tick processing state.

virtual void DtConnectionMgr::setRestoreInProgress ( bool saveIsInProgress )

virtual

virtual void DtConnectionMgr::setRetractList ( DtRetractInfoList * listPtr )

virtual

virtual void DtConnectionMgr::setSaveInProgress ( bool saveIsInProgress )

virtual

virtual bool DtConnectionMgr::setupSelectParams ( DtSelectParam * params )

virtual

adds Read File descriptors to a DtSelectParams Return boolean: file descriptor was added? In case no descriptors have been added, should sleep instead of select as there will be no input.

Reimplemented in DtSmConnectionMgr.

virtual void DtConnectionMgr::shutdown ( )

virtual

Request shutdown of communication activities.

Reimplemented in DtAsyncConnectionMgr, and DtNetStatsAsyncConnMgr.

virtual void DtConnectionMgr::testAutoProvideDelay ( )

virtual

Test if autoprovide delay time has expired.

When the delay has expired, the current tick will allow autoprovides.

virtual void DtConnectionMgr::testTransmitDelay ( )

virtual

Test if retransmit delay time has expired.

If so, deactivate delay and activate message metering. When the delay has expired, the current tick will allow retransmission of internal state (see method - delayTransmit). The transmission of these messages can be metered at a give rate. If so, then any messages over the specified rate are queued to be transmitted in subsequent ticks.

virtual bool DtConnectionMgr::tick ( )

virtual

Receiving.

Process the connections. Return boolean: a message was processed?

Reimplemented in DtAsyncConnectionMgr.

virtual void DtConnectionMgr::unlockServiceCall ( )

virtual

Called by asychronous processing thread to release mutually exclusive access to RTI managers.

virtual void DtConnectionMgr::updateBufferSizes ( )

virtual

Update Buffer sizes from Rid params object.

virtual bool DtConnectionMgr::wait	(	MAKRti::DtTime	periodInSeconds,
		bool	unlockWhileWaiting = `false`
	)

virtual

Wait for data to be ready or the given period of time to expire Return boolean: data is ready for reading?

Reimplemented in DtSmConnectionMgr, and DtAsyncConnectionMgr.

virtual void DtConnectionMgr::yield ( )

virtual

Yield processing to allow more data to arrive.

Reimplemented in DtAsyncConnectionMgr.

Member Data Documentation

bool DtConnectionMgr::myAddMcastMetadata

protected

bool DtConnectionMgr::myAddTransportTypeMetadata

protected

Metadata control indicators.

bool DtConnectionMgr::myAllProvideUpdateRequestsDelayed

protected

Extend auto provide delay to all attribute update requests.

std::shared_ptr<DtRtiAssistantLrcClient> DtConnectionMgr::myAssistantClient

protected

The assistant client.

bool DtConnectionMgr::myAuthorizationIsEnabled

protected

Is authorization enabled.

MAKRti::DtString DtConnectionMgr::myAuthorizationMessage

protected

Authorization message (mainly in case of failed authorization)

RTI_API::AuthorizationResult::Code DtConnectionMgr::myAuthorizationResult

protected

DtRtiConnection* DtConnectionMgr::myBestEffortConn

protected

The best effort connection.

const DtRtiApiTransportationType DtConnectionMgr::myBestEffortTransportType

protected

DtMutex* DtConnectionMgr::myCallbackMutex

protected

Mutex to synchronize access to RTI and Federate Ambassadors.

MAKRti::DtClock DtConnectionMgr::myClock

protected

Clock for timing.

unsigned long DtConnectionMgr::myConnectionId

protected

"unique" identifier for this connMgr (if there is a good source of unique ids)

bool DtConnectionMgr::myConnectionLost

protected

Connection Lost.

DtDfltMsgFactory DtConnectionMgr::myDfltMsgFactory

protected

Default message factory.

bool DtConnectionMgr::myDisconnectPending

protected

Disconnect from federation is pending.

bool DtConnectionMgr::myEvokingCallbacks

protected

Indicates if callbacks are being evoked.

DtFedAmbWrapperChain DtConnectionMgr::myFedAmbChain

protected

Chain of Federate Ambassador Wrappers.

DtFederateHandle DtConnectionMgr::myFederateHandle

protected

Federate handle.

DtFederateHandle DtConnectionMgr::myFedExHandle

protected

Federation execution handle.

MAKRti::DtString DtConnectionMgr::myFedExName

protected

Federation execution name.

DtFederateMgr* DtConnectionMgr::myFedMgr

protected

The federate manager.

unsigned int DtConnectionMgr::myInService

protected

RTI is processing a service call.

MAKRti::DtTransportType DtConnectionMgr::myInternalTransportType

protected

Transport type used for internal messages.

bool DtConnectionMgr::myIsFederate

protected

Whether this manager is for a federate.

unsigned int DtConnectionMgr::myLockService

protected

RTI is processing a message.

std::map<DtFederationHandle, DtLogicalTimeFactory*> DtConnectionMgr::myLogicalTimeFactories

protected

Factories for creating logical time instances.

DtMessageThrottle* DtConnectionMgr::myMessageThrottle

protected

Message output throttle.

DtRtiMsgCbMgr DtConnectionMgr::myMomMsgCbMgr

protected

MOM message callback manager.

DtRtiMsgCbMgr DtConnectionMgr::myMsgCbMgr

protected

Message callback manager.

DtRtiMsgFactory* DtConnectionMgr::myMsgFactory

protected

The message factory.

DtRtiMsgQueue* DtConnectionMgr::myMsgQueue

protected

Message queue.

std::map<MAKRti::DtInetAddr, DtMulticastEntry*> DtConnectionMgr::myMulticastGroups

protected

LRC listening to these multicast groups.

DtRIDParameters* DtConnectionMgr::myParams

protected

The RTI initialization parameters.

DtPartnerMgr* DtConnectionMgr::myPartnerMgr

protected

DtMessageQueueType DtConnectionMgr::myPendingMessages

protected

Pending messages.

DtRtiConnection* DtConnectionMgr::myPrimaryReliableConn

protected

The primary reliable connection.

bool DtConnectionMgr::myProcessingMessage

protected

Indicates if message is being processed.

bool DtConnectionMgr::myProcessingTick

protected

Tick processing state.

unsigned long DtConnectionMgr::myReceivedMsgCount

protected

Number of received messages.

bool DtConnectionMgr::myReceiveShuttingDown

protected

Shutdown acknowledged.

DtRtiConnectionList DtConnectionMgr::myReliableConns

protected

const DtRtiApiTransportationType DtConnectionMgr::myReliableTransportType

protected

bool DtConnectionMgr::myRestoreInProgress

protected

Restore status.

DtRetractInfoList* DtConnectionMgr::myRetractList

protected

Message retractions.

bool DtConnectionMgr::mySaveInProgress

protected

Save status.

bool DtConnectionMgr::mySendShuttingDown

protected

Shutdown acknowledged.

unsigned long DtConnectionMgr::mySentMsgCount

protected

Number of sent messages.

unsigned long DtConnectionMgr::myServiceCallCount

mutableprotected

Service call counter - increment before processing each service call.

bool DtConnectionMgr::myShutdown

protected

Shutdown requested.

unsigned long DtConnectionMgr::mySizeMismatchCount

protected

The count of message size mismatches.

MAKRti::DtTime DtConnectionMgr::mySizeMismatchNoticationTimer

protected

unsigned long DtConnectionMgr::myTickCount

protected

unsigned long DtConnectionMgr::myVersionConflictCount

protected

The count of message version conflicts.

MAKRti::DtTime DtConnectionMgr::myVersionConflictNoticationTimer

protected

MAKRti::DtList DtConnectionMgr::myWorkingMsgId

protected

Diagnostic message ID stack.

DtConnectionMgrCreator DtConnectionMgr::theCreator

staticprotected

The plugin creator.

DtConnectionMgrCreator DtConnectionMgr::theInternalCreator

staticprotected

The internal creator.

The documentation for this class was generated from the following file:

connectMgr.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
