DtRemoteAssistantViewMgr Class Reference

Sets up RID configuration page for the assistant. More...

Inheritance diagram for DtRemoteAssistantViewMgr:

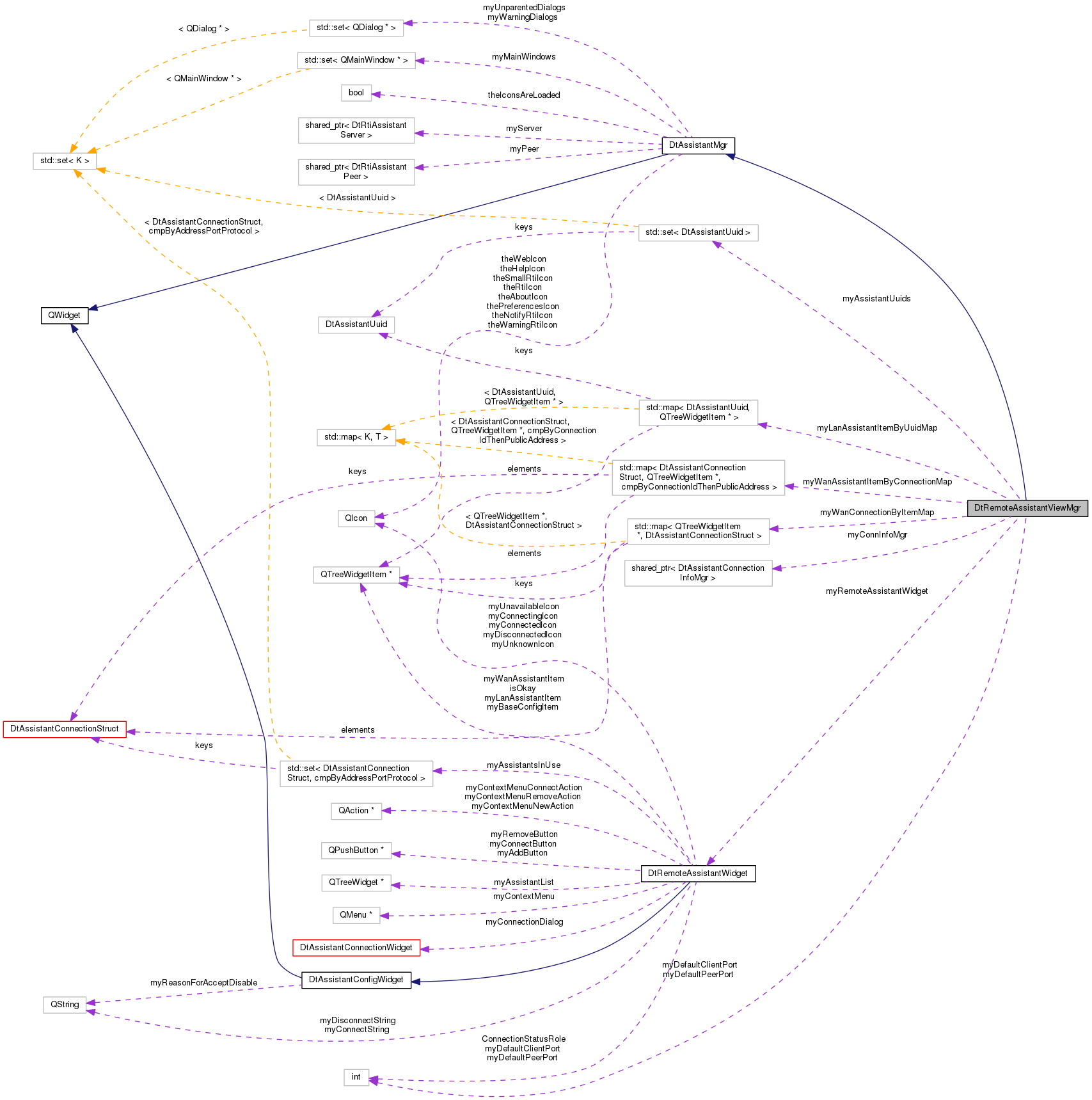

Collaboration diagram for DtRemoteAssistantViewMgr:

Public Slots
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences. More...
virtual void	processAssistantFound (const DtAssistantInfo &)
virtual void	processAssistantLost (const DtAssistantInfo &)
virtual void	addWanConnectionToGui (const DtAssistantConnectionStruct &)
virtual void	removeWanConnectionFromGui (const DtAssistantConnectionStruct &)
virtual void	updateWanConnectionInGui (const DtAssistantConnectionStruct &, DtAssistantConnectionState status)
virtual void	assistantConnectionInfoUpdated (const DtAssistantConnectionStruct &, const DtAssistantConnectionStruct &)
virtual void	processNewWanConnection (const DtAssistantConnectionStruct &)
virtual void	processDeleteWanConnection (QTreeWidgetItem *)
virtual void	processInitiateConnectionChangeFromGui (QTreeWidgetItem *, DtAssistantConnectionState)
virtual void	checkAndSetConnectionStatus (QTreeWidgetItem *)
virtual void	checkWanConnectionConflictsInGui (const DtAssistantConnectionStruct &connection, DtAssistantConnectionState status, bool isLanConnection)
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs. More...

Signals
void	newWanConnection (const DtAssistantConnectionStruct &)
void	deleteWanConnection (const DtAssistantConnectionStruct &)
void	initiateConnect (const DtAssistantConnectionStruct &)
void	initiateDisconnect (const DtAssistantConnectionStruct &)
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed. More...
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed. More...
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed. More...
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed. More...

Public Member Functions
	DtRemoteAssistantViewMgr (std::shared_ptr< DtRtiAssistantServer > server, std::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, std::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	CTOR. More...
virtual	~DtRemoteAssistantViewMgr ()
	Virtual DTOR. More...
virtual void	initialize ()
	Initialization method. More...
virtual void	tick ()
	Performs tasks that need to be completed periodically. More...
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (std::shared_ptr< DtRtiAssistantServer > server, std::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor. More...
virtual	~DtAssistantMgr ()
	Destructor. More...
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown. More...
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible. More...
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences. More...
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated. More...
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget. More...

Protected Attributes
std::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
DtRemoteAssistantWidget *	myRemoteAssistantWidget
	The Remote Assistant widget for the preferences dialog. More...
std::set< DtAssistantUuid >	myAssistantUuids
int	myDefaultPeerPort
int	myDefaultClientPort
std::map< DtAssistantUuid, QTreeWidgetItem * >	myLanAssistantItemByUuidMap
std::map < DtAssistantConnectionStruct, QTreeWidgetItem *, cmpByConnectionIdThenPublicAddress >	myWanAssistantItemByConnectionMap
std::map< QTreeWidgetItem *, DtAssistantConnectionStruct >	myWanConnectionByItemMap
Protected Attributes inherited from DtAssistantMgr
std::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components. More...
std::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants. More...
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set. More...
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set. More...
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed. More...

Private Member Functions
	DtRemoteAssistantViewMgr (const DtRemoteAssistantViewMgr &)
	Copy Constructor not implemented – Copy Not Allowed! More...
DtRemoteAssistantViewMgr &	operator= (const DtRemoteAssistantViewMgr &)
	Assignment not implemented – Assignment Not Allowed! More...

Additional Inherited Members
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog. More...
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog. More...
void	showDialog (QDialog *dlg)
	Shows the dialog. More...
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog. More...
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow. More...
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog. More...
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component. More...
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name. More...
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component. More...
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name. More...
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display. More...
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display. More...
virtual DtAssistantInfo	assistantInfoFromAssistantMsg (const DtAssistantMsg &assistantMsg, DtInetAddrSet *interfaces=0)
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant. More...
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded. More...

Detailed Description

Sets up RID configuration page for the assistant.

Constructor & Destructor Documentation

DtRemoteAssistantViewMgr::DtRemoteAssistantViewMgr	(	std::shared_ptr< DtRtiAssistantServer >	server,
		std::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		std::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

CTOR.

virtual DtRemoteAssistantViewMgr::~DtRemoteAssistantViewMgr ( )

virtual

Virtual DTOR.

DtRemoteAssistantViewMgr::DtRemoteAssistantViewMgr ( const DtRemoteAssistantViewMgr &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual void DtRemoteAssistantViewMgr::addWanConnectionToGui ( const DtAssistantConnectionStruct &  )

virtualslot

virtual void DtRemoteAssistantViewMgr::assistantConnectionInfoUpdated ( const DtAssistantConnectionStruct &  , const DtAssistantConnectionStruct &    )

virtualslot

virtual void DtRemoteAssistantViewMgr::checkAndSetConnectionStatus ( QTreeWidgetItem *  )

virtualslot

virtual void DtRemoteAssistantViewMgr::checkWanConnectionConflictsInGui ( const DtAssistantConnectionStruct &  connection, DtAssistantConnectionState  status, bool  isLanConnection  )

virtualslot

virtual void DtRemoteAssistantViewMgr::configWidget ( DtAssistantConfigWidget **  widget, QIcon &  icon, QString &  name, DtPreferencesPage &  pageId  )

virtualslot

Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.

void DtRemoteAssistantViewMgr::deleteWanConnection ( const DtAssistantConnectionStruct &  )

signal

virtual void DtRemoteAssistantViewMgr::initialize ( )

virtual

Initialization method.

Reimplemented from DtAssistantMgr.

void DtRemoteAssistantViewMgr::initiateConnect ( const DtAssistantConnectionStruct &  )

signal

void DtRemoteAssistantViewMgr::initiateDisconnect ( const DtAssistantConnectionStruct &  )

signal

void DtRemoteAssistantViewMgr::newWanConnection ( const DtAssistantConnectionStruct &  )

signal

DtRemoteAssistantViewMgr& DtRemoteAssistantViewMgr::operator= ( const DtRemoteAssistantViewMgr &  )

private

Assignment not implemented – Assignment Not Allowed!

virtual void DtRemoteAssistantViewMgr::processAssistantFound ( const DtAssistantInfo &  )

virtualslot

virtual void DtRemoteAssistantViewMgr::processAssistantLost ( const DtAssistantInfo &  )

virtualslot

virtual void DtRemoteAssistantViewMgr::processDeleteWanConnection ( QTreeWidgetItem *  )

virtualslot

virtual void DtRemoteAssistantViewMgr::processInitiateConnectionChangeFromGui ( QTreeWidgetItem *  , DtAssistantConnectionState    )

virtualslot

virtual void DtRemoteAssistantViewMgr::processNewWanConnection ( const DtAssistantConnectionStruct &  )

virtualslot

virtual void DtRemoteAssistantViewMgr::removeWanConnectionFromGui ( const DtAssistantConnectionStruct &  )

virtualslot

virtual void DtRemoteAssistantViewMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual void DtRemoteAssistantViewMgr::updateWanConnectionInGui ( const DtAssistantConnectionStruct &  , DtAssistantConnectionState  status  )

virtualslot

Member Data Documentation

std::set<DtAssistantUuid> DtRemoteAssistantViewMgr::myAssistantUuids

protected

std::shared_ptr<DtAssistantConnectionInfoMgr> DtRemoteAssistantViewMgr::myConnInfoMgr

protected

int DtRemoteAssistantViewMgr::myDefaultClientPort

protected

int DtRemoteAssistantViewMgr::myDefaultPeerPort

protected

std::map<DtAssistantUuid, QTreeWidgetItem*> DtRemoteAssistantViewMgr::myLanAssistantItemByUuidMap

protected

DtRemoteAssistantWidget* DtRemoteAssistantViewMgr::myRemoteAssistantWidget

protected

The Remote Assistant widget for the preferences dialog.

std::map<DtAssistantConnectionStruct, QTreeWidgetItem*, cmpByConnectionIdThenPublicAddress> DtRemoteAssistantViewMgr::myWanAssistantItemByConnectionMap

protected

std::map<QTreeWidgetItem*, DtAssistantConnectionStruct> DtRemoteAssistantViewMgr::myWanConnectionByItemMap

protected

---

The documentation for this class was generated from the following file:

• remoteAssistantViewMgr.h
