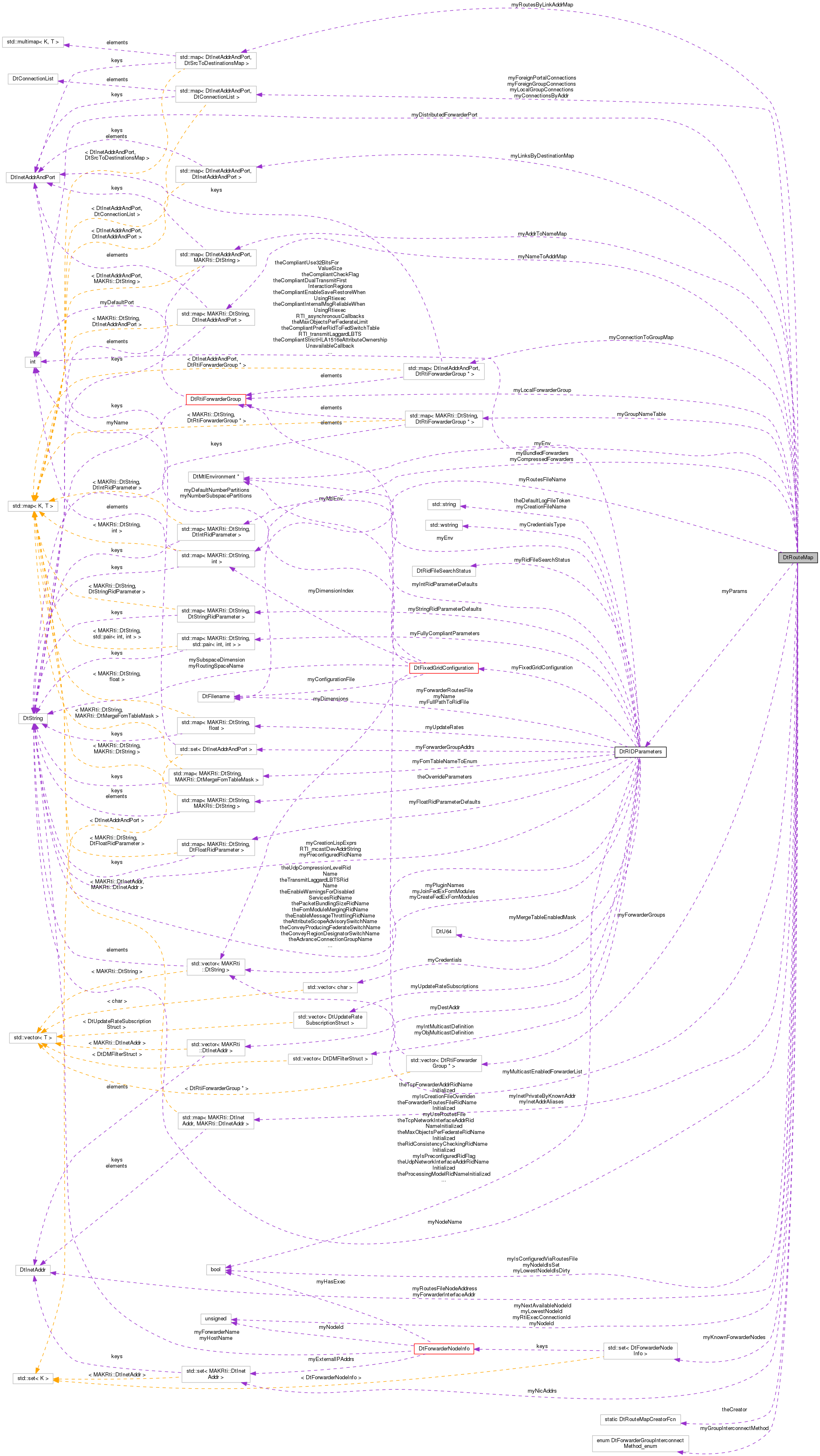

Collaboration diagram for DtRouteMap:

Public Types
typedef std::vector < DtInetAddrAndPort >	DtAddressPortList

typedef std::vector < MAKRti::DtInetAddr >	DtAddressList

typedef std::vector < MAKRti::DtString >	DtNodeList

typedef std::set < MAKRti::DtInetAddr >	DtInterfaceAddrSet

typedef std::vector < DtRtiForwarderGroup * >	DtForwarderGroupList

typedef std::shared_ptr < DtRouteMap >(*	DtRouteMapCreatorFcn )(const DtRIDParameters *, const MAKRti::DtInetEndpoint &)
	DtForwarderPort creator signature. More...

Public Member Functions
virtual void	rebuildRoutes ()
	when the routes file is first read, or if a forwarder is added/ or removed, we should rebuild our routes. More...

virtual bool	isConfiguredViaRoutesFile () const
	Indicate if this route map was built from a configuration file. More...

virtual bool	isEmpty () const

virtual	~DtRouteMap ()

virtual DtNodeList	nodeNames () const
	Get the complete list of nodes recognized by this DtRouteMap. More...

virtual DtAddressPortList	nodeAddresses () const

virtual void	setLocalNodeId (unsigned long newId)

virtual unsigned long	localNodeId () const

unsigned long	lowestNodeId () const
	returns the lowest known node Id. More...

virtual unsigned long	consumeNextAvailableNodeId ()
	returns the lowest known node Id and increments internal counter. More...

virtual MAKRti::DtString	nodeNameByAddress (const DtInetAddrAndPort &address) const

virtual MAKRti::DtString	nodeHostNameByAddress (const DtInetAddrAndPort &address) const

virtual unsigned long	nodeIdByAddress (const DtInetAddrAndPort &address) const

virtual unsigned long	nodeIdByName (const MAKRti::DtString &name) const

virtual DtInetAddrAndPort	nodeAddress (const MAKRti::DtString &name) const

virtual std::pair < DtInetAddrAndPort, DtInetAddrAndPort >	publicPrivatePairByPublicAddress (const DtInetAddrAndPort &address) const

virtual const MAKRti::DtString &	localNodeName () const

virtual DtForwarderGroupList	forwarderGroups () const
	Get a list of the recognized Forwarder Groups. More...

virtual DtRtiForwarderGroup *	localGroup () const
	Get a pointer to the local Forwarder Group. More...

virtual void	setForwarderPort (unsigned int port)
	Get/Set the forwarder port (generally set via the RID file) More...

virtual unsigned int	forwarderPort () const

virtual void	setForwarderInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Get/Set the forwarder interface address (generally set via the routes file) More...

virtual const MAKRti::DtInetAddr &	forwarderInterfaceAddr () const

virtual DtAddressPortList	adjacencyList (const DtInetAddrAndPort &node) const
	Get the list of all nodes directly connected to node. More...

virtual DtAddressPortList	adjacencyList (const MAKRti::DtString &node) const

virtual void	destinationList (DtAddressPortList &destinations, const DtInetAddrAndPort &srcNode, const DtInetAddrAndPort &linkNode) const
	Add the list of destinations for msgs from source node through link node to the destination list supplied in the first argument. More...

virtual void	destinationList (DtAddressPortList &destinations, const MAKRti::DtString &srcNode, const MAKRti::DtString &linkNode) const

virtual void	allLinkDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of upstream / downstream destinations for the specified source node to the destination list supplied in the first argument. More...

virtual void	allLinkDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const

virtual void	foreignPortalDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of portals in foreign Forwarder Groups to which the specified node will forward messages to the destination list supplied in the first argument. More...

virtual void	foreignPortalDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const

virtual void	foreignGroupConnections (DtAddressPortList &foreignNodes, const DtInetAddrAndPort &node) const
	Add the list of forwarders in foreign Forwarder Groups which have a connection to the specified node to the node list supplied in the first argument. More...

virtual void	foreignGroupConnections (DtAddressPortList &foreignNodes, const MAKRti::DtString &node) const

virtual void	localGroupDestinations (DtAddressPortList &destinations, const DtInetAddrAndPort &node) const
	Add the list of other forwarders in the local Forwarder Group to the destination list supplied in the first argument. More...

virtual void	localGroupDestinations (DtAddressPortList &destinations, const MAKRti::DtString &node) const

virtual const DtInterfaceAddrSet &	getInterfaceAddrs () const
	Get the complete list of localhost interface addresses. More...

virtual bool	addForwarder (const MAKRti::DtString &forwarderName, const MAKRti::DtInetAddr &forwarderAddr, int port)
	Add a new Forwarder to the list by name and address and port. More...

virtual bool	removeForwarder (const DtInetAddrAndPort &addr)
	Remove a forwarder from the known routes. More...

virtual bool	addForwarderConnection (const MAKRti::DtString &forwarderNameA, const MAKRti::DtString &forwarderNameB)
	Add a new Connection between two forwarders A<->B by name Returns false if forwarder name is unrecognized. More...

virtual bool	addForeignPortalConnection (const MAKRti::DtString &forwarder)
	Add a new connection from the local forwarder to a portal in a foreign forwarder group by name. More...

virtual bool	addForeignForwarderConnection (const MAKRti::DtString &forwarder)
	Add a new connection to a forwarder in a foreign forwarder group by name This should only be invoked by a portal forwarder. More...

virtual bool	addLocalGroupConnection (const MAKRti::DtString &peerForwarder)
	Add a new connection between the local forwarder and another member of the same Forwarder Group. More...

virtual bool	addForwarderRoute (const MAKRti::DtString &linkForwarderName, const MAKRti::DtString &forwarderNameA, const MAKRti::DtString &forwarderNameB)
	Create a new forwarding route between two forwarders through a third Connection is unidirectional, the reverse link must also be added if desired i.e. More...

virtual bool	addInterfaceAddr (const MAKRti::DtInetAddr &interfaceAddr)
	Add a new NIC address to the list of localhost addresses Returns false if address is invalid or a duplicate. More...

virtual DtRtiForwarderGroup *	addForwarderGroup (const MAKRti::DtString &groupName)
	Add a new load balancing / fault tolerance Forwarder Group. More...

virtual bool	addForwarderToGroup (const MAKRti::DtString &groupName, const MAKRti::DtString &forwarderName, const MAKRti::DtString &url, int isPortal)
	Add a forwarder to an established Forwarder Group. More...

virtual bool	enableDistributedUdpForwarding (const MAKRti::DtString &forwarder)
	Maintain a list of forwarders allowed to listen to and forward multicast messages when Distributed UDP Forwarding is enabled. More...

virtual bool	isMulticastMonitoringAllowed () const
	Return true if forwarder node is in the list of forwarders allowed to listen to and forward multicast messages. More...

virtual bool	enableCompression (const MAKRti::DtString &forwarder, int level)
	Enables compression from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder). More...

virtual bool	enableBundling (const MAKRti::DtString &forwarder, int bundleSize)
	Enables bundling from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder). More...

virtual int	compressionLevel (const DtInetAddrAndPort &forwarder)
	Returns the compression level for the given forwarder, or 0 if this forwarder connection should not be compressed. More...

virtual int	bundleSize (const DtInetAddrAndPort &forwarder)
	Returns the packet bundle size for the given forwarder, or 0 if this forwarder connection should not be bundled. More...

virtual bool	isLocalGroupMember (const DtInetAddrAndPort &forwarder) const
	Determine if the specified address belongs to a forwarder of the local Forwarder Group. More...

virtual DtInetAddrAndPort	locatePortal (const DtInetAddrAndPort &targetNode) const
	Find the portal forwarder for the group which the targeted node belongs to. More...

virtual DtInetAddrAndPort	locatePortal (const MAKRti::DtString &targetGroupName) const

virtual DtInetAddrAndPort	nextForwarderOnRoute (const DtInetAddrAndPort &targetNode) const
	Find the next forwarder in the route to the group which the targeted belongs to. More...

virtual DtInetAddrAndPort	nextForwarderOnRoute (const MAKRti::DtString &targetGroupName) const

virtual bool	forwardRtiexecMsgs () const
	Returns true if this forwarder should forward messages received from other forwarders which are destined for the rtiexec to the next forwarder in the path to the rtiexec. More...

virtual void	concatAddressList (DtAddressPortList &final, const DtAddressPortList &src) const
	Append one address list (vector) to another, eliminating duplicates. More...

virtual void	print () const
	Output the Routing Table. More...

virtual void	knownForwarderNodes (std::set< DtForwarderNodeInfo > &otherNodes) const
	Retrieves the forwarders known by this forwarder. More...

virtual void	addKnownForwarder (const DtInetAddrAndPort &fwDestination, unsigned long nodeId, const MAKRti::DtString &fwName, const MAKRti::DtString &hostname, const std::set< DtForwarderNodeInfo > &peers)
	Adds a known forwarder. Dynamic forwarder configuration only. More...

virtual bool	updateForwarder (const DtInetAddrAndPort &fwDestination, unsigned long fwNodeId, const MAKRti::DtString &fwName, const MAKRti::DtString &fwHostName, const std::set< DtForwarderNodeInfo > &peers)
	Updates a known forwarder. Dynamic forwarder configuration only. More...

virtual void	updateForwarderNodeId (const DtInetAddrAndPort &fwDestination, unsigned long fwNodeId)
	Updates the node ID of a known forwarder. Dynamic forwarder configuration only. More...

virtual void	addAddressAlias (const MAKRti::DtInetAddr &knownAddr, const MAKRti::DtInetAddr &aliasAddr)
	Adds another IP address alias for a known address. More...

const MAKRti::DtInetAddr &	addressAlias (const MAKRti::DtInetAddr &knownAddr) const
	Looks up the alias for a given address. More...

const MAKRti::DtInetAddr &	privateAddress (const MAKRti::DtInetAddr &knownAddr) const

virtual void	setRtiexecConnectionId (unsigned long)

virtual unsigned long	rtiexecConnectionId () const

Static Public Member Functions
static std::shared_ptr < DtRouteMap >	create (const DtRIDParameters *params, const MAKRti::DtInetEndpoint &fwAddrToConnectTo)
	Creates an instance of a DtRouteMap. More...

static void	setCreatorFunction (DtRouteMapCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtRouteMap with their own derived class. More...

Protected Types
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnectionAddrToNameMap

typedef std::map < MAKRti::DtString, DtInetAddrAndPort >	DtConnectionNameToAddrMap

typedef std::pair< std::vector < MAKRti::DtString > , DtAddressPortList >	DtConnectionList

typedef std::map < DtInetAddrAndPort, DtConnectionList >	DtAddrToConnectionListMap

typedef std::multimap < DtInetAddrAndPort, DtInetAddrAndPort >	DtSrcToDestinationsMap

typedef std::map < DtInetAddrAndPort, DtInetAddrAndPort >	DtDestinationToLinkMap

typedef std::map < MAKRti::DtInetAddr, MAKRti::DtInetAddr >	DtInetAddrAliasMap

typedef std::map < DtInetAddrAndPort, DtSrcToDestinationsMap >	DtRoutingTable

typedef std::map < MAKRti::DtString, DtRtiForwarderGroup * >	DtGroupNameTable

typedef std::map < DtInetAddrAndPort, DtRtiForwarderGroup * >	DtForwarderGroupConnectionTable

typedef std::map < MAKRti::DtString, int >	DtForwarderCompressionMap

typedef std::map < MAKRti::DtString, int >	DtForwarderBundlingMap

Protected Member Functions
	DtRouteMap (const DtRIDParameters *params, const MAKRti::DtInetEndpoint &additionalForwarder)

virtual void	registerRoutesFileParams ()
	Register the commands to parse from the Routes file and calls openRoutesFile() to load the lisp file. More...

virtual void	setupDefaultRoutes ()
	Setup the default network of forwarders if the routes file does not specify any router connections. More...

virtual void	setupSinglePortalRoutes ()

virtual void	setupLoadBalanceRoutes ()

virtual void	openRoutesFile ()
	Open and Parse the route map file. More...

virtual void	initializeInterfaceList ()
	Add the IP address of the default interface to the network adapter interface list. More...

virtual DtForwarderGroupInterconnectMethod	setGroupInterconnectMethod (MAKRti::DtString methodString)
	Convert the Forwarder Group Interconnect method string to the equivalent enumerated value. More...

	DtRouteMap ()
	Default Ctor, Copy Ctor, Assignment - unimplemented. More...

	DtRouteMap (const DtRouteMap &orig)

virtual void	setupNodeName ()

DtRouteMap &	operator= (const DtRouteMap &orig)

virtual void	setupDestinationsMap ()
	Sets up the map from destinations to next forwarder in the route when routes are configured manually in the routes file. More...

Protected Attributes
const DtRIDParameters *	myParams

MAKRti::DtFilename	myRoutesFileName

MAKRti::DtMtlEnvironment *	myEnv

MAKRti::DtString	myNodeName

MAKRti::DtInetAddr	myRoutesFileNodeAddress

unsigned long	myNodeId

unsigned long	myLowestNodeId

unsigned long	myNextAvailableNodeId

bool	myLowestNodeIdIsDirty

bool	myNodeIdIsSet

bool	myIsConfiguredViaRoutesFile

unsigned long	myRtiExecConnectionId

int	myDistributedForwarderPort
	Port used for forwarder-to-forwarder connections. More...

MAKRti::DtInetAddr	myForwarderInterfaceAddr
	The interface used for forwarder-to-forwarder connections. More...

DtForwarderGroupInterconnectMethod	myGroupInterconnectMethod

DtNodeList	myMulticastEnabledForwarderList
	List of forwarders allowed to act as Distributed UDP Forwarders, meaning they are allowed to listen to and forward multicast messages from the LAN. More...

std::set< DtForwarderNodeInfo >	myKnownForwarderNodes

DtConnectionNameToAddrMap	myNameToAddrMap

DtConnectionAddrToNameMap	myAddrToNameMap

DtAddrToConnectionListMap	myConnectionsByAddr

DtAddrToConnectionListMap	myForeignPortalConnections

DtAddrToConnectionListMap	myForeignGroupConnections

DtAddrToConnectionListMap	myLocalGroupConnections

DtRoutingTable	myRoutesByLinkAddrMap

DtDestinationToLinkMap	myLinksByDestinationMap

DtInterfaceAddrSet	myNicAddrs

DtRtiForwarderGroup *	myLocalForwarderGroup

DtForwarderGroupList	myForwarderGroups
	the one I'm in More...

DtGroupNameTable	myGroupNameTable
	all groups More...

DtForwarderGroupConnectionTable	myConnectionToGroupMap

DtInetAddrAliasMap	myInetAddrAliases
	Some forwarders can be known by multiple addresses. More...

DtInetAddrAliasMap	myInetPrivateByKnownAddr

DtForwarderCompressionMap	myCompressedForwarders
	Set of forwarders to which we should have compression enabled. More...

DtForwarderBundlingMap	myBundledForwarders
	Set of forwarders to which we should have bundling enabled. More...

Static Protected Attributes
static DtRouteMapCreatorFcn	theCreator

Member Typedef Documentation

typedef std::vector<MAKRti::DtInetAddr> DtRouteMap::DtAddressList

typedef std::vector< DtInetAddrAndPort > DtRouteMap::DtAddressPortList

typedef std::map< DtInetAddrAndPort, DtConnectionList > DtRouteMap::DtAddrToConnectionListMap

protected

typedef std::map< DtInetAddrAndPort, MAKRti::DtString > DtRouteMap::DtConnectionAddrToNameMap

protected

typedef std::pair< std::vector< MAKRti::DtString >, DtAddressPortList > DtRouteMap::DtConnectionList

protected

typedef std::map< MAKRti::DtString, DtInetAddrAndPort > DtRouteMap::DtConnectionNameToAddrMap

protected

typedef std::map< DtInetAddrAndPort, DtInetAddrAndPort > DtRouteMap::DtDestinationToLinkMap

protected

typedef std::map< MAKRti::DtString, int > DtRouteMap::DtForwarderBundlingMap

protected

typedef std::map< MAKRti::DtString, int > DtRouteMap::DtForwarderCompressionMap

protected

typedef std::map< DtInetAddrAndPort, DtRtiForwarderGroup* > DtRouteMap::DtForwarderGroupConnectionTable

protected

typedef std::vector< DtRtiForwarderGroup* > DtRouteMap::DtForwarderGroupList

typedef std::map< MAKRti::DtString, DtRtiForwarderGroup* > DtRouteMap::DtGroupNameTable

protected

typedef std::map< MAKRti::DtInetAddr, MAKRti::DtInetAddr > DtRouteMap::DtInetAddrAliasMap

protected

typedef std::set< MAKRti::DtInetAddr > DtRouteMap::DtInterfaceAddrSet

typedef std::vector< MAKRti::DtString > DtRouteMap::DtNodeList

typedef std::shared_ptr<DtRouteMap>(* DtRouteMap::DtRouteMapCreatorFcn)(const DtRIDParameters *, const MAKRti::DtInetEndpoint &)

DtForwarderPort creator signature.

typedef std::map< DtInetAddrAndPort, DtSrcToDestinationsMap > DtRouteMap::DtRoutingTable

protected

typedef std::multimap< DtInetAddrAndPort, DtInetAddrAndPort > DtRouteMap::DtSrcToDestinationsMap

protected

Constructor & Destructor Documentation

DtRouteMap::DtRouteMap	(	const DtRIDParameters *	params,
		const MAKRti::DtInetEndpoint &	additionalForwarder
	)

protected

virtual DtRouteMap::~DtRouteMap ( )

virtual

DtRouteMap::DtRouteMap ( )

protected

Default Ctor, Copy Ctor, Assignment - unimplemented.

DtRouteMap::DtRouteMap ( const DtRouteMap & orig )

protected

Member Function Documentation

virtual void DtRouteMap::addAddressAlias	(	const MAKRti::DtInetAddr &	knownAddr,
		const MAKRti::DtInetAddr &	aliasAddr
	)

virtual

Adds another IP address alias for a known address.

This is necessary, for instance, when another forwarder is behind a router using NAT, such that this forwarder recognizes it as a different IP than what it recognizes itself as.

virtual bool DtRouteMap::addForeignForwarderConnection ( const MAKRti::DtString & forwarder )

virtual

Add a new connection to a forwarder in a foreign forwarder group by name This should only be invoked by a portal forwarder.

Returns false if foreign forwarder name is unrecognized

virtual bool DtRouteMap::addForeignPortalConnection ( const MAKRti::DtString & forwarder )

virtual

Add a new connection from the local forwarder to a portal in a foreign forwarder group by name.

Returns false if foreign portal name is unrecognized.

virtual bool DtRouteMap::addForwarder	(	const MAKRti::DtString &	forwarderName,
		const MAKRti::DtInetAddr &	forwarderAddr,
		int	port
	)

virtual

Add a new Forwarder to the list by name and address and port.

If specified port is DtUseDefaultForwarderPort, the default forwarder port specified in the RID file is used. Returns false if attempted to add an existing name or ip/port

virtual bool DtRouteMap::addForwarderConnection	(	const MAKRti::DtString &	forwarderNameA,
		const MAKRti::DtString &	forwarderNameB
	)

virtual

Add a new Connection between two forwarders A<->B by name Returns false if forwarder name is unrecognized.

virtual DtRtiForwarderGroup* DtRouteMap::addForwarderGroup ( const MAKRti::DtString & groupName )

virtual

Add a new load balancing / fault tolerance Forwarder Group.

virtual bool DtRouteMap::addForwarderRoute	(	const MAKRti::DtString &	linkForwarderName,
		const MAKRti::DtString &	forwarderNameA,
		const MAKRti::DtString &	forwarderNameB
	)

virtual

Create a new forwarding route between two forwarders through a third Connection is unidirectional, the reverse link must also be added if desired i.e.

A->Link->B does not imply A<-Link<-B Returns false if route is impossible due to missing connections

virtual bool DtRouteMap::addForwarderToGroup	(	const MAKRti::DtString &	groupName,
		const MAKRti::DtString &	forwarderName,
		const MAKRti::DtString &	url,
		int	isPortal
	)

virtual

Add a forwarder to an established Forwarder Group.

virtual bool DtRouteMap::addInterfaceAddr ( const MAKRti::DtInetAddr & interfaceAddr )

virtual

Add a new NIC address to the list of localhost addresses Returns false if address is invalid or a duplicate.

virtual void DtRouteMap::addKnownForwarder	(	const DtInetAddrAndPort &	fwDestination,
		unsigned long	nodeId,
		const MAKRti::DtString &	fwName,
		const MAKRti::DtString &	hostname,
		const std::set< DtForwarderNodeInfo > &	peers
	)

virtual

Adds a known forwarder. Dynamic forwarder configuration only.

virtual bool DtRouteMap::addLocalGroupConnection ( const MAKRti::DtString & peerForwarder )

virtual

Add a new connection between the local forwarder and another member of the same Forwarder Group.

Returns false if peer forwarder name is unrecognized

const MAKRti::DtInetAddr & DtRouteMap::addressAlias ( const MAKRti::DtInetAddr & knownAddr ) const

inline

Looks up the alias for a given address.

Return value will be INADDR_ANY if address could not be found in alias list.

References myInetAddrAliases.

virtual DtAddressPortList DtRouteMap::adjacencyList ( const DtInetAddrAndPort & node ) const

virtual

Get the list of all nodes directly connected to node.

virtual DtAddressPortList DtRouteMap::adjacencyList ( const MAKRti::DtString & node ) const

virtual

virtual void DtRouteMap::allLinkDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of upstream / downstream destinations for the specified source node to the destination list supplied in the first argument.

virtual void DtRouteMap::allLinkDestinations	(	DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

virtual int DtRouteMap::bundleSize ( const DtInetAddrAndPort & forwarder )

virtual

Returns the packet bundle size for the given forwarder, or 0 if this forwarder connection should not be bundled.

virtual int DtRouteMap::compressionLevel ( const DtInetAddrAndPort & forwarder )

virtual

Returns the compression level for the given forwarder, or 0 if this forwarder connection should not be compressed.

virtual void DtRouteMap::concatAddressList	(	DtAddressPortList &	final,
		const DtAddressPortList &	src
	)		const

virtual

Append one address list (vector) to another, eliminating duplicates.

virtual unsigned long DtRouteMap::consumeNextAvailableNodeId ( )

virtual

returns the lowest known node Id and increments internal counter.

static std::shared_ptr<DtRouteMap> DtRouteMap::create	(	const DtRIDParameters *	params,
		const MAKRti::DtInetEndpoint &	fwAddrToConnectTo
	)

static

Creates an instance of a DtRouteMap.

virtual void DtRouteMap::destinationList	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	srcNode,
		const DtInetAddrAndPort &	linkNode
	)		const

virtual

Add the list of destinations for msgs from source node through link node to the destination list supplied in the first argument.

virtual void DtRouteMap::destinationList	(	DtAddressPortList &	destinations,
		const MAKRti::DtString &	srcNode,
		const MAKRti::DtString &	linkNode
	)		const

virtual

virtual bool DtRouteMap::enableBundling	(	const MAKRti::DtString &	forwarder,
		int	bundleSize
	)

virtual

Enables bundling from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).

virtual bool DtRouteMap::enableCompression	(	const MAKRti::DtString &	forwarder,
		int	level
	)

virtual

Enables compression from this forwarder to the given forwarder (only if this forwarder is configured to establish a connection to the forwarder).

virtual bool DtRouteMap::enableDistributedUdpForwarding ( const MAKRti::DtString & forwarder )

virtual

Maintain a list of forwarders allowed to listen to and forward multicast messages when Distributed UDP Forwarding is enabled.

virtual void DtRouteMap::foreignGroupConnections	(	DtAddressPortList &	foreignNodes,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of forwarders in foreign Forwarder Groups which have a connection to the specified node to the node list supplied in the first argument.

Note the naming convention – this is not called foreignGroupDestinations simply because the entries within it are not assumed to be destinations for forwarded messages, only a list of forwarders in other groups that are expected to send messages to this node.

virtual void DtRouteMap::foreignGroupConnections	(	DtAddressPortList &	foreignNodes,
		const MAKRti::DtString &	node
	)		const

virtual

virtual void DtRouteMap::foreignPortalDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of portals in foreign Forwarder Groups to which the specified node will forward messages to the destination list supplied in the first argument.

virtual void DtRouteMap::foreignPortalDestinations	(	DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

virtual DtForwarderGroupList DtRouteMap::forwarderGroups ( ) const

virtual

Get a list of the recognized Forwarder Groups.

const MAKRti::DtInetAddr & DtRouteMap::forwarderInterfaceAddr ( ) const

inlinevirtual

References myForwarderInterfaceAddr.

virtual unsigned int DtRouteMap::forwarderPort ( ) const

virtual

virtual bool DtRouteMap::forwardRtiexecMsgs ( ) const

virtual

Returns true if this forwarder should forward messages received from other forwarders which are destined for the rtiexec to the next forwarder in the path to the rtiexec.

For single portal and load balancing networks, this can cause a message to be routed to the rtiexec more than once. rtiexec message forwarding should therefore only occur in manually configured forwarder networks.

virtual const DtInterfaceAddrSet& DtRouteMap::getInterfaceAddrs ( ) const

virtual

Get the complete list of localhost interface addresses.

virtual void DtRouteMap::initializeInterfaceList ( )

protectedvirtual

Add the IP address of the default interface to the network adapter interface list.

virtual bool DtRouteMap::isConfiguredViaRoutesFile ( ) const

virtual

Indicate if this route map was built from a configuration file.

virtual bool DtRouteMap::isEmpty ( ) const

virtual

virtual bool DtRouteMap::isLocalGroupMember ( const DtInetAddrAndPort & forwarder ) const

virtual

Determine if the specified address belongs to a forwarder of the local Forwarder Group.

virtual bool DtRouteMap::isMulticastMonitoringAllowed ( ) const

virtual

Return true if forwarder node is in the list of forwarders allowed to listen to and forward multicast messages.

virtual void DtRouteMap::knownForwarderNodes ( std::set< DtForwarderNodeInfo > & otherNodes ) const

virtual

Retrieves the forwarders known by this forwarder.

Dynamic forwarder configuration only.

virtual DtRtiForwarderGroup* DtRouteMap::localGroup ( ) const

virtual

Get a pointer to the local Forwarder Group.

virtual void DtRouteMap::localGroupDestinations	(	DtAddressPortList &	destinations,
		const DtInetAddrAndPort &	node
	)		const

virtual

Add the list of other forwarders in the local Forwarder Group to the destination list supplied in the first argument.

virtual void DtRouteMap::localGroupDestinations	(	DtAddressPortList &	destinations,
		const MAKRti::DtString &	node
	)		const

virtual

virtual unsigned long DtRouteMap::localNodeId ( ) const

virtual

virtual const MAKRti::DtString& DtRouteMap::localNodeName ( ) const

virtual

virtual DtInetAddrAndPort DtRouteMap::locatePortal ( const DtInetAddrAndPort & targetNode ) const

virtual

Find the portal forwarder for the group which the targeted node belongs to.

virtual DtInetAddrAndPort DtRouteMap::locatePortal ( const MAKRti::DtString & targetGroupName ) const

virtual

unsigned long DtRouteMap::lowestNodeId ( ) const

returns the lowest known node Id.

virtual DtInetAddrAndPort DtRouteMap::nextForwarderOnRoute ( const DtInetAddrAndPort & targetNode ) const

virtual

Find the next forwarder in the route to the group which the targeted belongs to.

virtual DtInetAddrAndPort DtRouteMap::nextForwarderOnRoute ( const MAKRti::DtString & targetGroupName ) const

virtual

virtual DtInetAddrAndPort DtRouteMap::nodeAddress ( const MAKRti::DtString & name ) const

virtual

virtual DtAddressPortList DtRouteMap::nodeAddresses ( ) const

virtual

virtual MAKRti::DtString DtRouteMap::nodeHostNameByAddress ( const DtInetAddrAndPort & address ) const

virtual

virtual unsigned long DtRouteMap::nodeIdByAddress ( const DtInetAddrAndPort & address ) const

virtual

virtual unsigned long DtRouteMap::nodeIdByName ( const MAKRti::DtString & name ) const

virtual

virtual MAKRti::DtString DtRouteMap::nodeNameByAddress ( const DtInetAddrAndPort & address ) const

virtual

virtual DtNodeList DtRouteMap::nodeNames ( ) const

virtual

Get the complete list of nodes recognized by this DtRouteMap.

virtual void DtRouteMap::openRoutesFile ( )

protectedvirtual

Open and Parse the route map file.

DtRouteMap& DtRouteMap::operator= ( const DtRouteMap & orig )

protected

virtual void DtRouteMap::print ( ) const

virtual

Output the Routing Table.

const MAKRti::DtInetAddr & DtRouteMap::privateAddress ( const MAKRti::DtInetAddr & knownAddr ) const

inline

References myInetPrivateByKnownAddr.

virtual std::pair<DtInetAddrAndPort, DtInetAddrAndPort> DtRouteMap::publicPrivatePairByPublicAddress ( const DtInetAddrAndPort & address ) const

virtual

virtual void DtRouteMap::rebuildRoutes ( )

virtual

when the routes file is first read, or if a forwarder is added/ or removed, we should rebuild our routes.

virtual void DtRouteMap::registerRoutesFileParams ( )

protectedvirtual

Register the commands to parse from the Routes file and calls openRoutesFile() to load the lisp file.

virtual bool DtRouteMap::removeForwarder ( const DtInetAddrAndPort & addr )

virtual

Remove a forwarder from the known routes.

returns whether it was successfully removed

virtual unsigned long DtRouteMap::rtiexecConnectionId ( ) const

virtual

static void DtRouteMap::setCreatorFunction ( DtRouteMapCreatorFcn creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtRouteMap with their own derived class.

void DtRouteMap::setForwarderInterfaceAddr ( const MAKRti::DtInetAddr & addr )

inlinevirtual

Get/Set the forwarder interface address (generally set via the routes file)

References myForwarderInterfaceAddr.

virtual void DtRouteMap::setForwarderPort ( unsigned int port )

virtual

Get/Set the forwarder port (generally set via the RID file)

virtual DtForwarderGroupInterconnectMethod DtRouteMap::setGroupInterconnectMethod ( MAKRti::DtString methodString )

protectedvirtual

Convert the Forwarder Group Interconnect method string to the equivalent enumerated value.

virtual void DtRouteMap::setLocalNodeId ( unsigned long newId )

virtual

virtual void DtRouteMap::setRtiexecConnectionId ( unsigned long )

virtual

virtual void DtRouteMap::setupDefaultRoutes ( )

protectedvirtual

Setup the default network of forwarders if the routes file does not specify any router connections.

virtual void DtRouteMap::setupDestinationsMap ( )

protectedvirtual

Sets up the map from destinations to next forwarder in the route when routes are configured manually in the routes file.

virtual void DtRouteMap::setupLoadBalanceRoutes ( )

protectedvirtual

virtual void DtRouteMap::setupNodeName ( )

protectedvirtual

virtual void DtRouteMap::setupSinglePortalRoutes ( )

protectedvirtual

virtual bool DtRouteMap::updateForwarder	(	const DtInetAddrAndPort &	fwDestination,
		unsigned long	fwNodeId,
		const MAKRti::DtString &	fwName,
		const MAKRti::DtString &	fwHostName,
		const std::set< DtForwarderNodeInfo > &	peers
	)

virtual

Updates a known forwarder. Dynamic forwarder configuration only.

virtual void DtRouteMap::updateForwarderNodeId	(	const DtInetAddrAndPort &	fwDestination,
		unsigned long	fwNodeId
	)

virtual

Updates the node ID of a known forwarder. Dynamic forwarder configuration only.

Member Data Documentation

DtConnectionAddrToNameMap DtRouteMap::myAddrToNameMap

protected

DtForwarderBundlingMap DtRouteMap::myBundledForwarders

protected

Set of forwarders to which we should have bundling enabled.

DtForwarderCompressionMap DtRouteMap::myCompressedForwarders

protected

Set of forwarders to which we should have compression enabled.

DtAddrToConnectionListMap DtRouteMap::myConnectionsByAddr

protected

DtForwarderGroupConnectionTable DtRouteMap::myConnectionToGroupMap

protected

int DtRouteMap::myDistributedForwarderPort

protected

Port used for forwarder-to-forwarder connections.

MAKRti::DtMtlEnvironment* DtRouteMap::myEnv

protected

DtAddrToConnectionListMap DtRouteMap::myForeignGroupConnections

protected

DtAddrToConnectionListMap DtRouteMap::myForeignPortalConnections

protected

DtForwarderGroupList DtRouteMap::myForwarderGroups

protected

the one I'm in

MAKRti::DtInetAddr DtRouteMap::myForwarderInterfaceAddr

protected

The interface used for forwarder-to-forwarder connections.

Referenced by forwarderInterfaceAddr(), and setForwarderInterfaceAddr().

DtForwarderGroupInterconnectMethod DtRouteMap::myGroupInterconnectMethod

protected

DtGroupNameTable DtRouteMap::myGroupNameTable

protected

all groups

DtInetAddrAliasMap DtRouteMap::myInetAddrAliases

protected

Some forwarders can be known by multiple addresses.

This is a mapping from known aliases to the primary address.

Referenced by addressAlias().

DtInetAddrAliasMap DtRouteMap::myInetPrivateByKnownAddr

protected

Referenced by privateAddress().

bool DtRouteMap::myIsConfiguredViaRoutesFile

protected

std::set<DtForwarderNodeInfo> DtRouteMap::myKnownForwarderNodes

protected

DtDestinationToLinkMap DtRouteMap::myLinksByDestinationMap

protected

DtRtiForwarderGroup* DtRouteMap::myLocalForwarderGroup

protected

DtAddrToConnectionListMap DtRouteMap::myLocalGroupConnections

protected

unsigned long DtRouteMap::myLowestNodeId

mutableprotected

bool DtRouteMap::myLowestNodeIdIsDirty

mutableprotected

DtNodeList DtRouteMap::myMulticastEnabledForwarderList

protected

List of forwarders allowed to act as Distributed UDP Forwarders, meaning they are allowed to listen to and forward multicast messages from the LAN.

The use must manually select which forwarders have this enabled to ensure that only a single copy of multicast messages are forwarded by one forwarder on each LAN.

DtConnectionNameToAddrMap DtRouteMap::myNameToAddrMap

protected

unsigned long DtRouteMap::myNextAvailableNodeId

protected

DtInterfaceAddrSet DtRouteMap::myNicAddrs

protected

unsigned long DtRouteMap::myNodeId

protected

bool DtRouteMap::myNodeIdIsSet

protected

MAKRti::DtString DtRouteMap::myNodeName

protected

const DtRIDParameters* DtRouteMap::myParams

protected

DtRoutingTable DtRouteMap::myRoutesByLinkAddrMap

protected

MAKRti::DtFilename DtRouteMap::myRoutesFileName

protected

MAKRti::DtInetAddr DtRouteMap::myRoutesFileNodeAddress

protected

unsigned long DtRouteMap::myRtiExecConnectionId

protected

DtRouteMapCreatorFcn DtRouteMap::theCreator

staticprotected

The documentation for this class was generated from the following file:

routeMap.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
