The DtRtiExecHandshakeProcessor class consists of filters for RtiExecHandshake messages for all three ports of a forwarder node. More...

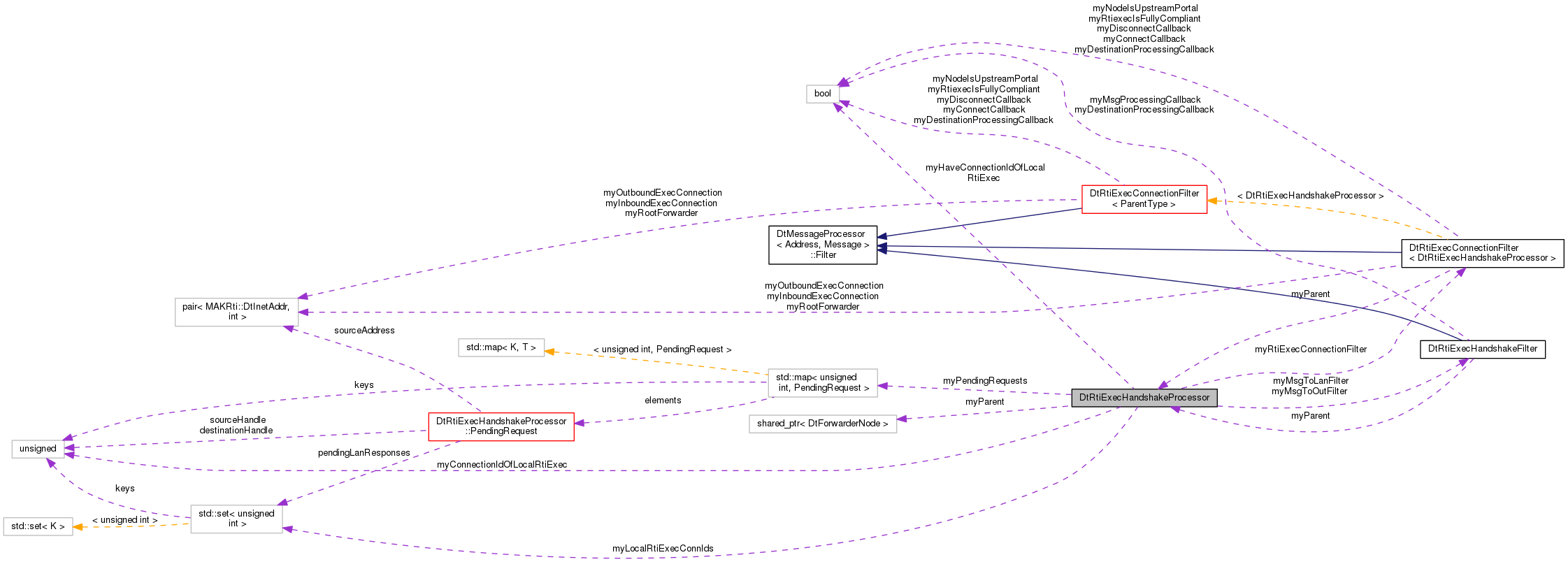

Collaboration diagram for DtRtiExecHandshakeProcessor:

Classes
class	PendingRequest
	Simple helper class to hold status of pending rtiexec Handshakes. More...

Public Types
typedef bool(DtRtiExecHandshakeProcessor::*	HandshakeMsgHandlerMemberCb )(const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)
	Pointer to member function callbacks used by the port filters. More...

typedef bool(DtRtiExecHandshakeProcessor::*	DestinationProcessingMemberCb )(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

Public Member Functions
	DtRtiExecHandshakeProcessor (std::shared_ptr< DtForwarderNode > parent)
	Default Ctor. More...

virtual	~DtRtiExecHandshakeProcessor ()
	Default Dtor. More...

virtual bool	gotMsgToLanPort (const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)
	Got Handshake Message from the IN Port to the LAN Port. More...

virtual bool	gotMsgToOutPort (const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)
	Got Handshake Message from the IN or LAN Port to the OUT Port. More...

virtual bool	gotRtiExecConnect (const DtInetAddrAndPort &src, const DtRtiExecConnectMsg &msg)
	Got rtiexec Connect Message from the IN or LAN Port. More...

virtual bool	gotRtiExecDisconnect (const DtInetAddrAndPort &src, const DtRtiExecDisconnectMsg &msg)
	Got rtiexec Disconnect Message from the IN or LAN Port. More...

virtual bool	processExecHandshakeDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg. More...

virtual bool	ignoreExecHandshakeDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Exec Handshakes messages are simply forwarded to all LAN destinations. More...

virtual bool	ignoreExecConnectDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Exec Connect messages are not forwarded by this processor, but they are also handled by the Forwarder Fault Processor which may forward them. More...

virtual bool	isLocalGroupMember (const DtInetAddrAndPort &addr)
	Aids to determine inbound and outbound connections to rtiexec. More...

virtual DtInetAddrAndPort	locateGroupPortal (const DtInetAddrAndPort &addr)

virtual DtInetAddrAndPort	localNodeAddress ()
	Return parent node address. More...

Static Public Member Functions
static int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr, void *usr)
	Connection loss callback. More...

Protected Types
typedef std::set< unsigned int >	DtConnIdList

typedef std::map< unsigned int, PendingRequest >	DtConnIdToRequestMap

Protected Member Functions
virtual int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr)
	Connection loss callback. More...

virtual void	sendResponseMsg (DtRtiExecHandshakeMsg::DtHandshakeStatus status, DtHandle src, DtHandle dest, const MAKRti::DtString &hostName, bool fullyCompliant, const DtInetAddrAndPort *addr=0)
	Send a handshake Response based on aggregating all Local responses and all downstream WAN responses. More...

virtual bool	processInToOutMsg (const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)
	Got Handshake Message from the IN Port to the OUT Port. More...

virtual bool	processLanToOutMsg (const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)
	Got Handshake Message from the LAN Port to the OUT Port. More...

Protected Attributes
std::shared_ptr< DtForwarderNode >	myParent

DtRtiExecHandshakeFilter *	myMsgToLanFilter

DtRtiExecHandshakeFilter *	myMsgToOutFilter

DtRtiExecConnectionFilter < DtRtiExecHandshakeProcessor > *	myRtiExecConnectionFilter

DtConnIdList	myLocalRtiExecConnIds
	List of local rtiexec Candidates. More...

DtConnIdToRequestMap	myPendingRequests
	Map of outstanding rtiexec Requests to Responses. More...

unsigned long	myConnectionIdOfLocalRtiExec
	If valid, this represents the connID of a local exec. More...

bool	myHaveConnectionIdOfLocalRtiExec

Detailed Description

The DtRtiExecHandshakeProcessor class consists of filters for RtiExecHandshake messages for all three ports of a forwarder node.

The processor pulls all handshake messages passing through the forwarder node out of the message stream, and determines the appropriate response. The processor then generates the response and sends it to all necessary destinations.

Member Typedef Documentation

typedef bool(DtRtiExecHandshakeProcessor::* DtRtiExecHandshakeProcessor::DestinationProcessingMemberCb)(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

typedef std::set< unsigned int > DtRtiExecHandshakeProcessor::DtConnIdList

protected

typedef std::map< unsigned int, PendingRequest > DtRtiExecHandshakeProcessor::DtConnIdToRequestMap

protected

typedef bool(DtRtiExecHandshakeProcessor::* DtRtiExecHandshakeProcessor::HandshakeMsgHandlerMemberCb)(const DtInetAddrAndPort &src, const DtRtiExecHandshakeMsg &msg)

Pointer to member function callbacks used by the port filters.

Constructor & Destructor Documentation

DtRtiExecHandshakeProcessor::DtRtiExecHandshakeProcessor ( std::shared_ptr< DtForwarderNode > parent )

Default Ctor.

virtual DtRtiExecHandshakeProcessor::~DtRtiExecHandshakeProcessor ( )

virtual

Default Dtor.

Member Function Documentation

virtual bool DtRtiExecHandshakeProcessor::gotMsgToLanPort	(	const DtInetAddrAndPort &	src,
		const DtRtiExecHandshakeMsg &	msg
	)

virtual

Got Handshake Message from the IN Port to the LAN Port.

virtual bool DtRtiExecHandshakeProcessor::gotMsgToOutPort	(	const DtInetAddrAndPort &	src,
		const DtRtiExecHandshakeMsg &	msg
	)

virtual

Got Handshake Message from the IN or LAN Port to the OUT Port.

virtual bool DtRtiExecHandshakeProcessor::gotRtiExecConnect	(	const DtInetAddrAndPort &	src,
		const DtRtiExecConnectMsg &	msg
	)

virtual

Got rtiexec Connect Message from the IN or LAN Port.

virtual bool DtRtiExecHandshakeProcessor::gotRtiExecDisconnect	(	const DtInetAddrAndPort &	src,
		const DtRtiExecDisconnectMsg &	msg
	)

virtual

Got rtiexec Disconnect Message from the IN or LAN Port.

virtual bool DtRtiExecHandshakeProcessor::ignoreExecConnectDestinations	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)

virtual

Exec Connect messages are not forwarded by this processor, but they are also handled by the Forwarder Fault Processor which may forward them.

virtual bool DtRtiExecHandshakeProcessor::ignoreExecHandshakeDestinations	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)

virtual

Exec Handshakes messages are simply forwarded to all LAN destinations.

This method is just a dummy for the filter ctor.

virtual bool DtRtiExecHandshakeProcessor::isLocalGroupMember ( const DtInetAddrAndPort & addr )

virtual

Aids to determine inbound and outbound connections to rtiexec.

virtual DtInetAddrAndPort DtRtiExecHandshakeProcessor::localNodeAddress ( )

virtual

Return parent node address.

virtual DtInetAddrAndPort DtRtiExecHandshakeProcessor::locateGroupPortal ( const DtInetAddrAndPort & addr )

virtual

static int DtRtiExecHandshakeProcessor::lostConnection	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	connID,
		const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &	connAddr,
		void *	usr
	)

static

Connection loss callback.

virtual int DtRtiExecHandshakeProcessor::lostConnection	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	connID,
		const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &	connAddr
	)

protectedvirtual

Connection loss callback.

virtual bool DtRtiExecHandshakeProcessor::processExecHandshakeDestinations	(	const DtInetAddrAndPort &	src,
		DtForwarderPort::DtAddressPortList &	destinations
	)

virtual

Set forwarding destination list based on source (eg.

which inlet the message was received on) and forwarder network configuration

virtual bool DtRtiExecHandshakeProcessor::processInToOutMsg	(	const DtInetAddrAndPort &	src,
		const DtRtiExecHandshakeMsg &	msg
	)

protectedvirtual

Got Handshake Message from the IN Port to the OUT Port.

virtual bool DtRtiExecHandshakeProcessor::processLanToOutMsg	(	const DtInetAddrAndPort &	src,
		const DtRtiExecHandshakeMsg &	msg
	)

protectedvirtual

Got Handshake Message from the LAN Port to the OUT Port.

virtual void DtRtiExecHandshakeProcessor::sendResponseMsg	(	DtRtiExecHandshakeMsg::DtHandshakeStatus	status,
		DtHandle	src,
		DtHandle	dest,
		const MAKRti::DtString &	hostName,
		bool	fullyCompliant,
		const DtInetAddrAndPort *	addr = `0`
	)

protectedvirtual

Send a handshake Response based on aggregating all Local responses and all downstream WAN responses.

Member Data Documentation

unsigned long DtRtiExecHandshakeProcessor::myConnectionIdOfLocalRtiExec

protected

If valid, this represents the connID of a local exec.

bool DtRtiExecHandshakeProcessor::myHaveConnectionIdOfLocalRtiExec

protected

DtConnIdList DtRtiExecHandshakeProcessor::myLocalRtiExecConnIds

protected

List of local rtiexec Candidates.

DtRtiExecHandshakeFilter* DtRtiExecHandshakeProcessor::myMsgToLanFilter

protected

DtRtiExecHandshakeFilter* DtRtiExecHandshakeProcessor::myMsgToOutFilter

protected

std::shared_ptr<DtForwarderNode> DtRtiExecHandshakeProcessor::myParent

protected

DtConnIdToRequestMap DtRtiExecHandshakeProcessor::myPendingRequests

protected

Map of outstanding rtiexec Requests to Responses.

DtRtiExecConnectionFilter<DtRtiExecHandshakeProcessor>* DtRtiExecHandshakeProcessor::myRtiExecConnectionFilter

protected

The documentation for this class was generated from the following file:

rtiExecHandshakeProcessor.h
