Observes the rtiexec and is responsible sending information on rtiexec to the RTI Assistant. More...

Inheritance diagram for DtRtiexecObserverForAssistant:

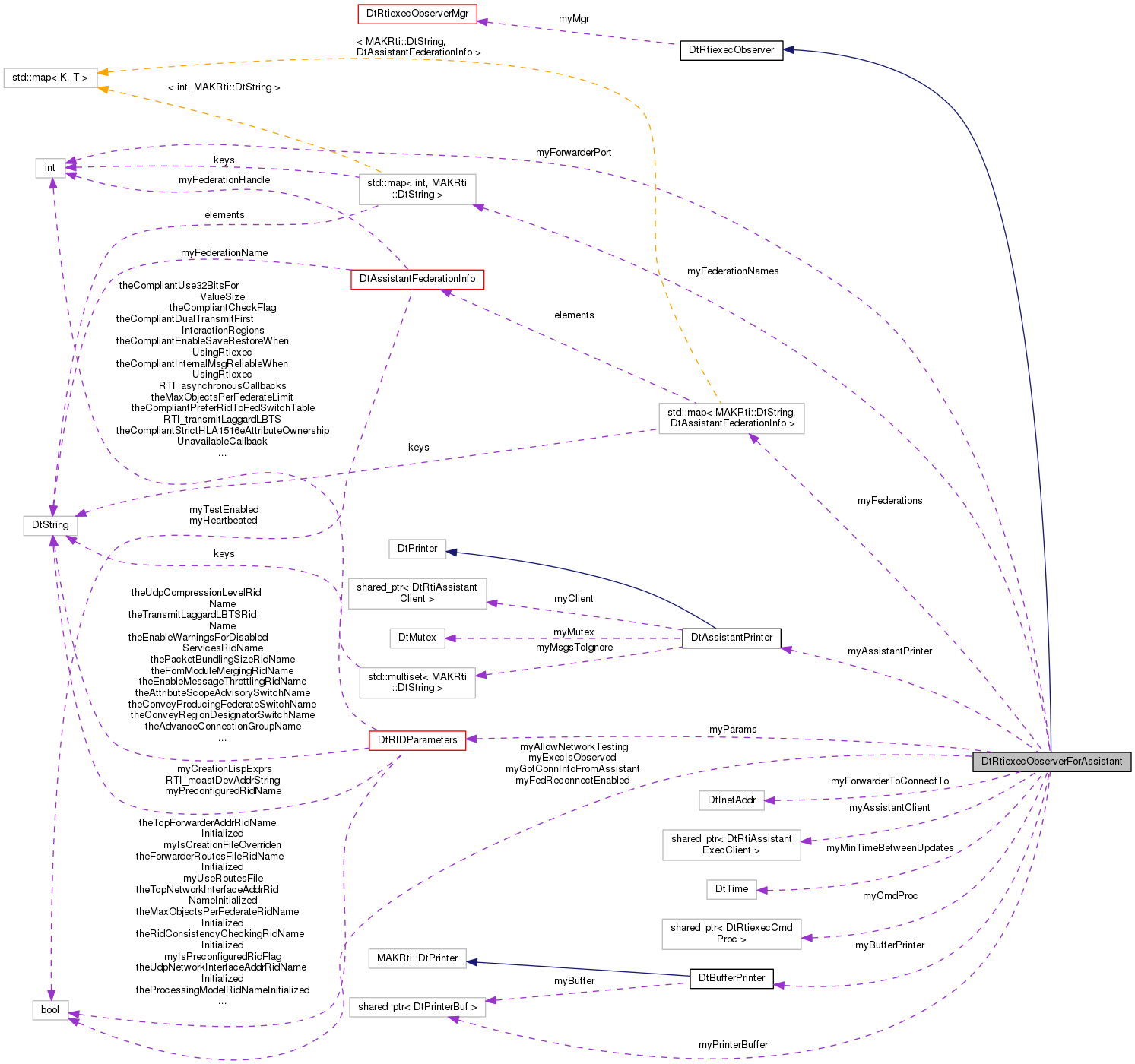

Collaboration diagram for DtRtiexecObserverForAssistant:

Public Member Functions
	DtRtiexecObserverForAssistant ()
	Default CTOR. More...

virtual	~DtRtiexecObserverForAssistant ()
	Virtual DTOR. More...

virtual void	initialize (DtRIDParameters *params, std::shared_ptr< DtRtiexecCmdProc > cmdProc)
	Initialize the observer. More...

virtual void	startObservation ()
	Indicates that observation of the exec has begun. More...

virtual void	queryForConnectionInfo (DtRtiConnectionInfoDataPair &connInfo, DtRtiConnectionConfigurationInfo &config)
	Queries the assistant for the connection info to use. More...

virtual void	performParameterOverrides (DtRIDParameters &ridParams) const
	Overrides RID parameters based on connection status and other settings. More...

virtual void	setForwarderInfo (int forwarderPort, const MAKRti::DtInetAddr &forwarderToConnectTo)
	If we're not querying the assistant, provide some way for the forwarder to indicate what its forwarderConnInfo is. More...

virtual void	enableNotifications ()
	Enables sending DtWarn & DtFatal to assistant as notifications. More...

virtual void	disableNotifications ()
	Disables sending DtWarn & DtFatal to assistant as notifications. More...

bool	gotConnInfoFromAssistant ()
	Returns true if the assistant supplied the rtiexec connection info. More...

virtual void	sendTrayNotification (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)

const DtRIDParameters *	ridParams () const

DtRIDParameters *	ridParams ()

Public Member Functions inherited from DtRtiexecObserver
	DtRtiexecObserver ()
	Constructor. More...

virtual	~DtRtiexecObserver ()
	Destructor. More...

virtual void	setMgr (DtRtiexecObserverMgr *mgr)
	Sets the manager for this observer. More...

virtual void	removeMgr ()
	Removes the manager for this observer. More...

virtual void	addRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, bool isMomCallback=false)
	Register to receive an event whenever an RTI Msg of the specified kind is received. More...

virtual void	removeRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, bool isMomCallback=false)
	Unregister to receive an event whenever an RTI Msg of the specified kind is received. More...

virtual void	addTickCallback (DtTickCbFn fcn, DtTime interval)
	Add a tick callback function to be called periodically at the given time interval. More...

virtual void	removeTickCallback (DtTickCbFn fcn)
	Remove tick callback. More...

virtual void	addTickCallback (DtTickWithExecCbFn fcn, DtTime interval)
	Add a tick callback function that takes a reference to a DtRtiExec to be called periodically at the given time interval. More...

virtual void	removeTickCallback (DtTickWithExecCbFn fcn)
	Remove tick callback that takes a reference to a DtRtiExec. More...

virtual unsigned long	connectionId () const
	Get the connection ID for this exec (threadsafe) More...

Protected Member Functions
virtual void	addCallbacks ()
	Adds all RTI message and tick callbacks. Called when a manager is set. More...

virtual void	removeCallbacks ()
	Removes all RTI message and tick callbacks. More...

void	fillFederateTimeStateInfo (DtAssistantFederateInfo &stateInfo, unsigned long connId, const MAKRti::DtString &fedType, const MAKRti::DtString &fedName, DtFederateHandle fedHandle, const MAKRti::DtString &fedHostName, const MAKRti::DtInetAddr &fedHost, DtHlaVersionId hlaVersion, int astntCompId, const DtFedExec &fedExec)
	Fills in the federate time state using the given information. More...

virtual void	sendConnectionInfo (bool isConnected)
	Send the connection info to the assistant. More...

Protected Attributes
std::shared_ptr < DtRtiAssistantExecClient >	myAssistantClient
	The assistant client. More...

DtAssistantPrinter *	myAssistantPrinter
	The printer which sends notifications to the assistant. More...

DtBufferPrinter *	myBufferPrinter
	The printer which stores all rtiexec output. More...

std::shared_ptr< DtPrinterBuf >	myPrinterBuffer
	Buffer which the buffer printer writes to. More...

std::shared_ptr< DtRtiexecCmdProc >	myCmdProc
	Processes commands to be performed by the rtiexec. More...

bool	myFedReconnectEnabled
	Is federate reconnect enabled? More...

bool	myAllowNetworkTesting
	Whether or not this rtiexec allows network testing for its federations. More...

DtFederationStateByNameMap	myFederations
	Cache the complete state of the federations. More...

DtFederationNameByHandleMap	myFederationNames
	Map of federation handles to names. More...

MAKRti::DtTime	myMinTimeBetweenUpdates
	Min. time exec should wait between time state updates. More...

bool	myGotConnInfoFromAssistant
	Whether or not the assistant supplied connection info. More...

bool	myExecIsObserved
	Whether or not there is currently an assistant observing this rtiexec. More...

DtRIDParameters *	myParams
	The RID parameter settings. More...


int	myForwarderPort
	Stored information about the forwarder. More...

MAKRti::DtInetAddr	myForwarderToConnectTo
	Stored information about the forwarder. More...

Protected Attributes inherited from DtRtiexecObserver
DtRtiexecObserverMgr *	myMgr
	Pointer to the observer manager. More...

Rtiexec event processing functions
virtual void	tick ()
	Periodic processing. More...

static void	tick (void *usr)
	Callback for periodic processing. More...

RTI Assistant message processing callbacks
virtual void	processFedExCreatedEvent (DtFedExec *exec)
	Process a new federation execution created event. More...

virtual void	processFedExDestroyedEvent (DtFedExec *exec)
	Process a federation execution destroyed event. More...

virtual void	processFederateJoinedEvent (DtFedExec exec, DtFederate federate)
	Process a federate joined event. More...

virtual void	processFederateResignedEvent (DtFedExec exec, DtFederate federate)
	Process a federate resigned event. More...

virtual void	processSyncPtRegisteredEvent (DtFedExec exec, DtSyncPt pt)
	Process a new sync. point registered event. More...

virtual void	processFederationSynchronizedEvent (DtFedExec exec, DtSyncPt pt)
	Process a federation synchronized to an existing sync. point event. More...

virtual void	processSyncPtAchievedEvent (DtFedExec exec, DtFederate federate, DtSyncPt *pt)
	Process an existing sync. point achieved event. More...

virtual void	processFederateDisconnectedEvent (DtFedExec exec, DtFederate federate)
	Process a federate disconnect event. More...

virtual void	processFederateReconnectSucceededEvent (DtFedExec exec, DtFederate federate)
	Process a federate reconnect succeeded event. More...

virtual void	processFederateReconnectFailedEvent (DtFedExec *exec, DtFederateHandle federateHandle)
	Process a federate reconnect failed event. More...

virtual void	processLogFileUpdatedEvent (const MAKRti::DtFilename &logFile)
	Process a log file name update event. More...

virtual void	processTimeStateEvent (const DtRtiExec &exec)
	Process a federate reconnect failed event. More...

virtual void	processExecObserveMsg (const DtAssistantStateObserveMsg &msg)
	Process exec observe message by enabling or disabling rtiexec update messages to the assistant. More...

virtual void	processDeleteFederateMsg (const DtAssistantDeleteFederateMsg &msg)
	Process delete federate command. More...

virtual void	processDeleteFederationMsg (const DtAssistantDeleteFederationMsg &msg)
	Process delete federation command. More...

virtual void	processEnableLoggingMsg (const DtAssistantLogEnableMsg &msg)
	Process logging enable command. More...

virtual void	processNotifyLevelChangeMsg (const DtAssistantNtfyLvlUpdateMsg &msg)
	Process notify level change command. More...

virtual void	processNetworkTestingEnableMsg (const DtAssistantNetworkTestEnableMsg &msg)
	Process network testing enable/disable command. More...

virtual void	processLatencyTestCmndMsg (const DtAssistantChangeLatencyTestModeMsg &msg)
	Process latency command. More...

virtual void	processRidParamRequestMsg (const DtAssistantRidParamsMsg &msg)
	Process RID request. More...

virtual void	processLogRequestMsg (const DtAssistantLogRequestMsg &msg)
	Process log request. More...

virtual void	processExitCmndMsg (const DtAssistantExitMsg &msg)
	Process exit command. More...

virtual void	processAssistantDisconnect ()
	Process assistant disconnect. More...

static void	processTimeStateEvent (const DtRtiExec &exec, void *usr)
	Callback for periodic time state processing. More...

static void	processExecObserveMsg (const DtAssistantStateObserveMsg &msg, void *usr)
	Callback for a command message notifying this exec that it is or is not being observed. More...

static void	processDeleteFederateMsg (const DtAssistantDeleteFederateMsg &msg, void *usr)
	Callback for federate delete command message. More...

static void	processDeleteFederationMsg (const DtAssistantDeleteFederationMsg &msg, void *usr)
	Callback for federation delete command message. More...

static void	processEnableLoggingMsg (const DtAssistantLogEnableMsg &msg, void *usr)
	Callback for logging enable command message. More...

static void	processNotifyLevelChangeMsg (const DtAssistantNtfyLvlUpdateMsg &msg, void *usr)
	Callback for notify level change command message. More...

static void	processNetworkTestingEnableMsg (const DtAssistantNetworkTestEnableMsg &msg, void *usr)
	Callback for networking testing enable/disable command message. More...

static void	processLatencyTestCmndMsg (const DtAssistantChangeLatencyTestModeMsg &msg, void *usr)
	Callback for latency testing command message. More...

static void	processRidParamRequestMsg (const DtAssistantRidParamsMsg &msg, void *usr)
	Callback for RID parameter request. More...

static void	processLogRequestMsg (const DtAssistantLogRequestMsg &msg, void *usr)
	Callback for log request. More...

static void	processExitCmndMsg (const DtAssistantExitMsg &msg, void *usr)
	Callback for exit command message. More...

static void	processAssistantDisconnect (void *usr)
	Callback for assistant disconnect. More...

RTI message processing callbacks
virtual void	processLatencyTestStatusMsg (const DtTestMgrStatusMsg &msg)
	Process latency test status message. More...

virtual void	processLatencyTestResultsMsg (const DtLatencyReportMsg &msg)
	Process latency test status message. More...

static void	processLatencyTestStatusMsg (const DtRtiMsg &msg, void *usr)
	Callback for latency test status message. More...

static void	processLatencyTestResultsMsg (const DtRtiMsg &msg, void *usr)
	Callback for latency test results message. More...

Detailed Description

Observes the rtiexec and is responsible sending information on rtiexec to the RTI Assistant.

Also accepts commands from the Assistant and gives them to the rtiexec for processing.

Constructor & Destructor Documentation

DtRtiexecObserverForAssistant::DtRtiexecObserverForAssistant ( )

Default CTOR.

virtual DtRtiexecObserverForAssistant::~DtRtiexecObserverForAssistant ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void DtRtiexecObserverForAssistant::addCallbacks ( )

protectedvirtual

Adds all RTI message and tick callbacks. Called when a manager is set.

Implements DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::disableNotifications ( )

virtual

Disables sending DtWarn & DtFatal to assistant as notifications.

virtual void DtRtiexecObserverForAssistant::enableNotifications ( )

virtual

Enables sending DtWarn & DtFatal to assistant as notifications.

void DtRtiexecObserverForAssistant::fillFederateTimeStateInfo	(	DtAssistantFederateInfo &	stateInfo,
		unsigned long	connId,
		const MAKRti::DtString &	fedType,
		const MAKRti::DtString &	fedName,
		DtFederateHandle	fedHandle,
		const MAKRti::DtString &	fedHostName,
		const MAKRti::DtInetAddr &	fedHost,
		DtHlaVersionId	hlaVersion,
		int	astntCompId,
		const DtFedExec &	fedExec
	)

protected

Fills in the federate time state using the given information.

bool DtRtiexecObserverForAssistant::gotConnInfoFromAssistant ( )

inline

Returns true if the assistant supplied the rtiexec connection info.

References myGotConnInfoFromAssistant.

virtual void DtRtiexecObserverForAssistant::initialize	(	DtRIDParameters *	params,
		std::shared_ptr< DtRtiexecCmdProc >	cmdProc
	)

virtual

Initialize the observer.

Observer takes ownership of params, which could be changed or reinstantiated - do not continue to use the pointer passed into this method. Use ridParams accessor instead.

virtual void DtRtiexecObserverForAssistant::performParameterOverrides ( DtRIDParameters & ridParams ) const

virtual

Overrides RID parameters based on connection status and other settings.

static void DtRtiexecObserverForAssistant::processAssistantDisconnect ( void * usr )

static

Callback for assistant disconnect.

virtual void DtRtiexecObserverForAssistant::processAssistantDisconnect ( )

virtual

Process assistant disconnect.

static void DtRtiexecObserverForAssistant::processDeleteFederateMsg	(	const DtAssistantDeleteFederateMsg &	msg,
		void *	usr
	)

static

Callback for federate delete command message.

virtual void DtRtiexecObserverForAssistant::processDeleteFederateMsg ( const DtAssistantDeleteFederateMsg & msg )

virtual

Process delete federate command.

static void DtRtiexecObserverForAssistant::processDeleteFederationMsg	(	const DtAssistantDeleteFederationMsg &	msg,
		void *	usr
	)

static

Callback for federation delete command message.

virtual void DtRtiexecObserverForAssistant::processDeleteFederationMsg ( const DtAssistantDeleteFederationMsg & msg )

virtual

Process delete federation command.

static void DtRtiexecObserverForAssistant::processEnableLoggingMsg	(	const DtAssistantLogEnableMsg &	msg,
		void *	usr
	)

static

Callback for logging enable command message.

virtual void DtRtiexecObserverForAssistant::processEnableLoggingMsg ( const DtAssistantLogEnableMsg & msg )

virtual

Process logging enable command.

static void DtRtiexecObserverForAssistant::processExecObserveMsg	(	const DtAssistantStateObserveMsg &	msg,
		void *	usr
	)

static

Callback for a command message notifying this exec that it is or is not being observed.

virtual void DtRtiexecObserverForAssistant::processExecObserveMsg ( const DtAssistantStateObserveMsg & msg )

virtual

Process exec observe message by enabling or disabling rtiexec update messages to the assistant.

static void DtRtiexecObserverForAssistant::processExitCmndMsg	(	const DtAssistantExitMsg &	msg,
		void *	usr
	)

static

Callback for exit command message.

virtual void DtRtiexecObserverForAssistant::processExitCmndMsg ( const DtAssistantExitMsg & msg )

virtual

Process exit command.

virtual void DtRtiexecObserverForAssistant::processFederateDisconnectedEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)

virtual

Process a federate disconnect event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFederateJoinedEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)

virtual

Process a federate joined event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFederateReconnectFailedEvent	(	DtFedExec *	exec,
		DtFederateHandle	federateHandle
	)

virtual

Process a federate reconnect failed event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFederateReconnectSucceededEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)

virtual

Process a federate reconnect succeeded event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFederateResignedEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)

virtual

Process a federate resigned event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFederationSynchronizedEvent	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

virtual

Process a federation synchronized to an existing sync. point event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFedExCreatedEvent ( DtFedExec * exec )

virtual

Process a new federation execution created event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processFedExDestroyedEvent ( DtFedExec * exec )

virtual

Process a federation execution destroyed event.

Reimplemented from DtRtiexecObserver.

static void DtRtiexecObserverForAssistant::processLatencyTestCmndMsg	(	const DtAssistantChangeLatencyTestModeMsg &	msg,
		void *	usr
	)

static

Callback for latency testing command message.

virtual void DtRtiexecObserverForAssistant::processLatencyTestCmndMsg ( const DtAssistantChangeLatencyTestModeMsg & msg )

virtual

Process latency command.

static void DtRtiexecObserverForAssistant::processLatencyTestResultsMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)

static

Callback for latency test results message.

virtual void DtRtiexecObserverForAssistant::processLatencyTestResultsMsg ( const DtLatencyReportMsg & msg )

virtual

Process latency test status message.

static void DtRtiexecObserverForAssistant::processLatencyTestStatusMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)

static

Callback for latency test status message.

virtual void DtRtiexecObserverForAssistant::processLatencyTestStatusMsg ( const DtTestMgrStatusMsg & msg )

virtual

Process latency test status message.

virtual void DtRtiexecObserverForAssistant::processLogFileUpdatedEvent ( const MAKRti::DtFilename & logFile )

virtual

Process a log file name update event.

Reimplemented from DtRtiexecObserver.

static void DtRtiexecObserverForAssistant::processLogRequestMsg	(	const DtAssistantLogRequestMsg &	msg,
		void *	usr
	)

static

Callback for log request.

virtual void DtRtiexecObserverForAssistant::processLogRequestMsg ( const DtAssistantLogRequestMsg & msg )

virtual

Process log request.

static void DtRtiexecObserverForAssistant::processNetworkTestingEnableMsg	(	const DtAssistantNetworkTestEnableMsg &	msg,
		void *	usr
	)

static

Callback for networking testing enable/disable command message.

virtual void DtRtiexecObserverForAssistant::processNetworkTestingEnableMsg ( const DtAssistantNetworkTestEnableMsg & msg )

virtual

Process network testing enable/disable command.

static void DtRtiexecObserverForAssistant::processNotifyLevelChangeMsg	(	const DtAssistantNtfyLvlUpdateMsg &	msg,
		void *	usr
	)

static

Callback for notify level change command message.

virtual void DtRtiexecObserverForAssistant::processNotifyLevelChangeMsg ( const DtAssistantNtfyLvlUpdateMsg & msg )

virtual

Process notify level change command.

static void DtRtiexecObserverForAssistant::processRidParamRequestMsg	(	const DtAssistantRidParamsMsg &	msg,
		void *	usr
	)

static

Callback for RID parameter request.

virtual void DtRtiexecObserverForAssistant::processRidParamRequestMsg ( const DtAssistantRidParamsMsg & msg )

virtual

Process RID request.

virtual void DtRtiexecObserverForAssistant::processSyncPtAchievedEvent	(	DtFedExec *	exec,
		DtFederate *	federate,
		DtSyncPt *	pt
	)

virtual

Process an existing sync. point achieved event.

Reimplemented from DtRtiexecObserver.

virtual void DtRtiexecObserverForAssistant::processSyncPtRegisteredEvent	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

virtual

Process a new sync. point registered event.

Reimplemented from DtRtiexecObserver.

static void DtRtiexecObserverForAssistant::processTimeStateEvent	(	const DtRtiExec &	exec,
		void *	usr
	)

static

Callback for periodic time state processing.

virtual void DtRtiexecObserverForAssistant::processTimeStateEvent ( const DtRtiExec & exec )

virtual

Process a federate reconnect failed event.

virtual void DtRtiexecObserverForAssistant::queryForConnectionInfo	(	DtRtiConnectionInfoDataPair &	connInfo,
		DtRtiConnectionConfigurationInfo &	config
	)

virtual

Queries the assistant for the connection info to use.

Note: May reinstantiate RID Parameters object, invalidating old pointers.

virtual void DtRtiexecObserverForAssistant::removeCallbacks ( )

protectedvirtual

Removes all RTI message and tick callbacks.

Called when a manager is removed or the observer is destroyed.

Implements DtRtiexecObserver.

const DtRIDParameters* DtRtiexecObserverForAssistant::ridParams ( ) const

inline

DtRIDParameters* DtRtiexecObserverForAssistant::ridParams ( )

inline

virtual void DtRtiexecObserverForAssistant::sendConnectionInfo ( bool isConnected )

protectedvirtual

Send the connection info to the assistant.

virtual void DtRtiexecObserverForAssistant::sendTrayNotification	(	const MAKRti::DtString &	text,
		DtNotifyLevelType	notifyLevel
	)

virtual

virtual void DtRtiexecObserverForAssistant::setForwarderInfo	(	int	forwarderPort,
		const MAKRti::DtInetAddr &	forwarderToConnectTo
	)

virtual

If we're not querying the assistant, provide some way for the forwarder to indicate what its forwarderConnInfo is.

virtual void DtRtiexecObserverForAssistant::startObservation ( )

virtual

Indicates that observation of the exec has begun.

Reimplemented from DtRtiexecObserver.

static void DtRtiexecObserverForAssistant::tick ( void * usr )

static

Callback for periodic processing.

virtual void DtRtiexecObserverForAssistant::tick ( )

virtual

Periodic processing.

Member Data Documentation

bool DtRtiexecObserverForAssistant::myAllowNetworkTesting

protected

Whether or not this rtiexec allows network testing for its federations.

std::shared_ptr<DtRtiAssistantExecClient> DtRtiexecObserverForAssistant::myAssistantClient

protected

The assistant client.

DtAssistantPrinter* DtRtiexecObserverForAssistant::myAssistantPrinter

protected

The printer which sends notifications to the assistant.

DtBufferPrinter* DtRtiexecObserverForAssistant::myBufferPrinter

protected

The printer which stores all rtiexec output.

std::shared_ptr<DtRtiexecCmdProc> DtRtiexecObserverForAssistant::myCmdProc

protected

Processes commands to be performed by the rtiexec.

bool DtRtiexecObserverForAssistant::myExecIsObserved

protected

Whether or not there is currently an assistant observing this rtiexec.

DtFederationNameByHandleMap DtRtiexecObserverForAssistant::myFederationNames

protected

Map of federation handles to names.

DtFederationStateByNameMap DtRtiexecObserverForAssistant::myFederations

protected

Cache the complete state of the federations.

bool DtRtiexecObserverForAssistant::myFedReconnectEnabled

protected

Is federate reconnect enabled?

int DtRtiexecObserverForAssistant::myForwarderPort

protected

Stored information about the forwarder.

MAKRti::DtInetAddr DtRtiexecObserverForAssistant::myForwarderToConnectTo

protected

Stored information about the forwarder.

bool DtRtiexecObserverForAssistant::myGotConnInfoFromAssistant

protected

Whether or not the assistant supplied connection info.

Referenced by gotConnInfoFromAssistant().

MAKRti::DtTime DtRtiexecObserverForAssistant::myMinTimeBetweenUpdates

protected

Min. time exec should wait between time state updates.

DtRIDParameters* DtRtiexecObserverForAssistant::myParams

protected

The RID parameter settings.

std::shared_ptr<DtPrinterBuf> DtRtiexecObserverForAssistant::myPrinterBuffer

protected

Buffer which the buffer printer writes to.

The documentation for this class was generated from the following file:

execObserverForAssistant.h

Public Member Functions

Protected Member Functions

Protected Attributes

Rtiexec event processing functions

RTI Assistant message processing callbacks

RTI message processing callbacks

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
