DtForwarderNodeInfoProcessor Class Reference

The DtForwarderNodeInfoProcessor class registers filters for ForwarderNodeInfo messages . More...

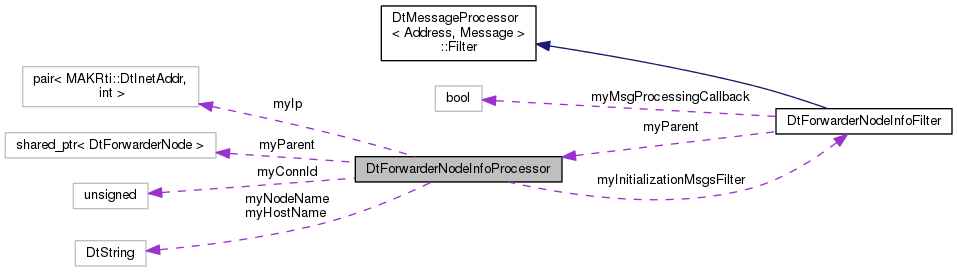

Collaboration diagram for DtForwarderNodeInfoProcessor:

Public Types
typedef bool(DtForwarderNodeInfoProcessor::*	forwarderNodeInfoMsgHandlerMemberCb )(const DtForwarderPort::DtAddressMsgPair &msg)
	Pointer to member function callbacks used by the port filters. More...

Public Member Functions
	DtForwarderNodeInfoProcessor (std::shared_ptr< DtForwarderNode > parent)
	Default Ctor. More...
virtual	~DtForwarderNodeInfoProcessor ()
	Default Dtor. More...
virtual bool	processForwarderNodeMsg (const DtForwarderPort::DtAddressMsgPair &msg)
	Respond to forwarder node messages. More...

Static Public Member Functions
static int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr, void *usr)
	Connection loss callback. More...

Protected Member Functions
virtual int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr)
	Connection loss callback. More...

Protected Attributes
std::shared_ptr< DtForwarderNode >	myParent
DtForwarderNodeInfoFilter *	myInitializationMsgsFilter
MAKRti::DtString	myNodeName
MAKRti::DtString	myHostName
unsigned long	myConnId
DtInetAddrAndPort	myIp

Detailed Description

The DtForwarderNodeInfoProcessor class registers filters for ForwarderNodeInfo messages .

The ForwarderNodeInfo contains info about a forwarder nod and is used by forwarders to obtain information about the running forwarder network.

Member Typedef Documentation

typedef bool(DtForwarderNodeInfoProcessor::* DtForwarderNodeInfoProcessor::forwarderNodeInfoMsgHandlerMemberCb)(const DtForwarderPort::DtAddressMsgPair &msg)

Pointer to member function callbacks used by the port filters.

Constructor & Destructor Documentation

DtForwarderNodeInfoProcessor::DtForwarderNodeInfoProcessor

(

std::shared_ptr< DtForwarderNode >

parent

)

Default Ctor.

virtual DtForwarderNodeInfoProcessor::~DtForwarderNodeInfoProcessor ( )

virtual

Default Dtor.

Member Function Documentation

static int DtForwarderNodeInfoProcessor::lostConnection ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr, void *  usr  )

static

Connection loss callback.

• need to track connection losses in order to close pending requests
• no need to track new connections (they will simply not be shown in the network map currently being built )

virtual int DtForwarderNodeInfoProcessor::lostConnection ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr  )

protectedvirtual

Connection loss callback.

virtual bool DtForwarderNodeInfoProcessor::processForwarderNodeMsg ( const DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Respond to forwarder node messages.

Member Data Documentation

unsigned long DtForwarderNodeInfoProcessor::myConnId

protected

MAKRti::DtString DtForwarderNodeInfoProcessor::myHostName

protected

DtForwarderNodeInfoFilter* DtForwarderNodeInfoProcessor::myInitializationMsgsFilter

protected

DtInetAddrAndPort DtForwarderNodeInfoProcessor::myIp

protected

MAKRti::DtString DtForwarderNodeInfoProcessor::myNodeName

protected

std::shared_ptr<DtForwarderNode> DtForwarderNodeInfoProcessor::myParent

protected

---

The documentation for this class was generated from the following file:

• forwarderNodeInfoProcessor.h
