DtFederateCounterProcessor Class Reference

The DtFederateCounterProcessor class consists of filters for FederateCounter messages for forwarder nodes. More...

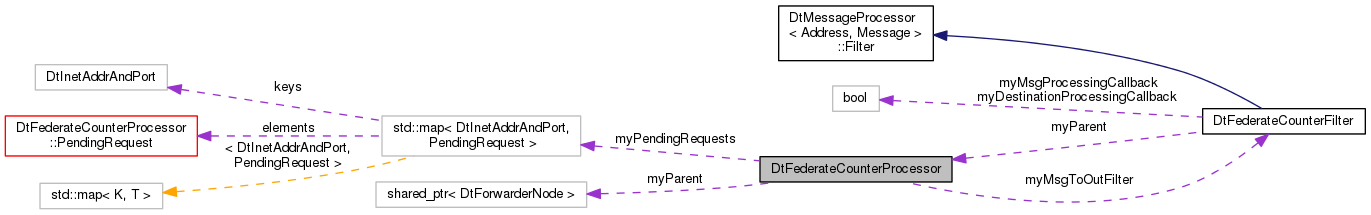

Collaboration diagram for DtFederateCounterProcessor:

Classes
class	PendingRequest
	Simple helper class to hold status of pending Pings. More...

Public Types
typedef bool(DtFederateCounterProcessor::*	CounterMsgHandlerMemberCb )(const DtInetAddrAndPort &src, const DtForwarderCounterMsg &msg)
	Pointer to member function callbacks used by the port filters. More...
typedef bool(DtFederateCounterProcessor::*	DestinationProcessingMemberCb )(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

Public Member Functions
	DtFederateCounterProcessor (std::shared_ptr< DtForwarderNode > parent)
	Default Ctor. More...
virtual	~DtFederateCounterProcessor ()
	Default Dtor. More...
virtual bool	gotMsgToOutPort (const DtInetAddrAndPort &src, const DtForwarderCounterMsg &msg)
	Got Handshake Message from the IN or LAN Port to the OUT Port. More...
virtual bool	processCounterMsgDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg. More...

Static Public Member Functions
static int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr, void *usr)
	Connection loss callback. More...
static int	reconnectBegun (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)

Protected Types
typedef std::map < DtInetAddrAndPort, PendingRequest >	DtDestToRequestMap

Protected Member Functions
virtual int	lostConnection (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr)
	Connection loss callback. More...
virtual int	reconnectBegun (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const DtInetAddrAndPort &connAddr)
virtual void	sendResponseMsg (const DtInetAddrAndPort &destination, unsigned int federateCount, const DtInetAddrAndPort *addr=0)
	Send a Count Response based on aggregating all downstream WAN responses. More...
virtual void	requestDownstreamCount (const DtInetAddrAndPort &destination)
	Send a new downstream request indicating that the target is upstream (so all recipients should respond with their federate counts) More...
virtual void	requestDownstreamCount (const DtInetAddrAndPort &destination, const DtRouteMap::DtAddressPortList &destinations)
virtual bool	processInToOutMsg (const DtInetAddrAndPort &src, const DtForwarderCounterMsg &msg)
	Got Count Message from the IN Port to the OUT Port. More...
virtual bool	processLanToOutMsg (const DtInetAddrAndPort &src, const DtForwarderCounterMsg &msg)
	Got Count Message from the LAN Port to the OUT Port. More...

Protected Attributes
std::shared_ptr< DtForwarderNode >	myParent
DtFederateCounterFilter *	myMsgToOutFilter
DtDestToRequestMap	myPendingRequests
	Map of outstanding Count Requests to Responses. More...

Detailed Description

The DtFederateCounterProcessor class consists of filters for FederateCounter messages for forwarder nodes.

The FederateCounter algorithm allows forwarder nodes or the rtiexec to obtain a count of all federates downstream from a given node (including federates directly attached to the specified node). Ie - the rtiexec could obtain a complete federate count by querying the node to which it is directly attached.

Basic Algo:

• Initiator sends FederateCountRequest(ID)
• Node(ID) receives FederateCountRequest(ID) (and does not forward downstream)
• Node(ID) sends FederateCountRequest(DownstreamID) to all downstream connections
• Node(ID) aggregates all downstream responses into FederateCountResponse(ID)
• All Nodes(X) != Node(ID) simply aggregate downstream responses

Member Typedef Documentation

typedef bool(DtFederateCounterProcessor::* DtFederateCounterProcessor::CounterMsgHandlerMemberCb)(const DtInetAddrAndPort &src, const DtForwarderCounterMsg &msg)

Pointer to member function callbacks used by the port filters.

typedef bool(DtFederateCounterProcessor::* DtFederateCounterProcessor::DestinationProcessingMemberCb)(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

typedef std::map< DtInetAddrAndPort, PendingRequest > DtFederateCounterProcessor::DtDestToRequestMap

protected

Constructor & Destructor Documentation

DtFederateCounterProcessor::DtFederateCounterProcessor

(

std::shared_ptr< DtForwarderNode >

parent

)

Default Ctor.

virtual DtFederateCounterProcessor::~DtFederateCounterProcessor ( )

virtual

Default Dtor.

Member Function Documentation

virtual bool DtFederateCounterProcessor::gotMsgToOutPort ( const DtInetAddrAndPort &  src, const DtForwarderCounterMsg &  msg  )

virtual

Got Handshake Message from the IN or LAN Port to the OUT Port.

static int DtFederateCounterProcessor::lostConnection ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  connAddr, void *  usr  )

static

Connection loss callback.

virtual int DtFederateCounterProcessor::lostConnection ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  connAddr  )

protectedvirtual

Connection loss callback.

virtual bool DtFederateCounterProcessor::processCounterMsgDestinations ( const DtInetAddrAndPort &  src, DtForwarderPort::DtAddressPortList &  destinations  )

virtual

Set forwarding destination list based on source (eg.

which inlet the message was received on) and forwarder network configuration

virtual bool DtFederateCounterProcessor::processInToOutMsg ( const DtInetAddrAndPort &  src, const DtForwarderCounterMsg &  msg  )

protectedvirtual

Got Count Message from the IN Port to the OUT Port.

virtual bool DtFederateCounterProcessor::processLanToOutMsg ( const DtInetAddrAndPort &  src, const DtForwarderCounterMsg &  msg  )

protectedvirtual

Got Count Message from the LAN Port to the OUT Port.

static int DtFederateCounterProcessor::reconnectBegun ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const DtInetAddrAndPort &  connAddr, void *  usr  )

static

virtual int DtFederateCounterProcessor::reconnectBegun ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const DtInetAddrAndPort &  connAddr  )

protectedvirtual

virtual void DtFederateCounterProcessor::requestDownstreamCount ( const DtInetAddrAndPort &  destination )

protectedvirtual

Send a new downstream request indicating that the target is upstream (so all recipients should respond with their federate counts)

virtual void DtFederateCounterProcessor::requestDownstreamCount ( const DtInetAddrAndPort &  destination, const DtRouteMap::DtAddressPortList &  destinations  )

protectedvirtual

virtual void DtFederateCounterProcessor::sendResponseMsg ( const DtInetAddrAndPort &  destination, unsigned int  federateCount, const DtInetAddrAndPort *  addr = 0  )

protectedvirtual

Send a Count Response based on aggregating all downstream WAN responses.

Member Data Documentation

DtFederateCounterFilter* DtFederateCounterProcessor::myMsgToOutFilter

protected

std::shared_ptr<DtForwarderNode> DtFederateCounterProcessor::myParent

protected

DtDestToRequestMap DtFederateCounterProcessor::myPendingRequests

protected

Map of outstanding Count Requests to Responses.

---
