DtObjectClassInfo Class Reference

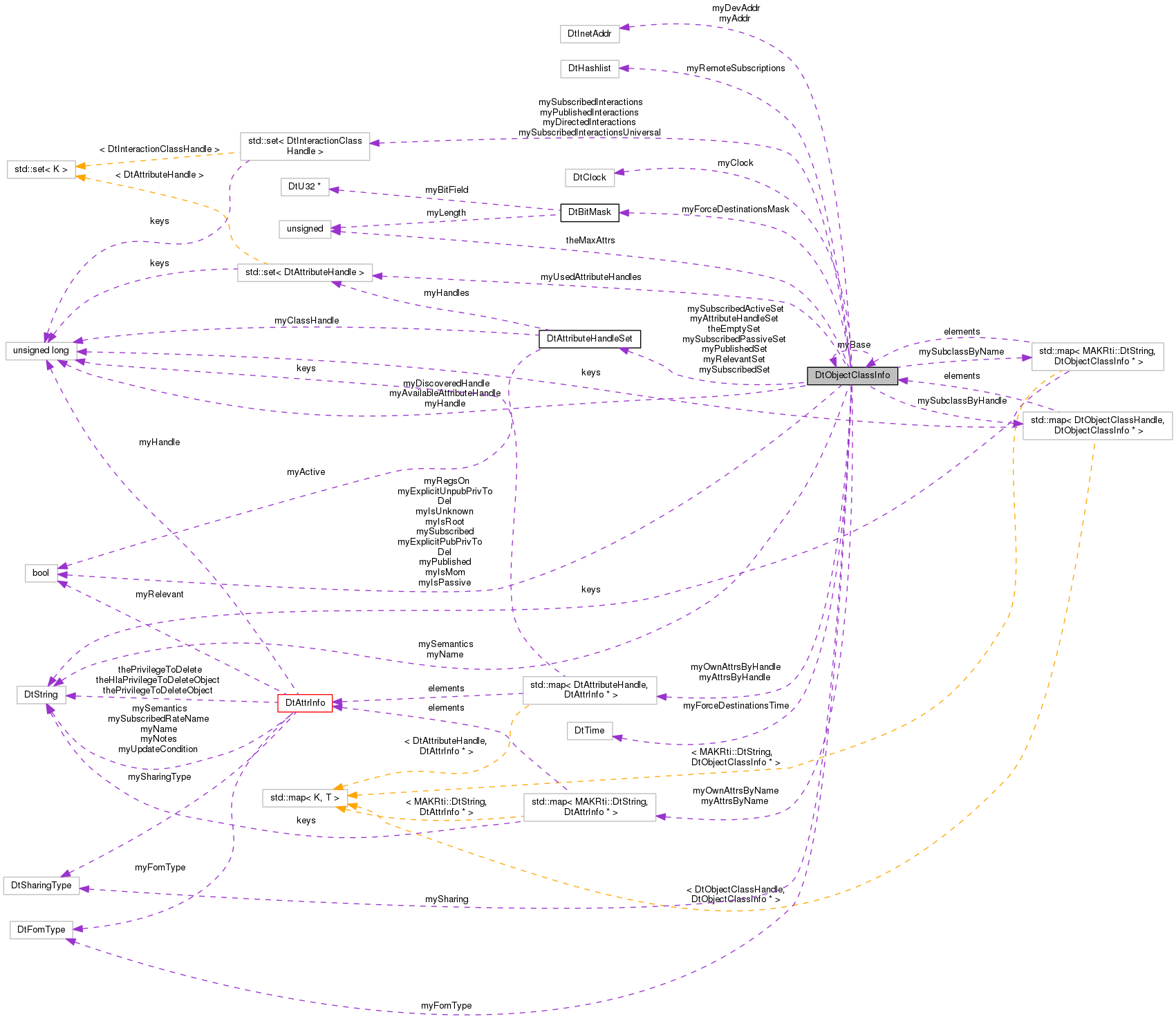

Collaboration diagram for DtObjectClassInfo:

Public Types
typedef std::map < DtObjectClassHandle, DtObjectClassInfo * >	DtObjectClassByHandleMap
typedef std::map < MAKRti::DtString, DtObjectClassInfo * >	DtObjectClassByNameMap

Public Member Functions
	DtObjectClassInfo (const char *name, DtObjectClassInfo *base, DtObjectClassHandle handle, DtSharingType sharing, const MAKRti::DtString &semantics)
	Constructors. More...
	DtObjectClassInfo (const DtObjectClassInfo &orig)
virtual	~DtObjectClassInfo ()
	Destructor. More...
DtObjectClassInfo &	operator= (const DtObjectClassInfo &orig)
	Assignment operator (not implemented) More...
virtual void	setFomType (MAKRti::DtFomType type)
	Set/Get the FOM type. More...
virtual MAKRti::DtFomType	fomType () const
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file. More...
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file. More...
virtual DtAttrInfo *	mergeAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Adds an attribute to an established class. Used when merging FOM targets. More...
virtual DtAttrInfo *	mergeAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Adds an attribute to an established class. Used when merging FOM targets. More...
virtual const char *	name () const
	Return class name, as in FOM. More...
virtual DtSharingType	sharing () const
	sharing type access/mutate More...
virtual void	setSharing (DtSharingType share)
virtual const char *	semantics () const
	semantics access/mutate More...
virtual void	setSemantics (const MAKRti::DtString &sem)
virtual bool	isName (const char *name) const
	Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary. More...
virtual bool	isFullName (const char *name) const
	Root name is required. More...
virtual DtObjectClassHandle	handle () const
	Set/get class handle. More...
virtual void	setHandle (DtObjectClassHandle handleValue)
virtual DtObjectClassHandle	discoveredHandle () const
	Set/get discovered class handle This value is always 0 if isUnknown() is false. More...
virtual void	setDiscoveredHandle (DtObjectClassHandle handleValue)
virtual DtObjectClassInfo *	baseClass () const
	Return pointer to base class descriptor. More...
virtual void	setBaseClass (DtObjectClassInfo *base)
	Set base class (used when deep copying FOM target not when constructing target) More...
virtual int	isOfClass (DtObjectClassHandle handle) const
	Returns 1 if this class is handle or is a subclass of handle. More...
virtual bool	isMom ()
	Return true if this is a MOM class. More...
virtual bool	isRoot ()
	Return true if this is the Root class. More...
virtual void	addSubclass (DtObjectClassInfo *sub)
	Add a subclass (called during FED processing) More...
virtual DtAttributeHandle	attrHandle (const char *theName) const
	Get attribute handle from name. More...
virtual char *	attrName (DtAttributeHandle theHandle) const
	Get attribute name from handle. More...
virtual MAKRti::DtTransportType	attrTransport (DtAttributeHandle theHandle) const
	Get attribute transport type from handle. More...
virtual MAKRti::DtOrderType	attrOrder (DtAttributeHandle theHandle) const
	Get attribute order from handle. More...
virtual DtSpaceHandle	attrSpace (DtAttributeHandle theHandle) const
	Get attribute space from handle. More...
virtual DtAttributeByHandleMap const &	attrs () const
	Returns the set of attribute infos. More...
virtual DtAttributeByHandleMap const &	ownAttrs () const
	Returns the set of attribute infos just from this class. More...
virtual int	numAttributes () const
	Returns the number of attributes. More...
virtual const DtAttributeHandleSet &	attributeHandles () const
	Returns the set of attribute handles. More...
virtual void	publish (DtAttributeHandleSet const &attributeList, DtObjectMgr *objMgr, bool isReplacement, bool isRepublish)
	Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes. More...
virtual void	unpublishAttributes (DtAttributeHandleSet const &attributeList, bool implicitUnpublishPrivilegeToDelete, DtObjectMgr *objMgr)
virtual DtInteractionClassHandleStdSet const &	publishedDirectedInteractions () const
virtual void	publishDirectedInteractions (DtInteractionClassHandleStdSet const &interactions)
virtual void	unpublishDirectedInteractions (DtInteractionClassHandleStdSet const &interactions)
virtual bool	isPublishedDirectedInteraction (DtInteractionClassHandle classHandle) const
virtual DtInteractionClassHandleStdSet const &	subscribedDirectedInteractions () const
virtual void	subscribeDirectedInteractions (DtInteractionClassHandleStdSet const &interactions, bool universal)
virtual void	unsubscribeDirectedInteractions (DtInteractionClassHandleStdSet const &interactions)
virtual bool	isSubscribedDirectedInteraction (DtInteractionClassHandle classHandle, bool universal) const
virtual bool	published () const
	Return boolean: is class published? More...
virtual void	subscribe (const DtAttributeHandleSet &attributeList, bool isPassiveValue, bool isReplacement=true)
	Subscribe and unsubscribe. More...
virtual void	unsubscribeClass ()
virtual void	unsubscribeAttributes (DtAttributeHandleSet const &attributeList)
virtual bool	subscribed () const
	Return boolean: is class subscribed? More...
virtual bool	isPassive () const
	Return boolean: is subscription passive? More...
virtual const bool	isSubscribed (DtAttributeHandle attrHandle, DtRegionHandle regSetHandle) const
	Using default region handle indicates check for DM subscription only. More...
virtual const bool	isActiveSubscribed (DtAttributeHandle attrHandle, DtRegionHandle regSetHandle) const
virtual DtAttributeHandleSet const &	subscribedAttrs () const
	Returns the set of DM subscribed attributes. More...
virtual DtAttributeHandleSet const &	subscribedActiveAttrs () const
virtual DtAttributeHandleSet const &	subscribedPassiveAttrs () const
virtual const DtAttributeHandleSet &	subscribedAttrs (DtHandle regSetHandle) const
	Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region. More...
virtual DtAttributeHandleSet const &	subscribedActiveAttrs (DtHandle regSetHandle) const
virtual const DtAttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes. More...
virtual const DtAttributeHandleSet &	relevantAttrs () const
	Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published. More...
virtual void	remoteSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate subscription. More...
virtual void	remotePassiveSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool replacement, DtObjectMgr *objMgr)
	Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive. More...
virtual void	remoteUnsubscribeAttributes (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate unsubscription. More...
virtual void	removeSubscriptions (DtFederateHandle fedHandle, DtObjectMgr *objMgr, bool isResigning=false)
	Remove all subscriptions from the given federate. More...
virtual int	numRemoteFederatesSubscribed ()
	Returns number of remote federates subscribed to this class. More...
virtual bool	remoteFederateIsSubscribed (DtFederateHandle fedHandle) const
	Returns true if the remote federate is subscribed to this class. More...
virtual DtAttributeHandleSet const *	remoteSubscription (DtFederateHandle fedHandle) const
	Returns remote federate's subscribed attributes. More...
virtual const MAKRti::DtHashList &	subscribedFederates () const
	Returns a list of remote federate subscribed attributes. More...
virtual bool	relevant () const
	Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise. More...
virtual bool	relevant (DtAttributeHandle) const
	Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise. More...
virtual const MAKRti::DtInetAddr &	destinationAddress () const
	Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes. More...
virtual const MAKRti::DtInetAddr &	destinationDevice () const
virtual void	setDestination (MAKRti::DtInetAddr addr, MAKRti::DtInetAddr devAddr, bool inclusive, MAKRti::DtInetAddr oldAddr, MAKRti::DtInetAddr oldDevAddr)
virtual void	setForcedDestinations (DtBitMask const &mask, MAKRti::DtTime delay)
	Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely. More...
virtual bool	getForcedDestinations (DtBitMask &mask) const
	Get the forced destination mask if active Returns true if the forced destination mask is active. More...
virtual void	setSubscribedRate (float rate, const MAKRti::DtString &name, bool inclusive)
	Apply objects subscribed rate to attrInfo's. More...
virtual float	maxSubscribedRate ()
virtual const MAKRti::DtString &	maxSubscribedRateName ()
virtual bool	save (DtRtiSaveFile &file)
	save and restore More...
virtual bool	restore (DtObjectClassPacket *packet, DtRtiSaveFile &file)
virtual void	print () const
	Print the contents. More...
virtual bool	sameAncestry (const DtObjectClassInfo *) const
	Test equality. More...
bool	operator== (const DtObjectClassInfo &other) const
bool	operator!= (const DtObjectClassInfo &other) const
virtual bool	isScaffolding () const
	Determines whether the class is a scaffolding class. More...
virtual bool	diffClass (const DtObjectClassInfo &classInfo, DtAttributeByHandleMap &diff) const
	First test given class for equality excluding attributes. More...
virtual bool	isUnknown () const
	Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate. More...
virtual void	setIsUnknown (bool unknown)
	Set the is unknown status. More...
virtual void	getAttrInfoForAttrHandleSet (const DtAttributeHandleSet &input, DtAttrVector &attrVector) const
	Fills out the given vector with DtAttrInfo for the supplied DtAttributeHandleSet. More...
virtual const DtObjectClassByHandleMap &	subclasses () const
	Return list of subclasses. More...
virtual DtObjectClassByHandleMap &	subclasses ()
	Return list of subclasses. More...
virtual DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle)
	Get Attribute descriptor by handle. More...
virtual const DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle) const
	Get Attribute descriptor by handle. More...
virtual DtAttrInfo *	attrByName (const char *theName)
	Get Attribute descriptor by name. More...
virtual const DtAttrInfo *	attrByName (const char *theName) const
	Get Attribute descriptor by name. More...
virtual DtInteractionClassHandleStdSet const &	directedInteractions () const
	Get/Add/Remove directed interaction handles. More...
virtual void	addDirectedInteraction (DtInteractionClassHandle interactionClassHandle)
	Get/Add/Remove directed interaction handles. More...
virtual void	removeDirectedInteraction (DtInteractionClassHandle interactionClassHandle)
	Get/Add/Remove directed interaction handles. More...

Static Public Member Functions
static const char *	swapRootName (const char *name, MAKRti::DtFomType fomType, MAKRti::DtString &adjustedName)
	Swap or add the root class name part of the given name to the this class' FOM type Return the adjusted name's c string. More...

Protected Member Functions
virtual void	addInheritedAttribute (const DtAttrInfo &attrInfo)
	Add an inherited attribute (makes copy of given attribute) More...
virtual void	addInheritedAttributes (const DtObjectClassInfo &baseClass)
	Add inherited attributes from the given base class (makes copies of the attributes) More...
virtual void	addOwnAttribute (DtAttrInfo *attrInfo)
	Add an own attribute. More...
virtual void	inheritMergedAttribute (const DtAttrInfo &attribute)
	Inherit the given merged attribute from base class recursively through subclasses. More...
virtual bool	sameObjectClass (const DtObjectClassInfo &classInfo) const
	Test class for equality (including attributes) More...
virtual bool	diffAttributes (const DtObjectClassInfo &classInfo, DtAttributeByHandleMap &diff) const
	Take the difference of own attributes between classes: the given class info from this class info. More...
virtual void	throwIfNotDefined (const DtAttributeHandleSet &attributeList, const MAKRti::DtString &message)
	Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle. More...
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, bool isReplacement)
	Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed. More...
virtual void	deleteRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandleSet const &attrs)
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Attribute subscription is added to existing subscribed set (created does not exist) More...
virtual void	updateRelevance (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, DtObjectMgr *objMgr, bool isResigning=false)
	Update the relevance field of this class and all subclasses, based on a particular remote and current subscriptions. More...
DtObjectClassInfo *	self () const
virtual void	reIndexAttributesByName (DtAttrInfo *attrInfo)
	The given attribute was just added with the next handle. More...
virtual bool	intersectPublished (DtObjectClassInfo *objClass, const DtAttributeHandleSet &listToIntersect)
	Run an intersection between the list of attributes and all published attributes including children. More...
virtual void	nameUpdateCheck ()
	Update indicators of root and MOM class. More...
virtual void	updateAvailableAttributeHandle (DtAttributeHandle attrHandle)
	The given attribute handle is now occupied. Update the next available attribute handle. More...
virtual void	updateAvailableAttributeHandles (const DtAttributeHandleStdSet &handles)
	The given attribute handle is now occupied. Update the next available attribute handle. More...
virtual void	addUsedAttributeHandle (DtAttributeHandle handle)
	Add attribute handle(s) to used list by this class or one of its sub classes Recursively add to base classes. More...
virtual void	addUsedAttributeHandles (const DtAttributeHandleStdSet &handles)
	Add attribute handle(s) to used list by this class or one of its sub classes Recursively add to base classes. More...

Static Protected Member Functions
static bool	sameAttrs (const std::vector< DtAttrInfo > &left, const std::vector< DtAttrInfo > &right)
	Test attributes for equality (of this class excluding inherited attributes) More...

Protected Attributes
MAKRti::DtString	myName
DtSharingType	mySharing
MAKRti::DtString	mySemantics
DtObjectClassHandle	myHandle
DtObjectClassHandle	myDiscoveredHandle
MAKRti::DtFomType	myFomType
bool	myIsMom
bool	myIsRoot
bool	mySubscribed
bool	myPublished
bool	myIsPassive
bool	myExplicitPubPrivToDel
bool	myExplicitUnpubPrivToDel
DtObjectClassInfo *	myBase
DtObjectClassByHandleMap	mySubclassByHandle
DtObjectClassByNameMap	mySubclassByName
DtAttributeHandle	myAvailableAttributeHandle
	The available attribute handle which is the maximum of this classes own attributes or any of its subclasses. More...
MAKRti::DtHashlist	myRemoteSubscriptions
bool	myRegsOn
	Have we most recently told the federate to turn on or off registration. More...
DtAttributeByHandleMap	myAttrsByHandle
DtAttributeByHandleMap	myOwnAttrsByHandle
DtAttributeByNameMap	myAttrsByName
DtAttributeByNameMap	myOwnAttrsByName
DtAttributeHandleStdSet	myUsedAttributeHandles
DtAttributeHandleSet	myAttributeHandleSet
DtAttributeHandleSet	myPublishedSet
DtAttributeHandleSet	mySubscribedSet
DtAttributeHandleSet	mySubscribedActiveSet
DtAttributeHandleSet	mySubscribedPassiveSet
DtInteractionClassHandleStdSet	myPublishedInteractions
DtInteractionClassHandleStdSet	mySubscribedInteractions
DtInteractionClassHandleStdSet	mySubscribedInteractionsUniversal
DtAttributeHandleSet	myRelevantSet
	Attributes that could cause object discovery at a remote federate if they are published or become published. More...
MAKRti::DtInetAddr	myAddr
MAKRti::DtInetAddr	myDevAddr
DtBitMask *	myForceDestinationsMask
	Create this bit mask to temporarily force destinations after publish. More...
MAKRti::DtTime	myForceDestinationsTime
MAKRti::DtClock	myClock
DtInteractionClassHandleStdSet	myDirectedInteractions
bool	myIsUnknown
	Indicates whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate. More...

Static Protected Attributes
static const DtAttributeHandleSet	theEmptySet
static const unsigned int	theMaxAttrs

Member Typedef Documentation

typedef std::map<DtObjectClassHandle, DtObjectClassInfo*> DtObjectClassInfo::DtObjectClassByHandleMap

typedef std::map<MAKRti::DtString, DtObjectClassInfo*> DtObjectClassInfo::DtObjectClassByNameMap

Constructor & Destructor Documentation

DtObjectClassInfo::DtObjectClassInfo	(	const char *	name,
		DtObjectClassInfo *	base,
		DtObjectClassHandle	handle,
		DtSharingType	sharing,
		const MAKRti::DtString &	semantics
	)

Constructors.

DtObjectClassInfo::DtObjectClassInfo

(

const DtObjectClassInfo &

orig

)

virtual DtObjectClassInfo::~DtObjectClassInfo ( )

virtual

Destructor.

Member Function Documentation

virtual DtAttrInfo* DtObjectClassInfo::addAttr ( const char *  attrName, MAKRti::DtTransportType  transport, MAKRti::DtOrderType  order, DtSharingType  sharingType, DtFomUpdateType  updateType, const MAKRti::DtString &  updateCondition, DtOwnershipType  ownership, const MAKRti::DtString &  semantics, bool  addSorted  )

virtual

Adds an attribute to the class. Used when reading Fed file.

virtual DtAttrInfo* DtObjectClassInfo::addAttr ( const char *  attrName, MAKRti::DtTransportType  transport, MAKRti::DtOrderType  order, DtSpaceHandle  space, DtSharingType  sharingType, DtFomUpdateType  updateType, const MAKRti::DtString &  updateCondition, DtOwnershipType  ownership, const MAKRti::DtString &  semantics, bool  addSorted  )

virtual

Adds an attribute to the class. Used when reading Fed file.

virtual void DtObjectClassInfo::addDirectedInteraction ( DtInteractionClassHandle  interactionClassHandle )

virtual

Get/Add/Remove directed interaction handles.

virtual void DtObjectClassInfo::addInheritedAttribute ( const DtAttrInfo &  attrInfo )

protectedvirtual

Add an inherited attribute (makes copy of given attribute)

virtual void DtObjectClassInfo::addInheritedAttributes ( const DtObjectClassInfo &  baseClass )

protectedvirtual

Add inherited attributes from the given base class (makes copies of the attributes)

virtual void DtObjectClassInfo::addOwnAttribute ( DtAttrInfo *  attrInfo )

protectedvirtual

Add an own attribute.

virtual void DtObjectClassInfo::addRemoteSubscription ( DtFederateHandle  fedHandle, const DtAttributeHandleSet &  attrs, bool  isReplacement  )

protectedvirtual

Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed.

virtual void DtObjectClassInfo::addRemoteSubscription ( DtFederateHandle  fedHandle, DtAttributeHandle  attrHandle  )

protectedvirtual

Attribute subscription is added to existing subscribed set (created does not exist)

virtual void DtObjectClassInfo::addSubclass ( DtObjectClassInfo *  sub )

virtual

Add a subclass (called during FED processing)

virtual void DtObjectClassInfo::addUsedAttributeHandle ( DtAttributeHandle  handle )

protectedvirtual

Add attribute handle(s) to used list by this class or one of its sub classes Recursively add to base classes.

virtual void DtObjectClassInfo::addUsedAttributeHandles ( const DtAttributeHandleStdSet &  handles )

protectedvirtual

Add attribute handle(s) to used list by this class or one of its sub classes Recursively add to base classes.

virtual DtAttrInfo* DtObjectClassInfo::attrByHandle ( const DtAttributeHandle  theHandle )

virtual

Get Attribute descriptor by handle.

virtual const DtAttrInfo* DtObjectClassInfo::attrByHandle ( const DtAttributeHandle  theHandle ) const

virtual

Get Attribute descriptor by handle.

virtual DtAttrInfo* DtObjectClassInfo::attrByName ( const char *  theName )

virtual

Get Attribute descriptor by name.

virtual const DtAttrInfo* DtObjectClassInfo::attrByName ( const char *  theName ) const

virtual

Get Attribute descriptor by name.

virtual DtAttributeHandle DtObjectClassInfo::attrHandle ( const char *  theName ) const

virtual

Get attribute handle from name.

virtual const DtAttributeHandleSet& DtObjectClassInfo::attributeHandles ( ) const

virtual

Returns the set of attribute handles.

virtual char* DtObjectClassInfo::attrName ( DtAttributeHandle  theHandle ) const

virtual

Get attribute name from handle.

virtual MAKRti::DtOrderType DtObjectClassInfo::attrOrder ( DtAttributeHandle  theHandle ) const

virtual

Get attribute order from handle.

virtual DtAttributeByHandleMap const& DtObjectClassInfo::attrs ( ) const

virtual

Returns the set of attribute infos.

virtual DtSpaceHandle DtObjectClassInfo::attrSpace ( DtAttributeHandle  theHandle ) const

virtual

Get attribute space from handle.

virtual MAKRti::DtTransportType DtObjectClassInfo::attrTransport ( DtAttributeHandle  theHandle ) const

virtual

Get attribute transport type from handle.

virtual DtObjectClassInfo* DtObjectClassInfo::baseClass ( ) const

virtual

Return pointer to base class descriptor.

virtual void DtObjectClassInfo::deleteRemoteSubscription ( DtFederateHandle  fedHandle, DtAttributeHandleSet const &  attrs  )

protectedvirtual

virtual const MAKRti::DtInetAddr& DtObjectClassInfo::destinationAddress ( ) const

virtual

Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes.

virtual const MAKRti::DtInetAddr& DtObjectClassInfo::destinationDevice ( ) const

virtual

virtual bool DtObjectClassInfo::diffAttributes ( const DtObjectClassInfo &  classInfo, DtAttributeByHandleMap &  diff  ) const

protectedvirtual

Take the difference of own attributes between classes: the given class info from this class info.

Warning! - diff is a shallow copy Returns true if matching attributes are the same; otherwise, false

virtual bool DtObjectClassInfo::diffClass ( const DtObjectClassInfo &  classInfo, DtAttributeByHandleMap &  diff  ) const

virtual

First test given class for equality excluding attributes.

Then take diff of its attributes from this info's attributes where matching attributes must be equal. Warning! - attribute diff is a shallow copy Returns true if class and matching attributes are the same; otherwise, false

virtual DtInteractionClassHandleStdSet const& DtObjectClassInfo::directedInteractions ( ) const

virtual

Get/Add/Remove directed interaction handles.

virtual DtObjectClassHandle DtObjectClassInfo::discoveredHandle ( ) const

virtual

Set/get discovered class handle This value is always 0 if isUnknown() is false.

virtual MAKRti::DtFomType DtObjectClassInfo::fomType ( ) const

virtual

virtual void DtObjectClassInfo::getAttrInfoForAttrHandleSet ( const DtAttributeHandleSet &  input, DtAttrVector &  attrVector  ) const

virtual

Fills out the given vector with DtAttrInfo for the supplied DtAttributeHandleSet.

virtual bool DtObjectClassInfo::getForcedDestinations ( DtBitMask &  mask ) const

virtual

Get the forced destination mask if active Returns true if the forced destination mask is active.

virtual DtObjectClassHandle DtObjectClassInfo::handle ( ) const

virtual

Set/get class handle.

virtual void DtObjectClassInfo::inheritMergedAttribute ( const DtAttrInfo &  attribute )

protectedvirtual

Inherit the given merged attribute from base class recursively through subclasses.

virtual bool DtObjectClassInfo::intersectPublished ( DtObjectClassInfo *  objClass, const DtAttributeHandleSet &  listToIntersect  )

protectedvirtual

Run an intersection between the list of attributes and all published attributes including children.

Returns

true if there is an intersection, false otherwise

virtual const bool DtObjectClassInfo::isActiveSubscribed ( DtAttributeHandle  attrHandle, DtRegionHandle  regSetHandle  ) const

virtual

virtual bool DtObjectClassInfo::isFullName ( const char *  name ) const

virtual

Root name is required.

Simple compare of provided name with this class name Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516

virtual bool DtObjectClassInfo::isMom ( )

virtual

Return true if this is a MOM class.

virtual bool DtObjectClassInfo::isName ( const char *  name ) const

virtual

Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.

virtual int DtObjectClassInfo::isOfClass ( DtObjectClassHandle  handle ) const

virtual

Returns 1 if this class is handle or is a subclass of handle.

virtual bool DtObjectClassInfo::isPassive ( ) const

virtual

Return boolean: is subscription passive?

virtual bool DtObjectClassInfo::isPublishedDirectedInteraction ( DtInteractionClassHandle  classHandle ) const

virtual

virtual bool DtObjectClassInfo::isRoot ( )

virtual

Return true if this is the Root class.

virtual bool DtObjectClassInfo::isScaffolding ( ) const

virtual

Determines whether the class is a scaffolding class.

virtual const bool DtObjectClassInfo::isSubscribed ( DtAttributeHandle  attrHandle, DtRegionHandle  regSetHandle  ) const

virtual

Using default region handle indicates check for DM subscription only.

Return bool: does attribute subscription overlap with this region?

virtual bool DtObjectClassInfo::isSubscribedDirectedInteraction ( DtInteractionClassHandle  classHandle, bool  universal  ) const

virtual

virtual bool DtObjectClassInfo::isUnknown ( ) const

virtual

Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

virtual float DtObjectClassInfo::maxSubscribedRate ( )

virtual

virtual const MAKRti::DtString& DtObjectClassInfo::maxSubscribedRateName ( )

virtual

virtual DtAttrInfo* DtObjectClassInfo::mergeAttr ( const char *  attrName, MAKRti::DtTransportType  transport, MAKRti::DtOrderType  order, DtSharingType  sharingType, DtFomUpdateType  updateType, const MAKRti::DtString &  updateCondition, DtOwnershipType  ownership, const MAKRti::DtString &  semantics  )

virtual

Adds an attribute to an established class. Used when merging FOM targets.

virtual DtAttrInfo* DtObjectClassInfo::mergeAttr ( const char *  attrName, MAKRti::DtTransportType  transport, MAKRti::DtOrderType  order, DtSpaceHandle  space, DtSharingType  sharingType, DtFomUpdateType  updateType, const MAKRti::DtString &  updateCondition, DtOwnershipType  ownership, const MAKRti::DtString &  semantics  )

virtual

Adds an attribute to an established class. Used when merging FOM targets.

virtual const char* DtObjectClassInfo::name ( ) const

virtual

Return class name, as in FOM.

virtual void DtObjectClassInfo::nameUpdateCheck ( )

protectedvirtual

Update indicators of root and MOM class.

virtual int DtObjectClassInfo::numAttributes ( ) const

virtual

Returns the number of attributes.

virtual int DtObjectClassInfo::numRemoteFederatesSubscribed ( )

virtual

Returns number of remote federates subscribed to this class.

bool DtObjectClassInfo::operator!=

(

const DtObjectClassInfo &

other

)

const

DtObjectClassInfo& DtObjectClassInfo::operator=

(

const DtObjectClassInfo &

orig

)

Assignment operator (not implemented)

bool DtObjectClassInfo::operator==

(

const DtObjectClassInfo &

other

)

const

virtual DtAttributeByHandleMap const& DtObjectClassInfo::ownAttrs ( ) const

virtual

Returns the set of attribute infos just from this class.

virtual void DtObjectClassInfo::print ( ) const

virtual

Print the contents.

virtual void DtObjectClassInfo::publish ( DtAttributeHandleSet const &  attributeList, DtObjectMgr *  objMgr, bool  isReplacement, bool  isRepublish  )

virtual

Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes.

virtual void DtObjectClassInfo::publishDirectedInteractions ( DtInteractionClassHandleStdSet const &  interactions )

virtual

virtual bool DtObjectClassInfo::published ( ) const

virtual

Return boolean: is class published?

virtual const DtAttributeHandleSet& DtObjectClassInfo::publishedAttrs ( ) const

virtual

Returns the set of published attributes.

virtual DtInteractionClassHandleStdSet const& DtObjectClassInfo::publishedDirectedInteractions ( ) const

virtual

virtual void DtObjectClassInfo::reIndexAttributesByName ( DtAttrInfo *  attrInfo )

protectedvirtual

The given attribute was just added with the next handle.

Adjust handles of own attributes so that they are indexed by name sort order.

virtual bool DtObjectClassInfo::relevant ( ) const

virtual

Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise.

virtual bool DtObjectClassInfo::relevant ( DtAttributeHandle  ) const

virtual

Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise.

virtual const DtAttributeHandleSet& DtObjectClassInfo::relevantAttrs ( ) const

virtual

Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published.

The attributes must be remotely subscribed at this class or at a base class that is a discovery candidate.

virtual bool DtObjectClassInfo::remoteFederateIsSubscribed ( DtFederateHandle  fedHandle ) const

virtual

Returns true if the remote federate is subscribed to this class.

virtual void DtObjectClassInfo::remotePassiveSubscribe ( const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle, bool  replacement, DtObjectMgr *  objMgr  )

virtual

Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive.

virtual void DtObjectClassInfo::remoteSubscribe ( const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle, bool  isReplacement, DtObjectMgr *  objMgr  )

virtual

Do bookkeeping associated with a remote federate subscription.

Calls update relevance.

virtual DtAttributeHandleSet const* DtObjectClassInfo::remoteSubscription ( DtFederateHandle  fedHandle ) const

virtual

Returns remote federate's subscribed attributes.

virtual void DtObjectClassInfo::remoteUnsubscribeAttributes ( DtFederateHandle  fedHandle, const DtAttributeHandleSet &  attrs, DtObjectMgr *  objMgr  )

virtual

Do bookkeeping associated with a remote federate unsubscription.

Calls update relevance.

virtual void DtObjectClassInfo::removeDirectedInteraction ( DtInteractionClassHandle  interactionClassHandle )

virtual

Get/Add/Remove directed interaction handles.

virtual void DtObjectClassInfo::removeSubscriptions ( DtFederateHandle  fedHandle, DtObjectMgr *  objMgr, bool  isResigning = false  )

virtual

Remove all subscriptions from the given federate.

virtual bool DtObjectClassInfo::restore ( DtObjectClassPacket *  packet, DtRtiSaveFile &  file  )

virtual

virtual bool DtObjectClassInfo::sameAncestry ( const DtObjectClassInfo *  ) const

virtual

Test equality.

static bool DtObjectClassInfo::sameAttrs ( const std::vector< DtAttrInfo > &  left, const std::vector< DtAttrInfo > &  right  )

staticprotected

Test attributes for equality (of this class excluding inherited attributes)

virtual bool DtObjectClassInfo::sameObjectClass ( const DtObjectClassInfo &  classInfo ) const

protectedvirtual

Test class for equality (including attributes)

virtual bool DtObjectClassInfo::save ( DtRtiSaveFile &  file )

virtual

save and restore

DtObjectClassInfo* DtObjectClassInfo::self ( ) const

protected

virtual const char* DtObjectClassInfo::semantics ( ) const

virtual

semantics access/mutate

virtual void DtObjectClassInfo::setBaseClass ( DtObjectClassInfo *  base )

virtual

Set base class (used when deep copying FOM target not when constructing target)

virtual void DtObjectClassInfo::setDestination ( MAKRti::DtInetAddr  addr, MAKRti::DtInetAddr  devAddr, bool  inclusive, MAKRti::DtInetAddr  oldAddr, MAKRti::DtInetAddr  oldDevAddr  )

virtual

virtual void DtObjectClassInfo::setDiscoveredHandle ( DtObjectClassHandle  handleValue )

virtual

virtual void DtObjectClassInfo::setFomType ( MAKRti::DtFomType  type )

virtual

Set/Get the FOM type.

virtual void DtObjectClassInfo::setForcedDestinations ( DtBitMask const &  mask, MAKRti::DtTime  delay  )

virtual

Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely.

virtual void DtObjectClassInfo::setHandle ( DtObjectClassHandle  handleValue )

virtual

virtual void DtObjectClassInfo::setIsUnknown ( bool  unknown )

virtual

Set the is unknown status.

virtual void DtObjectClassInfo::setSemantics ( const MAKRti::DtString &  sem )

virtual

virtual void DtObjectClassInfo::setSharing ( DtSharingType  share )

virtual

virtual void DtObjectClassInfo::setSubscribedRate ( float  rate, const MAKRti::DtString &  name, bool  inclusive  )

virtual

Apply objects subscribed rate to attrInfo's.

virtual DtSharingType DtObjectClassInfo::sharing ( ) const

virtual

sharing type access/mutate

virtual const DtObjectClassByHandleMap& DtObjectClassInfo::subclasses ( ) const

virtual

Return list of subclasses.

virtual DtObjectClassByHandleMap& DtObjectClassInfo::subclasses ( )

virtual

Return list of subclasses.

virtual void DtObjectClassInfo::subscribe ( const DtAttributeHandleSet &  attributeList, bool  isPassiveValue, bool  isReplacement = true  )

virtual

Subscribe and unsubscribe.

Parameters

isReplacement

1.3 is replacement

virtual bool DtObjectClassInfo::subscribed ( ) const

virtual

Return boolean: is class subscribed?

virtual DtAttributeHandleSet const& DtObjectClassInfo::subscribedActiveAttrs ( ) const

virtual

virtual DtAttributeHandleSet const& DtObjectClassInfo::subscribedActiveAttrs ( DtHandle  regSetHandle ) const

virtual

virtual DtAttributeHandleSet const& DtObjectClassInfo::subscribedAttrs ( ) const

virtual

Returns the set of DM subscribed attributes.

virtual const DtAttributeHandleSet& DtObjectClassInfo::subscribedAttrs ( DtHandle  regSetHandle ) const

virtual

Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region.

virtual DtInteractionClassHandleStdSet const& DtObjectClassInfo::subscribedDirectedInteractions ( ) const

virtual

virtual const MAKRti::DtHashList& DtObjectClassInfo::subscribedFederates ( ) const

virtual

Returns a list of remote federate subscribed attributes.

virtual void DtObjectClassInfo::subscribeDirectedInteractions ( DtInteractionClassHandleStdSet const &  interactions, bool  universal  )

virtual

virtual DtAttributeHandleSet const& DtObjectClassInfo::subscribedPassiveAttrs ( ) const

virtual

static const char* DtObjectClassInfo::swapRootName ( const char *  name, MAKRti::DtFomType  fomType, MAKRti::DtString &  adjustedName  )

static

Swap or add the root class name part of the given name to the this class' FOM type Return the adjusted name's c string.

virtual void DtObjectClassInfo::throwIfNotDefined ( const DtAttributeHandleSet &  attributeList, const MAKRti::DtString &  message  )

protectedvirtual

Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle.

virtual void DtObjectClassInfo::unpublishAttributes ( DtAttributeHandleSet const &  attributeList, bool  implicitUnpublishPrivilegeToDelete, DtObjectMgr *  objMgr  )

virtual

virtual void DtObjectClassInfo::unpublishDirectedInteractions ( DtInteractionClassHandleStdSet const &  interactions )

virtual

virtual void DtObjectClassInfo::unsubscribeAttributes ( DtAttributeHandleSet const &  attributeList )

virtual

virtual void DtObjectClassInfo::unsubscribeClass ( )

virtual

virtual void DtObjectClassInfo::unsubscribeDirectedInteractions ( DtInteractionClassHandleStdSet const &  interactions )

virtual

virtual void DtObjectClassInfo::updateAvailableAttributeHandle ( DtAttributeHandle  attrHandle )

protectedvirtual

The given attribute handle is now occupied. Update the next available attribute handle.

virtual void DtObjectClassInfo::updateAvailableAttributeHandles ( const DtAttributeHandleStdSet &  handles )

protectedvirtual

The given attribute handle is now occupied. Update the next available attribute handle.

virtual void DtObjectClassInfo::updateRelevance ( const DtAttributeHandleSet &  attrs, DtFederateHandle  fedHandle, DtObjectMgr *  objMgr, bool  isResigning = false  )

protectedvirtual

Update the relevance field of this class and all subclasses, based on a particular remote and current subscriptions.

Add pending start/stop updates/registration and send register when appropriate.

Member Data Documentation

MAKRti::DtInetAddr DtObjectClassInfo::myAddr

protected

DtAttributeHandleSet DtObjectClassInfo::myAttributeHandleSet

protected

DtAttributeByHandleMap DtObjectClassInfo::myAttrsByHandle

protected

DtAttributeByNameMap DtObjectClassInfo::myAttrsByName

protected

DtAttributeHandle DtObjectClassInfo::myAvailableAttributeHandle

protected

The available attribute handle which is the maximum of this classes own attributes or any of its subclasses.

DtObjectClassInfo* DtObjectClassInfo::myBase

protected

MAKRti::DtClock DtObjectClassInfo::myClock

protected

MAKRti::DtInetAddr DtObjectClassInfo::myDevAddr

protected

DtInteractionClassHandleStdSet DtObjectClassInfo::myDirectedInteractions

protected

DtObjectClassHandle DtObjectClassInfo::myDiscoveredHandle

protected

bool DtObjectClassInfo::myExplicitPubPrivToDel

protected

bool DtObjectClassInfo::myExplicitUnpubPrivToDel

protected

MAKRti::DtFomType DtObjectClassInfo::myFomType

protected

DtBitMask* DtObjectClassInfo::myForceDestinationsMask

protected

Create this bit mask to temporarily force destinations after publish.

MAKRti::DtTime DtObjectClassInfo::myForceDestinationsTime

protected

DtObjectClassHandle DtObjectClassInfo::myHandle

protected

bool DtObjectClassInfo::myIsMom

protected

bool DtObjectClassInfo::myIsPassive

protected

bool DtObjectClassInfo::myIsRoot

protected

bool DtObjectClassInfo::myIsUnknown

protected

Indicates whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

MAKRti::DtString DtObjectClassInfo::myName

protected

DtAttributeByHandleMap DtObjectClassInfo::myOwnAttrsByHandle

protected

DtAttributeByNameMap DtObjectClassInfo::myOwnAttrsByName

protected

bool DtObjectClassInfo::myPublished

protected

DtInteractionClassHandleStdSet DtObjectClassInfo::myPublishedInteractions

protected

DtAttributeHandleSet DtObjectClassInfo::myPublishedSet

protected

bool DtObjectClassInfo::myRegsOn

protected

Have we most recently told the federate to turn on or off registration.

DtAttributeHandleSet DtObjectClassInfo::myRelevantSet

protected

Attributes that could cause object discovery at a remote federate if they are published or become published.

The attributes must be remotely subscribed at this class or at a base class that is a discovery candidate.

MAKRti::DtHashlist DtObjectClassInfo::myRemoteSubscriptions

protected

MAKRti::DtString DtObjectClassInfo::mySemantics

protected

DtSharingType DtObjectClassInfo::mySharing

protected

DtObjectClassByHandleMap DtObjectClassInfo::mySubclassByHandle

protected

DtObjectClassByNameMap DtObjectClassInfo::mySubclassByName

protected

bool DtObjectClassInfo::mySubscribed

protected

DtAttributeHandleSet DtObjectClassInfo::mySubscribedActiveSet

protected

DtInteractionClassHandleStdSet DtObjectClassInfo::mySubscribedInteractions

protected

DtInteractionClassHandleStdSet DtObjectClassInfo::mySubscribedInteractionsUniversal

protected

DtAttributeHandleSet DtObjectClassInfo::mySubscribedPassiveSet

protected

DtAttributeHandleSet DtObjectClassInfo::mySubscribedSet

protected

DtAttributeHandleStdSet DtObjectClassInfo::myUsedAttributeHandles

protected

const DtAttributeHandleSet DtObjectClassInfo::theEmptySet

staticprotected

const unsigned int DtObjectClassInfo::theMaxAttrs

staticprotected

---

The documentation for this class was generated from the following file:

• objClassInfo.h
