This class manages the RTI's start-up configuration using both MTL variables and functions. More...

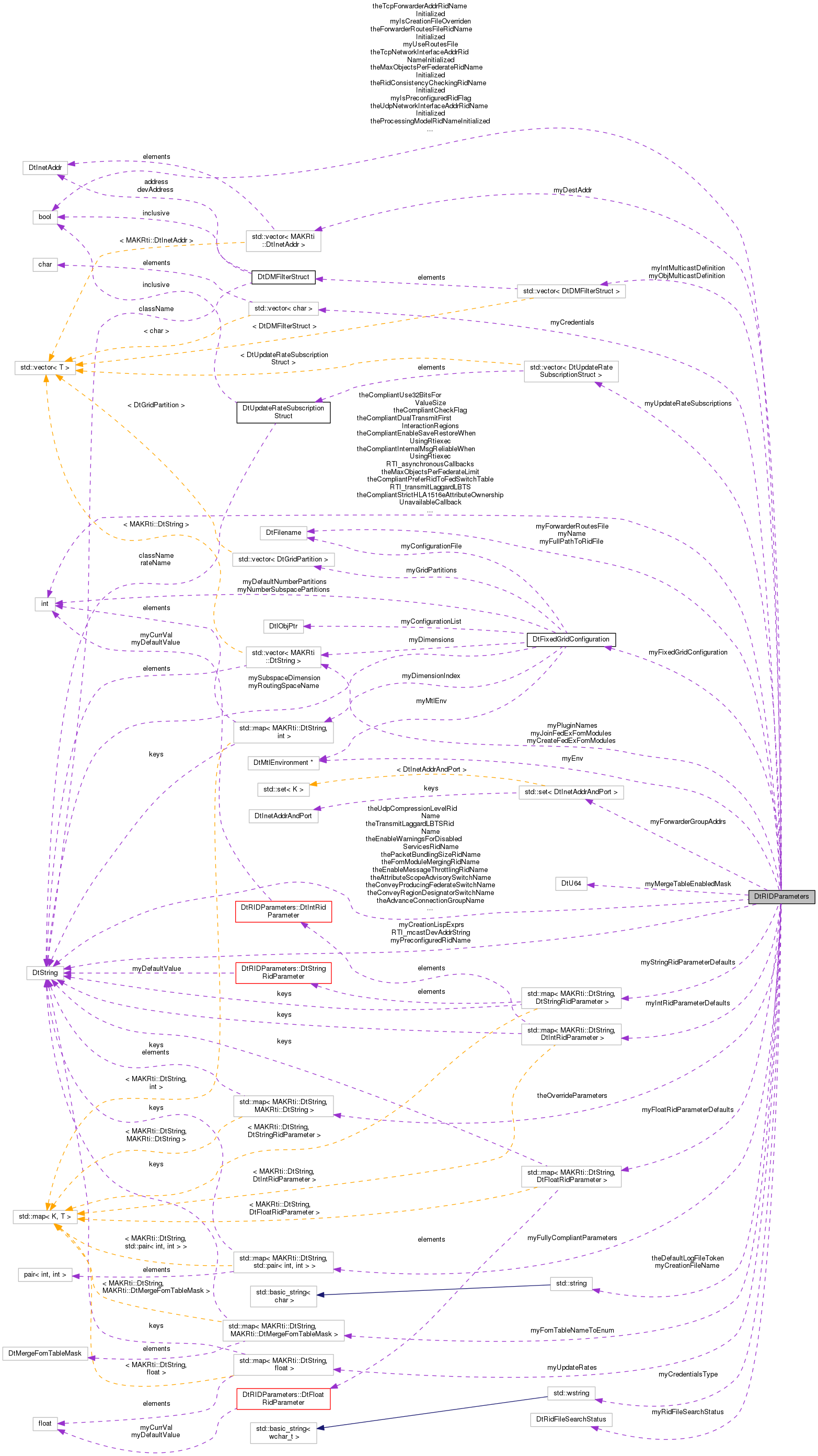

Collaboration diagram for DtRIDParameters:

Classes
class	DtFloatRidParameter
	Float based Rid parameter. More...

class	DtIntRidParameter
	Int based Rid parameter. More...

class	DtRidParameter
	Generic Rid information. More...

class	DtStringRidParameter
	String based Rid parameter. More...

Public Types
enum	DtInconsistentRidReaction { DtInconsistentRidDoNothing = 0, DtInconsistentRidAutoCorrect, DtInconsistentRidThrowException }
	0 == no RID consistency checking. More...

enum	DtAsynchronousIOModeEnum { DtSynchronousMode = 0, DtAsynchronousMode, DtAsynchronousProcessMessage, DtAsynchronousCallbacks }
	0 == no Async IO 1 == Asynchronous IO, (same as old parameter RTI_asynchronousIO ) 2 == Asynchronous IO + Asynchronous Message Processing (same as old parameter RTI_asynchronousMessageProcessing) 3 == Asynchronous IO + Asynchronous Callbacks ( same as old parameter RTI_asynchronousCallbacks ) More...

enum	DtFomDataTransportTypeControlEnum { DtFomTransportTypeUseFomSettings = 0, DtFomTransportTypeUseBestEffort, DtFomTransportTypeUseReliable }
	0 == ( Default ) FOM data is sent either best effort or reliable based on FOM settings. More...

enum	DtLrcMinidumperLevelEnum { DtLrcMinidumperLevelNotEnabled = 0, DtLrcMinidumperLevelEnabled = 1, DtLrcMinidumperLevelEnabledNoPrompt = 2, DtLrcMinidumperLevelSilentExit = 3 }
	0 == ( Default ) Minidumper is not enabled 1 == Minidumper will prompt the user to generate a .dmp file 2 == Minidumper will generate .dmp file (no prompt) 3 == No .dmp is generated, and program will exit silently More...

enum	DtRidFileSearchStatus { DtUnInitialized = 0, DtRidFileFound, DtCreationArgRidFileNotFound, DtRtiRidFileAndRtiConfigFileNotFound, DtRtiRidFileFileNotFound, DtRtiConfigFileNotFound, DtBadRelativePath, DtNoRidFileSpecified }
	Status of RID file search. More...

typedef std::vector < DtDMFilterStruct >	DtDMFilterList

typedef std::vector < MAKRti::DtString >	DtStringList

typedef std::vector < MAKRti::DtInetAddr >	DtInetAddrList

typedef std::set < DtInetAddrAndPort >	DtInetAddrAndPortSet

typedef std::map < MAKRti::DtString, DtIntRidParameter >	IntParameterMap

typedef std::map < MAKRti::DtString, DtFloatRidParameter >	FloatParameterMap

typedef std::map < MAKRti::DtString, DtStringRidParameter >	StringParameterMap

Public Member Functions
	DtRIDParameters ()
	Default constructor for use as a simple model. More...

	DtRIDParameters (const MAKRti::DtFilename &fileIn)
	Default constructor for use as a simple model from an mtl file on disk. More...

	DtRIDParameters (int highestNotifyLevelDuringInitialization, const std::vector< MAKRti::DtString > *const ridExpressions, bool enableRtiExec)
	CTOR. More...

	DtRIDParameters (const MAKRti::DtString &expression)
	CTOR. More...

	DtRIDParameters (const DtRIDParameters &orig)
	Copy CTOR. More...

virtual	~DtRIDParameters ()
	destructor More...

virtual MAKRti::DtString	compareRIDParameters (DtRIDParameters *ridParam) const
	Compare the given RID with this one. More...

virtual void	compareRIDParameters (DtRIDParameters *ridParam, std::map< MAKRti::DtString, int > &intMap, std::map< MAKRti::DtString, float > &floatMap, std::map< MAKRti::DtString, MAKRti::DtString > &stringMap) const
	Compare the given RID with this one. More...

virtual MAKRti::DtString	ridsToConsistencyCheck ()
	Consistency checking is performed on a subset of RID parameters Returns a string containing the names of those parameters that should be consistency checked. More...

virtual void	toLispString (MAKRti::DtString &lispString, bool versionHeader=false) const
	Converts the RID parameters to a lisp string If versionHeader is set to true, the lisp will start with a comment containing the RTI version. More...

virtual bool	ridMapFromLispString (const MAKRti::DtString &inputString, std::map< MAKRti::DtString, int > &intMap, std::map< MAKRti::DtString, float > &floatMap, std::map< MAKRti::DtString, MAKRti::DtString > &stringMap) const
	Populate the maps with rid parameters (names and values) for each parameter name found in the given input string. More...

virtual void	applySpecifiedRidParameters (const MAKRti::DtString &expression)
	Apply the RID initialization expression to this RID. More...

const StringParameterMap &	stringRidParameters () const
	Return the map of string parameters. More...

const IntParameterMap &	intRidParameters () const
	Return the map of integer parameters. More...

const FloatParameterMap &	floatRidParameters () const
	Return the map of float parameters. More...

bool	isStringParameter (const MAKRti::DtString &) const
	Does the given parameter have a string value? More...

bool	isIntParameter (const MAKRti::DtString &) const
	Does the given parameter have an integer value? More...

bool	isFloatParameter (const MAKRti::DtString &) const
	Does the given parameter have a float value? More...

virtual bool	getParameter (const MAKRti::DtString &name, MAKRti::DtString &value, StringParameterMap::const_iterator &iter) const
	Get the string value for the given parameter name Returns boolean: got value successfully? More...

virtual bool	getParameter (const MAKRti::DtString &name, MAKRti::DtString &value) const

virtual bool	getParameter (const MAKRti::DtString &name, int &value, IntParameterMap::const_iterator &iter) const
	Get the integer value for the given parameter name Returns boolean: got value successfully? More...

virtual bool	getParameter (const MAKRti::DtString &name, int &value) const

virtual bool	getParameter (const MAKRti::DtString &name, float &value, FloatParameterMap::const_iterator &iter) const
	Get the float value for the given parameter name Returns boolean: got value successfully? More...

virtual bool	getParameter (const MAKRti::DtString &name, float &value) const

bool	setParameter (const MAKRti::DtString &name, const MAKRti::DtString &val)
	Set the string value for the given parameter name Returns boolean: set value successfully? More...

bool	setParameter (const MAKRti::DtString &name, int val)
	Set the integer value for the given parameter name Returns boolean: set value successfully? More...

bool	setParameter (const MAKRti::DtString &name, float val)
	Set the float value for the given parameter name Returns boolean: set value successfully? More...

const MAKRti::DtMtlEnvironment &	mtlEnvironment () const
	returns mtl environment More...

const MAKRti::DtFilename &	ridName () const
	Returns the RID file name. More...

const MAKRti::DtFilename	forwarderRoutesFile () const
	Returns the forwarder routes file name. More...

void	setForwarderRoutesFile (const MAKRti::DtFilename &file)
	Set the forwarder routes file name. More...

MAKRti::DtInetAddr	destAddr () const
	Get the destination address as a network address (versus string representation). More...

MAKRti::DtInetAddr	udpNetworkInterfaceAddr () const
	Get the UDP multicast network interface address as a network address (versus string representation). More...

MAKRti::DtString	udpNetworkInterfaceAddrString () const
	Get UDP multicast network interface address string. More...

void	setUdpNetworkInterfaceAddr (const MAKRti::DtString &networkIFace)
	Set UDP multicast network interface address. More...

MAKRti::DtInetAddr	tcpNetworkInterfaceAddr () const
	Get the TCP multicast network interface address as a network address (versus string representation). More...

MAKRti::DtString	tcpNetworkInterfaceAddrString () const
	Get TCP multicast network interface address string. More...

void	setTcpNetworkInterfaceAddr (const MAKRti::DtString &networkIFace)
	Set TCP multicast network interface address. More...

MAKRti::DtString	tcpForwarderAddrString () const
	get tcpForwarderAddr String More...

void	setTcpForwarderAddr (const MAKRti::DtString &addr)
	set tcpForwarder Addr String More...

MAKRti::DtInetAddr	tcpForwarderAddr () const
	Get the TCP Forwarder address as a network address (versus string representation). More...

MAKRti::DtInetAddr	minChannel () const
	Get the minimum DDM multicast address as a network address (versus string representation). More...

MAKRti::DtInetAddr	maxChannel () const
	Get the Maximum DDM multicast address as a network address (versus string representation). More...

MAKRti::DtInetAddr	mcastDiscoveryAddr () const
	Get the multicast discovery address as a network address (versus string representation). More...

DtFixedGridConfiguration *	fixedGridConfiguration () const
	Get the DDM fixed grid configuration Returns NULL if not initialized. More...

bool	buildDdmGrid (const MAKRti::DtFilename &gridConfigFilename)
	Read and process DDM fixed grid definition Returns false when gridConfigFilename not found. More...

MAKRti::DtInetAddr	DMMulticastGroupInterface (MAKRti::DtInetAddr multicastGroup) const
	Get the network interface for the specified DM Multicast address (returns networkInterfaceAddr() if no interface was specified) More...

bool	useGroupSocket () const
	Returns true if we should use a group socket; 0 otherwise. More...

bool	useDMFiltering () const
	Returns true if we should use DM filtering. More...

bool	isPreconfiguredRid () const
	Returns whether this RID is preconfigured. More...

MAKRti::DtString	getRidConfigurationName () const
	Returns the name of the RID configuration if this RID is preconfigured. More...

MAKRti::DtFilename	getFullPathToRidFile () const
	returns full working path to rid file, either absolutely or relatively. More...

const std::string &	getCreationFileName () const
	returns reference to member myCreationFileName. More...

bool	isCreationFileOverriden () const
	Indicates if creation file name was extracted from programmatic RID settings string(s) More...

const MAKRti::DtString &	getCreationLispExprs () const
	returns reference to member myCreationLispExprs More...

MAKRti::DtFilename	saveRestoreDirectoryPath ()
	Return the directory with an appended path separator. More...

int	maxObjectsPerFederate () const
	Return maximum number of objects allowed in a federation. More...

void	setMaxObjectsPerFederate (int val)
	Set maximum number of objects allowed in a federation. More...

int	transmitLaggardLBTS () const
	Return the indicator to transmit laggard LBTS value. More...

void	setTransmitLaggardLBTS (int yesNo)
	Set the indicator to transmit laggard LBTS value. More...

DtInconsistentRidReaction	ridConsistencyChecking () const
	Returns value of RID consistency checking variable. More...

void	setRidConsistencyChecking (DtInconsistentRidReaction value)
	Set value of RID consistency checking variable. More...

DtAsynchronousIOModeEnum	processingModel () const
	Return processing mode value. More...

void	setProcessingModel (DtAsynchronousIOModeEnum value)
	Set processing mode value. More...

const DtDMFilterList &	objectMulticastDefinitions () const
	Return the object class definitions for DM mulitcast filtering. More...

const DtDMFilterList &	interactionMulticastDefinitions () const
	Return the interaction class definitions for DM mulitcast filtering. More...

const DtStringList &	createFomModules () const
	Return the list of create FOM modules. More...

const DtStringList &	joinFomModules () const
	Return the names of join FOM modules. More...

MAKRti::DtU64	fomMergeTableEnabledMask ()
	Return a mask for enabled FOM table merging. More...

const DtInetAddrList &	destinationAddrs () const
	Return the list of additional destination addresses. More...

const DtInetAddrAndPortSet &	forwarderGroupAddrs () const
	Return the list of forwarder group addresses. More...

unsigned int	forwarderGroupSize ()
	Return the size of the forwarder group list. More...

bool	useRoutesFile () const
	Set/Get routes file control. More...

void	setUseRoutesFile (bool fileShouldBeUsed)

void	clearAncillaryForwarderGroupAddrs ()
	Clear the list of ancillary forwarder group addresses. More...

const DtUpdateNameRateMap &	updateRates () const
	Return the map between update rate names and values. More...

const std::vector < DtUpdateRateSubscriptionStruct > &	updateRateSubscriptions () const
	Return the update rate subscription definitions. More...

void	clearCredentials ()
	Clear the credentials (type and data) More...

void	fullyCompliantParameters (std::map< MAKRti::DtString, int > &parameters) const
	Set/Get authorization. More...

bool	isFullyCompliant () const
	Is this RID Params object fully compliant? More...

bool	requiredComplianceParameter (const MAKRti::DtString &parameter) const
	Is this parameter required for compliance. More...

int	compliantSettingForParameter (const MAKRti::DtString &parameter) const
	What is the required compliance setting for this parameter. More...

void	forceParametersToCompliance ()
	Forces all parameters required for compliance to their compliant settings. More...

void	saveOriginalCompliantSettings ()
	Saves the current settings of the compliance parameters as the original settings. More...

void	revertComplianceParametersToOriginalSettings ()
	Forces all compliant parameters back to their original values. More...

void	sanityCheckRIDParameters ()
	Some RID parameters have dependent settings. More...

void	sanityCheckReliableConnRIDParameters ()
	Specific sanity checks for reliable connection parameters. More...

void	printParameters ()
	Prints all RID parameters. More...

void	applyParameterOverrides ()
	Applies the parameter overrides set with ::overrideRidParameters Non-virtual (Called from CTOR). More...

void	extractRidExpressions (const std::vector< MAKRti::DtString > &ridExpressions)
	Parses supplied strings and extracts RID expressions. More...

void	applyAmbassadorCreationArguments ()
	rti1516::createRtiAmbassador has a std::set<wstring> argument which can be used to apply lisp changes to the rid as if the changes were in the rid file itself. More...

void	makeLogDirectory () const
	This will make the directory for the RID parameter RTI_logFileDirectory if necessary. More...

MAKRti::DtFilename &	makeApplicationLogFilePath (MAKRti::DtFilename &logFilePath, MAKRti::DtString const &fileName=theDefaultLogFileToken) const
	Checks the given log file name and configured log file directory and makes the appropriate application log file path. More...


int	enableBigMessage () const
	Deprecated: Declaring as a private rid variable. More...

int	asynchronousIO () const
	Deprecated: Declaring as a private rid variable. More...

int	asynchronousCallbacks () const
	Deprecated: Declaring as a private rid variable. More...

int	asynchronousProcessMessage () const
	Deprecated: Declaring as a private rid variable. More...

MAKRti::DtString	mcastDevAddrString () const
	Deprecated: Declaring as a private rid variable. More...


void	setCredentialsType (const std::wstring &type)
	Set/Get credentials type. More...

const std::wstring &	credentialsType () const
	Set/Get credentials type. More...


void	setCredentialsData (const void *data, unsigned int size)
	Set/Get credentials data. More...

void	setCredentialsData (const std::vector< char > &data)
	Set/Get credentials data. More...

const std::vector< char > &	credentialsData () const
	Set/Get credentials data. More...


void	sanityCheckAddressFamily ()
	Sanity checks to ensure all IP addresses use the same address family. More...

void	sanityCheckTcpAddressFamily ()
	Sanity checks to ensure all IP addresses use the same address family. More...

void	sanityCheckUdpAddressFamily ()
	Sanity checks to ensure all IP addresses use the same address family. More...


	DtDECLARE_STRING_ACCESSOR_MUTATOR (theLogFileDirectoryName, logFileDirectory, setLogFileDirectoryName)
	RID Parameters Declarations. More...

Static Public Member Functions
static void	overrideRidParameters (const std::map< std::string, std::string > &params)
	Sets the the RID parameters to be overridden after the RID file is loaded. More...

static int	maxObjectsPerFederateLimit ()
	The maximum number of simultaneious federates in a federation execution. More...

static int	maxNumFederatesLimit ()
	The maximum number of objects a single federate may register. More...

static const int	numBitsInObjectInstanceHandle ()
	Number of bits used to represent an object instance handle. More...

static MAKRti::DtLogFileInfo &	logFileInfo (std::string const &appName, std::string const &protocol, std::string const &svnRev, std::string const &version)
	Returns the log file info singleton using the given signatures for naming. More...

Static Public Attributes
static const std::string	theDefaultLogFileToken

Protected Types
typedef std::map < MAKRti::DtString, MAKRti::DtString >	ParameterOverridesMap
	Overridden RID parameters. More...

Protected Member Functions
void	registerParameters ()
	Registers all MTL parameters. More...

void	loadLispFile (const MAKRti::DtFilename &fileName)
	Loads the RID file. More...

void	loadLispExpressions ()
	Loads the expressions for function rid parameters Non-virtual (Called from CTOR). More...

MAKRti::DtMtlEnvironment &	mtlEnvironment ()
	returns mtl environment More...

virtual void	accessorError (const char *parameterName) const
	Handle error when accessor fails. More...

virtual void	mutatorError (const char *parameterName) const
	Handle error when mutator fails. More...

void	copyRidParameters (const DtRIDParameters &orig)
	copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects. More...

void	destroyAllRidParameters ()
	destroy all RidParameter objects. More...

void	destroyRidParameter (const MAKRti::DtString &name)
	destroy a single RidParameter object. More...

MAKRti::DtFilename	findLispFile ()
	lookup the RID file base on args passed to createRTIAmbassador (1516 only) working directory and env. More...

bool	extractRidFileName (const MAKRti::DtString &arg)
	Parses string for RID file name directive (must be at beginning of string). More...

void	buildDmFilterList (bool forObjectsElseInteractions)
	read all DM filters for Objects or Interactions from lisp env. More...

void	buildFomModulesList ()
	read all additional Fom Modules specified from lisp env. More...

void	initializeParameters (bool forceEnableRtiExec, const MAKRti::DtString &expression, const MAKRti::DtFilename &fileName)
	Used to initialize RID parameters from disk, or from the given expression. More...

void	checkUseRtiExec (bool forceEnableRtiExec)
	If forceEnableRtiExec is enabled ( we were instantiated from an ExecThread ) then make sure useRtiExec is set. More...

void	initializeFixedGrid ()
	Build and print the Fixed DDM Grid. More...

void	populateRidGroups ()
	Populate the compliant, federation, LRC, etc. lists. More...

void	initializeFomTableMap ()
	Initialize the map from FOM table name to enum. More...

void	initializeDestAddrs ()
	Build list of Dest Addrs. More...

void	initializeForwarderGroups ()
	Build list of Forwarder Groups. More...

void	initializeUpdateRates ()
	Build update Rates table. More...

void	verifyPortsAreUnique () const
	Check and validate uniqueness of all ports in the RID. More...

void	verifyIpAddresses () const
	Check all IP addresses in RID for validity. Throws if they are not. More...

void	verifyIpAddress (const MAKRti::DtString &ip, const MAKRti::DtString &name=MAKRti::DtString::nullString()) const
	Check the validity of a single IP address. Throws if invalid. More...


virtual int *	createRidParameter (const MAKRti::DtString &label, const MAKRti::DtString &name, const MAKRti::DtString &toolTip, const MAKRti::DtString &parent, int defaultValue, bool editable, const MAKRti::DtString &range)
	createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float). More...

virtual MAKRti::DtString *	createRidParameter (const MAKRti::DtString &label, const MAKRti::DtString &name, const MAKRti::DtString &toolTip, const MAKRti::DtString &parent, const MAKRti::DtString &defaultValue, bool editable, const MAKRti::DtString &range)
	createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float). More...

virtual float *	createRidParameter (const MAKRti::DtString &label, const MAKRti::DtString &name, const MAKRti::DtString &toolTip, const MAKRti::DtString &parent, float defaultValue, bool editable, const MAKRti::DtString &range)
	createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float). More...

Protected Attributes
MAKRti::DtMtlEnvironment *	myEnv
	The MTL environment used to process RID parameters. More...

DtInetAddrList	myDestAddr
	Group socket configuration. More...

DtInetAddrAndPortSet	myForwarderGroupAddrs
	The forwarder group addresses. More...

DtDMFilterList	myIntMulticastDefinition
	DM object class configuration. More...

DtDMFilterList	myObjMulticastDefinition
	DM interaction class configuration. More...

DtStringList	myPluginNames
	Plugin names configuration. More...

MAKRti::DtFilename	myName
	The RID file name. More...

MAKRti::DtFilename	myForwarderRoutesFile
	The forwarder routes file name. More...

bool	myIsPreconfiguredRidFlag
	Flag indicating whether the RID configuration is preconfigured. More...

MAKRti::DtString	myPreconfiguredRidName
	Preconfigured RID configuration name. More...

MAKRti::DtFilename	myFullPathToRidFile
	The path to the loaded file. More...

DtRidFileSearchStatus	myRidFileSearchStatus
	The status of the file search of the RID file. More...

MAKRti::DtString	myCreationLispExprs
	The expressions found in the creation arguments (if any) More...

std::string	myCreationFileName
	The RID file name found in the creation arguments (if present) More...

bool	myIsCreationFileOverriden

DtStringList	myCreateFedExFomModules
	The list of create FOM modules. More...

DtStringList	myJoinFedExFomModules
	The list of join FOM modules. More...

DtFixedGridConfiguration *	myFixedGridConfiguration
	Fixed grid configuration. More...

DtUpdateNameRateMap	myUpdateRates
	Pre-Evolved way to set the list of (name rate) Map from update rate name to value. More...

std::vector < DtUpdateRateSubscriptionStruct >	myUpdateRateSubscriptions
	Update rate subscriptions. More...

FloatParameterMap	myFloatRidParameterDefaults
	The default values for float RID parameters. More...

IntParameterMap	myIntRidParameterDefaults
	The default values for integer RID parameters. More...

StringParameterMap	myStringRidParameterDefaults
	The default values for string RID parameters. More...

std::map< MAKRti::DtString, std::pair< int, int > >	myFullyCompliantParameters
	The list of parameters that effect compliance, their fully compliant setting, and their original setting (as read from the RID file) More...

bool	myUseRoutesFile
	Controls whether routes file should be used (set internally) More...

std::wstring	myCredentialsType
	Credentials type. More...

std::vector< char >	myCredentials
	Credentials data. More...

std::map< MAKRti::DtString, MAKRti::DtMergeFomTableMask >	myFomTableNameToEnum

MAKRti::DtU64	myMergeTableEnabledMask

bool	theForwarderRoutesFileRidNameInitialized

bool	theProcessingModelRidNameInitialized

bool	theRidConsistencyCheckingRidNameInitialized

bool	theMaxObjectsPerFederateRidNameInitialized

bool	theTransmitLaggardLBTSRidNameInitialized

bool	theTcpForwarderAddrRidNameInitialized

bool	theUdpNetworkInterfaceAddrRidNameInitialized

bool	theTcpNetworkInterfaceAddrRidNameInitialized


int	RTI_maxObjectsPerFederate
	Deprecated RID parameters. More...

int	RTI_transmitLaggardLBTS
	Deprecated RID parameters. More...

int	RTI_enableBigMessage
	Deprecated RID parameters. More...

int	RTI_asynchronousIO
	Deprecated RID parameters. More...

int	RTI_asynchronousProcessMessage
	Deprecated RID parameters. More...

int	RTI_asynchronousCallbacks
	Deprecated RID parameters. More...

MAKRti::DtString	RTI_mcastDevAddrString
	Deprecated RID parameters. More...

Static Protected Attributes
static const int	theMaxObjectsPerFederateLimit
	The maximum number of simultaneous federates in a federation execution. More...

static const int	theMaxNumFederatesLimit
	The maximum number of objects a single federate may register. More...

static ParameterOverridesMap	theOverrideParameters


static const int	theCompliantUseRtiExec
	The parameter values that make configuration compliant. More...

static const int	theCompliantInternalMsgReliableWhenUsingRtiexec
	The parameter values that make configuration compliant. More...

static const int	theCompliantFomDataTransportTypeControl
	The parameter values that make configuration compliant. More...

static const int	theCompliantTimeMgmt
	The parameter values that make configuration compliant. More...

static const int	theCompliantDataDistMgmt
	The parameter values that make configuration compliant. More...

static const int	theCompliantMomServiceAvailable
	The parameter values that make configuration compliant. More...

static const int	theCompliantMomFederateUpdateInterval
	The parameter values that make configuration compliant. More...

static const int	theCompliantStrictFomChecking
	The parameter values that make configuration compliant. More...

static const int	theCompliantCheckFlag
	The parameter values that make configuration compliant. More...

static const int	theCompliantEnableHlaObjectNamePrefix
	The parameter values that make configuration compliant. More...

static const int	theCompliantSendDiscoveredClass
	The parameter values that make configuration compliant. More...

static const int	theCompliantExtend13and1516interop
	The parameter values that make configuration compliant. More...

static const int	theCompliantProcessUnknownUpdatesForDiscovery
	The parameter values that make configuration compliant. More...

static const int	theCompliantEnableNameReservation
	The parameter values that make configuration compliant. More...

static const int	theCompliantEnableSaveRestoreWhenUsingRtiexec
	The parameter values that make configuration compliant. More...

static const int	theCompliantFomModuleMerging
	The parameter values that make configuration compliant. More...

static const int	theCompliantFomModuleSorting
	The parameter values that make configuration compliant. More...

static const int	theCompliantDistributeFedFile
	The parameter values that make configuration compliant. More...

static const int	theCompliantPreferRidToFedSwitchTable
	The parameter values that make configuration compliant. More...

static const int	theCompliantEnableUpdateRateReduction
	The parameter values that make configuration compliant. More...

static const int	theCompliantThrowExceptionCallNotAllowedFromWithinCallback
	The parameter values that make configuration compliant. More...

static const int	theResignResponseEnabled
	The parameter values that make configuration compliant. More...

static const int	theCompliantUse32BitsForValueSize
	The parameter values that make configuration compliant. More...

static const int	theCompliantDualTransmitFirstInteractionRegions
	The parameter values that make configuration compliant. More...

static const int	theCompliantStrictHLA1516eAttributeOwnershipUnavailableCallback
	The parameter values that make configuration compliant. More...

static const int	theCompliantNextEventRequestAndRetractServiceEnabled
	The parameter values that make configuration compliant. More...


static const MAKRti::DtString	theOptionalServicesGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theFaultToleranceGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theMessageThrottlingGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theAdvanceConnectionGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theHlaGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theDiagnosticGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theAssistantGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theBundlingGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theAdvancedNetworkingGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theAdvisoriesGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theAsynchGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theCommunicationsGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theDdmGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theFomGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theForwarderGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theLicensingGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theMomGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theMulticastDiscoveryGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theNameReservationGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theRtiSpyGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theSaveRestoreGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theServiceImplGroupName
	The strings that represent the RID parameter groups RID Group names. More...

static const MAKRti::DtString	theSharedMemoryGroupName
	The strings that represent the RID parameter groups RID Group names. More...


static const MAKRti::DtString	thePreferRidToFedSwitchTableName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAutoProvideSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theConveyRegionDesignatorSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theConveyProducingFederateSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAttributeScopeAdvisorySwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAttributeRelevanceAdvisorySwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theObjectClassRelevanceAdvisorySwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theInteractionRelevanceAdvisorySwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theServiceReportingSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theExceptionReportingSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDelaySubscriptionEvaluationSwitchName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAddressDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAutoProvideDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAllProvideUpdateRequestsDelayedRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theBestEffortSendRetriesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theBestEffortSendRetryWaitUsecRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theCatchFedAmbExceptionsRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theCheckFlagRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theConfigureConnectionWithRidRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theConveyOnlyAvailableDimensionsRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theCrcCheckFedFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDataDistMgmtRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDdmFixedGridFilenameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDdmFixedGridRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDefaultTimeImplementationRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDefaultFedFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeleteOrphansRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeprecatedAsynchronousIORidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeprecatedEnableBigMessageRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeprecatedAsynchronousProcessMessageRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeprecatedAsynchronousCallbacksRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDestAddrStringRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDetachNotifyLevelFromStdOutRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDisableUnlicensedForTwoRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDiscoveryMsgBundlingDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDistributedForwarderPortRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDistributedUdpForwarderModeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDistributeFedFileAsynchronouslyRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDistributeFedFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFullFedFileDistributionName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDualTransmitFirstInteractionRegionsRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDumpFedRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDumpRidRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableBestEffortSendRetryRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAutomaticNameReserveEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableCheckVersionRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableFederateHeartbeatRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableFedexMsgRoutingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableFomComponentSortingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableHlaObjectNamePrefixRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableMessageThrottlingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableNameReservationRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableLRCNetworkStatisticsMonitoringRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableNetworkTestingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnablePacketBundlingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableSaveRestoreWhenUsingRtiexecRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableSharedMemoryExecEventLogRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableTcpCompressionRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableTcpSmartForwardingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableUdpCompressionRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableUdpSmartForwardingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableUpdateRateReductionRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theExecMcastDiscoveryDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theExtend13and1516interopRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFederateHeartbeatIntervalRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFederateReconnectPauseRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFederateTimeoutIntervalRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFlushTimeoutIntervalRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFomDataTransportTypeControlRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFomModuleMergingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFomModuleSortingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theForceFullComplianceRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theForceUnlicensedForTwoRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theForwarderRoutesFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theForwardingDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theImplicitDdmParamsFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theInternalMsgReliableWhenUsingRtiexecRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theInternalMsgSmartForwardingWhenUsingRtiexecRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theIOPeriodRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theLogFileDirectoryName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTickWaitPeriodRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theLogFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theLrcMcastDiscoveryDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxChannelAddrRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxForwarderQueueRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxIOCountRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxIOQueueRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theIOQueueIndicatorRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxObjectsPerFederateRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxNumFederatesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMaxUdpPacketSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theDeprecatedMcastDevAddrStringRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMcastDiscoveryAddrStringRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMcastDiscoveryEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMcastDiscoveryPortRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMcastDiscoveryTriesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMcastTtlRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMinChannelAddrRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomExceptionLoggingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomFederateUpdateIntervalRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomModuleExtensionFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomServiceAvailableRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUdpNetworkInterfaceAddrRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpNetworkInterfaceAddrRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theNotifyLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	thePacketBundlingSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpPacketBundlingSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUdpPacketBundlingSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	thePreferLocalFomModulesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theProcessingModelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theProcessUnknownUpdatesForDiscoveryRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theReceiveToleranceRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theReconnectEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theResignResponseEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theResponseIntervalRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theReuseLogFileRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theReuseReleasedObjectHandlesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRouteToAllByDefaultRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRidConsistencyCheckingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRtiExecLogFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRtiExecPerformsLicensingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRtiExecReconnectPauseRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRtiForwarderLogFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theRtiFederationShadowLogFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSaveRestoreDirectoryRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSaveRestoreTimeoutRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSaveTransientMessagesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSendDiscoveredClassRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSharedMemExecLogFileNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSharedMemoryMgrMaxWaitRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSharedMemoryModeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSharedMemoryNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSharedMemoryQueueLengthRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSingleCallbackPerTickRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSocketReceiveBufferSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSmartForwardingLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theSocketSendBufferSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theStrictFomCheckingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theStrictNameReservationRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theStrictHLA1516eAttributeOwnershipUnavailableCallbackRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theWaitIOPeriodForBundlingRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpBufferSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpCompressionLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpForwarderAddrRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpNoDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theThrowExceptionForDisabledServiceRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theThrowExceptionOnConcurrentAccessRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theThrowExceptionCallNotAllowedFromWithinCallbackRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theEnableWarningsForDisabledServicesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTickFavorsNetworkRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTimeMgmtRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTransmitDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTransmitLaggardLBTSRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTransmitRateRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUdpCompressionLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUdpPortRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTcpPortRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUse32BitsForValueSizeRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUseBusyWaitForTickMinMaxRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUseRandomNumberForFedHandleRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theUseRtiExecRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomVerboseLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theNextEventRequestAndRetractServiceEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theTestConnectionThresholdRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	thePeerForwarderReconnectNumberOfTriesRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	thePeerForwarderReconnectDelayRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theLrcMinidumperLevelRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theMomEvokeCallbackObserverEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theProfilingEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theFederationShadowEnabledRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	thePlainTextPasswordRidName
	The strings that represent the RID parameter groups RID Parameter names. More...

static const MAKRti::DtString	theAuthorizerNameRidName
	The strings that represent the RID parameter groups RID Parameter names. More...


static const MAKRti::DtString	theDefaultIpv4DestAddr
	Default destination address strings for IPv4 and IPv6. More...

static const MAKRti::DtString	theDefaultIpv6DestAddr
	Default destination address strings for IPv4 and IPv6. More...


static const MAKRti::DtString	theDefaultIpv4MinChannelAddr
	DDM channel addresses to be used if none are specified in the RID. More...

static const MAKRti::DtString	theDefaultIpv4MaxChannelAddr
	DDM channel addresses to be used if none are specified in the RID. More...

static const MAKRti::DtString	theDefaultIpv6MinChannelAddr
	DDM channel addresses to be used if none are specified in the RID. More...

static const MAKRti::DtString	theDefaultIpv6MaxChannelAddr
	DDM channel addresses to be used if none are specified in the RID. More...

static const MAKRti::DtString	theUseTheDefaultChannelAddrStr
	DDM channel addresses to be used if none are specified in the RID. More...

Preconfigured RID Accessors.
typedef std::map < MAKRti::DtString, DtRIDParameters >	PreconfiguredRidMap
	Returns a const reference to the map of preconfigured RIDs. More...

static const PreconfiguredRidMap &	preconfiguredRids ()
	Returns a const reference to the map of preconfigured RIDs. More...

static const DtRIDParameters *	preconfiguredRid (const MAKRti::DtString &name)
	Returns the preconfigured RID with the given name. More...

Detailed Description

This class manages the RTI's start-up configuration using both MTL variables and functions.

Member Typedef Documentation

typedef std::vector<DtDMFilterStruct> DtRIDParameters::DtDMFilterList

typedef std::set<DtInetAddrAndPort> DtRIDParameters::DtInetAddrAndPortSet

typedef std::vector<MAKRti::DtInetAddr> DtRIDParameters::DtInetAddrList

typedef std::vector<MAKRti::DtString> DtRIDParameters::DtStringList

typedef std::map<MAKRti::DtString,DtFloatRidParameter> DtRIDParameters::FloatParameterMap

typedef std::map<MAKRti::DtString,DtIntRidParameter> DtRIDParameters::IntParameterMap

typedef std::map<MAKRti::DtString,MAKRti::DtString> DtRIDParameters::ParameterOverridesMap

protected

Overridden RID parameters.

typedef std::map<MAKRti::DtString,DtRIDParameters> DtRIDParameters::PreconfiguredRidMap

Returns a const reference to the map of preconfigured RIDs.

Initializes the map the first time this method is called.

typedef std::map<MAKRti::DtString,DtStringRidParameter> DtRIDParameters::StringParameterMap

Member Enumeration Documentation

enum DtRIDParameters::DtAsynchronousIOModeEnum

0 == no Async IO 1 == Asynchronous IO, (same as old parameter RTI_asynchronousIO ) 2 == Asynchronous IO + Asynchronous Message Processing (same as old parameter RTI_asynchronousMessageProcessing) 3 == Asynchronous IO + Asynchronous Callbacks ( same as old parameter RTI_asynchronousCallbacks )

Enumerator
DtSynchronousMode
DtAsynchronousMode
DtAsynchronousProcessMessage
DtAsynchronousCallbacks

enum DtRIDParameters::DtFomDataTransportTypeControlEnum

0 == ( Default ) FOM data is sent either best effort or reliable based on FOM settings.

(default, forced setting when using forceFullCompliance is enabled) 1 == All FOM data is sent best effort. (forced setting when using lightweight configurations) 2 == All FOM data is sent reliable. (only permitted when RTI_configureConnectionWithRid is 1)

Enumerator
DtFomTransportTypeUseFomSettings
DtFomTransportTypeUseBestEffort
DtFomTransportTypeUseReliable

enum DtRIDParameters::DtInconsistentRidReaction

0 == no RID consistency checking.

1 == The RTI should correct inconsistent variables 2 == The RTI should throw an exception if the rid is inconsistent.

Enumerator
DtInconsistentRidDoNothing
DtInconsistentRidAutoCorrect
DtInconsistentRidThrowException

enum DtRIDParameters::DtLrcMinidumperLevelEnum

0 == ( Default ) Minidumper is not enabled 1 == Minidumper will prompt the user to generate a .dmp file 2 == Minidumper will generate .dmp file (no prompt) 3 == No .dmp is generated, and program will exit silently

Enumerator
DtLrcMinidumperLevelNotEnabled
DtLrcMinidumperLevelEnabled
DtLrcMinidumperLevelEnabledNoPrompt
DtLrcMinidumperLevelSilentExit

enum DtRIDParameters::DtRidFileSearchStatus

Status of RID file search.

Enumerator
DtUnInitialized
DtRidFileFound
DtCreationArgRidFileNotFound
DtRtiRidFileAndRtiConfigFileNotFound
DtRtiRidFileFileNotFound
DtRtiConfigFileNotFound
DtBadRelativePath
DtNoRidFileSpecified

Constructor & Destructor Documentation

DtRIDParameters::DtRIDParameters ( )

Default constructor for use as a simple model.

DtRIDParameters::DtRIDParameters ( const MAKRti::DtFilename & fileIn )

explicit

Default constructor for use as a simple model from an mtl file on disk.

DtRIDParameters::DtRIDParameters	(	int	highestNotifyLevelDuringInitialization,
		const std::vector< MAKRti::DtString > *const	ridExpressions,
		bool	enableRtiExec
	)

CTOR.

DtRIDParameters::DtRIDParameters ( const MAKRti::DtString & expression )

CTOR.

DtRIDParameters::DtRIDParameters ( const DtRIDParameters & orig )

Copy CTOR.

virtual DtRIDParameters::~DtRIDParameters ( )

virtual

destructor

Member Function Documentation

virtual void DtRIDParameters::accessorError ( const char * parameterName ) const

protectedvirtual

Handle error when accessor fails.

void DtRIDParameters::applyAmbassadorCreationArguments ( )

rti1516::createRtiAmbassador has a std::set<wstring> argument which can be used to apply lisp changes to the rid as if the changes were in the rid file itself.

void DtRIDParameters::applyParameterOverrides ( )

Applies the parameter overrides set with ::overrideRidParameters Non-virtual (Called from CTOR).

virtual void DtRIDParameters::applySpecifiedRidParameters ( const MAKRti::DtString & expression )

virtual

Apply the RID initialization expression to this RID.

int DtRIDParameters::asynchronousCallbacks ( ) const

Deprecated: Declaring as a private rid variable.

int DtRIDParameters::asynchronousIO ( ) const

Deprecated: Declaring as a private rid variable.

int DtRIDParameters::asynchronousProcessMessage ( ) const

Deprecated: Declaring as a private rid variable.

bool DtRIDParameters::buildDdmGrid ( const MAKRti::DtFilename & gridConfigFilename )

Read and process DDM fixed grid definition Returns false when gridConfigFilename not found.

void DtRIDParameters::buildDmFilterList ( bool forObjectsElseInteractions )

protected

read all DM filters for Objects or Interactions from lisp env.

void DtRIDParameters::buildFomModulesList ( )

protected

read all additional Fom Modules specified from lisp env.

void DtRIDParameters::checkUseRtiExec ( bool forceEnableRtiExec )

protected

If forceEnableRtiExec is enabled ( we were instantiated from an ExecThread ) then make sure useRtiExec is set.

void DtRIDParameters::clearAncillaryForwarderGroupAddrs ( )

Clear the list of ancillary forwarder group addresses.

void DtRIDParameters::clearCredentials ( )

Clear the credentials (type and data)

virtual MAKRti::DtString DtRIDParameters::compareRIDParameters ( DtRIDParameters * ridParam ) const

virtual

Compare the given RID with this one.

Returns a string containing the names of parameters that don't match.

virtual void DtRIDParameters::compareRIDParameters	(	DtRIDParameters *	ridParam,
		std::map< MAKRti::DtString, int > &	intMap,
		std::map< MAKRti::DtString, float > &	floatMap,
		std::map< MAKRti::DtString, MAKRti::DtString > &	stringMap
	)		const

virtual

Compare the given RID with this one.

Populates maps with names and values of parameters that don't match.

int DtRIDParameters::compliantSettingForParameter ( const MAKRti::DtString & parameter ) const

What is the required compliance setting for this parameter.

void DtRIDParameters::copyRidParameters ( const DtRIDParameters & orig )

protected

copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

const DtStringList& DtRIDParameters::createFomModules ( ) const

Return the list of create FOM modules.

virtual int* DtRIDParameters::createRidParameter	(	const MAKRti::DtString &	label,
		const MAKRti::DtString &	name,
		const MAKRti::DtString &	toolTip,
		const MAKRti::DtString &	parent,
		int	defaultValue,
		bool	editable,
		const MAKRti::DtString &	range
	)

protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

virtual MAKRti::DtString* DtRIDParameters::createRidParameter	(	const MAKRti::DtString &	label,
		const MAKRti::DtString &	name,
		const MAKRti::DtString &	toolTip,
		const MAKRti::DtString &	parent,
		const MAKRti::DtString &	defaultValue,
		bool	editable,
		const MAKRti::DtString &	range
	)

protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

virtual float* DtRIDParameters::createRidParameter	(	const MAKRti::DtString &	label,
		const MAKRti::DtString &	name,
		const MAKRti::DtString &	toolTip,
		const MAKRti::DtString &	parent,
		float	defaultValue,
		bool	editable,
		const MAKRti::DtString &	range
	)

protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

const std::vector<char>& DtRIDParameters::credentialsData ( ) const

Set/Get credentials data.

const std::wstring& DtRIDParameters::credentialsType ( ) const

Set/Get credentials type.

MAKRti::DtInetAddr DtRIDParameters::destAddr ( ) const

Get the destination address as a network address (versus string representation).

const DtInetAddrList& DtRIDParameters::destinationAddrs ( ) const

Return the list of additional destination addresses.

void DtRIDParameters::destroyAllRidParameters ( )

protected

destroy all RidParameter objects.

RidParameter objects are expected to be valid for the lifetime of the DtRIDParameter object.

void DtRIDParameters::destroyRidParameter ( const MAKRti::DtString & name )

protected

destroy a single RidParameter object.

RidParameter objects are expected to be valid for the lifetime of the DtRIDParameter object.

MAKRti::DtInetAddr DtRIDParameters::DMMulticastGroupInterface ( MAKRti::DtInetAddr multicastGroup ) const

Get the network interface for the specified DM Multicast address (returns networkInterfaceAddr() if no interface was specified)

DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR	(	theLogFileDirectoryName	,
		logFileDirectory	,
		setLogFileDirectoryName
	)

RID Parameters Declarations.

int DtRIDParameters::enableBigMessage ( ) const

Deprecated: Declaring as a private rid variable.

void DtRIDParameters::extractRidExpressions ( const std::vector< MAKRti::DtString > & ridExpressions )

Parses supplied strings and extracts RID expressions.

Expressions are processed after RID file is processed. Entry may contain RID file name directive at beginning, in which case, remainder of entry is processed as an expression.

bool DtRIDParameters::extractRidFileName ( const MAKRti::DtString & arg )

protected

Parses string for RID file name directive (must be at beginning of string).

If found, extracts file name and sets it as the file name to open. Return bool: directive found?

MAKRti::DtFilename DtRIDParameters::findLispFile ( )

protected

lookup the RID file base on args passed to createRTIAmbassador (1516 only) working directory and env.

variables: RTI_RID_FILE and RTI_CONFIG and set myName and myFullPathToRidFile Returns "" if file not found (ie - using default params) on return, restOfArgs will point to char* representation of lisp expressions that were (possibly) input to createRTIAmbassador (again 1516 only).

DtFixedGridConfiguration* DtRIDParameters::fixedGridConfiguration ( ) const

Get the DDM fixed grid configuration Returns NULL if not initialized.

const FloatParameterMap& DtRIDParameters::floatRidParameters ( ) const

Return the map of float parameters.

MAKRti::DtU64 DtRIDParameters::fomMergeTableEnabledMask ( )

Return a mask for enabled FOM table merging.

void DtRIDParameters::forceParametersToCompliance ( )

Forces all parameters required for compliance to their compliant settings.

const DtInetAddrAndPortSet& DtRIDParameters::forwarderGroupAddrs ( ) const

Return the list of forwarder group addresses.

unsigned int DtRIDParameters::forwarderGroupSize ( )

Return the size of the forwarder group list.

const MAKRti::DtFilename DtRIDParameters::forwarderRoutesFile ( ) const

Returns the forwarder routes file name.

void DtRIDParameters::fullyCompliantParameters ( std::map< MAKRti::DtString, int > & parameters ) const

Set/Get authorization.

Caller passes fullyCompliantParameters an empty map which will be populated with the compliance parameters and their compliant settings. Map will be emptied if it isn't already.

const std::string& DtRIDParameters::getCreationFileName ( ) const

returns reference to member myCreationFileName.

const MAKRti::DtString& DtRIDParameters::getCreationLispExprs ( ) const

returns reference to member myCreationLispExprs

MAKRti::DtFilename DtRIDParameters::getFullPathToRidFile ( ) const

returns full working path to rid file, either absolutely or relatively.

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		MAKRti::DtString &	value,
		StringParameterMap::const_iterator &	iter
	)		const

virtual

Get the string value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		MAKRti::DtString &	value
	)		const

virtual

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		int &	value,
		IntParameterMap::const_iterator &	iter
	)		const

virtual

Get the integer value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		int &	value
	)		const

virtual

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		float &	value,
		FloatParameterMap::const_iterator &	iter
	)		const

virtual

Get the float value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter	(	const MAKRti::DtString &	name,
		float &	value
	)		const

virtual

MAKRti::DtString DtRIDParameters::getRidConfigurationName ( ) const

Returns the name of the RID configuration if this RID is preconfigured.

void DtRIDParameters::initializeDestAddrs ( )

protected

Build list of Dest Addrs.

void DtRIDParameters::initializeFixedGrid ( )

protected

Build and print the Fixed DDM Grid.

void DtRIDParameters::initializeFomTableMap ( )

protected

Initialize the map from FOM table name to enum.

void DtRIDParameters::initializeForwarderGroups ( )

protected

Build list of Forwarder Groups.

void DtRIDParameters::initializeParameters	(	bool	forceEnableRtiExec,
		const MAKRti::DtString &	expression,
		const MAKRti::DtFilename &	fileName
	)

protected

Used to initialize RID parameters from disk, or from the given expression.

Serves to make the RID internally consistent and valid.

void DtRIDParameters::initializeUpdateRates ( )

protected

Build update Rates table.

const DtDMFilterList& DtRIDParameters::interactionMulticastDefinitions ( ) const

Return the interaction class definitions for DM mulitcast filtering.

const IntParameterMap& DtRIDParameters::intRidParameters ( ) const

Return the map of integer parameters.

bool DtRIDParameters::isCreationFileOverriden ( ) const

Indicates if creation file name was extracted from programmatic RID settings string(s)

bool DtRIDParameters::isFloatParameter ( const MAKRti::DtString & ) const

Does the given parameter have a float value?

bool DtRIDParameters::isFullyCompliant ( ) const

Is this RID Params object fully compliant?

bool DtRIDParameters::isIntParameter ( const MAKRti::DtString & ) const

Does the given parameter have an integer value?

bool DtRIDParameters::isPreconfiguredRid ( ) const

Returns whether this RID is preconfigured.

bool DtRIDParameters::isStringParameter ( const MAKRti::DtString & ) const

Does the given parameter have a string value?

const DtStringList& DtRIDParameters::joinFomModules ( ) const

Return the names of join FOM modules.

void DtRIDParameters::loadLispExpressions ( )

protected

Loads the expressions for function rid parameters Non-virtual (Called from CTOR).

void DtRIDParameters::loadLispFile ( const MAKRti::DtFilename & fileName )

protected

Loads the RID file.

Non-virtual (Called from CTOR).

static MAKRti::DtLogFileInfo& DtRIDParameters::logFileInfo	(	std::string const &	appName,
		std::string const &	protocol,
		std::string const &	svnRev,
		std::string const &	version
	)

static

Returns the log file info singleton using the given signatures for naming.

MAKRti::DtFilename& DtRIDParameters::makeApplicationLogFilePath	(	MAKRti::DtFilename &	logFilePath,
		MAKRti::DtString const &	fileName = `theDefaultLogFileToken`
	)		const

Checks the given log file name and configured log file directory and makes the appropriate application log file path.

MAK default used when provided name is equal to the default token MAK default assumes DtLogFileInfo has been initialized with application name, version, and svn revision. Makes the log directory if it does not already exist.

void DtRIDParameters::makeLogDirectory ( ) const

This will make the directory for the RID parameter RTI_logFileDirectory if necessary.

MAKRti::DtInetAddr DtRIDParameters::maxChannel ( ) const

Get the Maximum DDM multicast address as a network address (versus string representation).

static int DtRIDParameters::maxNumFederatesLimit ( )

static

The maximum number of objects a single federate may register.

int DtRIDParameters::maxObjectsPerFederate ( ) const

Return maximum number of objects allowed in a federation.

static int DtRIDParameters::maxObjectsPerFederateLimit ( )

static

The maximum number of simultaneious federates in a federation execution.

MAKRti::DtString DtRIDParameters::mcastDevAddrString ( ) const

Deprecated: Declaring as a private rid variable.

MAKRti::DtInetAddr DtRIDParameters::mcastDiscoveryAddr ( ) const

Get the multicast discovery address as a network address (versus string representation).

MAKRti::DtInetAddr DtRIDParameters::minChannel ( ) const

Get the minimum DDM multicast address as a network address (versus string representation).

const MAKRti::DtMtlEnvironment& DtRIDParameters::mtlEnvironment ( ) const

returns mtl environment

MAKRti::DtMtlEnvironment& DtRIDParameters::mtlEnvironment ( )

protected

returns mtl environment

virtual void DtRIDParameters::mutatorError ( const char * parameterName ) const

protectedvirtual

Handle error when mutator fails.

static const int DtRIDParameters::numBitsInObjectInstanceHandle ( )

static

Number of bits used to represent an object instance handle.

const DtDMFilterList& DtRIDParameters::objectMulticastDefinitions ( ) const

Return the object class definitions for DM mulitcast filtering.

static void DtRIDParameters::overrideRidParameters ( const std::map< std::string, std::string > & params )

static

Sets the the RID parameters to be overridden after the RID file is loaded.

Must be called prior to instantiation of the DtRIDParameters object. Takes a map of RID parameter names to values. Note that parameter overrides are only applied when using the DtRIDParameters(int,const std::vector<DtString>*,bool) CTOR.

void DtRIDParameters::populateRidGroups ( )

protected

Populate the compliant, federation, LRC, etc. lists.

static const DtRIDParameters* DtRIDParameters::preconfiguredRid ( const MAKRti::DtString & name )

static

Returns the preconfigured RID with the given name.

If no preconfigured RID with the given name exists, this method returns NULL.

static const PreconfiguredRidMap& DtRIDParameters::preconfiguredRids ( )

static

Returns a const reference to the map of preconfigured RIDs.

Initializes the map the first time this method is called.

void DtRIDParameters::printParameters ( )

Prints all RID parameters.

DtAsynchronousIOModeEnum DtRIDParameters::processingModel ( ) const

Return processing mode value.

void DtRIDParameters::registerParameters ( )

protected

Registers all MTL parameters.

Non-virtual (Called from CTOR).

bool DtRIDParameters::requiredComplianceParameter ( const MAKRti::DtString & parameter ) const

Is this parameter required for compliance.

void DtRIDParameters::revertComplianceParametersToOriginalSettings ( )

Forces all compliant parameters back to their original values.

DtInconsistentRidReaction DtRIDParameters::ridConsistencyChecking ( ) const

Returns value of RID consistency checking variable.

0 == no RID consistency checking. 1 == correct inconsistent variables 2 == federate throws exception if rid is inconsistent.

virtual bool DtRIDParameters::ridMapFromLispString	(	const MAKRti::DtString &	inputString,
		std::map< MAKRti::DtString, int > &	intMap,
		std::map< MAKRti::DtString, float > &	floatMap,
		std::map< MAKRti::DtString, MAKRti::DtString > &	stringMap
	)		const

virtual

Populate the maps with rid parameters (names and values) for each parameter name found in the given input string.

const MAKRti::DtFilename& DtRIDParameters::ridName ( ) const

Returns the RID file name.

virtual MAKRti::DtString DtRIDParameters::ridsToConsistencyCheck ( )

virtual

Consistency checking is performed on a subset of RID parameters Returns a string containing the names of those parameters that should be consistency checked.

void DtRIDParameters::sanityCheckAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::sanityCheckReliableConnRIDParameters ( )

Specific sanity checks for reliable connection parameters.

void DtRIDParameters::sanityCheckRIDParameters ( )

Some RID parameters have dependent settings.

If the dependent settings are not set, disable the depending parameter.

void DtRIDParameters::sanityCheckTcpAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::sanityCheckUdpAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::saveOriginalCompliantSettings ( )

Saves the current settings of the compliance parameters as the original settings.

MAKRti::DtFilename DtRIDParameters::saveRestoreDirectoryPath ( )

Return the directory with an appended path separator.

void DtRIDParameters::setCredentialsData	(	const void *	data,
		unsigned int	size
	)

Set/Get credentials data.

void DtRIDParameters::setCredentialsData ( const std::vector< char > & data )

Set/Get credentials data.

void DtRIDParameters::setCredentialsType ( const std::wstring & type )

Set/Get credentials type.

void DtRIDParameters::setForwarderRoutesFile ( const MAKRti::DtFilename & file )

Set the forwarder routes file name.

void DtRIDParameters::setMaxObjectsPerFederate ( int val )

Set maximum number of objects allowed in a federation.

bool DtRIDParameters::setParameter	(	const MAKRti::DtString &	name,
		const MAKRti::DtString &	val
	)

Set the string value for the given parameter name Returns boolean: set value successfully?

bool DtRIDParameters::setParameter	(	const MAKRti::DtString &	name,
		int	val
	)

Set the integer value for the given parameter name Returns boolean: set value successfully?

bool DtRIDParameters::setParameter	(	const MAKRti::DtString &	name,
		float	val
	)

Set the float value for the given parameter name Returns boolean: set value successfully?

void DtRIDParameters::setProcessingModel ( DtAsynchronousIOModeEnum value )

Set processing mode value.

void DtRIDParameters::setRidConsistencyChecking ( DtInconsistentRidReaction value )

Set value of RID consistency checking variable.

void DtRIDParameters::setTcpForwarderAddr ( const MAKRti::DtString & addr )

set tcpForwarder Addr String

void DtRIDParameters::setTcpNetworkInterfaceAddr ( const MAKRti::DtString & networkIFace )

Set TCP multicast network interface address.

void DtRIDParameters::setTransmitLaggardLBTS ( int yesNo )

Set the indicator to transmit laggard LBTS value.

void DtRIDParameters::setUdpNetworkInterfaceAddr ( const MAKRti::DtString & networkIFace )

Set UDP multicast network interface address.

void DtRIDParameters::setUseRoutesFile ( bool fileShouldBeUsed )

const StringParameterMap& DtRIDParameters::stringRidParameters ( ) const

Return the map of string parameters.

MAKRti::DtInetAddr DtRIDParameters::tcpForwarderAddr ( ) const

Get the TCP Forwarder address as a network address (versus string representation).

MAKRti::DtString DtRIDParameters::tcpForwarderAddrString ( ) const

get tcpForwarderAddr String

MAKRti::DtInetAddr DtRIDParameters::tcpNetworkInterfaceAddr ( ) const

Get the TCP multicast network interface address as a network address (versus string representation).

MAKRti::DtString DtRIDParameters::tcpNetworkInterfaceAddrString ( ) const

Get TCP multicast network interface address string.

virtual void DtRIDParameters::toLispString	(	MAKRti::DtString &	lispString,
		bool	versionHeader = `false`
	)		const

virtual

Converts the RID parameters to a lisp string If versionHeader is set to true, the lisp will start with a comment containing the RTI version.

int DtRIDParameters::transmitLaggardLBTS ( ) const

Return the indicator to transmit laggard LBTS value.

MAKRti::DtInetAddr DtRIDParameters::udpNetworkInterfaceAddr ( ) const

Get the UDP multicast network interface address as a network address (versus string representation).

MAKRti::DtString DtRIDParameters::udpNetworkInterfaceAddrString ( ) const

Get UDP multicast network interface address string.

const DtUpdateNameRateMap& DtRIDParameters::updateRates ( ) const

Return the map between update rate names and values.

const std::vector<DtUpdateRateSubscriptionStruct>& DtRIDParameters::updateRateSubscriptions ( ) const

Return the update rate subscription definitions.

bool DtRIDParameters::useDMFiltering ( ) const

Returns true if we should use DM filtering.

bool DtRIDParameters::useGroupSocket ( ) const

Returns true if we should use a group socket; 0 otherwise.

bool DtRIDParameters::useRoutesFile ( ) const

Set/Get routes file control.

void DtRIDParameters::verifyIpAddress	(	const MAKRti::DtString &	ip,
		const MAKRti::DtString &	name = `MAKRti::DtString::nullString()`
	)		const

protected

Check the validity of a single IP address. Throws if invalid.

void DtRIDParameters::verifyIpAddresses ( ) const

protected

Check all IP addresses in RID for validity. Throws if they are not.

void DtRIDParameters::verifyPortsAreUnique ( ) const

protected

Check and validate uniqueness of all ports in the RID.

Throws if multiple params attempt to use the same port (ie - this is an invalid RID).

Member Data Documentation

DtStringList DtRIDParameters::myCreateFedExFomModules

protected

The list of create FOM modules.

std::string DtRIDParameters::myCreationFileName

protected

The RID file name found in the creation arguments (if present)

MAKRti::DtString DtRIDParameters::myCreationLispExprs

protected

The expressions found in the creation arguments (if any)

std::vector<char> DtRIDParameters::myCredentials

protected

Credentials data.

std::wstring DtRIDParameters::myCredentialsType

protected

Credentials type.

DtInetAddrList DtRIDParameters::myDestAddr

protected

Group socket configuration.

MAKRti::DtMtlEnvironment* DtRIDParameters::myEnv

protected

The MTL environment used to process RID parameters.

DtFixedGridConfiguration* DtRIDParameters::myFixedGridConfiguration

protected

Fixed grid configuration.

FloatParameterMap DtRIDParameters::myFloatRidParameterDefaults

protected

The default values for float RID parameters.

std::map<MAKRti::DtString, MAKRti::DtMergeFomTableMask> DtRIDParameters::myFomTableNameToEnum

protected

DtInetAddrAndPortSet DtRIDParameters::myForwarderGroupAddrs

protected

The forwarder group addresses.

MAKRti::DtFilename DtRIDParameters::myForwarderRoutesFile

protected

The forwarder routes file name.

MAKRti::DtFilename DtRIDParameters::myFullPathToRidFile

protected

The path to the loaded file.

std::map<MAKRti::DtString, std::pair<int, int> > DtRIDParameters::myFullyCompliantParameters

protected

The list of parameters that effect compliance, their fully compliant setting, and their original setting (as read from the RID file)

DtDMFilterList DtRIDParameters::myIntMulticastDefinition

protected

DM object class configuration.

IntParameterMap DtRIDParameters::myIntRidParameterDefaults

protected

The default values for integer RID parameters.

bool DtRIDParameters::myIsCreationFileOverriden

protected

bool DtRIDParameters::myIsPreconfiguredRidFlag

protected

Flag indicating whether the RID configuration is preconfigured.

DtStringList DtRIDParameters::myJoinFedExFomModules

protected

The list of join FOM modules.

MAKRti::DtU64 DtRIDParameters::myMergeTableEnabledMask

protected

MAKRti::DtFilename DtRIDParameters::myName

protected

The RID file name.

DtDMFilterList DtRIDParameters::myObjMulticastDefinition

protected

DM interaction class configuration.

DtStringList DtRIDParameters::myPluginNames

protected

Plugin names configuration.

MAKRti::DtString DtRIDParameters::myPreconfiguredRidName

protected

Preconfigured RID configuration name.

Only set if the RID configuration is preconfigured.

DtRidFileSearchStatus DtRIDParameters::myRidFileSearchStatus

protected

The status of the file search of the RID file.

StringParameterMap DtRIDParameters::myStringRidParameterDefaults

protected

The default values for string RID parameters.

DtUpdateNameRateMap DtRIDParameters::myUpdateRates

protected

Pre-Evolved way to set the list of (name rate) Map from update rate name to value.

std::vector<DtUpdateRateSubscriptionStruct> DtRIDParameters::myUpdateRateSubscriptions

protected

Update rate subscriptions.

bool DtRIDParameters::myUseRoutesFile

protected

Controls whether routes file should be used (set internally)

int DtRIDParameters::RTI_asynchronousCallbacks

protected

Deprecated RID parameters.

int DtRIDParameters::RTI_asynchronousIO

protected

Deprecated RID parameters.

int DtRIDParameters::RTI_asynchronousProcessMessage

protected

Deprecated RID parameters.

int DtRIDParameters::RTI_enableBigMessage

protected

Deprecated RID parameters.

int DtRIDParameters::RTI_maxObjectsPerFederate

protected

Deprecated RID parameters.

MAKRti::DtString DtRIDParameters::RTI_mcastDevAddrString

protected

Deprecated RID parameters.

int DtRIDParameters::RTI_transmitLaggardLBTS

protected

Deprecated RID parameters.

const MAKRti::DtString DtRIDParameters::theAddressDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAdvanceConnectionGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAdvancedNetworkingGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAdvisoriesGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAllProvideUpdateRequestsDelayedRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAssistantGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAsynchGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAttributeRelevanceAdvisorySwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAttributeScopeAdvisorySwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAuthorizerNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutomaticNameReserveEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutoProvideDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutoProvideSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theBestEffortSendRetriesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theBestEffortSendRetryWaitUsecRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theBundlingGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theCatchFedAmbExceptionsRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCheckFlagRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCommunicationsGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const int DtRIDParameters::theCompliantCheckFlag

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDataDistMgmt

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDistributeFedFile

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDualTransmitFirstInteractionRegions

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableHlaObjectNamePrefix

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableNameReservation

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableSaveRestoreWhenUsingRtiexec

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableUpdateRateReduction

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantExtend13and1516interop

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantFomDataTransportTypeControl

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantFomModuleMerging

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantFomModuleSorting

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantInternalMsgReliableWhenUsingRtiexec

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantMomFederateUpdateInterval

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantMomServiceAvailable

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantNextEventRequestAndRetractServiceEnabled

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantPreferRidToFedSwitchTable

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantProcessUnknownUpdatesForDiscovery

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantSendDiscoveredClass

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantStrictFomChecking

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantStrictHLA1516eAttributeOwnershipUnavailableCallback

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantThrowExceptionCallNotAllowedFromWithinCallback

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantTimeMgmt

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantUse32BitsForValueSize

staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantUseRtiExec

staticprotected

The parameter values that make configuration compliant.

const MAKRti::DtString DtRIDParameters::theConfigureConnectionWithRidRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyOnlyAvailableDimensionsRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyProducingFederateSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyRegionDesignatorSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCrcCheckFedFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDataDistMgmtRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmFixedGridFilenameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmFixedGridRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theDefaultFedFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4DestAddr

staticprotected

Default destination address strings for IPv4 and IPv6.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4MaxChannelAddr

staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4MinChannelAddr

staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6DestAddr

staticprotected

Default destination address strings for IPv4 and IPv6.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6MaxChannelAddr

staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6MinChannelAddr

staticprotected

DDM channel addresses to be used if none are specified in the RID.

const std::string DtRIDParameters::theDefaultLogFileToken

static

const MAKRti::DtString DtRIDParameters::theDefaultTimeImplementationRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDelaySubscriptionEvaluationSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeleteOrphansRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousCallbacksRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousIORidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousProcessMessageRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedEnableBigMessageRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedMcastDevAddrStringRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDestAddrStringRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDetachNotifyLevelFromStdOutRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDiagnosticGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theDisableUnlicensedForTwoRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDiscoveryMsgBundlingDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributedForwarderPortRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributedUdpForwarderModeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributeFedFileAsynchronouslyRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributeFedFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDualTransmitFirstInteractionRegionsRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDumpFedRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDumpRidRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableBestEffortSendRetryRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableCheckVersionRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFederateHeartbeatRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFedexMsgRoutingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFomComponentSortingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableHlaObjectNamePrefixRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableLRCNetworkStatisticsMonitoringRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableMessageThrottlingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableNameReservationRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableNetworkTestingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnablePacketBundlingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableSaveRestoreWhenUsingRtiexecRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableSharedMemoryExecEventLogRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableTcpCompressionRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableTcpSmartForwardingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUdpCompressionRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUdpSmartForwardingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUpdateRateReductionRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableWarningsForDisabledServicesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExceptionReportingSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExecMcastDiscoveryDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExtend13and1516interopRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFaultToleranceGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theFederateHeartbeatIntervalRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFederateReconnectPauseRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFederateTimeoutIntervalRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFederationShadowEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFlushTimeoutIntervalRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFomDataTransportTypeControlRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFomGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theFomModuleMergingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFomModuleSortingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForceFullComplianceRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForceUnlicensedForTwoRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForwarderGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theForwarderRoutesFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theForwarderRoutesFileRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theForwardingDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFullFedFileDistributionName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theHlaGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theImplicitDdmParamsFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInteractionRelevanceAdvisorySwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInternalMsgReliableWhenUsingRtiexecRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInternalMsgSmartForwardingWhenUsingRtiexecRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theIOPeriodRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theIOQueueIndicatorRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLicensingGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theLogFileDirectoryName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLogFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLrcMcastDiscoveryDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLrcMinidumperLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxChannelAddrRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxForwarderQueueRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxIOCountRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxIOQueueRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const int DtRIDParameters::theMaxNumFederatesLimit

staticprotected

The maximum number of objects a single federate may register.

const MAKRti::DtString DtRIDParameters::theMaxNumFederatesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const int DtRIDParameters::theMaxObjectsPerFederateLimit

staticprotected

The maximum number of simultaneous federates in a federation execution.

const MAKRti::DtString DtRIDParameters::theMaxObjectsPerFederateRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theMaxObjectsPerFederateRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theMaxUdpPacketSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryAddrStringRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryPortRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryTriesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastTtlRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMessageThrottlingGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theMinChannelAddrRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomEvokeCallbackObserverEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomExceptionLoggingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomFederateUpdateIntervalRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theMomModuleExtensionFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomServiceAvailableRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomVerboseLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMulticastDiscoveryGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theNameReservationGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theNextEventRequestAndRetractServiceEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theNotifyLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theObjectClassRelevanceAdvisorySwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theOptionalServicesGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

ParameterOverridesMap DtRIDParameters::theOverrideParameters

staticprotected

const MAKRti::DtString DtRIDParameters::thePacketBundlingSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePeerForwarderReconnectDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePeerForwarderReconnectNumberOfTriesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePlainTextPasswordRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePreferLocalFomModulesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePreferRidToFedSwitchTableName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theProcessingModelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theProcessingModelRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theProcessUnknownUpdatesForDiscoveryRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theProfilingEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReceiveToleranceRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReconnectEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const int DtRIDParameters::theResignResponseEnabled

staticprotected

The parameter values that make configuration compliant.

const MAKRti::DtString DtRIDParameters::theResignResponseEnabledRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theResponseIntervalRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReuseLogFileRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReuseReleasedObjectHandlesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRidConsistencyCheckingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theRidConsistencyCheckingRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theRouteToAllByDefaultRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecLogFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecPerformsLicensingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecReconnectPauseRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiFederationShadowLogFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiForwarderLogFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiSpyGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreDirectoryRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreTimeoutRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSaveTransientMessagesRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSendDiscoveredClassRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theServiceImplGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theServiceReportingSwitchName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemExecLogFileNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryGroupName

staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryMgrMaxWaitRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryModeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryNameRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryQueueLengthRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSingleCallbackPerTickRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSmartForwardingLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSocketReceiveBufferSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSocketSendBufferSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictFomCheckingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictHLA1516eAttributeOwnershipUnavailableCallbackRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictNameReservationRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpBufferSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpCompressionLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpForwarderAddrRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theTcpForwarderAddrRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theTcpNetworkInterfaceAddrRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theTcpNetworkInterfaceAddrRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theTcpNoDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpPacketBundlingSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpPortRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTestConnectionThresholdRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionCallNotAllowedFromWithinCallbackRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionForDisabledServiceRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionOnConcurrentAccessRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTickFavorsNetworkRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTickWaitPeriodRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTimeMgmtRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTransmitDelayRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTransmitLaggardLBTSRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theTransmitLaggardLBTSRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theTransmitRateRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUdpCompressionLevelRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUdpNetworkInterfaceAddrRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theUdpNetworkInterfaceAddrRidNameInitialized

mutableprotected

const MAKRti::DtString DtRIDParameters::theUdpPacketBundlingSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUdpPortRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUse32BitsForValueSizeRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseBusyWaitForTickMinMaxRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseRandomNumberForFedHandleRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseRtiExecRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseTheDefaultChannelAddrStr

staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theWaitIOPeriodForBundlingRidName

staticprotected

The strings that represent the RID parameter groups RID Parameter names.

The documentation for this class was generated from the following file:

RIDparams.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Preconfigured RID Accessors.

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
