Base class for all broker objects. More...

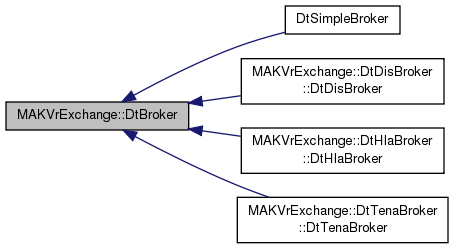

Inheritance diagram for MAKVrExchange::DtBroker:

Public Member Functions
	DtBroker (DtBrokerInitializer *init)
	Default constructor.
virtual	~DtBroker ()
	Default DTOR.
virtual DtPortalConnection *	portalConnection () const
	Returns a pointer to the portalConnection.
virtual void	launchGui ()=0
	Function which is called when VR-Exchange wants a display launched for this broker.
virtual void	launchInfoGui ()
	Override of the pure virtual function from DtBroker.
virtual void	reloadBrokerSettings ()
	Function used to make the broker reload its broker initialization settings.
virtual void	reloadFilterSettings ()
	Function used to make the broker reload its filter settings.
virtual const DtString	brokerName () const
	Returns the brokers name.
virtual DtU16	brokerId () const
	Returns the brokers ID.
virtual DtTime	simTime () const
	Returns the current simulation time.
virtual void	updateSimTime () const
	Called to advance the simTime.
virtual bool	isTimeToQuit () const
	Indicates this broker needs to shutdown.
virtual bool	isTranslatorDebuggingOn (const DtString &name) const
	Returns true if the translator name is set for debugging.
virtual bool	isTranslatorDisabled (const DtString &name) const
	Returns true if the translator name is disabled.
virtual DtTime	pollingInterval ()
	the amount of time that the broker is asking to be polled.
virtual DtBrokerInitializer *	brokerInitializer () const
	Returns the brokerInitializer object used to create this broker.
virtual void	tick ()=0
	Tick is called by processEvents, brokers should override to do any periodic processing.
virtual void	processEvents ()
	ProcessEvents should be called every frame. This should not be overrided.
virtual DtFilterManager &	objectFilters ()
	Accessor for the broker's object filter manager.
virtual const DtFilterManager &	objectFilters () const
	Accessor for the broker's object filter manager (const).
virtual void	setBrokerId (int id)
	Set the internal broker ID values of this broker.

Protected Member Functions
virtual void	stopFileLogging ()
	Cleanup this broker's members.
virtual void	processShutdownRequest (const DtPortalBrokerShutdownRequestMessage &obj)
	Called by the static method shutdownRequestCb to notify this broker to stop.
virtual void	processRestartRequest (bool shouldEnableOneToOne)
	Called by the restart request callback to notify this broker to restart.
virtual void	initPortalConnection (const DtBrokerInitializer &init)
	Initializes the Portal Connection, called from the CTOR.
virtual void	initFileLogging (const DtString &logFileName)
	Log all output to the filename logFileName, called from the CTOR.
virtual void	shutdownWithError (const DtString &error)
	Sends an error message to the queue manager, then marks us for shutdown.
virtual void	initializeDebuggedAndDisabledFromInit ()
	Sets our disabled / debugged sets from the initializer.

Static Protected Member Functions
static void	shutdownRequestCb (const DtPortalBrokerShutdownRequestMessage &obj, void *usr)
	Portal Connection Callback, registered in the CTOR.
static void	processDisableOneToOneCb (const DtPortalBrokerDisableOneToOneMessage &msg, void *usr)
	Portal broker process disable One to One mapping callback.
static void	processEnableOneToOneCb (const DtPortalBrokerEnableOneToOneMessage &msg, void *usr)
	Portal broker process enable One to One mapping callback.
static void	launchGuiRequestCb (const DtBrokerLaunchGuiRequest &obj, void *usr)
	Portal Connection Callback, registered in the CTOR.

Protected Attributes
DtU16	myBrokerId
bool	myShutdownRequestedFlag
DtPortalConnection *	myPConn
DtBrokerInitializer *	myBrokerInitializer
std::set< DtString >	myDisabledTranslators
std::set< DtString >	myDebuggedTranslators
DtFilterManager	myFilterManager
DtPrinter *	myFilePrinter

Private Member Functions
	DtBroker (const DtBroker &other)
	Class not copyable, not implemented.
DtBroker &	operator= (const DtBroker &other)
	Class not copyable, not implemented.

Filtering methods.
virtual void	filterObjectCallback (const DtFilterObjectMessage &object)
	Processes DtFilterObjectMessage messages.
static void	filterObjectCallback (const DtFilterObjectMessage &object, void *userData)
	Callback method for processing DtFilterObjectMessage messages.

Detailed Description

Base class for all broker objects.

Requirements:: headers: broker.h, and brokerInitializer.h
import library: libBroker.lib

A Broker object is the central component in broker applications. It manages the portal data exchange interface by creating a DtPortalConnection and initializing it in a consistent way using an MTL file and command line arguments. The DtBrokerInstance registers for control messages from the Portal and will report quit events, as well as open the UI upon request. This class is defined in libBroker

Constructor & Destructor Documentation

MAKVrExchange::DtBroker::DtBroker ( DtBrokerInitializer * init )

Default constructor.

Takes a DtBrokerInitializer instance. init should have already parsed its command line and its .mtl file by calling init.parseCmdLine() and init.loadMtlFile().

Parameters

[in] init Initialization information.

Precondition: init is expected to have already called DtBrokerInitializer::parseCmdLine(), and DtBrokerInitializer::loadMtlFile().

virtual MAKVrExchange::DtBroker::~DtBroker ( )

virtual

Default DTOR.

MAKVrExchange::DtBroker::DtBroker ( const DtBroker & other )

private

Class not copyable, not implemented.

Member Function Documentation

virtual DtPortalConnection* MAKVrExchange::DtBroker::portalConnection ( ) const

virtual

Returns a pointer to the portalConnection.

virtual void MAKVrExchange::DtBroker::launchGui ( )

pure virtual

Function which is called when VR-Exchange wants a display launched for this broker.

Implemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtHlaBroker::DtHlaBroker, MAKVrExchange::DtDisBroker::DtDisBroker, and DtSimpleBroker.

virtual void MAKVrExchange::DtBroker::launchInfoGui ( )

virtual

Override of the pure virtual function from DtBroker.

This function is called when VR-Exchange wants us to launch a Dialog Box but is not connected to the internet

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtHlaBroker::DtHlaBroker, and MAKVrExchange::DtDisBroker::DtDisBroker.

virtual void MAKVrExchange::DtBroker::reloadBrokerSettings ( )

virtual

Function used to make the broker reload its broker initialization settings.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtHlaBroker::DtHlaBroker, and MAKVrExchange::DtDisBroker::DtDisBroker.

virtual void MAKVrExchange::DtBroker::reloadFilterSettings ( )

virtual

Function used to make the broker reload its filter settings.

const DtString MAKVrExchange::DtBroker::brokerName ( ) const

inlinevirtual

Returns the brokers name.

References MAKVrExchange::DtBrokerInitializer::brokerName(), and myBrokerInitializer.

virtual DtU16 MAKVrExchange::DtBroker::brokerId ( ) const

virtual

Returns the brokers ID.

virtual DtTime MAKVrExchange::DtBroker::simTime ( ) const

virtual

Returns the current simulation time.

This is associated with the PConnection clock and is not synchronized beyond this broker.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker.

virtual void MAKVrExchange::DtBroker::updateSimTime ( ) const

virtual

Called to advance the simTime.

Reimplemented in MAKVrExchange::DtDisBroker::DtDisBroker, and MAKVrExchange::DtHlaBroker::DtHlaBroker.

virtual bool MAKVrExchange::DtBroker::isTimeToQuit ( ) const

virtual

Indicates this broker needs to shutdown.

virtual bool MAKVrExchange::DtBroker::isTranslatorDebuggingOn ( const DtString & name ) const

virtual

Returns true if the translator name is set for debugging.

Indicates whether name could be found in myDebuggedTranslators which is assembled from DtBrokerInitializer.

Parameters

[in] name Name of a translator.

Returns: true If name is found in myDebuggedTranslators
false Otherwise

virtual bool MAKVrExchange::DtBroker::isTranslatorDisabled ( const DtString & name ) const

virtual

Returns true if the translator name is disabled.

Indicates whether name could be found in myDisabledTranslators which is assembled from DtBrokerInitializer.

Parameters

[in] name Name of a translator.

Returns: true If name is found in myDisabledTranslators
false Otherwise

DtTime MAKVrExchange::DtBroker::pollingInterval ( )

inlinevirtual

the amount of time that the broker is asking to be polled.

References myBrokerInitializer, and MAKVrExchange::DtBrokerInitializer::pollingInterval().

DtBrokerInitializer * MAKVrExchange::DtBroker::brokerInitializer ( ) const

inlinevirtual

Returns the brokerInitializer object used to create this broker.

References myBrokerInitializer.

virtual void MAKVrExchange::DtBroker::tick ( )

pure virtual

Tick is called by processEvents, brokers should override to do any periodic processing.

Implemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtHlaBroker::DtHlaBroker, MAKVrExchange::DtDisBroker::DtDisBroker, and DtSimpleBroker.

virtual void MAKVrExchange::DtBroker::processEvents ( )

virtual

ProcessEvents should be called every frame. This should not be overrided.

DtFilterManager & MAKVrExchange::DtBroker::objectFilters ( )

inlinevirtual

Accessor for the broker's object filter manager.

References myFilterManager.

const DtFilterManager & MAKVrExchange::DtBroker::objectFilters ( ) const

inlinevirtual

Accessor for the broker's object filter manager (const).

References myFilterManager.

virtual void MAKVrExchange::DtBroker::setBrokerId ( int id )

virtual

Set the internal broker ID values of this broker.

In previous VR-Exchange versions, this was set by the user, now it is set by an internal TCP stream between the Portal and the DIS broker.

virtual void MAKVrExchange::DtBroker::stopFileLogging ( )

protectedvirtual

Cleanup this broker's members.

virtual void MAKVrExchange::DtBroker::processShutdownRequest ( const DtPortalBrokerShutdownRequestMessage & obj )

protectedvirtual

Called by the static method shutdownRequestCb to notify this broker to stop.

virtual void MAKVrExchange::DtBroker::processRestartRequest ( bool shouldEnableOneToOne )

protectedvirtual

Called by the restart request callback to notify this broker to restart.

virtual void MAKVrExchange::DtBroker::initPortalConnection ( const DtBrokerInitializer & init )

protectedvirtual

Initializes the Portal Connection, called from the CTOR.

virtual void MAKVrExchange::DtBroker::initFileLogging ( const DtString & logFileName )

protectedvirtual

Log all output to the filename logFileName, called from the CTOR.

virtual void MAKVrExchange::DtBroker::shutdownWithError ( const DtString & error )

protectedvirtual

Sends an error message to the queue manager, then marks us for shutdown.

This is not virtual so that it can be called from the CTOR.

virtual void MAKVrExchange::DtBroker::initializeDebuggedAndDisabledFromInit ( )

protectedvirtual

Sets our disabled / debugged sets from the initializer.

Should only be done at startup and when user indicates they want to restart the broker.

static void MAKVrExchange::DtBroker::shutdownRequestCb	(	const DtPortalBrokerShutdownRequestMessage &	obj,
		void *	usr
	)

staticprotected

Portal Connection Callback, registered in the CTOR.

static void MAKVrExchange::DtBroker::processDisableOneToOneCb	(	const DtPortalBrokerDisableOneToOneMessage &	msg,
		void *	usr
	)

staticprotected

Portal broker process disable One to One mapping callback.

static void MAKVrExchange::DtBroker::processEnableOneToOneCb	(	const DtPortalBrokerEnableOneToOneMessage &	msg,
		void *	usr
	)

staticprotected

Portal broker process enable One to One mapping callback.

static void MAKVrExchange::DtBroker::launchGuiRequestCb	(	const DtBrokerLaunchGuiRequest &	obj,
		void *	usr
	)

staticprotected

Portal Connection Callback, registered in the CTOR.

static void MAKVrExchange::DtBroker::filterObjectCallback	(	const DtFilterObjectMessage &	object,
		void *	userData
	)

staticprotected

Callback method for processing DtFilterObjectMessage messages.

Note: Calls the virtual filterObjectCallback(..) method.

virtual void MAKVrExchange::DtBroker::filterObjectCallback ( const DtFilterObjectMessage & object )

protectedvirtual

Processes DtFilterObjectMessage messages.

Calls filterObjectByName or filterObjectByType depending on the filter type specified in the DtFilterObjectMessage message.

DtBroker& MAKVrExchange::DtBroker::operator= ( const DtBroker & other )

private

Class not copyable, not implemented.

Member Data Documentation

DtU16 MAKVrExchange::DtBroker::myBrokerId

protected

bool MAKVrExchange::DtBroker::myShutdownRequestedFlag

protected

DtPortalConnection* MAKVrExchange::DtBroker::myPConn

protected

DtBrokerInitializer* MAKVrExchange::DtBroker::myBrokerInitializer

protected

Referenced by brokerInitializer(), brokerName(), and pollingInterval().

std::set<DtString> MAKVrExchange::DtBroker::myDisabledTranslators

protected

std::set<DtString> MAKVrExchange::DtBroker::myDebuggedTranslators

protected

DtFilterManager MAKVrExchange::DtBroker::myFilterManager

protected

Referenced by objectFilters().

DtPrinter* MAKVrExchange::DtBroker::myFilePrinter

protected

The documentation for this class was generated from the following file:

broker.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Filtering methods.

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
