MAKVrExchange::DtConnectionSettingsWidget Class Reference

Base class for connection settings widgets. More...

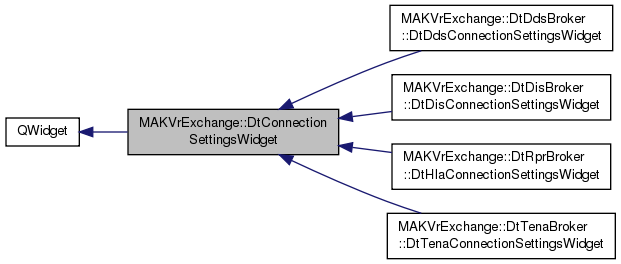

Inheritance diagram for MAKVrExchange::DtConnectionSettingsWidget:

Public Slots
virtual bool	apply ()
	Applies any settings changes and returns whether changed were made.
virtual void	cancel ()
	Re-loads the settings from the initializer and closes the dialog.

Public Member Functions
	DtConnectionSettingsWidget (QWidget *parent=0)
	Default Constructor.
virtual	~DtConnectionSettingsWidget ()
	Destructor.
virtual void	initialize (DtBrokerInitializer *init)
	Initializes the widget.
virtual QIcon	icon ()=0
	Returns the widget's icon.

Protected Member Functions
virtual void	setupGui ()=0
	Lays out the widget's fields.
virtual void	connectToSignals ()=0
	Connects to signals from the input widgets.
virtual void	applyCurrentSettings ()=0
	Updates the initializer with the dialog's current settings.
virtual void	loadCurrentSettings ()=0
	Updates the dialog with the initializer's current settings.

Protected Attributes
bool	myIsEdited
DtBrokerInitializer *	myInitializer

Detailed Description

Base class for connection settings widgets.

Constructor & Destructor Documentation

MAKVrExchange::DtConnectionSettingsWidget::DtConnectionSettingsWidget

(

QWidget *

parent = 0

)

Default Constructor.

virtual MAKVrExchange::DtConnectionSettingsWidget::~DtConnectionSettingsWidget ( )

virtual

Destructor.

Member Function Documentation

virtual bool MAKVrExchange::DtConnectionSettingsWidget::apply ( )

virtualslot

Applies any settings changes and returns whether changed were made.

virtual void MAKVrExchange::DtConnectionSettingsWidget::applyCurrentSettings ( )

protectedpure virtual

Updates the initializer with the dialog's current settings.

Implemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget, MAKVrExchange::DtTenaBroker::DtTenaConnectionSettingsWidget, and MAKVrExchange::DtDdsBroker::DtDdsConnectionSettingsWidget.

virtual void MAKVrExchange::DtConnectionSettingsWidget::cancel ( )

virtualslot

Re-loads the settings from the initializer and closes the dialog.

virtual void MAKVrExchange::DtConnectionSettingsWidget::connectToSignals ( )

protectedpure virtual

Connects to signals from the input widgets.

Implemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget, MAKVrExchange::DtTenaBroker::DtTenaConnectionSettingsWidget, and MAKVrExchange::DtDdsBroker::DtDdsConnectionSettingsWidget.

virtual QIcon MAKVrExchange::DtConnectionSettingsWidget::icon ( )

pure virtual

Returns the widget's icon.

Implemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget, MAKVrExchange::DtTenaBroker::DtTenaConnectionSettingsWidget, and MAKVrExchange::DtDdsBroker::DtDdsConnectionSettingsWidget.

virtual void MAKVrExchange::DtConnectionSettingsWidget::initialize ( DtBrokerInitializer *  init )

virtual

Initializes the widget.

Reimplemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, and MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget.

virtual void MAKVrExchange::DtConnectionSettingsWidget::loadCurrentSettings ( )

protectedpure virtual

Updates the dialog with the initializer's current settings.

Implemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget, MAKVrExchange::DtTenaBroker::DtTenaConnectionSettingsWidget, and MAKVrExchange::DtDdsBroker::DtDdsConnectionSettingsWidget.

virtual void MAKVrExchange::DtConnectionSettingsWidget::setupGui ( )

protectedpure virtual

Lays out the widget's fields.

Implemented in MAKVrExchange::DtRprBroker::DtHlaConnectionSettingsWidget, MAKVrExchange::DtDisBroker::DtDisConnectionSettingsWidget, MAKVrExchange::DtTenaBroker::DtTenaConnectionSettingsWidget, and MAKVrExchange::DtDdsBroker::DtDdsConnectionSettingsWidget.

Member Data Documentation

DtBrokerInitializer* MAKVrExchange::DtConnectionSettingsWidget::myInitializer

protected

bool MAKVrExchange::DtConnectionSettingsWidget::myIsEdited

protected

---

The documentation for this class was generated from the following file:

• connectionSettingsWidget.h
