Base class for all broker objects. More...

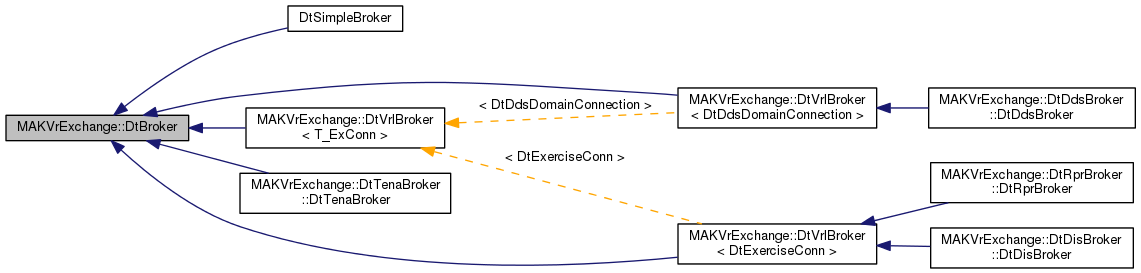

Inheritance diagram for MAKVrExchange::DtBroker:

Classes
struct	CallbackPair

Public Types
typedef bool(*	PluginInitMethod )(DtBroker *)

typedef void(*	PluginReloadMethod )(DtBroker *)

typedef void(*	PluginPostInitMethod )(DtBroker *)

typedef void(*	PluginUnloadMethod )(DtBroker *)

typedef void(*	BrokerReloadCallback )(void *)

typedef DtTranslatorFactory < DtInteractionTranslator >	DtInteractionTranslatorFactory

typedef DtTranslatorFactory < DtObjectTranslator >	DtObjectTranslatorFactory

Public Member Functions
virtual	~DtBroker ()
	Default DTOR. More...

virtual DtPortalConnection *	portalConnection () const
	Returns a pointer to the portal connection. More...

virtual void	initializeUi (DtGenericUserInterface *ui)
	Function called to start the GUI, this could be Qt, Text, Null, or anything else. More...

virtual void	startBroker ()
	Tells the broker to start processing messages and translating. More...

virtual void	launchGui ()
	Function which is called when VR-Exchange wants a display launched for this broker. More...

virtual void	launchInfoGui ()
	Override of the pure virtual function from DtBroker. More...

virtual DtInteractionTranslatorFactory *	interactionTranslatorFactory ()
	Returns a pointer to the interactionTranslatorFactory. More...

virtual DtObjectTranslatorFactory *	objectTranslatorFactory ()
	Returns a pointer to the objectTranslatorFactory. More...

virtual void	reloadTranslatorDebugging ()
	Function used to make the broker reload translator debugging settings. More...

virtual void	reloadBrokerSettings ()
	Function used to make the broker reload its broker initialization settings. More...

virtual const DtString	brokerName () const
	Returns the brokers name. More...

virtual DtU16	brokerId () const
	Returns the brokers ID. More...

virtual DtU32	brokerType () const
	Returns the brokers type. More...

virtual DtTime	simTime () const
	Returns the current simulation time. More...

virtual void	updateSimTime () const
	Called to advance the simTime. More...

virtual bool	isRunning () const
	Returns whether the broker is processing messages or not. More...

virtual bool	isTimeToQuit () const
	Indicates this broker needs to shutdown. More...

virtual bool	isTranslatorDebuggingOn (const DtString &name) const
	Returns true if debugging is enabled for the given translator. More...

virtual DtTime	pollingInterval ()
	Returns the amount of time that the broker is asking to be polled. More...

virtual DtBrokerInitializer *	brokerInitializer () const
	Returns the brokerInitializer object used to create this broker. More...

virtual void	tick ()
	Tick is called by processEvents, this will tick all portal translators. More...

virtual void	processEvents ()
	ProcessEvents should be called every frame. More...

virtual DtFilterManager &	objectFilters ()
	Accessor for the broker's object filter manager. More...

virtual const DtFilterManager &	objectFilters () const
	Accessor for the broker's object filter manager (const). More...

virtual void	setBrokerId (int id)
	Set the internal broker ID values of this broker. More...

virtual void	shutdownWithError (const DtString &error)
	Sends an error message to the queue manager, then marks us for shutdown. More...

virtual DtObjectTranslator *	getObjectTranslator (const DtString &name)
	get an object translator by name More...

virtual DtInteractionTranslator *	getInteractionTranslator (const DtString &name)
	get an interaction translator by name More...

virtual void	loadTranslators ()
	Updates the GUI with the translators being loaded and initializes them. More...

virtual void	initializeTranslators (DtStringSet &failedTranslators)
	Loads the translators and populates the list with failures. More...

virtual void	loadKnownObjectTranslators (DtStringSet &failedTranslators)
	Creates an interaction translator instance for each translator within myObjectTranslatorFactory. More...

virtual void	loadKnownInteractionTranslators (DtStringSet &failedTranslators)
	Creates an interaction translator instance for each translator within myInteractionTranslatorFactory. More...

virtual bool	loadObjectTranslator (const DtString &translatorName)
	Creates a translator instance using the translator name passed. More...

virtual bool	loadInteractionTranslator (const DtString &translatorName)
	Creates an interaction translator instance using the translator name passed. More...

virtual void	shutdown ()
	Shut down the broker. More...

virtual void	addBrokerReloadCallback (BrokerReloadCallback cb, void *usr)
	Add a callback to be called when the broker restarts. More...

virtual void	callBrokerReloadCallbacks ()
	Call all registered broker reload callbacks. More...

virtual void	setVrfRemoteController (makVrf::DtVrlinkVrfRemoteController *vrfRC)
	Set and get the VRF Remote Controller pointer from the broker. More...

virtual makVrf::DtVrlinkVrfRemoteController *	vrfRemoteController ()

virtual void	setDarkModeEnabled (bool flag)
	Set and get the dark mode toggle. More...

virtual bool	darkModeEnabled ()

Protected Types
typedef std::map< const DtString, DtInteractionTranslator * >	NamedInteractionTranslatorMap

typedef std::map< const DtString, DtObjectTranslator * >	NamedObjectTranslatorMap

typedef std::map< std::string, DtDynamicLibrary * >	BrokerPluginsMap

typedef std::list< CallbackPair >	CallbackPairList

Protected Member Functions
	DtBroker ()
	CTOR. More...

virtual void	initialize (DtBrokerInitializer *init)
	Performs one time initialization logic and calls ::initialize(). More...

virtual void	initialize ()
	Performs broker initialization logic. More...

virtual void	logBrokerSettings (DtBrokerInitializer *init)
	Output important broker settings to the log file on initialization. More...

virtual void	initializeDebuggedAndDisabledFromInit ()
	Sets our disabled / debugged sets from the initializer. More...

virtual void	initFileLogging (const DtBrokerInitializer &init)
	Log all output to the filename logFileName. More...

virtual void	obtainLock ()
	Checks lock file to determine if broker is already running. More...

virtual void	loadBrokerPlugins ()
	Loads all plugins in the broker's plugin directory. More...

virtual void	scanForPlugins (const std::string &dir, std::list< std::string > &files) const
	Scans the given directory for plugin libraries and returns them in a list. More...

virtual void	postInitializePlugins ()
	Perform post-initialization logic for plugins. More...

virtual void	reloadBrokerPlugins ()
	Function used to tell broker plugins a reload is occurring. More...

virtual void	initPortalConnection (const DtBrokerInitializer &init)
	Initializes the Portal Connection. More...

virtual void	initStatisticsManager (const DtBrokerInitializer &init)
	Initialize the statistics manager. More...

virtual void	stopFileLogging ()
	Cleanup this broker's members. More...

virtual void	processShutdownRequest (const DtPortalBrokerShutdownRequestMessage &obj)
	Called by the static method shutdownRequestCb to notify this broker to stop. More...

virtual void	processRestartRequest (bool shouldEnableOneToOne)
	Called by the restart request callback to notify this broker to restart. More...

virtual void	reportLoadTranslatorFailures (const DtStringSet &failedTranslators) const
	Display errors to end-user. More...

virtual void	objectDiscovered (const DtBrokerObject *brokerObject)
	Called through a static callback when a DtBrokerObject is discovered. More...

virtual void	objectUpdated (const DtBrokerObject *brokerObject)
	Called through a static callback when a DtBrokerObject is updated. More...

virtual void	objectRemoved (const DtBrokerObject *brokerObject)
	Called through a static callback when a DtBrokerObject is removed. More...

virtual bool	addTranslator (DtInteractionTranslator *intTrans, bool reflectEnabled, bool publishEnabled)
	Adds an already created interactionTranslator to the brokers list. More...

virtual bool	addTranslator (DtObjectTranslator *objTrans, bool reflectEnabled, bool publishEnabled)
	Adds an already created objectTranslator to the brokers list. More...

Static Protected Member Functions
static void	shutdownRequestCb (const DtPortalBrokerShutdownRequestMessage &obj, void *usr)
	Portal Connection Callback, registered in the CTOR. More...

static void	processDisableOneToOneCb (const DtPortalBrokerDisableOneToOneMessage &msg, void *usr)
	Portal broker process disable One to One mapping callback. More...

static void	processEnableOneToOneCb (const DtPortalBrokerEnableOneToOneMessage &msg, void *usr)
	Portal broker process enable One to One mapping callback. More...

static void	startRequestCb (const DtBrokerStartRequest &obj, void *usr)
	Portal Connection Callback, registered in the CTOR. More...

static void	launchGuiRequestCb (const DtBrokerLaunchGuiRequest &obj, void *usr)
	Portal Connection Callback, registered in the CTOR. More...

static void	objectDiscoveredCallback (const DtBrokerObject brokerObject, void usr)

static void	objectUpdatedCallback (const DtBrokerObject brokerObject, void usr)

static void	objectRemovedCallback (const DtBrokerObject brokerObject, void usr)

Protected Attributes
NamedInteractionTranslatorMap	myInteractionTranslatorMap

NamedObjectTranslatorMap	myObjectTranslatorMap

DtInteractionTranslatorFactory	myInteractionTranslatorFactory

DtObjectTranslatorFactory	myObjectTranslatorFactory

BrokerPluginsMap	myBrokerPlugins

CallbackPairList	myBrokerReloadCallbacks

DtGenericUserInterface *	myUi

DtU16	myBrokerId

DtU32	myBrokerType

bool	myBrokerIsRunning

bool	myShutdownRequestedFlag

DtPortalConnection *	myPortalConn

DtBrokerInitializer *	myBrokerInitializer

std::set< DtString >	myDebuggedTranslators

DtFilterManager	myFilterManager

DtStatisticsManager *	myStatisticsManager

DtFilePrinter *	myFilePrinter

makVrf::DtVrlinkVrfRemoteController *	myVrfRemoteController

bool	myDarkModeEnabled

Static Protected Attributes
static const char *	theVrxPluginInitMethod

static const char *	theVrxPluginReloadMethod

static const char *	theVrxPluginPostInitMethod

static const char *	theVrxPluginUnloadMethod

Private Member Functions
	DtBroker (const DtBroker &other)
	Class not copyable, not implemented. More...

DtBroker &	operator= (const DtBroker &other)
	Class not copyable, not implemented. More...

Filtering methods.
virtual void	filterObjectCallback (const DtFilterObjectMessage &object)
	Processes DtFilterObjectMessage messages. More...

static void	filterObjectCallback (const DtFilterObjectMessage &object, void *userData)
	Callback method for processing DtFilterObjectMessage messages. More...

Detailed Description

Base class for all broker objects.

Requirements:: headers: broker.h, and brokerInitializer.h
import library: libBroker.lib

A Broker object is the central component in broker applications. It manages the portal data exchange interface by creating a DtPortalConnection and initializing it in a consistent way using an MTL file and command line arguments. The DtBrokerInstance registers for control messages from the Portal and will report quit events, as well as open the UI upon request. This class is defined in libBroker

Member Typedef Documentation

typedef std::map<std::string,DtDynamicLibrary*> MAKVrExchange::DtBroker::BrokerPluginsMap

protected

typedef void(* MAKVrExchange::DtBroker::BrokerReloadCallback)(void *)

typedef std::list<CallbackPair> MAKVrExchange::DtBroker::CallbackPairList

protected

typedef DtTranslatorFactory<DtInteractionTranslator> MAKVrExchange::DtBroker::DtInteractionTranslatorFactory

typedef DtTranslatorFactory<DtObjectTranslator> MAKVrExchange::DtBroker::DtObjectTranslatorFactory

typedef std::map<const DtString,DtInteractionTranslator*> MAKVrExchange::DtBroker::NamedInteractionTranslatorMap

protected

typedef std::map<const DtString,DtObjectTranslator*> MAKVrExchange::DtBroker::NamedObjectTranslatorMap

protected

typedef bool(* MAKVrExchange::DtBroker::PluginInitMethod)(DtBroker *)

typedef void(* MAKVrExchange::DtBroker::PluginPostInitMethod)(DtBroker *)

typedef void(* MAKVrExchange::DtBroker::PluginReloadMethod)(DtBroker *)

typedef void(* MAKVrExchange::DtBroker::PluginUnloadMethod)(DtBroker *)

Constructor & Destructor Documentation

MAKVrExchange::DtBroker::DtBroker ( )

protected

CTOR.

virtual MAKVrExchange::DtBroker::~DtBroker ( )

virtual

Default DTOR.

MAKVrExchange::DtBroker::DtBroker ( const DtBroker & other )

private

Class not copyable, not implemented.

Member Function Documentation

virtual void MAKVrExchange::DtBroker::addBrokerReloadCallback	(	BrokerReloadCallback	cb,
		void *	usr
	)

virtual

Add a callback to be called when the broker restarts.

virtual bool MAKVrExchange::DtBroker::addTranslator	(	DtInteractionTranslator *	intTrans,
		bool	reflectEnabled,
		bool	publishEnabled
	)

protectedvirtual

Adds an already created interactionTranslator to the brokers list.

virtual bool MAKVrExchange::DtBroker::addTranslator	(	DtObjectTranslator *	objTrans,
		bool	reflectEnabled,
		bool	publishEnabled
	)

protectedvirtual

Adds an already created objectTranslator to the brokers list.

virtual DtU16 MAKVrExchange::DtBroker::brokerId ( ) const

virtual

Returns the brokers ID.

DtBrokerInitializer * MAKVrExchange::DtBroker::brokerInitializer ( ) const

inlinevirtual

Returns the brokerInitializer object used to create this broker.

References myBrokerInitializer.

const DtString MAKVrExchange::DtBroker::brokerName ( ) const

inlinevirtual

Returns the brokers name.

References MAKVrExchange::DtBrokerInitializer::brokerName(), and myBrokerInitializer.

virtual DtU32 MAKVrExchange::DtBroker::brokerType ( ) const

virtual

Returns the brokers type.

virtual void MAKVrExchange::DtBroker::callBrokerReloadCallbacks ( )

virtual

Call all registered broker reload callbacks.

virtual bool MAKVrExchange::DtBroker::darkModeEnabled ( )

virtual

static void MAKVrExchange::DtBroker::filterObjectCallback	(	const DtFilterObjectMessage &	object,
		void *	userData
	)

staticprotected

Callback method for processing DtFilterObjectMessage messages.

Note: Calls the virtual filterObjectCallback(..) method.

virtual void MAKVrExchange::DtBroker::filterObjectCallback ( const DtFilterObjectMessage & object )

protectedvirtual

Processes DtFilterObjectMessage messages.

Calls filterObjectByName or filterObjectByType depending on the filter type specified in the DtFilterObjectMessage message.

virtual DtInteractionTranslator* MAKVrExchange::DtBroker::getInteractionTranslator ( const DtString & name )

virtual

get an interaction translator by name

virtual DtObjectTranslator* MAKVrExchange::DtBroker::getObjectTranslator ( const DtString & name )

virtual

get an object translator by name

virtual void MAKVrExchange::DtBroker::initFileLogging ( const DtBrokerInitializer & init )

protectedvirtual

Log all output to the filename logFileName.

virtual void MAKVrExchange::DtBroker::initialize ( DtBrokerInitializer * init )

protectedvirtual

Performs one time initialization logic and calls ::initialize().

Initializer should have already parsed its command line and config file.

Reimplemented in DtSimpleBroker.

virtual void MAKVrExchange::DtBroker::initialize ( )

protectedvirtual

Performs broker initialization logic.

virtual void MAKVrExchange::DtBroker::initializeDebuggedAndDisabledFromInit ( )

protectedvirtual

Sets our disabled / debugged sets from the initializer.

Should only be done at startup and when user indicates they want to restart the broker.

virtual void MAKVrExchange::DtBroker::initializeTranslators ( DtStringSet & failedTranslators )

virtual

Loads the translators and populates the list with failures.

Reimplemented in MAKVrExchange::DtRprBroker::DtRprBroker.

virtual void MAKVrExchange::DtBroker::initializeUi ( DtGenericUserInterface * ui )

virtual

Function called to start the GUI, this could be Qt, Text, Null, or anything else.

virtual void MAKVrExchange::DtBroker::initPortalConnection ( const DtBrokerInitializer & init )

protectedvirtual

Initializes the Portal Connection.

virtual void MAKVrExchange::DtBroker::initStatisticsManager ( const DtBrokerInitializer & init )

protectedvirtual

Initialize the statistics manager.

virtual DtInteractionTranslatorFactory* MAKVrExchange::DtBroker::interactionTranslatorFactory ( )

virtual

Returns a pointer to the interactionTranslatorFactory.

virtual bool MAKVrExchange::DtBroker::isRunning ( ) const

virtual

Returns whether the broker is processing messages or not.

virtual bool MAKVrExchange::DtBroker::isTimeToQuit ( ) const

virtual

Indicates this broker needs to shutdown.

virtual bool MAKVrExchange::DtBroker::isTranslatorDebuggingOn ( const DtString & name ) const

virtual

Returns true if debugging is enabled for the given translator.

virtual void MAKVrExchange::DtBroker::launchGui ( )

virtual

Function which is called when VR-Exchange wants a display launched for this broker.

static void MAKVrExchange::DtBroker::launchGuiRequestCb	(	const DtBrokerLaunchGuiRequest &	obj,
		void *	usr
	)

staticprotected

Portal Connection Callback, registered in the CTOR.

virtual void MAKVrExchange::DtBroker::launchInfoGui ( )

virtual

Override of the pure virtual function from DtBroker.

This function is called when VR-Exchange wants us to launch a Dialog Box but is not connected to the internet

virtual void MAKVrExchange::DtBroker::loadBrokerPlugins ( )

protectedvirtual

Loads all plugins in the broker's plugin directory.

virtual bool MAKVrExchange::DtBroker::loadInteractionTranslator ( const DtString & translatorName )

virtual

Creates an interaction translator instance using the translator name passed.

The translator will only be created if the name is not on the broker Initializer's disabledTranslator list.

virtual void MAKVrExchange::DtBroker::loadKnownInteractionTranslators ( DtStringSet & failedTranslators )

virtual

Creates an interaction translator instance for each translator within myInteractionTranslatorFactory.

virtual void MAKVrExchange::DtBroker::loadKnownObjectTranslators ( DtStringSet & failedTranslators )

virtual

Creates an interaction translator instance for each translator within myObjectTranslatorFactory.

virtual bool MAKVrExchange::DtBroker::loadObjectTranslator ( const DtString & translatorName )

virtual

Creates a translator instance using the translator name passed.

The Translator will not be created if the name is in the broker initializer's disabledTranslator list.

virtual void MAKVrExchange::DtBroker::loadTranslators ( )

virtual

Updates the GUI with the translators being loaded and initializes them.

Calls MAKVrExchange::DtBroker::initializeTranslators

virtual void MAKVrExchange::DtBroker::logBrokerSettings ( DtBrokerInitializer * init )

protectedvirtual

Output important broker settings to the log file on initialization.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtRprBroker::DtRprBroker, MAKVrExchange::DtDisBroker::DtDisBroker, and MAKVrExchange::DtDdsBroker::DtDdsBroker.

virtual void MAKVrExchange::DtBroker::objectDiscovered ( const DtBrokerObject * brokerObject )

protectedvirtual

Called through a static callback when a DtBrokerObject is discovered.

static void MAKVrExchange::DtBroker::objectDiscoveredCallback	(	const DtBrokerObject *	brokerObject,
		void *	usr
	)

staticprotected

DtFilterManager & MAKVrExchange::DtBroker::objectFilters ( )

inlinevirtual

Accessor for the broker's object filter manager.

References myFilterManager.

const DtFilterManager & MAKVrExchange::DtBroker::objectFilters ( ) const

inlinevirtual

Accessor for the broker's object filter manager (const).

References myFilterManager.

virtual void MAKVrExchange::DtBroker::objectRemoved ( const DtBrokerObject * brokerObject )

protectedvirtual

Called through a static callback when a DtBrokerObject is removed.

static void MAKVrExchange::DtBroker::objectRemovedCallback	(	const DtBrokerObject *	brokerObject,
		void *	usr
	)

staticprotected

virtual DtObjectTranslatorFactory* MAKVrExchange::DtBroker::objectTranslatorFactory ( )

virtual

Returns a pointer to the objectTranslatorFactory.

virtual void MAKVrExchange::DtBroker::objectUpdated ( const DtBrokerObject * brokerObject )

protectedvirtual

Called through a static callback when a DtBrokerObject is updated.

static void MAKVrExchange::DtBroker::objectUpdatedCallback	(	const DtBrokerObject *	brokerObject,
		void *	usr
	)

staticprotected

virtual void MAKVrExchange::DtBroker::obtainLock ( )

protectedvirtual

Checks lock file to determine if broker is already running.

DtBroker& MAKVrExchange::DtBroker::operator= ( const DtBroker & other )

private

Class not copyable, not implemented.

DtTime MAKVrExchange::DtBroker::pollingInterval ( )

inlinevirtual

Returns the amount of time that the broker is asking to be polled.

References myBrokerInitializer, and MAKVrExchange::DtBrokerInitializer::pollingInterval().

virtual DtPortalConnection* MAKVrExchange::DtBroker::portalConnection ( ) const

virtual

Returns a pointer to the portal connection.

virtual void MAKVrExchange::DtBroker::postInitializePlugins ( )

protectedvirtual

Perform post-initialization logic for plugins.

static void MAKVrExchange::DtBroker::processDisableOneToOneCb	(	const DtPortalBrokerDisableOneToOneMessage &	msg,
		void *	usr
	)

staticprotected

Portal broker process disable One to One mapping callback.

static void MAKVrExchange::DtBroker::processEnableOneToOneCb	(	const DtPortalBrokerEnableOneToOneMessage &	msg,
		void *	usr
	)

staticprotected

Portal broker process enable One to One mapping callback.

virtual void MAKVrExchange::DtBroker::processEvents ( )

virtual

ProcessEvents should be called every frame.

virtual void MAKVrExchange::DtBroker::processRestartRequest ( bool shouldEnableOneToOne )

protectedvirtual

Called by the restart request callback to notify this broker to restart.

virtual void MAKVrExchange::DtBroker::processShutdownRequest ( const DtPortalBrokerShutdownRequestMessage & obj )

protectedvirtual

Called by the static method shutdownRequestCb to notify this broker to stop.

virtual void MAKVrExchange::DtBroker::reloadBrokerPlugins ( )

protectedvirtual

Function used to tell broker plugins a reload is occurring.

virtual void MAKVrExchange::DtBroker::reloadBrokerSettings ( )

virtual

Function used to make the broker reload its broker initialization settings.

virtual void MAKVrExchange::DtBroker::reloadTranslatorDebugging ( )

virtual

Function used to make the broker reload translator debugging settings.

virtual void MAKVrExchange::DtBroker::reportLoadTranslatorFailures ( const DtStringSet & failedTranslators ) const

protectedvirtual

Display errors to end-user.

Displays a dialog box to the end-user listing translators that failed to load along with possible causes.

Parameters

[in] failedTranslators collection of failed object and interaction translators. If it is empty, no error message is displayed.

virtual void MAKVrExchange::DtBroker::scanForPlugins	(	const std::string &	dir,
		std::list< std::string > &	files
	)		const

protectedvirtual

Scans the given directory for plugin libraries and returns them in a list.

virtual void MAKVrExchange::DtBroker::setBrokerId ( int id )

virtual

Set the internal broker ID values of this broker.

In previous VR-Exchange versions, this was set by the user, now it is set by an internal TCP stream between the Portal and the DIS broker.

virtual void MAKVrExchange::DtBroker::setDarkModeEnabled ( bool flag )

virtual

Set and get the dark mode toggle.

virtual void MAKVrExchange::DtBroker::setVrfRemoteController ( makVrf::DtVrlinkVrfRemoteController * vrfRC )

inlinevirtual

Set and get the VRF Remote Controller pointer from the broker.

This pointer is set by the VR-Forces Remote Control plugins on load. Check this value when initializing plugins that extend VR-Forces specific translation to avoid creating multiple VR-Forces Remote Control objects. Returns NULL if not VR-Force Remote Controller object has been set.

virtual void MAKVrExchange::DtBroker::shutdown ( )

virtual

Shut down the broker.

Turns off all translators. Can be overridden by brokers to perform additional shut down logic.

Reimplemented in MAKVrExchange::DtRprBroker::DtRprBroker, MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtDisBroker::DtDisBroker, MAKVrExchange::DtDdsBroker::DtDdsBroker, MAKVrExchange::DtVrlBroker< T_ExConn >, MAKVrExchange::DtVrlBroker< DtDdsDomainConnection >, and MAKVrExchange::DtVrlBroker< DtExerciseConn >.

static void MAKVrExchange::DtBroker::shutdownRequestCb	(	const DtPortalBrokerShutdownRequestMessage &	obj,
		void *	usr
	)

staticprotected

Portal Connection Callback, registered in the CTOR.

virtual void MAKVrExchange::DtBroker::shutdownWithError ( const DtString & error )

virtual

Sends an error message to the queue manager, then marks us for shutdown.

virtual DtTime MAKVrExchange::DtBroker::simTime ( ) const

virtual

Returns the current simulation time.

This is associated with the PConnection clock and is not synchronized beyond this broker.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker.

virtual void MAKVrExchange::DtBroker::startBroker ( )

virtual

Tells the broker to start processing messages and translating.

Initializes the translators and sends a broker started message to the Portal.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtDisBroker::DtDisBroker, MAKVrExchange::DtRprBroker::DtRprBroker, and MAKVrExchange::DtDdsBroker::DtDdsBroker.

static void MAKVrExchange::DtBroker::startRequestCb	(	const DtBrokerStartRequest &	obj,
		void *	usr
	)

staticprotected

Portal Connection Callback, registered in the CTOR.

virtual void MAKVrExchange::DtBroker::stopFileLogging ( )

protectedvirtual

Cleanup this broker's members.

virtual void MAKVrExchange::DtBroker::tick ( )

virtual

Tick is called by processEvents, this will tick all portal translators.

Reimplemented in MAKVrExchange::DtTenaBroker::DtTenaBroker, MAKVrExchange::DtDdsBroker::DtDdsBroker, MAKVrExchange::DtDisBroker::DtDisBroker, MAKVrExchange::DtRprBroker::DtRprBroker, and DtSimpleBroker.

virtual void MAKVrExchange::DtBroker::updateSimTime ( ) const

virtual

Called to advance the simTime.

Reimplemented in MAKVrExchange::DtRprBroker::DtRprBroker, and MAKVrExchange::DtDisBroker::DtDisBroker.

virtual makVrf::DtVrlinkVrfRemoteController* MAKVrExchange::DtBroker::vrfRemoteController ( )

inlinevirtual

Member Data Documentation

DtU16 MAKVrExchange::DtBroker::myBrokerId

protected

DtBrokerInitializer* MAKVrExchange::DtBroker::myBrokerInitializer

protected

Referenced by brokerInitializer(), brokerName(), and pollingInterval().

bool MAKVrExchange::DtBroker::myBrokerIsRunning

protected

BrokerPluginsMap MAKVrExchange::DtBroker::myBrokerPlugins

protected

CallbackPairList MAKVrExchange::DtBroker::myBrokerReloadCallbacks

protected

DtU32 MAKVrExchange::DtBroker::myBrokerType

protected

bool MAKVrExchange::DtBroker::myDarkModeEnabled

protected

std::set<DtString> MAKVrExchange::DtBroker::myDebuggedTranslators

protected

DtFilePrinter* MAKVrExchange::DtBroker::myFilePrinter

protected

DtFilterManager MAKVrExchange::DtBroker::myFilterManager

protected

Referenced by objectFilters().

DtInteractionTranslatorFactory MAKVrExchange::DtBroker::myInteractionTranslatorFactory

protected

NamedInteractionTranslatorMap MAKVrExchange::DtBroker::myInteractionTranslatorMap

protected

DtObjectTranslatorFactory MAKVrExchange::DtBroker::myObjectTranslatorFactory

protected

NamedObjectTranslatorMap MAKVrExchange::DtBroker::myObjectTranslatorMap

protected

DtPortalConnection* MAKVrExchange::DtBroker::myPortalConn

protected

bool MAKVrExchange::DtBroker::myShutdownRequestedFlag

protected

DtStatisticsManager* MAKVrExchange::DtBroker::myStatisticsManager

protected

DtGenericUserInterface* MAKVrExchange::DtBroker::myUi

protected

makVrf::DtVrlinkVrfRemoteController* MAKVrExchange::DtBroker::myVrfRemoteController

protected

const char* MAKVrExchange::DtBroker::theVrxPluginInitMethod

staticprotected

const char* MAKVrExchange::DtBroker::theVrxPluginPostInitMethod

staticprotected

const char* MAKVrExchange::DtBroker::theVrxPluginReloadMethod

staticprotected

const char* MAKVrExchange::DtBroker::theVrxPluginUnloadMethod

staticprotected

The documentation for this class was generated from the following file:

broker.h

Classes

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Filtering methods.

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
