IR Sensor System

Table of Contents

• Components
  • Sensors
  • Controllers
  • Actuators

The IR sensor system is a system of comprised of a single sensor component that models an infra-red sensor for detecting entities.

This system is configured as part of some entities, such as the AH-64 Apache rotary wing entity.

Defined in system defintion file: infrared-sensor.sysdef

Components

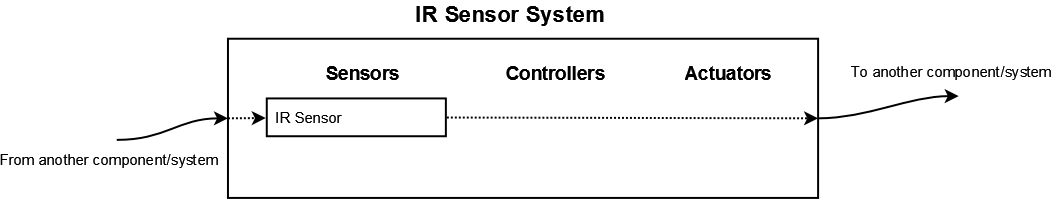

The figure below shows the DtSimComponent sensor component that comprises the IR sensor system. Note that the sensor system accepts input and produces output. It acts as a wrapper around the individual sensor component contained within. The dotted lines show the input and output connections between the sensor component and the system. These connections are internal to the system. The solid lines indicate the public connections used to connect this system to outside components and/or systems.

Infrared Sensor System

Sensors

• DtSignatureObjectSensor -- What can I see?

Controllers

There are no controllers configured as part of this system.

Actuators

There are no actuators configured as part of this system.

Note:

If you modify the system definition file, or any of the components it contains, multiple entity types may be affected. All entity types that include this system in its parameter database file will be modified.
