makVrf::DtCreateObjectAction Class Reference

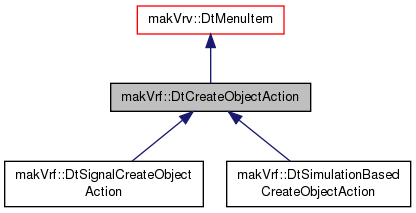

Inheritance diagram for makVrf::DtCreateObjectAction:

Signals
void	createObject (const DtEntityMapperKey &, int force, const std::string &)

Public Member Functions
	DtCreateObjectAction (const std::string &path, const QString &title, const DtEntityMapperKey &o, const std::string &keywords="", const std::string &menuIcon="", const std::string &toolTip="")
	Constructor.
virtual	~DtCreateObjectAction ()
	Destructor.
virtual DtEntityMapperKey	objectType () const
virtual int	forceType () const
virtual const std::string &	keywords () const
virtual const std::string &	menuIcon () const
virtual const std::string &	toolTip () const
virtual void	setSignalOnCreate (DtCreationSignalType creationSignal)
	Set to true to have this action specify that it should signal on create rather than create the object on the network.
virtual DtCreationSignalType	signalOnCreate () const
virtual void	on_triggered ()
virtual QAction *	createAction (makVrv::DtDe &, QWidget *parent)
	Build a menu item (via an action).
Public Member Functions inherited from makVrv::DtMenuItem
	DtMenuItem (const std::string &menuItemIdName)
	CTOR.
virtual	~DtMenuItem ()
	DTOR.
virtual const std::string &	menuItemIdName () const
	Get the menu id name, the menu id name is not the same thing as the visible menu text.

Protected Member Functions
virtual void	setIconFromTick (makVrv::DtDe *de, QAction *act)
	Only should be called in response to a De tick.

Protected Attributes
DtEntityMapperKey	myObjectType
QString	myTitle
DtCreationSignalType	mySignalOnCreate
std::string	myKeywords
std::string	myToolTip
std::string	myMenuIcon
Protected Attributes inherited from makVrv::DtMenuItem
std::string	myMenuIdName

Private Member Functions
	DtCreateObjectAction (const DtCreateObjectAction &orig)
	Not implemented.
DtCreateObjectAction &	operator= (const DtCreateObjectAction &orig)
	Not implemented.

Additional Inherited Members
Protected Slots inherited from makVrv::DtMenuItem
virtual void	on_checkStateChanged (bool)
virtual void	on_aboutToShow ()

Constructor & Destructor Documentation

makVrf::DtCreateObjectAction::DtCreateObjectAction	(	const std::string &	path,
		const QString &	title,
		const DtEntityMapperKey &	o,
		const std::string &	keywords = "",
		const std::string &	menuIcon = "",
		const std::string &	toolTip = ""
	)

Constructor.

virtual makVrf::DtCreateObjectAction::~DtCreateObjectAction ( )

virtual

Destructor.

makVrf::DtCreateObjectAction::DtCreateObjectAction ( const DtCreateObjectAction &  orig )

private

Not implemented.

Member Function Documentation

virtual DtEntityMapperKey makVrf::DtCreateObjectAction::objectType ( ) const

virtual

virtual int makVrf::DtCreateObjectAction::forceType ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::keywords ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::menuIcon ( ) const

virtual

virtual const std::string& makVrf::DtCreateObjectAction::toolTip ( ) const

virtual

virtual void makVrf::DtCreateObjectAction::setSignalOnCreate ( DtCreationSignalType  creationSignal )

virtual

Set to true to have this action specify that it should signal on create rather than create the object on the network.

Default is false

virtual DtCreationSignalType makVrf::DtCreateObjectAction::signalOnCreate ( ) const

virtual

virtual void makVrf::DtCreateObjectAction::on_triggered ( )

virtual

Reimplemented from makVrv::DtMenuItem.

Reimplemented in makVrf::DtSimulationBasedCreateObjectAction, and makVrf::DtSignalCreateObjectAction.

virtual QAction* makVrf::DtCreateObjectAction::createAction ( makVrv::DtDe &  , QWidget *  parent  )

virtual

Build a menu item (via an action).

Implements makVrv::DtMenuItem.

Reimplemented in makVrf::DtSimulationBasedCreateObjectAction.

virtual void makVrf::DtCreateObjectAction::setIconFromTick ( makVrv::DtDe *  de, QAction *  act  )

protectedvirtual

Only should be called in response to a De tick.

Set up when an action is created before the de is initialized

void makVrf::DtCreateObjectAction::createObject ( const DtEntityMapperKey &  , int  force, const std::string &    )

signal

DtCreateObjectAction& makVrf::DtCreateObjectAction::operator= ( const DtCreateObjectAction &  orig )

private

Not implemented.

Member Data Documentation

DtEntityMapperKey makVrf::DtCreateObjectAction::myObjectType

protected

QString makVrf::DtCreateObjectAction::myTitle

protected

DtCreationSignalType makVrf::DtCreateObjectAction::mySignalOnCreate

protected

std::string makVrf::DtCreateObjectAction::myKeywords

protected

std::string makVrf::DtCreateObjectAction::myToolTip

protected

std::string makVrf::DtCreateObjectAction::myMenuIcon

protected

---

The documentation for this class was generated from the following file:

• include/vrfGuiCoreQt/createObjectAction.h
