This class defines the dialog that allows the creation/update of point objects in the scenario (entities, props, waypoints) More...

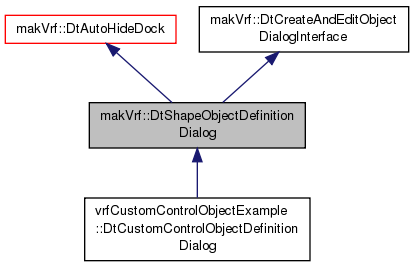

Inheritance diagram for makVrf::DtShapeObjectDefinitionDialog:

[legend]

Public Slots
virtual void	slot_onShapeLocationsCellChanged (int, int)
	Call to force the updating of a cell contents.
virtual void	slot_altitudeTypeChanged ()
	Call to force update of display based on a change of altitude selection type.

Public Member Functions
	DtShapeObjectDefinitionDialog (makVrv::DtDe &de, QWidget *parent, const QString &title="", DtDialogInteractionMode mode=DtCreationMode)
virtual	~DtShapeObjectDefinitionDialog ()
virtual void	init (const DtEntityType &, const QString &title, bool forPlan, DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode, const DtVrfObjectManipulationManager::DtEditingType &)
virtual void	closeDialog ()
virtual void	setLocationInGridFor (int row, const DtGeodeticCoord &, makVrv::DtSharedDisplayUnitsSettings::CoordSys=makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits=makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits)
	Sets the location into the grid at the specified row, using the location entry widget for format.
virtual void	addLocation (const DtVector &loc, int index=-1)
	Add a new point.
virtual void	removePoint (int)
virtual void	insertLocation (int index, const DtVector &loc)
virtual void	selectLocation (int index)
virtual DtGeodeticCoord	getLocation (int index)
	Returns the location of the control point located at the given index.
virtual QString	getName ()
	Returns the shape object's name.
virtual void	hideDialog ()
	Hides the dialog.
virtual int	selectedPointIndex () const
virtual int	rowCount () const
virtual void	setAltitudeAboveTerrain (bool)
	Set altitude above terrain/sea level.
virtual bool	altitudeAboveTerrain () const
virtual void	setAttachedToMouseVisible (bool)
virtual void	setName (const QString &name)
	Sets the shape object's name.
virtual void	setNameVisible (bool flag)
	sets the name field to visible
virtual void	setTitle (const QString &title)
virtual void	setCreateButtonEnabled (bool flag)
	Enables/disables the create button.
virtual void	setAdjustStyleEnabled (bool)
virtual void	setCreateButtonText (const QString &text)
virtual void	setCreateButtonVisible (bool flag)
	Shows/hides the create button.
virtual void	setUpdateButtonEnabled (bool flag)
	Enables/disables the update button.
virtual void	setUpdateButtonVisible (bool flag)
	Shows/hides the update button.
virtual void	setAllowOverlaySelection (bool flag)
virtual void	setUpdateButtonText (const QString &text)
virtual void	setDoneButtonEnabled (bool flag)
	Enables/disables the Done button.
virtual void	setDoneButtonVisible (bool flag)
	Shows/hides the Done button.
virtual void	setUpButtonVisible (bool flag)
virtual void	setDownButtonVisible (bool flag)
virtual void	setAddPointButtonVisible (bool flag)
virtual void	setAddPointButtonEnabled (bool flag)
virtual void	setAdjustAltitudeButtonVisible (bool flag)
virtual void	setAdjustAltitudeButtonEnabled (bool flag)
virtual void	setRemovePointButtonVisible (bool flag)
virtual void	setRemovePointButtonEnabled (bool flag)
virtual void	setShowStyleButton (bool flag)
virtual void	setControlButtonsVisible (bool flag)
virtual void	setAttachObjectToMouse (bool)
virtual DtDialogInteractionMode	interactionMode ()
virtual void	populate (const makVrv::DtUniqueID &)
virtual void	populate (const DtCreateObjectCommand *cmd)
virtual bool	blockSignals (bool)
virtual void	addOverlay (const QString &name)
	Add an overlay to the object's overlay.
virtual void	removeOverlay (const QString &name)
	Remove an overlay from the object's overlay.
virtual void	renameOverlay (const QString &oldName, const QString &newName)
	Rename an overlay int the object's overlay.
virtual void	setOverlay (const QString &name)
	Sets the point object's overlay.
virtual void	setPublishObjectVisible (bool)
virtual void	setPublishObject (bool)
virtual bool	publishObject () const
virtual void	clearOverlays ()
virtual void	populateOverlays ()
virtual void	populateForces ()
virtual void	setAltitudeAboveTerrain (int row, double alt)
bool	attachedToMouse () const
virtual double	altitude (int) const
	Returns an altitude at the given row.
virtual void	setAltitude (int, double, bool blocked=false)
	Regardless of the altitude selection, set the altitude to the specified value on the given row.
virtual void	setAltitudeAllowed (bool)
	Sets whether or not altitude items are shown.
virtual void	setShowForces (bool)
	Show forces combo.
virtual void	setReadOnly (bool)
	Sets read only the items on the dialog that should be when in mouse attach mode.
virtual void	setReadOnly (int, bool)
	Sets the row read only or not.
virtual void	setColor (unsigned int color)
virtual void	setXLabel (const QString &)
virtual void	setYLabel (const QString &)
virtual void	setZLabel (const QString &)
virtual void	adjustAltitudeAdjustmentDialogLabels ()
virtual void	setupForCoordinateSystemAndUnits (makVrv::DtSharedDisplayUnitsSettings::CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits)
virtual void	refreshLocs ()
virtual void	refreshLocs (const std::vector< DtGeodeticCoord > &)
virtual void	clearSelection ()
virtual void	clearForces ()
	Clears out the force combo.
virtual void	addForce (const QString &name, int force)
	Adds a new force into the force combo.
virtual void	setForce (int force)
	Selects the force.
virtual void	addExtension (QWidget *)
	Add an extension to the dialog. Will add to current extension.
virtual void	removeExtension (QWidget *)
	Removes an extension.
virtual void	showPropertiesDialog (bool)
	Show/hide properties dialog for this item.
virtual void	setTerrainProfileButtonEnabled (bool)
	Enables/diables terrain profile show button.
virtual void	setTerrainProfileButtonVisible (bool)
Public Member Functions inherited from makVrf::DtAutoHideDock
	DtAutoHideDock (makVrv::DtDe &de, const QString &title="", QWidget *parent=0, Qt::WindowFlags flags=0)
	Ctor.
	~DtAutoHideDock ()
	Dtor.
virtual QPixmap &	icon ()
	Set/Get the icon.
virtual void	setIcon (QPixmap &icon)
virtual DtAutoHideDockType	dockType () const
	Set/Get the type of dock this item represents.
virtual void	setDockType (DtAutoHideDockType t)
virtual bool	pinned () const
	Set/Get the pin status.
virtual void	setPinned (bool flag)
Public Member Functions inherited from makVrf::DtCreateAndEditObjectDialogInterface
virtual	~DtCreateAndEditObjectDialogInterface ()

Public Attributes
Ui_ShapeObjectDefinitionWidgetUi	myUiImpl
Public Attributes inherited from makVrf::DtCreateAndEditObjectDialogInterface
boost::signal< void()>	signal_dialogClosing
	This signal gets emitted when the dialog is closing.
boost::signal< void()>	signal_dialogUpdated
	This signal gets emitted when the dialog is updated.
boost::signal< void(const std::string &)>	signal_nameChanged
	This signal gets emitted when the name is updated.
boost::signal< void(const std::string &)>	signal_labelChanged
	This signal gets emitted when the label is updated.
boost::signal< void(bool)>	signal_reviewMouseClicks
	This signal get emitted when the "enable/disable mouse clicks for automatic creation" option is toggled.
boost::signal< void(const DtVector &)>	signal_locationAdded
	This signal gets emitted when a location is added to the dialog.
boost::signal< void(const DtVector &)>	signal_locationSet
	This signal gets emitted when a location is set into the dialog.
boost::signal< void(const std::string &)>	signal_overlayNameChanged
	This signal gets emitted when the overlay name changes in the dialog.
boost::signal< void(int)>	signal_forceChanged
	This signal gets emitted when the force changes in the dialog.
boost::signal< void(bool)>	signal_publishObjectChanged
	This signal gets sent when object publication changes.
boost::signal< void(int)>	signal_colorChanged
	This signal gets sent when color has changed.

Protected Slots
virtual void	slot_onReversePoints ()
virtual void	slot_itemSelectionChanged ()
virtual void	slot_onCreateButtonClicked ()
virtual void	slot_onUpdateButtonClicked ()
virtual void	slot_onDoneButtonClicked ()
virtual void	slot_onNamePrefixEdited ()
virtual void	slot_closePressed ()
virtual void	slot_onBtnMoveDownClicked ()
virtual void	slot_onBtnMoveUpClicked ()
virtual void	slot_onBtnAddPointClicked ()
virtual void	slot_onBtnRemovePointClicked ()
virtual void	slot_onShapeLocationsCellEntered (int, int)
virtual void	slot_onOverlaysComboCurrentIndexChanged (int index)
virtual void	slot_onForceComboCurrentIndexChanged (int index)
virtual void	slot_attachedToMouseChanged ()
virtual void	slot_onAdjustAltitudeClicked ()
virtual void	slot_onShowTerrainProfile ()
virtual void	slot_onPublishObjectChanged ()
virtual void	slot_onBtnColorClicked ()
virtual void	slot_onBtnStyleClicked ()
Protected Slots inherited from makVrf::DtAutoHideDock
virtual void	slot_closePressed ()
	Gets called when the close button is pressed on the titleBarWidget.
virtual void	slot_pinPressed (bool flag)
	Gets called when the pin is pressed on the titleBarWidget.
virtual void	slot_topLevelChanged (bool)
	Gets called when the widget changes its floating status.

Protected Member Functions
virtual void	addLocationIntoList (const DtGeodeticCoord &loc, int pos=-1, makVrv::DtSharedDisplayUnitsSettings::CoordSys=makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys, makVrv::DtSharedDisplayUnitsSettings::DistanceUnits=makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits)
	Inserts a new point for the shape at the given position.
virtual void	setupGui ()
	Initializes the visuals of this object.
virtual void	setupConnections ()
virtual void	closeEvent (QCloseEvent *event)
	This event gets automatically called when the widget is about to be closed.
virtual QDialog *	createAltitudeAdjustmentDialog ()
	Creates the altitude adjustment dialog.
virtual DtShapeObjectDefinitionDialogLogic *	createLogic ()
	Creates a new logic for this dialog. Override to return a subclass of the base logic.
Protected Member Functions inherited from makVrf::DtAutoHideDock
virtual bool	eventFilter (QObject p, QEvent e)
	Event filter installed to listen for mouse events from the titleBarWidget.
virtual void	enterEvent (QEvent *event)
	Automatic event that gets triggered when the mouse enters the widget.
virtual void	leaveEvent (QEvent *event)
	Automatic event that gets triggered when the mouse leaves the widget.
virtual void	paintEvent (QPaintEvent *p)
	This event gets automatically called when the widget is about to be painted on screen.
virtual void	resizeEvent (QResizeEvent *event)

Protected Attributes
DtShapeObjectDefinitionDialogLogic *	myLogic
DtDialogInteractionMode	myInteractionMode
bool	myBlockSignals
bool	myAltitudeAllowed
QDialog *	myAltitudeAdjustmentDialog
QWidget *	myParent
unsigned int	myBackgroundColor
Protected Attributes inherited from makVrf::DtAutoHideDock
makVrv::DtDe &	myDe
DtExtendedTitleBarWidget *	myTitleBarWidget
QPixmap	myIcon
DtAutoHideDockType	myDockType

Additional Inherited Members
Public Types inherited from makVrf::DtAutoHideDock
enum	DtAutoHideDockType { Palette = 0, Dialog }
Public Types inherited from makVrf::DtCreateAndEditObjectDialogInterface
enum	DtDialogInteractionMode { DtCreationMode = 0, DtEditingMode }
Signals inherited from makVrf::DtAutoHideDock
void	signal_closing (DtAutoHideDock *dock)
	This signal gets emitted when the widget is closing.
void	signal_pinPressed (DtAutoHideDock *dock)
	This signal gets emitted when the pin button is pressed on this widget.
void	signal_topLevelChanged (DtAutoHideDock *dock)
	This signal gets emitted when this widget changes its status from docked to floating and vice versa.
void	signal_resized (DtAutoHideDock *dock)
	This signal gets emitted when this widget is resized.
void	signal_destroyed (DtAutoHideDock *dock)
	This signal gets emitted when this widget is about to be destroyed.
void	signal_enter (DtAutoHideDock *dock)
	This signal gets emitted when the mouse enters on this widget.
void	signal_leave (DtAutoHideDock *dock)
	This signal gets emitted when the mouse leaves this widget.

Detailed Description

This class defines the dialog that allows the creation/update of point objects in the scenario (entities, props, waypoints)

Constructor & Destructor Documentation

makVrf::DtShapeObjectDefinitionDialog::DtShapeObjectDefinitionDialog	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const QString &	title = `""`,
		DtDialogInteractionMode	mode = `DtCreationMode`
	)

virtual makVrf::DtShapeObjectDefinitionDialog::~DtShapeObjectDefinitionDialog ( )

virtual

Member Function Documentation

virtual void makVrf::DtShapeObjectDefinitionDialog::init	(	const DtEntityType &	,
		const QString &	title,
		bool	forPlan,
		DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode	,
		const DtVrfObjectManipulationManager::DtEditingType &
	)

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::closeDialog ( )

virtual

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::setLocationInGridFor	(	int	row,
		const DtGeodeticCoord &	,
		makVrv::DtSharedDisplayUnitsSettings::CoordSys	= `makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys`,
		makVrv::DtSharedDisplayUnitsSettings::DistanceUnits	= `makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits`
	)

virtual

Sets the location into the grid at the specified row, using the location entry widget for format.

virtual void makVrf::DtShapeObjectDefinitionDialog::addLocation	(	const DtVector &	loc,
		int	index = `-1`
	)

virtual

Add a new point.

virtual void makVrf::DtShapeObjectDefinitionDialog::removePoint ( int )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::insertLocation	(	int	index,
		const DtVector &	loc
	)

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::selectLocation ( int index )

virtual

virtual DtGeodeticCoord makVrf::DtShapeObjectDefinitionDialog::getLocation ( int index )

virtual

Returns the location of the control point located at the given index.

virtual QString makVrf::DtShapeObjectDefinitionDialog::getName ( )

virtual

Returns the shape object's name.

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::hideDialog ( )

virtual

Hides the dialog.

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual int makVrf::DtShapeObjectDefinitionDialog::selectedPointIndex ( ) const

virtual

virtual int makVrf::DtShapeObjectDefinitionDialog::rowCount ( ) const

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAltitudeAboveTerrain ( bool )

virtual

Set altitude above terrain/sea level.

virtual bool makVrf::DtShapeObjectDefinitionDialog::altitudeAboveTerrain ( ) const

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAttachedToMouseVisible ( bool )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setName ( const QString & name )

virtual

Sets the shape object's name.

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::setNameVisible ( bool flag )

virtual

sets the name field to visible

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::setTitle ( const QString & title )

virtual

Reimplemented from makVrf::DtAutoHideDock.

virtual void makVrf::DtShapeObjectDefinitionDialog::setCreateButtonEnabled ( bool flag )

virtual

Enables/disables the create button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setAdjustStyleEnabled ( bool )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setCreateButtonText ( const QString & text )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setCreateButtonVisible ( bool flag )

virtual

Shows/hides the create button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setUpdateButtonEnabled ( bool flag )

virtual

Enables/disables the update button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setUpdateButtonVisible ( bool flag )

virtual

Shows/hides the update button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setAllowOverlaySelection ( bool flag )

virtual

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::setUpdateButtonText ( const QString & text )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setDoneButtonEnabled ( bool flag )

virtual

Enables/disables the Done button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setDoneButtonVisible ( bool flag )

virtual

Shows/hides the Done button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setUpButtonVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setDownButtonVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAddPointButtonVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAddPointButtonEnabled ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAdjustAltitudeButtonVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAdjustAltitudeButtonEnabled ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setRemovePointButtonVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setRemovePointButtonEnabled ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setShowStyleButton ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setControlButtonsVisible ( bool flag )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAttachObjectToMouse ( bool )

virtual

virtual DtDialogInteractionMode makVrf::DtShapeObjectDefinitionDialog::interactionMode ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::populate ( const makVrv::DtUniqueID & )

virtual

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::populate ( const DtCreateObjectCommand * cmd )

virtual

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual bool makVrf::DtShapeObjectDefinitionDialog::blockSignals ( bool )

virtual

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::addOverlay ( const QString & name )

virtual

Add an overlay to the object's overlay.

virtual void makVrf::DtShapeObjectDefinitionDialog::removeOverlay ( const QString & name )

virtual

Remove an overlay from the object's overlay.

virtual void makVrf::DtShapeObjectDefinitionDialog::renameOverlay	(	const QString &	oldName,
		const QString &	newName
	)

virtual

Rename an overlay int the object's overlay.

virtual void makVrf::DtShapeObjectDefinitionDialog::setOverlay ( const QString & name )

virtual

Sets the point object's overlay.

virtual void makVrf::DtShapeObjectDefinitionDialog::setPublishObjectVisible ( bool )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setPublishObject ( bool )

virtual

virtual bool makVrf::DtShapeObjectDefinitionDialog::publishObject ( ) const

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::clearOverlays ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::populateOverlays ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::populateForces ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setAltitudeAboveTerrain	(	int	row,
		double	alt
	)

virtual

bool makVrf::DtShapeObjectDefinitionDialog::attachedToMouse ( ) const

virtual double makVrf::DtShapeObjectDefinitionDialog::altitude ( int ) const

virtual

Returns an altitude at the given row.

This might change given the current selection of above sea level or above ground is selected as the altitude is simply what is curently displayed in the GUI

virtual void makVrf::DtShapeObjectDefinitionDialog::setAltitude	(	int	,
		double	,
		bool	blocked = `false`
	)

virtual

Regardless of the altitude selection, set the altitude to the specified value on the given row.

virtual void makVrf::DtShapeObjectDefinitionDialog::setAltitudeAllowed ( bool )

virtual

Sets whether or not altitude items are shown.

virtual void makVrf::DtShapeObjectDefinitionDialog::setShowForces ( bool )

virtual

Show forces combo.

virtual void makVrf::DtShapeObjectDefinitionDialog::setReadOnly ( bool )

virtual

Sets read only the items on the dialog that should be when in mouse attach mode.

virtual void makVrf::DtShapeObjectDefinitionDialog::setReadOnly	(	int	,
		bool
	)

virtual

Sets the row read only or not.

virtual void makVrf::DtShapeObjectDefinitionDialog::setColor ( unsigned int color )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setXLabel ( const QString & )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setYLabel ( const QString & )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setZLabel ( const QString & )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::adjustAltitudeAdjustmentDialogLabels ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::setupForCoordinateSystemAndUnits	(	makVrv::DtSharedDisplayUnitsSettings::CoordSys	,
		makVrv::DtSharedDisplayUnitsSettings::DistanceUnits
	)

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::refreshLocs ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::refreshLocs ( const std::vector< DtGeodeticCoord > & )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::clearSelection ( )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::clearForces ( )

virtual

Clears out the force combo.

virtual void makVrf::DtShapeObjectDefinitionDialog::addForce	(	const QString &	name,
		int	force
	)

virtual

Adds a new force into the force combo.

virtual void makVrf::DtShapeObjectDefinitionDialog::setForce ( int force )

virtual

Selects the force.

Implements makVrf::DtCreateAndEditObjectDialogInterface.

virtual void makVrf::DtShapeObjectDefinitionDialog::addExtension ( QWidget * )

virtual

Add an extension to the dialog. Will add to current extension.

virtual void makVrf::DtShapeObjectDefinitionDialog::removeExtension ( QWidget * )

virtual

Removes an extension.

virtual void makVrf::DtShapeObjectDefinitionDialog::showPropertiesDialog ( bool )

virtual

Show/hide properties dialog for this item.

virtual void makVrf::DtShapeObjectDefinitionDialog::setTerrainProfileButtonEnabled ( bool )

virtual

Enables/diables terrain profile show button.

virtual void makVrf::DtShapeObjectDefinitionDialog::setTerrainProfileButtonVisible ( bool )

virtual

virtual void makVrf::DtShapeObjectDefinitionDialog::addLocationIntoList	(	const DtGeodeticCoord &	loc,
		int	pos = `-1`,
		makVrv::DtSharedDisplayUnitsSettings::CoordSys	= `makArchives::DtDisplayUnitsSettingsRecord::End_CoordSys`,
		makVrv::DtSharedDisplayUnitsSettings::DistanceUnits	= `makArchives::DtDisplayUnitsSettingsRecord::End_DistanceUnits`
	)

protectedvirtual

Inserts a new point for the shape at the given position.

If position is -1, the position is appended at the end of the list of points the shape is made of

virtual void makVrf::DtShapeObjectDefinitionDialog::setupGui ( )

protectedvirtual

Initializes the visuals of this object.

Reimplemented from makVrf::DtAutoHideDock.

Reimplemented in vrfCustomControlObjectExample::DtCustomControlObjectDefinitionDialog.

virtual void makVrf::DtShapeObjectDefinitionDialog::setupConnections ( )

protectedvirtual

Reimplemented in vrfCustomControlObjectExample::DtCustomControlObjectDefinitionDialog.

virtual void makVrf::DtShapeObjectDefinitionDialog::closeEvent ( QCloseEvent * event )

protectedvirtual

This event gets automatically called when the widget is about to be closed.

Reimplemented from makVrf::DtAutoHideDock.

virtual QDialog* makVrf::DtShapeObjectDefinitionDialog::createAltitudeAdjustmentDialog ( )

protectedvirtual

Creates the altitude adjustment dialog.

To prevent the need from having member variables defined for each dialog item, the dialog will name all the objects by their functionality, for example RadioButtonAdjustAltitudeBy, RadioButtonSetAltitudeAboveSeaLevel, RadioButtonSetAltitudeAboveTerrain, LineEditAltitude

virtual DtShapeObjectDefinitionDialogLogic* makVrf::DtShapeObjectDefinitionDialog::createLogic ( )

protectedvirtual

Creates a new logic for this dialog. Override to return a subclass of the base logic.

Reimplemented in vrfCustomControlObjectExample::DtCustomControlObjectDefinitionDialog.

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onShapeLocationsCellChanged	(	int	,
		int
	)

virtualslot

Call to force the updating of a cell contents.

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_altitudeTypeChanged ( )

virtualslot

Call to force update of display based on a change of altitude selection type.

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onReversePoints ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_itemSelectionChanged ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onCreateButtonClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onUpdateButtonClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onDoneButtonClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onNamePrefixEdited ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_closePressed ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnMoveDownClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnMoveUpClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnAddPointClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnRemovePointClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onShapeLocationsCellEntered	(	int	,
		int
	)

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onOverlaysComboCurrentIndexChanged ( int index )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onForceComboCurrentIndexChanged ( int index )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_attachedToMouseChanged ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onAdjustAltitudeClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onShowTerrainProfile ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onPublishObjectChanged ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnColorClicked ( )

protectedvirtualslot

virtual void makVrf::DtShapeObjectDefinitionDialog::slot_onBtnStyleClicked ( )

protectedvirtualslot

Member Data Documentation

Ui_ShapeObjectDefinitionWidgetUi makVrf::DtShapeObjectDefinitionDialog::myUiImpl

DtShapeObjectDefinitionDialogLogic* makVrf::DtShapeObjectDefinitionDialog::myLogic

protected

DtDialogInteractionMode makVrf::DtShapeObjectDefinitionDialog::myInteractionMode

protected

bool makVrf::DtShapeObjectDefinitionDialog::myBlockSignals

protected

bool makVrf::DtShapeObjectDefinitionDialog::myAltitudeAllowed

protected

QDialog* makVrf::DtShapeObjectDefinitionDialog::myAltitudeAdjustmentDialog

protected

QWidget* makVrf::DtShapeObjectDefinitionDialog::myParent

protected

unsigned int makVrf::DtShapeObjectDefinitionDialog::myBackgroundColor

protected

The documentation for this class was generated from the following file:

include/vrfGuiCoreQt/shapeObjectDefinitionDialog.h

Public Slots

Public Member Functions

Public Attributes

Protected Slots

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
