makVrv::DtDockable Class Reference

The dockable class provides the docking interface for any class to be a dockable widget in the DtDeMainWindow. More...

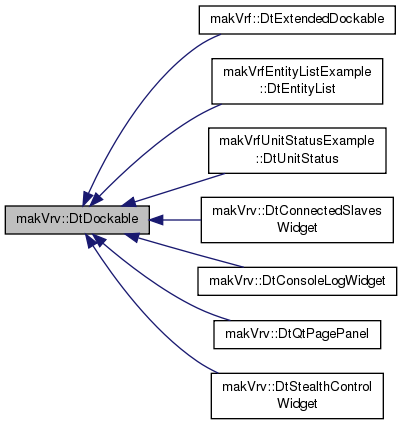

Inheritance diagram for makVrv::DtDockable:

Public Member Functions
	DtDockable (DtDe &de, const std::string &className)
	CTOR By default a dockable widget is not docked, call dock to attempt to dock this widget.
virtual	~DtDockable ()
	DTOR.
const std::string &	className () const
	The class name.
void	dock (Qt::DockWidgetArea area)
	Dock this dockable in the main window, this function should only be called once.
virtual bool	isDocked () const
	Check to see if we are in a container.
virtual void	setContainerVisible (bool visible)
	call either shows or hides container base upon the input.
virtual void	setContainerMovable (bool moveable)
	Set whether the container is moveable.
virtual void	setContainerFloatable (bool floatable)
	Set whether the container is floatable.
virtual void	setContainerClosable (bool closeable)
	Set whether the container is closeable.
virtual bool	isContainerHidden () const
	Returns true if container is hidden.
virtual bool	isContainerMovable () const
	Returns true if container is moveable.
virtual bool	isContainerFloatable () const
	Returns true if container is floatable.
virtual bool	isContainerClosable () const
	Returns true if container is closeable.
virtual void	showContainer ()
	Show the container.
virtual void	hideContainer ()
	Hide the container.
virtual void	floatContainer ()
	Float the container.
virtual void	unfloatContainer ()
	Un float the container.
virtual void	removeContainer ()
	Untabs the container.
virtual bool	initiallyVisible () const
	Virtual function needed for controlling if the widget is docked visible.
virtual Qt::DockWidgetArea	initialDockWidgetLocation () const
	Virtual function needed for controlling if the widget is docked visible.
virtual bool	containerTabbed () const
	Tells whether the container is tabbed or not.
virtual int	containerTabIndex () const
	If the container is tabbed, returns the position of the container inside the tab structure.
virtual void	getContainerTabbedGeometry (int &x, int &y, int &width, int &height) const
	Gets the geometry of the container if it is tabbed.
virtual QWidget *	container ()
	Returns the QDockWidget or other container that holds this widget.
virtual void	setContainer (QWidget *cont)
	Set with the QDockWidget or other container that holds this widget.
virtual void	bringToTop ()
	Brings the container to the front (when it is tabbed)
virtual void	setDockWidgetItem (DtDockWidgetItem *item)
	If this dockable is the target of a menu item, a pointer to to the associated menu item.
virtual DtDockWidgetItem *	dockWidgetItem () const
	Get the associated menu item, if any.
virtual void	connectContainerToDockItem ()
	The menu item create does this the first time, but we need to do it explicitly on GUI restores.

Protected Member Functions
QTabBar *	tabBar () const
	Returns the container tab bar object if myContainer is tabbed.

Protected Attributes
QWidget *	myContainer
	my Container widget
std::string	myClassName
DtDe &	myDe
bool	myIsFloatable
bool	myIsClosable
bool	myIsMovable
DtDockWidgetItem *	myDockWidgetItem

Friends
class	DtDockWidgetItem

Detailed Description

The dockable class provides the docking interface for any class to be a dockable widget in the DtDeMainWindow.

Constructor & Destructor Documentation

makVrv::DtDockable::DtDockable	(	DtDe &	de,
		const std::string &	className
	)

CTOR By default a dockable widget is not docked, call dock to attempt to dock this widget.

virtual makVrv::DtDockable::~DtDockable ( )

virtual

DTOR.

Member Function Documentation

const std::string& makVrv::DtDockable::className

(

)

const

The class name.

void makVrv::DtDockable::dock

(

Qt::DockWidgetArea

area

)

Dock this dockable in the main window, this function should only be called once.

Dock depends on a a subclass which extends both dock and QWidget

virtual bool makVrv::DtDockable::isDocked ( ) const

virtual

Check to see if we are in a container.

virtual void makVrv::DtDockable::setContainerVisible ( bool  visible )

virtual

call either shows or hides container base upon the input.

virtual void makVrv::DtDockable::setContainerMovable ( bool  moveable )

virtual

Set whether the container is moveable.

virtual void makVrv::DtDockable::setContainerFloatable ( bool  floatable )

virtual

Set whether the container is floatable.

virtual void makVrv::DtDockable::setContainerClosable ( bool  closeable )

virtual

Set whether the container is closeable.

virtual bool makVrv::DtDockable::isContainerHidden ( ) const

virtual

Returns true if container is hidden.

virtual bool makVrv::DtDockable::isContainerMovable ( ) const

virtual

Returns true if container is moveable.

virtual bool makVrv::DtDockable::isContainerFloatable ( ) const

virtual

Returns true if container is floatable.

virtual bool makVrv::DtDockable::isContainerClosable ( ) const

virtual

Returns true if container is closeable.

virtual void makVrv::DtDockable::showContainer ( )

virtual

Show the container.

Reimplemented in makVrf::DtExtendedDockable.

virtual void makVrv::DtDockable::hideContainer ( )

virtual

Hide the container.

Reimplemented in makVrf::DtExtendedDockable.

virtual void makVrv::DtDockable::floatContainer ( )

virtual

Float the container.

virtual void makVrv::DtDockable::unfloatContainer ( )

virtual

Un float the container.

virtual void makVrv::DtDockable::removeContainer ( )

virtual

Untabs the container.

Reimplemented in makVrv::DtQtPagePanel.

virtual bool makVrv::DtDockable::initiallyVisible ( ) const

virtual

Virtual function needed for controlling if the widget is docked visible.

Reimplemented in makVrv::DtConsoleLogWidget.

virtual Qt::DockWidgetArea makVrv::DtDockable::initialDockWidgetLocation ( ) const

virtual

Virtual function needed for controlling if the widget is docked visible.

virtual bool makVrv::DtDockable::containerTabbed ( ) const

virtual

Tells whether the container is tabbed or not.

virtual int makVrv::DtDockable::containerTabIndex ( ) const

virtual

If the container is tabbed, returns the position of the container inside the tab structure.

Returns -1 otherwise.

virtual void makVrv::DtDockable::getContainerTabbedGeometry ( int &  x, int &  y, int &  width, int &  height  ) const

virtual

Gets the geometry of the container if it is tabbed.

Returns -1 in every one of the arguments otherwise.

virtual QWidget* makVrv::DtDockable::container ( )

virtual

Returns the QDockWidget or other container that holds this widget.

virtual void makVrv::DtDockable::setContainer ( QWidget *  cont )

virtual

Set with the QDockWidget or other container that holds this widget.

Reimplemented in makVrv::DtQtPagePanel.

virtual void makVrv::DtDockable::bringToTop ( )

virtual

Brings the container to the front (when it is tabbed)

Reimplemented in makVrv::DtQtPagePanel.

virtual void makVrv::DtDockable::setDockWidgetItem ( DtDockWidgetItem *  item )

virtual

If this dockable is the target of a menu item, a pointer to to the associated menu item.

Used during GUI restoration

virtual DtDockWidgetItem* makVrv::DtDockable::dockWidgetItem ( ) const

virtual

Get the associated menu item, if any.

virtual void makVrv::DtDockable::connectContainerToDockItem ( )

virtual

The menu item create does this the first time, but we need to do it explicitly on GUI restores.

QTabBar* makVrv::DtDockable::tabBar ( ) const

protected

Returns the container tab bar object if myContainer is tabbed.

Friends And Related Function Documentation

friend class DtDockWidgetItem

friend

Member Data Documentation

QWidget* makVrv::DtDockable::myContainer

protected

my Container widget

std::string makVrv::DtDockable::myClassName

protected

DtDe& makVrv::DtDockable::myDe

protected

bool makVrv::DtDockable::myIsFloatable

protected

bool makVrv::DtDockable::myIsClosable

protected

bool makVrv::DtDockable::myIsMovable

protected

DtDockWidgetItem* makVrv::DtDockable::myDockWidgetItem

protected

---

The documentation for this class was generated from the following file:

• include/vrvCoreQt/DtDockable.h
