Base class for OSG ribbon implementations. More...

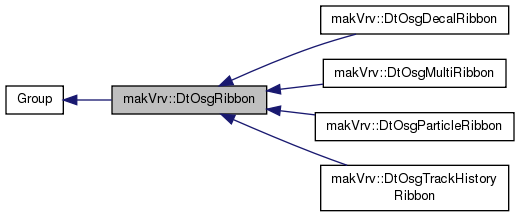

Inheritance diagram for makVrv::DtOsgRibbon:

Public Member Functions
	DtOsgRibbon ()
	Default CTOR.
	DtOsgRibbon (float segmentSpacing, const osg::Vec4 &color, float maxLength=2000)
	CTOR.
virtual	~DtOsgRibbon ()
	DTOR.
virtual void	traverse (osg::NodeVisitor &nv)
	Interrupt CullVisitors by updating the ribbon.
virtual osg::Node *	node ()
	Get the osg geometry node associated with the ribbon.
virtual void	setColor (const osg::Vec4 &color)
	Set the ribbon's color.
const osg::Vec4 &	color () const
	Get the ribbon's color.
virtual void	setDroppedPoints (const osg::Vec3d &pointA, const osg::Vec3d &pointB)
	Set the points to drop in local coordinates.
virtual void	update (double dt, double simTime)
	Update the ribbon with the current position.
virtual void	update ()
	optional time independent update method.
virtual void	setMaxSegments (long segments)
	Sets the maximum number of segments allowed in the ribbon.
long	maxSegments () const
	Gets the maximum number of segments allowed in the ribbon.
virtual void	setSegmentSpacing (float spacing)
	Sets the maximum length of ribbon segments.
float	segmentSpacing () const
	Gets the maximum length of the ribbon segments.

Protected Member Functions
virtual void	addParticle (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
	Add a particle to the ribbon.
virtual float	currentSegmentLength ()=0
	Find the length of the current ribbon segment.
virtual void	extendCurrentSegment (osg::Vec3d const &left, osg::Vec3d const &right, double simTime)=0
	Extend the current segment to left and right points.
virtual osg::Drawable *	getDrawable ()=0
	Get the drawable responsible for drawing the ribbon.
virtual osg::Geode *	createGeode ()
	Create function for creating the geode for drawing this ribbon.
virtual void	setDrawable ()
	Removes any existing drawables and add the drawable returned from getDrawable.

Private Attributes
osg::ref_ptr < osg::MatrixTransform >	myPositionNode
osg::ref_ptr< osg::Geode >	myGeode
osg::Matrixd	myWorldTransformInv
osg::Matrixd	myLastLocalToWork
int	myLastUpdatedFrame
double	myLastUpdateTime
long	myMaxSegments
float	mySegmentSpacingSquared
float	mySegmentSpacing
osg::Vec3d	myLocalPointA
osg::Vec3d	myLocalPointB
osg::Vec4	myColor
bool	myFirstUpdate

Detailed Description

Base class for OSG ribbon implementations.

Constructor & Destructor Documentation

makVrv::DtOsgRibbon::DtOsgRibbon ( )

Default CTOR.

makVrv::DtOsgRibbon::DtOsgRibbon	(	float	segmentSpacing,
		const osg::Vec4 &	color,
		float	maxLength = `2000`
	)

CTOR.

Parameters

segmentSpacing	the distance between samples points (in meters).
color	the color of the ribbon.
maxLength	the max length of the ribbon (in samples).

virtual makVrv::DtOsgRibbon::~DtOsgRibbon ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtOsgRibbon::traverse ( osg::NodeVisitor & nv )

virtual

Interrupt CullVisitors by updating the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual osg::Node* makVrv::DtOsgRibbon::node ( )

virtual

Get the osg geometry node associated with the ribbon.

Reimplemented in makVrv::DtOsgMultiRibbon.

virtual void makVrv::DtOsgRibbon::setColor ( const osg::Vec4 & color )

virtual

Set the ribbon's color.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

const osg::Vec4& makVrv::DtOsgRibbon::color ( ) const

inline

Get the ribbon's color.

virtual void makVrv::DtOsgRibbon::setDroppedPoints	(	const osg::Vec3d &	pointA,
		const osg::Vec3d &	pointB
	)

virtual

Set the points to drop in local coordinates.

virtual void makVrv::DtOsgRibbon::update	(	double	dt,
		double	simTime
	)

virtual

Update the ribbon with the current position.

Reimplemented in makVrv::DtOsgMultiRibbon, and makVrv::DtOsgParticleRibbon.

virtual void makVrv::DtOsgRibbon::update ( )

inlinevirtual

optional time independent update method.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

virtual void makVrv::DtOsgRibbon::setMaxSegments ( long segments )

virtual

Sets the maximum number of segments allowed in the ribbon.

Reimplemented in makVrv::DtOsgTrackHistoryRibbon.

long makVrv::DtOsgRibbon::maxSegments ( ) const

inline

Gets the maximum number of segments allowed in the ribbon.

virtual void makVrv::DtOsgRibbon::setSegmentSpacing ( float spacing )

virtual

Sets the maximum length of ribbon segments.

float makVrv::DtOsgRibbon::segmentSpacing ( ) const

inline

Gets the maximum length of the ribbon segments.

virtual void makVrv::DtOsgRibbon::addParticle	(	osg::Vec3d const &	left,
		osg::Vec3d const &	right,
		double	simTime
	)

protectedpure virtual

Add a particle to the ribbon.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual float makVrv::DtOsgRibbon::currentSegmentLength ( )

protectedpure virtual

Find the length of the current ribbon segment.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::extendCurrentSegment	(	osg::Vec3d const &	left,
		osg::Vec3d const &	right,
		double	simTime
	)

protectedpure virtual

Extend the current segment to left and right points.

Implemented in makVrv::DtOsgParticleRibbon, makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Drawable* makVrv::DtOsgRibbon::getDrawable ( )

protectedpure virtual

Get the drawable responsible for drawing the ribbon.

Implemented in makVrv::DtOsgTrackHistoryRibbon, makVrv::DtOsgParticleRibbon, makVrv::DtOsgMultiRibbon, and makVrv::DtOsgDecalRibbon.

virtual osg::Geode* makVrv::DtOsgRibbon::createGeode ( )

protectedvirtual

Create function for creating the geode for drawing this ribbon.

Reimplemented in makVrv::DtOsgParticleRibbon, and makVrv::DtOsgDecalRibbon.

virtual void makVrv::DtOsgRibbon::setDrawable ( )

protectedvirtual

Removes any existing drawables and add the drawable returned from getDrawable.

Member Data Documentation

osg::ref_ptr<osg::MatrixTransform> makVrv::DtOsgRibbon::myPositionNode

private

osg::ref_ptr<osg::Geode> makVrv::DtOsgRibbon::myGeode

private

osg::Matrixd makVrv::DtOsgRibbon::myWorldTransformInv

private

osg::Matrixd makVrv::DtOsgRibbon::myLastLocalToWork

private

int makVrv::DtOsgRibbon::myLastUpdatedFrame

private

double makVrv::DtOsgRibbon::myLastUpdateTime

private

long makVrv::DtOsgRibbon::myMaxSegments

private

float makVrv::DtOsgRibbon::mySegmentSpacingSquared

private

float makVrv::DtOsgRibbon::mySegmentSpacing

private

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointA

private

osg::Vec3d makVrv::DtOsgRibbon::myLocalPointB

private

osg::Vec4 makVrv::DtOsgRibbon::myColor

private

bool makVrv::DtOsgRibbon::myFirstUpdate

private

The documentation for this class was generated from the following file:

include/vrvOsg/DtOsgRibbon.h
