Abstract scene object updater interface. More...

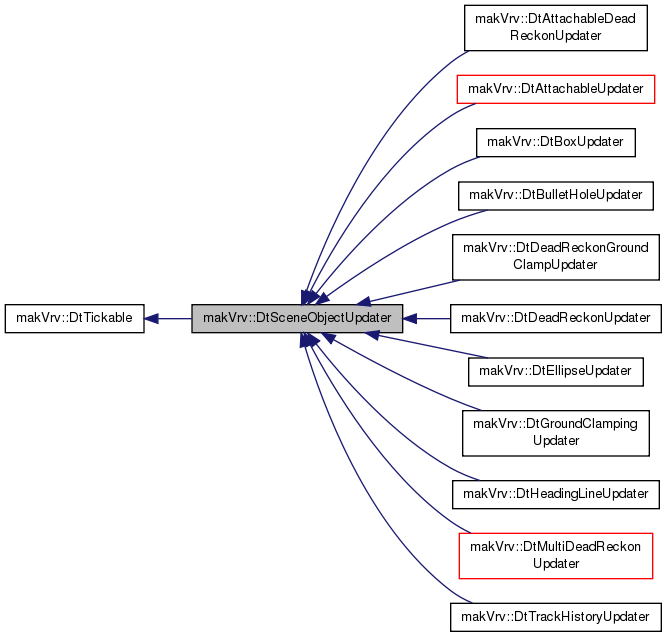

Inheritance diagram for makVrv::DtSceneObjectUpdater:

Public Member Functions
	DtSceneObjectUpdater (DtDe &de, DtUniqueID id, bool suppressTick=false)
	CTOR.
virtual	~DtSceneObjectUpdater ()
	Virtual DTOR.
virtual bool	needsUpdate (DtTime tNow)
	The check function called by DtTickableManager to verify if an update is required.
virtual void	update (DtTime tNow)=0
	The update function called by DtTickableManager during update-ticks.
virtual DtTime	lastUpdateTime () const
	Get the time-stamp of the last update.
virtual void	setSceneObject (DtSceneObject *sceneObject)
	Set the scene object to be updated.
DtSceneObject *	findSceneObject ()
	Get the current scene object for this updater.
DtUniqueID	uniqueId () const
	Returns the distributed object id of this updater.
virtual void	setUpdaterPosition (int vtx, const DtVector &pos)
	Set the position of a scene object vertex.
virtual const DtVector &	updaterPosition (int vtx) const
	Get the position of a scene object vertex.
virtual void	setUpdaterOrientation (int vtx, const DtTaitBryan &ori)
	Set the orientation of a scene object vertex.
virtual const DtTaitBryan &	updaterOrientation (int vtx) const
	Get the orientation of a scene object vertex.
void	updateSceneObject (DtTime tNow)
	Update the scene object position and orientation at each vertex and set the last updated time-stamp.
virtual void	terrainScaleTransformsIfNeeded ()
	Scales the transforms if the terrain scaling flag is set.

Protected Attributes
DtDe &	myDe
	The display engine.
DtUniqueID	myUniqueId
	This distributed object's unique identifier.
DtSceneObject *	mySceneObject
	A pointer to the current scene object being updated.
DtTime	myLastUpdateTime
	The last time stamp when the updateSceneObject() was called.
DtSceneObject::TransformList	myTransforms
	Local copy of the vertex positions and orientations.
const DtDeSharedState &	myDeSharedState
	This is kept to make terrain scale updating cheaper ( by one virtual function call ).
bool	myInManager
	If tick was suppressed, then this updater is not on the tickableManager.

Private Member Functions
DtSceneObject::ObjectTransform &	getOrCreateTransform (int vtx)
	Helper function to get the transform at a given vertex.
const DtSceneObject::ObjectTransform &	getTransform (int vtx) const
	Helper function to get the transform at a given vertex.

Signals
boost::signal< void(const DtUniqueID &) >	signal_updaterToBeDeleted
	Signal that this updater is being destroyed.
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)
	Signal that this updater is being destroyed.

Additional Inherited Members
Protected Member Functions inherited from makVrv::DtTickable
	DtTickable (DtTickableManagerInterface *manager=NULL)
	CTOR.
virtual	~DtTickable ()
	Virtual DTOR.

Detailed Description

Abstract scene object updater interface.

DtSceneObjectUpdaters are distributed objects, managed by DtTickableManager. They update the position and orientation of scene objects during the manager 'tick' update.

Constructor & Destructor Documentation

makVrv::DtSceneObjectUpdater::DtSceneObjectUpdater	(	DtDe &	de,
		DtUniqueID	id,
		bool	suppressTick = `false`
	)

CTOR.

Parameters

[in]	de	is the display engine.
[in]	id	is a unique identifier for this distributed object.
[in]	suppressTick	is a flag instructing to not register with a DtTickableManager when set true, default is false.

Note: If suppressTick is set, this object will not receive automatic ticks, requiring a user object to force updates as needed.

virtual makVrv::DtSceneObjectUpdater::~DtSceneObjectUpdater ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual bool makVrv::DtSceneObjectUpdater::needsUpdate ( DtTime tNow )

virtual

The check function called by DtTickableManager to verify if an update is required.

If this function returns true, the DtTickableManager will then call update().

Parameters

[in] tNow is the current time-stamp.

Return values

true	if this object needs to be ticked.
false	otherwise.

Implements makVrv::DtTickable.

virtual void makVrv::DtSceneObjectUpdater::update ( DtTime tNow )

pure virtual

The update function called by DtTickableManager during update-ticks.

Parameters

[in] tNow is the current time-stamp.

Note: Derived classes should update the scene object at the end of their implementation of this function.

See Also: updateSceneObject( DtTime ).

Implements makVrv::DtTickable.

Implemented in makVrv::DtAttachableUpdater, makVrv::DtAttachableEntityFanUpdater, makVrv::DtLineModelUpdater, makVrv::DtSegmentedLineModelUpdater, makVrv::DtMultiDeadReckonUpdater, makVrv::DtGroundClampingUpdater, makVrv::DtDeadReckonGroundClampUpdater, makVrv::DtAttachableDeadReckonUpdater, makVrv::DtAttachableIntervisibilityUpdater, makVrv::DtDeadReckonUpdater, makVrv::DtTrackHistoryUpdater, and makVrv::DtHeadingLineUpdater.

virtual DtTime makVrv::DtSceneObjectUpdater::lastUpdateTime ( ) const

virtual

Get the time-stamp of the last update.

Returns: The last update time.

virtual void makVrv::DtSceneObjectUpdater::setSceneObject ( DtSceneObject * sceneObject )

virtual

Set the scene object to be updated.

Parameters

[in] sceneObject is the scene object to receive updates.

Reimplemented in makVrv::DtAttachableDeadReckonUpdater, makVrv::DtLineModelUpdater, makVrv::DtSegmentedLineModelUpdater, makVrv::DtDeadReckonGroundClampUpdater, makVrv::DtDeadReckonUpdater, makVrv::DtTrackHistoryUpdater, and makVrv::DtHeadingLineUpdater.

DtSceneObject* makVrv::DtSceneObjectUpdater::findSceneObject ( )

inline

Get the current scene object for this updater.

Returns: A pointer to the scene object or NULL if not set.

DtUniqueID makVrv::DtSceneObjectUpdater::uniqueId ( ) const

inline

Returns the distributed object id of this updater.

virtual void makVrv::DtSceneObjectUpdater::setUpdaterPosition	(	int	vtx,
		const DtVector &	pos
	)

virtual

Set the position of a scene object vertex.

Parameters

[in]	vtx	is the vertex of the scene object.
[in]	pos	is the position to set.

virtual const DtVector& makVrv::DtSceneObjectUpdater::updaterPosition ( int vtx ) const

virtual

Get the position of a scene object vertex.

Parameters

[in] vtx is the vertex of the scene object.

Returns: The position at the given vertex.

virtual void makVrv::DtSceneObjectUpdater::setUpdaterOrientation	(	int	vtx,
		const DtTaitBryan &	ori
	)

virtual

Set the orientation of a scene object vertex.

Parameters

[in]	vtx	is the vertex of the scene object.
[in]	ori	is the orientation to set.

virtual const DtTaitBryan& makVrv::DtSceneObjectUpdater::updaterOrientation ( int vtx ) const

virtual

Get the orientation of a scene object vertex.

Parameters

[in] vtx is the vertex of the scene object.

Returns: The orientation at the given vertex.

void makVrv::DtSceneObjectUpdater::updateSceneObject ( DtTime tNow )

Update the scene object position and orientation at each vertex and set the last updated time-stamp.

Parameters

[in] tNow is the current time-stamp.

Note: Derived classes should call this function in their implementation of the update function.

See Also: update( DtTime ).

Reimplemented in makVrv::DtLineModelUpdater, makVrv::DtSegmentedLineModelUpdater, makVrv::DtAttachableEntityFanUpdater, makVrv::DtAttachableIntervisibilityUpdater, and makVrv::DtAttachableFanUpdater.

virtual void makVrv::DtSceneObjectUpdater::terrainScaleTransformsIfNeeded ( )

virtual

Scales the transforms if the terrain scaling flag is set.

Note: This function modifies the stored transforms in this updater.

virtual void makVrv::DtSceneObjectUpdater::slot_sceneObjectToBeDeleted ( const DtUniqueID & id )

protectedvirtual

Signal that this updater is being destroyed.

DtSceneObject::ObjectTransform& makVrv::DtSceneObjectUpdater::getOrCreateTransform ( int vtx )

private

Helper function to get the transform at a given vertex.

If the vertex is above range, new transforms are created.

Parameters

[in] vtx is the vertex of the transform to get.

Returns: The transform at the given vertex.

Exceptions

DtCorruptedState if vtx is less than zero.

const DtSceneObject::ObjectTransform& makVrv::DtSceneObjectUpdater::getTransform ( int vtx ) const

private

Helper function to get the transform at a given vertex.

If the vertex is out of range, a 'zero' transform is returned.

Parameters

[in] vtx is the vertex of the transform to get.

Returns: The transform at the given vertex.

Member Data Documentation

boost::signal< void ( const DtUniqueID& ) > makVrv::DtSceneObjectUpdater::signal_updaterToBeDeleted

Signal that this updater is being destroyed.

DtDe& makVrv::DtSceneObjectUpdater::myDe

protected

The display engine.

DtUniqueID makVrv::DtSceneObjectUpdater::myUniqueId

protected

This distributed object's unique identifier.

DtSceneObject* makVrv::DtSceneObjectUpdater::mySceneObject

protected

A pointer to the current scene object being updated.

DtTime makVrv::DtSceneObjectUpdater::myLastUpdateTime

protected

The last time stamp when the updateSceneObject() was called.

DtSceneObject::TransformList makVrv::DtSceneObjectUpdater::myTransforms

protected

Local copy of the vertex positions and orientations.

These are typically pre-calculated, and then pushed to the scene object at a later time, making the concatenation of updaters simpler.

const DtDeSharedState& makVrv::DtSceneObjectUpdater::myDeSharedState

protected

This is kept to make terrain scale updating cheaper ( by one virtual function call ).

bool makVrv::DtSceneObjectUpdater::myInManager

protected

If tick was suppressed, then this updater is not on the tickableManager.

In this case, the scene object is not given a pointer to this updater

The documentation for this class was generated from the following file:

include/vrvCore/DtSceneObjectUpdater.h
