Widget to configure SenSim sensors. More...

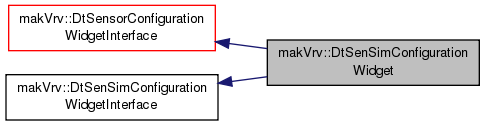

Inheritance diagram for makVrv::DtSenSimConfigurationWidget:

Public Member Functions
	DtSenSimConfigurationWidget (DtDe &de)
	CTOR.
virtual	~DtSenSimConfigurationWidget ()
	DTOR.
virtual void	setSensor (DtSensor &sensor)
	Set the sensor this widget is configuring.

virtual void	setBlackHotEnabled (bool enabled)
	Set the black hot state in the GUI.
virtual void	setMode (SensorMode mode)
	Set the sensor mode in the GUI.
virtual void	setBlurEnabled (bool enabled)
	Set the motion blur enabled state in the GUI.
virtual void	setNoiseEnabled (bool enabled)
	Set the noise enabled state in the GUI.
virtual void	setGainEnabled (bool enabled)
	Set the gain state in the GUI.
virtual void	setGainLevel (float val)
	Set the gain value in the GUI.
virtual void	setLevel (float val)
	Set the level value in the GUI.
virtual void	setNoiseLevel (float val)
	Set the noise value in the GUI.
virtual void	setBlurLevel (float val)
	Set the motion blur value in the GUI.
Public Member Functions inherited from makVrv::DtSensorConfigurationWidgetInterface
virtual	~DtSensorConfigurationWidgetInterface ()
	DTOR.
	DtSensorConfigurationWidgetInterface ()
	CTOR.
Public Member Functions inherited from makVrv::DtSenSimConfigurationWidgetInterface
virtual	~DtSenSimConfigurationWidgetInterface ()
	DTOR.

Protected Slots

void	slot_blurSpinChanged (double val)
void	slot_gainSpinChanged (double val)
void	slot_noiseSpinChanged (double val)
void	slot_levelSpinChanged (double val)
void	slot_blurSliderChanged (int val)
void	slot_gainSliderChanged (int val)
void	slot_noiseSliderChanged (int val)
void	slot_levelSliderChanged (int val)
void	slot_modeChanged (bool checked)
void	slot_blurChanged (int val)
void	slot_gainChanged (int val)
void	slot_noiseChanged (int val)
void	slot_blackHotChanged (int val)

Protected Attributes
DtSensor *	mySensor
QRadioButton *	myIrButton
QRadioButton *	myNvgButton
QRadioButton *	myColorButton
QCheckBox *	myBlurCheckbox
QCheckBox *	myGainCheckbox
QCheckBox *	myBlackHotCheckbox
QCheckBox *	myNoiseCheckbox
QDoubleSpinBox *	myGainSpin
QDoubleSpinBox *	myNoiseSpin
QDoubleSpinBox *	myBlurSpin
QDoubleSpinBox *	myLevelSpin
QSlider *	myGainSlider
QSlider *	myNoiseSlider
QSlider *	myBlurSlider
QSlider *	myLevelSlider
DtSenSimConfigurationWidgetLogic *	myLogic
DtDe &	myDe

Additional Inherited Members
Public Types inherited from makVrv::DtSenSimConfigurationWidgetInterface
enum	SensorMode { Nvg, Ir, Color }
	Main sensim mode options. More...
Public Attributes inherited from makVrv::DtSenSimConfigurationWidgetInterface
boost::signal< void(bool)>	signal_gainEnabledChanged
	emitted when gain enabled state changes in the GUI
boost::signal< void(bool)>	signal_filterEnabledChanged
	emitted when filter enabled state changes in the GUI
boost::signal< void(bool)>	signal_noiseEnabledChanged
	emitted when noise enabled state changes in the GUI
boost::signal< void(bool)>	signal_colorEnabledChanged
	emitted when color enabled state changes in the GUI
boost::signal< void(bool)>	signal_blackHotEnabledChanged
	emitted when black hot enabled state changes in the GUI
boost::signal< void(SensorMode)>	signal_modeChanged
	emitted when ir enabled state changes in the GUI
boost::signal< void(bool)>	signal_blurEnabledChanged
	emitted when motion blur enabled state changes in the GUI
boost::signal< void(float)>	signal_noiseLevelChanged
	emitted when noise level changes in the GUI
boost::signal< void(float)>	signal_filterLevelChanged
	emitted when filter level changes in the GUI
boost::signal< void(float)>	signal_levelChanged
	emitted when level changes in the GUI
boost::signal< void(float)>	signal_blurLevelChanged
	emitted when motion blur level changes in the GUI
boost::signal< void(float)>	signal_gainLevelChanged
	emitted when gain level changes in the GUI

Detailed Description

Widget to configure SenSim sensors.

Constructor & Destructor Documentation

makVrv::DtSenSimConfigurationWidget::DtSenSimConfigurationWidget ( DtDe & de )

CTOR.

virtual makVrv::DtSenSimConfigurationWidget::~DtSenSimConfigurationWidget ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtSenSimConfigurationWidget::setSensor ( DtSensor & sensor )

virtual

Set the sensor this widget is configuring.

Creates a new logic for the sensor and deletes the old one (to replace the logic for this widget, override this method)

Implements makVrv::DtSensorConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setBlackHotEnabled ( bool enabled )

virtual

Set the black hot state in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setMode ( SensorMode mode )

virtual

Set the sensor mode in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setBlurEnabled ( bool enabled )

virtual

Set the motion blur enabled state in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setNoiseEnabled ( bool enabled )

virtual

Set the noise enabled state in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setGainEnabled ( bool enabled )

virtual

Set the gain state in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setGainLevel ( float val )

virtual

Set the gain value in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setLevel ( float val )

virtual

Set the level value in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setNoiseLevel ( float val )

virtual

Set the noise value in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

virtual void makVrv::DtSenSimConfigurationWidget::setBlurLevel ( float val )

virtual

Set the motion blur value in the GUI.

Implements makVrv::DtSenSimConfigurationWidgetInterface.

void makVrv::DtSenSimConfigurationWidget::slot_blurSpinChanged ( double val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_gainSpinChanged ( double val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_noiseSpinChanged ( double val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_levelSpinChanged ( double val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_blurSliderChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_gainSliderChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_noiseSliderChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_levelSliderChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_modeChanged ( bool checked )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_blurChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_gainChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_noiseChanged ( int val )

protectedslot

void makVrv::DtSenSimConfigurationWidget::slot_blackHotChanged ( int val )

protectedslot

Member Data Documentation

DtSensor* makVrv::DtSenSimConfigurationWidget::mySensor

protected

QRadioButton* makVrv::DtSenSimConfigurationWidget::myIrButton

protected

QRadioButton* makVrv::DtSenSimConfigurationWidget::myNvgButton

protected

QRadioButton* makVrv::DtSenSimConfigurationWidget::myColorButton

protected

QCheckBox* makVrv::DtSenSimConfigurationWidget::myBlurCheckbox

protected

QCheckBox* makVrv::DtSenSimConfigurationWidget::myGainCheckbox

protected

QCheckBox* makVrv::DtSenSimConfigurationWidget::myBlackHotCheckbox

protected

QCheckBox* makVrv::DtSenSimConfigurationWidget::myNoiseCheckbox

protected

QDoubleSpinBox* makVrv::DtSenSimConfigurationWidget::myGainSpin

protected

QDoubleSpinBox* makVrv::DtSenSimConfigurationWidget::myNoiseSpin

protected

QDoubleSpinBox* makVrv::DtSenSimConfigurationWidget::myBlurSpin

protected

QDoubleSpinBox* makVrv::DtSenSimConfigurationWidget::myLevelSpin

protected

QSlider* makVrv::DtSenSimConfigurationWidget::myGainSlider

protected

QSlider* makVrv::DtSenSimConfigurationWidget::myNoiseSlider

protected

QSlider* makVrv::DtSenSimConfigurationWidget::myBlurSlider

protected

QSlider* makVrv::DtSenSimConfigurationWidget::myLevelSlider

protected

DtSenSimConfigurationWidgetLogic* makVrv::DtSenSimConfigurationWidget::myLogic

protected

DtDe& makVrv::DtSenSimConfigurationWidget::myDe

protected

The documentation for this class was generated from the following file:

include/vrvSenSimQt/DtSenSimConfigurationWidget.h
