9.15 - Handheld M16 System

Table of Contents

• 9.15.1 Components
  • 9.15.1.1 Sensors
  • 9.15.1.2 Controllers
  • 9.15.1.3 Actuators

The Handheld M16 system is a system of controller and actuator components that comprise a model of an M16 rifle.

This system is configured on some friendly dismounted infantry entities in VR-Forces.

Defined in system definition file: handheld-M16.sysdef

This system can be configured as part of a Human entity.

9.15.1 Components

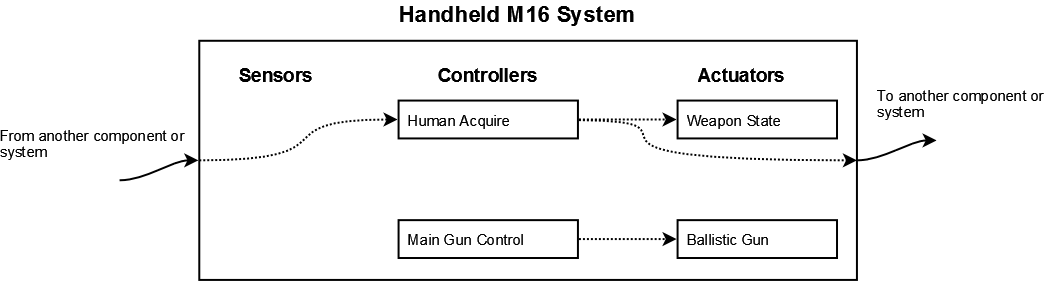

The figure below shows which systems and simulation components are configured as part of the handheld M16 system. The boxes (nodes) represent indivdiual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components.

9.15.1.1 Sensors

There are no sensors configured as part of this system.

9.15.1.2 Controllers

• DtHumanAcquireController – Stop and turn toward target.
• DtTurretAcquireController – Control loading and unloading of ammo, pull the trigger.

9.15.1.3 Actuators

• DtHumanWeaponStateActuator – Manages weapon state (is the weapon in fire position?)
• DtBallisticGunJoy – Ballistic gun.

Note

If you modify the system definition file, or any of the components it contains, all entity types that include this system in its parameter database file will be modified.
