8.3.1 Core Elements of Fixed-wing Entities

Fixed-wing entities share certain common elements. A fixed-wing entity in VR-Forces is always configured with the following:

DtFixedWingEntityStateRepository – Holds state information specific to fixed-wing entities.
DtSimIndividualLocalEntityNetInterface – Handles network publishing of individual (platform-level) entities.

Fixed-wing entities are also typically military aircraft, and therefore are configured with a DtVrfRadio, which enables radio-like communication between entities in the same unit.

8.3.2 Component Systems that Make Up a Fixed-wing Entity

To examine the systems typically configured on a fixed-wing entity, we'll look at a specific instance, the US Attack/Strike Fixed-wing entity. It is a representative example that includes many of the common systems and components that make up a fixed-wing entity. Differences arise between the various types of entities as a function of which particular sub-systems are configured on the vehicle, and the parameter values it is configured with.

8.3.2.1 A Specific Example: Attack/Strike Fixed-wing Entity

Defined in parameter file US-attack-strike-fixed-wing-platform_1_1_2_225_2_-1_-1_-1.ope

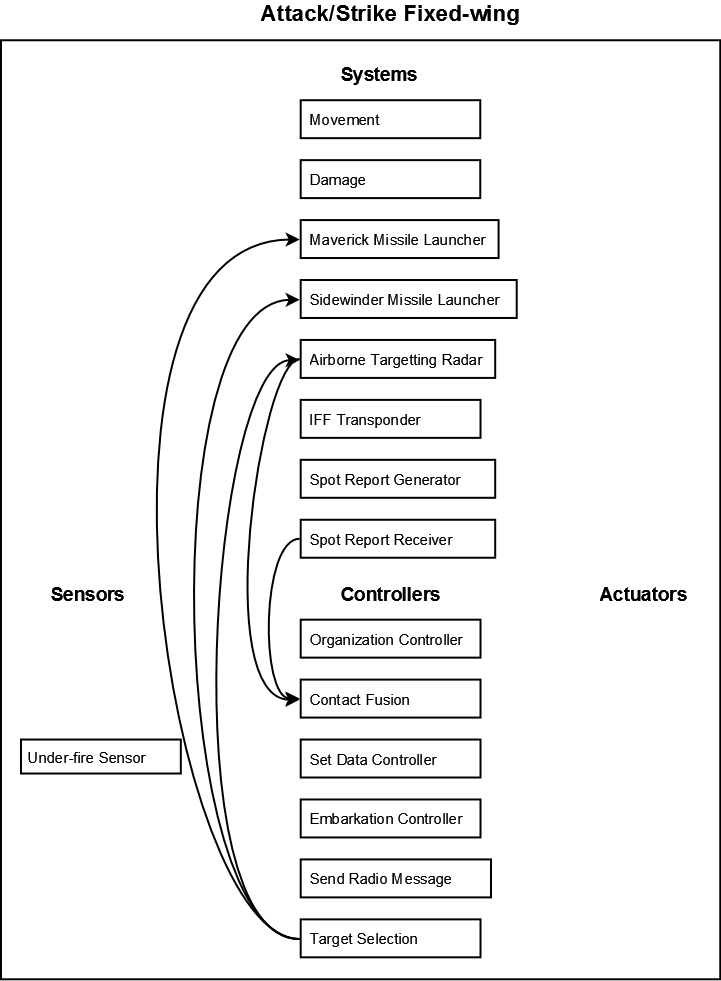

The figure below shows which systems and simulation components are configured as part of an Attack/Strike Fixed-wing entity. The boxes (nodes) represent either a system of components (DtComponentSystem) or individual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components. Data flows between components through these connections.

8.3.2.2 Systems

Major sub-elements of an entity's capabilities are organized into systems.

Movement – models all movement behavior of fixed-wing aircraft
Damage – models damage from direct and indirect fire
Maverick Missile Launcher – Air-to-ground missile launcher
Sidewinder Missile Launcher – Air-to-air missile launcher
Airborne Targetting Radar – What entities can I see?
IFF Transponder – Manage publishing of IFF data for the entity
Spot Report Generator – Send spot reports based on my contact list.
Spot-report Receiver – Listen for spot reports.

8.3.2.3 Other Simulation Components

Individual DtSimComponents (not organized as part of a system) that make up the rest of entity:

Sensors

Under-fire Determination Sensor – Am I under fire?

Controllers

Organization – Maintain my position in the aggregate organizational hierarchy.
Contact Fusion – Fuse contact information from various sources into a single list.
Set-data – Respond to DtSetDataRequests, such as set location, set heading.
Embarkation – Support entity's ability to embark on other entities.
Send Radio Message Controller – Send text or task messages through the radio.
Target Selection – Choose target for weapon system.

Actuators

There are no actuators configured as part of this entity.
