DtAdminContent Class Reference

DtAdminContent. More...

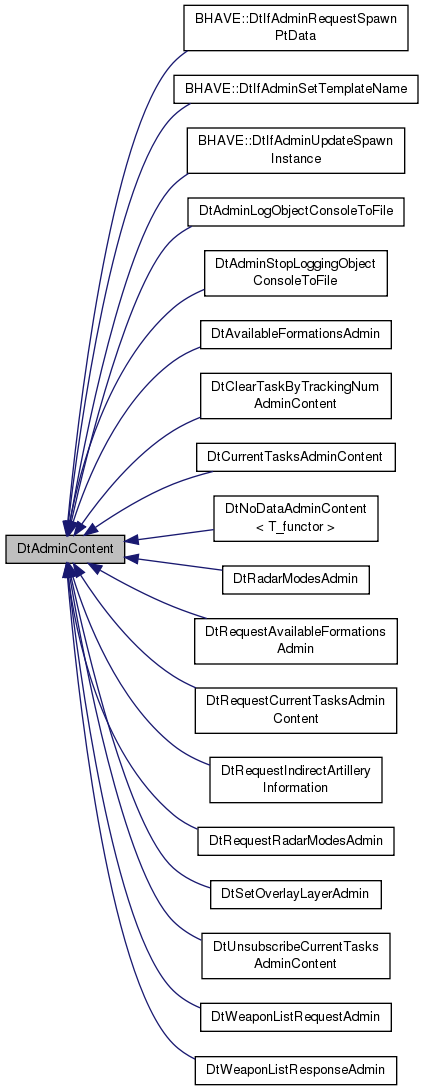

Inheritance diagram for DtAdminContent:

Public Member Functions
virtual	~DtAdminContent ()
	destructor
virtual bool	init ()
	Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.
virtual const DtAdminContentMessageType &	type () const =0
virtual DtAdminContent *	clone () const =0
	Make a copy of this content.
virtual DtString	stringRep () const =0
	Get a readable string representation of this content.
virtual char *	netRep ()
Serialization Methods
These three methods must be overridden for any setRequest subclass that is going to be sent over the network and need to package their own data elements.
virtual int	netRepSize () const
virtual bool	setFromNet (const char *contentBuffer, unsigned contentSize)
	Sets the contents of this set request based on the network buffer.
virtual bool	setToNet ()
	Sets netRep buffer to the contents of this set request.

Static Public Member Functions
static void	addAdminContentCreatorFcn (const DtString &contentName, DtAdminContentCreatorFcn fcn)
static void	setFactory (DtAdminContentFactory *factory)
static DtAdminContentFactory *	factory ()
static bool	isTypeRegistered (DtString type)

Protected Member Functions
	DtAdminContent ()
	Constructors are protected because no one should instantiate the base class, just derived versions.
	DtAdminContent (const DtAdminContent &orig)
	copy constructor
const DtAdminContent &	operator= (const DtAdminContent &orig)
	assignment operator; same as copy costructor.
virtual char *	createNetworkBuffer ()

Protected Attributes
char *	myNetRep

Static Protected Attributes
static DtAdminContentFactory *	myFactory

Detailed Description

DtAdminContent.

Abstract base class for content put inside a DtAdminMessage. Derived classes contain particular content data to be transported inside the message.

Note

Unlike tasks, sets, and reports, these classes are not reader-writer classes.

Constructor & Destructor Documentation

DtAdminContent::DtAdminContent ( )

protected

Constructors are protected because no one should instantiate the base class, just derived versions.

default constructor

DtAdminContent::DtAdminContent ( const DtAdminContent &  orig )

protected

copy constructor

virtual DtAdminContent::~DtAdminContent ( )

virtual

destructor

Member Function Documentation

const DtAdminContent& DtAdminContent::operator= ( const DtAdminContent &  orig )

protected

assignment operator; same as copy costructor.

virtual bool DtAdminContent::init ( )

virtual

Base class init does nothing, but this will be called by create, in case any other deriving class needs to do virtual allocation.

Reimplemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtAvailableFormationsAdmin, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtRadarModesAdmin, DtRequestAvailableFormationsAdmin, DtRequestCurrentTasksAdminContent, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, DtWeaponListResponseAdmin, and DtClearTaskByTrackingNumAdminContent.

Referenced by DtNoDataAdminContent< T_functor >::init().

virtual const DtAdminContentMessageType& DtAdminContent::type ( ) const

pure virtual

Returns

The type of admin content this class is. See types defined in radioMsgTypes.h.

Implemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtAvailableFormationsAdmin, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtRadarModesAdmin, DtRequestAvailableFormationsAdmin, DtRequestCurrentTasksAdminContent, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, DtWeaponListResponseAdmin, DtClearTaskByTrackingNumAdminContent, BHAVE::DtIfAdminUpdateSpawnInstance, BHAVE::DtIfAdminSetTemplateName, BHAVE::DtIfAdminRequestSpawnPtData, and DtSetOverlayLayerAdmin.

virtual DtAdminContent* DtAdminContent::clone ( ) const

pure virtual

Make a copy of this content.

Returns a pointer to a newly created copy of this class. Derived classes must override this function to create and return an instance of the derived type.

Implemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtRadarModesAdmin, DtAvailableFormationsAdmin, DtWeaponListResponseAdmin, DtRequestCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtClearTaskByTrackingNumAdminContent, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtRequestAvailableFormationsAdmin, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, BHAVE::DtIfAdminUpdateSpawnInstance, BHAVE::DtIfAdminSetTemplateName, BHAVE::DtIfAdminRequestSpawnPtData, and DtSetOverlayLayerAdmin.

virtual DtString DtAdminContent::stringRep ( ) const

pure virtual

Get a readable string representation of this content.

Derived classes must implement this function. The string should include the identity of the content, along with any parameters. The format of the string is up to you.

Implemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtRadarModesAdmin, DtAvailableFormationsAdmin, DtWeaponListResponseAdmin, BHAVE::DtIfAdminUpdateSpawnInstance, DtRequestCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtClearTaskByTrackingNumAdminContent, BHAVE::DtIfAdminSetTemplateName, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, BHAVE::DtIfAdminRequestSpawnPtData, DtRequestAvailableFormationsAdmin, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, and DtSetOverlayLayerAdmin.

virtual char* DtAdminContent::netRep ( )

virtual

virtual int DtAdminContent::netRepSize ( ) const

virtual

Returns

Size necessary for a network representation of this set request. Base class returns 0.

Reimplemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtRadarModesAdmin, DtAvailableFormationsAdmin, DtWeaponListResponseAdmin, DtRequestCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtClearTaskByTrackingNumAdminContent, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtRequestAvailableFormationsAdmin, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, BHAVE::DtIfAdminUpdateSpawnInstance, BHAVE::DtIfAdminSetTemplateName, BHAVE::DtIfAdminRequestSpawnPtData, and DtSetOverlayLayerAdmin.

virtual bool DtAdminContent::setFromNet ( const char *  contentBuffer, unsigned  contentSize  )

virtual

Sets the contents of this set request based on the network buffer.

Base class does nothing and returns true.

Reimplemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtRadarModesAdmin, DtAvailableFormationsAdmin, DtWeaponListResponseAdmin, DtRequestCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtClearTaskByTrackingNumAdminContent, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtRequestAvailableFormationsAdmin, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, BHAVE::DtIfAdminUpdateSpawnInstance, BHAVE::DtIfAdminSetTemplateName, BHAVE::DtIfAdminRequestSpawnPtData, and DtSetOverlayLayerAdmin.

virtual bool DtAdminContent::setToNet ( )

virtual

Sets netRep buffer to the contents of this set request.

Base class does nothing and returns true.

Reimplemented in DtCurrentTasksAdminContent, DtNoDataAdminContent< T_functor >, DtRadarModesAdmin, DtAvailableFormationsAdmin, DtWeaponListResponseAdmin, DtRequestCurrentTasksAdminContent, DtAdminLogObjectConsoleToFile, DtClearTaskByTrackingNumAdminContent, DtRequestIndirectArtilleryInformation, DtUnsubscribeCurrentTasksAdminContent, DtRequestAvailableFormationsAdmin, DtAdminStopLoggingObjectConsoleToFile, DtRequestRadarModesAdmin, DtWeaponListRequestAdmin, BHAVE::DtIfAdminUpdateSpawnInstance, BHAVE::DtIfAdminSetTemplateName, BHAVE::DtIfAdminRequestSpawnPtData, and DtSetOverlayLayerAdmin.

static void DtAdminContent::addAdminContentCreatorFcn ( const DtString &  contentName, DtAdminContentCreatorFcn  fcn  )

static

static void DtAdminContent::setFactory ( DtAdminContentFactory *  factory )

static

static DtAdminContentFactory* DtAdminContent::factory ( )

static

static bool DtAdminContent::isTypeRegistered ( DtString  type )

static

virtual char* DtAdminContent::createNetworkBuffer ( )

protectedvirtual

Member Data Documentation

char* DtAdminContent::myNetRep

protected

DtAdminContentFactory* DtAdminContent::myFactory

staticprotected

---

The documentation for this class was generated from the following file:

• include/vrftasks/adminContent.h
