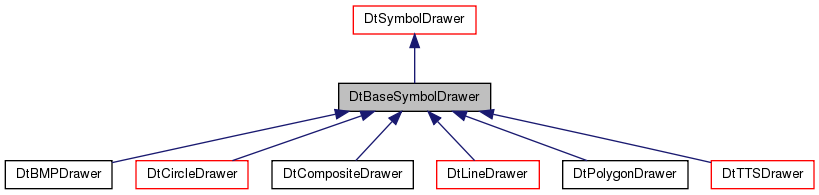

Inheritance diagram for DtBaseSymbolDrawer:

Public Member Functions
	DtBaseSymbolDrawer ()
virtual	~DtBaseSymbolDrawer ()
virtual bool	doDrawing (QPainter &paint, const DtSymbol *const symbol)
	! Initializes any drawing information and then calls internal draw() method
Public Member Functions inherited from DtSymbolDrawer
	DtSymbolDrawer ()
virtual	~DtSymbolDrawer ()
virtual QSize	calcBBox (const DtSymbol *const symbol) const =0
virtual QRect	calcBRect (const DtSymbol *const symbol) const
virtual bool	forceUpdate (const DtSymbol *const symbol) const
	Override if your class wants to force a redraw of this item regardless of performance enhancement state.
virtual bool	endTransparentDraw (QPainter &paint, const DtSymbol *const symbol) const
	Called after transparent draw is finished if symbol wants to draw transparently.
virtual void	processHiddenSymbolAction (QPainter &paint, const DtSymbol *const symbol)
	Routine to perform even when symbol is hidden.
virtual bool	draw (QPainter &paint, const DtSymbol *const symbol) const =0

Protected Member Functions
virtual QRgb	opaqueColor () const
	! Returns color that will be ignored during transparent draw
Protected Member Functions inherited from DtSymbolDrawer
	DtSymbolDrawer (const DtSymbolDrawer &orig)
	Protected so not used. Conceptually class is a singleton.
DtSymbolDrawer &	operator= (const DtSymbolDrawer &orig)
	Protected so not used. Conceptually class is a singleton.

Private Member Functions
	DtBaseSymbolDrawer (const DtBaseSymbolDrawer &orig)
	! Not implemented. Class is a singleton.
DtBaseSymbolDrawer &	operator= (const DtBaseSymbolDrawer &orig)
	! Not implemented. Class is a singleton.

Additional Inherited Members
Static Public Member Functions inherited from DtSymbolDrawer
static double	drawScalingFactor ()
	Because of potential size difference in printer and screen metrics, a scaling factor can be applied to any drawing that relies on screen coordinates (such as arrow or bitmap size).
static void	setDrawScalingFactor (double d)
static void	setHighlightColor (const QColor &color)
static const QColor &	highlightColor ()
Static Protected Attributes inherited from DtSymbolDrawer
static double	gDrawScalingFactor
static QColor	theHighlightColor

Detailed Description

Will implement transparent drawing if symbol being drawn has a transparency level.

Constructor & Destructor Documentation

DtBaseSymbolDrawer::DtBaseSymbolDrawer ( )

virtual DtBaseSymbolDrawer::~DtBaseSymbolDrawer ( )

virtual

DtBaseSymbolDrawer::DtBaseSymbolDrawer ( const DtBaseSymbolDrawer & orig )

private

! Not implemented. Class is a singleton.

virtual bool DtBaseSymbolDrawer::doDrawing	(	QPainter &	paint,
		const DtSymbol *const	symbol
	)

virtual

! Initializes any drawing information and then calls internal draw() method

Reimplemented from DtSymbolDrawer.

virtual QRgb DtBaseSymbolDrawer::opaqueColor ( ) const

protectedvirtual

! Returns color that will be ignored during transparent draw

DtBaseSymbolDrawer& DtBaseSymbolDrawer::operator= ( const DtBaseSymbolDrawer & orig )

private

! Not implemented. Class is a singleton.

The documentation for this class was generated from the following file:
