DtMultiplierSignatureModifierEvaluator Class Reference

A DtSignatureModifierEvaluator that modifies a signature with a. More...

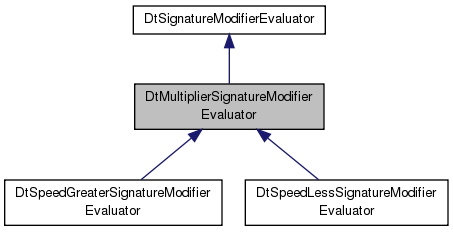

Inheritance diagram for DtMultiplierSignatureModifierEvaluator:

Public Member Functions
	DtMultiplierSignatureModifierEvaluator (const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	default constructor
virtual	~DtMultiplierSignatureModifierEvaluator ()
virtual bool	init ()
	Uses dynamic_cast to make sure that the passed in DtSignatureModifier derives from DtMultiplierSignatureModifier.
virtual double	modifySignature (double inputSignature) const
virtual bool	checkCondition () const =0
	Override this in subclasses to check the condition of this evaluator.
Public Member Functions inherited from DtSignatureModifierEvaluator
	DtSignatureModifierEvaluator (const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	default constructor
virtual	~DtSignatureModifierEvaluator ()
virtual DtString	type () const =0

Private Member Functions
	DtMultiplierSignatureModifierEvaluator ()
	Not implemented.
	DtMultiplierSignatureModifierEvaluator (const DtMultiplierSignatureModifierEvaluator &orig)
	Not implemented. Class not copyable.
DtMultiplierSignatureModifierEvaluator &	operator= (const DtMultiplierSignatureModifierEvaluator &orig)
	Not implemented. Class not copyable.

Additional Inherited Members
Static Public Member Functions inherited from DtSignatureModifierEvaluator
static void	setFactory (DtSignatureModifierEvaluatorFactory *factory)
	Sets the static factory member.
static DtSignatureModifierEvaluator *	createSignatureModifierEvaluator (const DtString &type, const DtSignatureModifier &modifier, DtVrfObject *hostObject)
	Uses the static factory assigned in setFactory to create the requested sensor geometry type.
Protected Attributes inherited from DtSignatureModifierEvaluator
const DtSignatureModifier &	mySignatureModifier
DtVrfObject *	myHostObject
Static Protected Attributes inherited from DtSignatureModifierEvaluator
static DtSignatureModifierEvaluatorFactory *	theFactory

Detailed Description

A DtSignatureModifierEvaluator that modifies a signature with a.

multiplier based on the check of a boolean condition. This is an abstract base class for any actual evaluators that do this check. Requires that a DtMultiplierSignatureModifier or subclass be passed in.

Constructor & Destructor Documentation

DtMultiplierSignatureModifierEvaluator::DtMultiplierSignatureModifierEvaluator ( )

private

Not implemented.

DtMultiplierSignatureModifierEvaluator::DtMultiplierSignatureModifierEvaluator ( const DtMultiplierSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

DtMultiplierSignatureModifierEvaluator::DtMultiplierSignatureModifierEvaluator	(	const DtSignatureModifier &	modifier,
		DtVrfObject *	hostObject
	)

default constructor

virtual DtMultiplierSignatureModifierEvaluator::~DtMultiplierSignatureModifierEvaluator ( )

virtual

Member Function Documentation

DtMultiplierSignatureModifierEvaluator& DtMultiplierSignatureModifierEvaluator::operator= ( const DtMultiplierSignatureModifierEvaluator &  orig )

private

Not implemented. Class not copyable.

virtual bool DtMultiplierSignatureModifierEvaluator::init ( )

virtual

Uses dynamic_cast to make sure that the passed in DtSignatureModifier derives from DtMultiplierSignatureModifier.

Reimplemented from DtSignatureModifierEvaluator.

Reimplemented in DtSpeedLessSignatureModifierEvaluator, and DtSpeedGreaterSignatureModifierEvaluator.

virtual double DtMultiplierSignatureModifierEvaluator::modifySignature ( double  inputSignature ) const

virtual

Returns

inputSignature multiplied by the multiplier if checkCondition() returns true, otherwise returns inputSignature unchanged.

Implements DtSignatureModifierEvaluator.

virtual bool DtMultiplierSignatureModifierEvaluator::checkCondition ( ) const

pure virtual

Override this in subclasses to check the condition of this evaluator.

Returns

True if condition is met.

Implemented in DtSpeedLessSignatureModifierEvaluator, and DtSpeedGreaterSignatureModifierEvaluator.

---

The documentation for this class was generated from the following file:

• include/vrfobjcore/multiplierSignatureModifierEval.h
