DtPopupMenu Class Reference

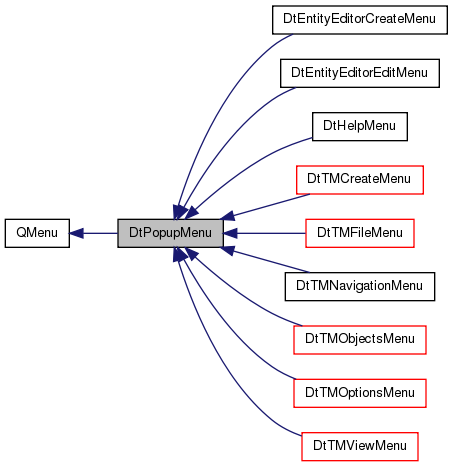

Inheritance diagram for DtPopupMenu:

Public Slots
virtual void	validate ()
virtual void	menuItemDestroyed (QAction *)
virtual void	actionGroupDestroyed (DtActionGroup *)
virtual void	featureActionManagerDestroyed ()

Signals
void	validateItems ()
	Sent when items want to be validated. Emitted from the validate() method.

Public Member Functions
	DtPopupMenu (QWidget *parent, bool display=true)
	In your override, if you want to create the menu for right click purposes but do not want the menu to be on the main menu bar, call the parent DtPopupMenu constructor with false as the display parameter.
virtual	~DtPopupMenu ()
virtual bool	init (DtMainMenuType iType, DtMenuWidget *menu, QWidget *owner, int iPos=-1, int iID=-1)
	Supply an id to identifiy this menu item or -1 to generate a unique id.
virtual void	insertMenu (DtMenuWidget *menuWidget, int iPos=-1, int iID=-1)
virtual bool	setup (DtMenuWidget *menuWidget)
	Called from init, sets up the menu items, connections and action groups.
virtual void	preCreateMenuItems ()
virtual bool	createMenuItems ()
virtual int	id () const
virtual DtMenuItemType	typeFromAction (QAction *)
	If this object contains the specified QAction, return the type it is.
virtual DtMenuItemType	typeFromName (const QString &)
	Returns the type from the menu item name.
virtual QAction *	menuItemForType (DtMenuItemType iType)
	Returns the QAction for this type (if this menu has it)
virtual bool	hasType (DtMenuItemType iType)
	Returns true if this menu contains the specified menu item type.
virtual int	positionOfMenuItem (const DtPopupMenuItem &item)
	Returns the position of the menu item in the ordered list.
virtual int	positionOfMenuItem (DtMenuItemType iType)
virtual int	menuItemPositionOf (QAction *action)
	Returns the true menu item position of the QAction.
virtual DtActionGroup *	getActionGroupForType (DtMenuItemType iType)
	If the newly created menu item is to be added to an action group, add it here.
virtual DtMainMenuType	type () const
virtual void	setOwner (QWidget *owner)
	Accessors for owner.
virtual QWidget *	owner () const
virtual void	setEnableValidations (bool b)
	Call to always make sure all menu items are enabled with b being set to false.
virtual void	reconfigureMenu (QList< DtMenuItemType > &items, bool keep)
	This will reconfigure the menu by either keeping or removing the items in the specified list.
virtual void	updateMenuItems ()
	Update contents of menu based on any new conditions.
virtual void	seedActionGroups ()
	Goes through all the menu items and fills in the action groups list.
virtual bool	attachMenu (const QString &title, DtPopupMenu *, int iIndex=-1)
	This routine will add a DtPopupMenu as a sub menu to this menu.
bool	initialized () const
DtFeatureActionManager *	featureActionManager () const
	Accessors for featureActionManager.
virtual void	setFeatureActionManager (DtFeatureActionManager *)
void	setAddFeatures (bool)
bool	addFeatures () const
virtual QString	shortcutFor (const QString &feature) const
	Returns shortcut for specified feature.
virtual void	addShortcut (const QString &feature, const QString &shortcut)
virtual void	replaceShortcut (const QString &feature, const QString &shortcut)
virtual bool	hasShortcutOverride (const QString &feature) const
virtual bool	hasShortcut (const QString &feature) const
virtual QString	iconFor (const QString &feature, QIcon::Mode mode=QIcon::Normal, QIcon::State=QIcon::Off, bool useDefault=false)
	Returns icon for specified feature. If useDefault is true, finds default icon based on feature name.
virtual QString	menuTextForAction (QAction *)
	Returns text for the menu (or sub-menu) that contains the action.
virtual QHash< DtMenuItemType, QAction * > &	actions ()
virtual QList< QAction * >	menuActions ()
virtual const QList < DtPopupMenu * > &	attachedMenus () const
virtual DtPopupMenuItem *	insertMenuItem (DtMenuItemType iPos, const QString &featureName, DtMenuItemType iType, QString text, QString toolTip=QString::null, QString accel=QString::null, bool addSeparator=false, bool toggle=false, bool isOn=false, const QString &objectName="")
	The featureName in each of the inserts is a keyword that will be used to look up the feature in the featureActionManager for both shortcuts and icons.
virtual DtPopupMenuItem *	insertMenuItem (DtMenuItemType iPos, DtMenuItemType iType, QString text, QString toolTip=QString::null, QString accel=QString::null, bool addSeparator=false, bool toggle=false, bool isOn=false, const QString &objectName="")
	Call this version to not allow the item to be added to a user defined toolbar.
virtual DtPopupMenuItem *	insertToggleMenuItem (DtMenuItemType iBefore, const QString &featureName, DtMenuItemType iType, QString text, QString toolTip=QString::null, QString accel=QString::null, bool addSeparator=false, bool isOn=false, const QString &objectName="")
	Same as above except sets the myIsToggle flag to true which means that is will be an on/off menu item and rather than having the connection made to the "activated" signal, it will be made to the "toggled(bool)" signal.
virtual DtPopupMenuItem *	insertToggleMenuItem (DtMenuItemType iBefore, DtMenuItemType iType, QString text, QString toolTip=QString::null, QString accel=QString::null, bool addSeparator=false, bool isOn=false, const QString &objectName="")
	Call this version to not allow the item to be added to a user defined toolbar.
virtual void	addMenuItemSeparator (DtMenuItemType iGroup)
	Inserts a separator at the current create position for the specified group.
virtual void	removeMenuItem (DtMenuItemType iType)
	Removes the menu item of the specified type. If it's already created removes it immediately.
virtual bool	removeMenuGroup (const QString &gr)
	Removes the menu group and all sub-items from that group.
virtual void	removeItemAtPosition (int iPos)
	Removes the item at the specified position.
virtual void	addIcon (DtMenuItemType iType, QString icon, QIcon::Mode mode=QIcon::Normal, QIcon::State=QIcon::Off)
	Adds an icon to be added when the menu item is created.
virtual void	removeIcon (DtMenuItemType iType, QIcon::Mode mode=(QIcon::Mode)-1, QIcon::State=QIcon::Off)
	Removes an icon. If the menu item is created also removes it from the menu item.
virtual void	addGroup (DtMenuItemType iToGroup, DtMenuItemType iGroup, int iPos, bool addSep=false)
	Inserts the action group at the specified position to the specified group (use -1 to append at current position).
virtual void	removeGroup (DtMenuItemType iGroup)
	Removes group.
virtual void	addMenu (DtMainMenuType, int iPos, bool addSep)
	Inserts the menu at the specified position.
virtual void	removeMenu (DtMainMenuType iGroup)
	Removes group.
virtual void	mappingMenu (DtPopupMenu *menu, int iFlags=0)
	Call this routine if you want to map menu items.
virtual void	mapMenuItem (DtMenuItemType iType, DtPopupMenu &popupMenu, int iPos=-1, bool addSeparator=false)
	This will look at the target popup menu and take both the menu item definition and the validator map entry defined by the menu item type and add them to this menu.
virtual void	setPosition (int iPos)
	Sets the menu item position if inited. Removes then re-inserts.
virtual bool	matchesName (QString name)
	Returns true if the supplied name matches the menu name of this menu. Will take & into account.
virtual DtMenuItemType	uniqueId () const
	Returns a unique id for this menu (max + 1)
virtual QAction *	addMenuItem (DtMenuItemType &retId, const QString &featureName, const QString &item, const QString &addToMenu, bool toggle=false, QObject *actionReceiver=NULL, const char *action=NULL, QObject *validationReceiver=NULL, const char *validation=NULL, const QString &tooltip=QString::null, const QString &accelerator=QString::null, bool addSep=false)
	Adds a new menu item given the menu item, path to add, action and validator.
virtual void	appendMenuValidator (DtMenuItemType iType, QObject *vCall, const char *validator)
	Adds the specified validator to a list of validators that can be called for the menu item.
virtual void	appendMenuValidator (const QString &menu, QObject *vCall, const char *validator)
virtual bool	removeMenuItem (const QString &item)
	Removes the named menu item from the menu.
virtual void	setupFrom (DtMainMenuType iType, DtPopupMenu *, QWidget *, DtMenuWidget *w)
	Copies menu item information without creating the menu.
virtual void	renameMenuItem (DtMenuItemType iType, QString text=QString::null, QString toolTip=QString::null, QString accel=QString::null)
	Useful routines for subclasses of existing menus to rename/override default functionality.
virtual void	positionBefore (DtMenuItemType iType, DtMenuItemType iBefore)
	Repositioning of menu items.
virtual void	positionAfter (DtMenuItemType iType, DtMenuItemType iAfter)
virtual QString	menuName ()
	Returns the name of this menu item to place on the menu bar.
virtual void	addActionAndValidatorForType (DtMenuItemType iType, QObject *aCall, const char *action, QObject *vCall=NULL, const char *validator=NULL)
	Adds a new action/validator pair.
virtual void	addActionForType (DtMenuItemType iType, QObject *aCall, const char *action)
virtual void	addValidatorForType (DtMenuItemType iType, QObject *vCall, const char *validator)
virtual void	addGlobalActionAndValidatorForType (DtMenuItemType iType, QObject *aCall, const char *action, QObject *vCall=NULL, const char *validator=NULL)
	Replaces on a global level the action/validator pair for the specified type.
virtual DtActionGroup *	actionGroupWithName (const QString &) const
	Returns an action (or action group) with the specified name.
virtual QAction *	actionWithName (const QString &) const
virtual void	clearMenuItems ()
	Frees memory associated with menu items. Do not call unless the menu is about to be destroyed.
virtual void	removeFeatureActions ()

Protected Slots
virtual void	popupRemoved (QObject *)
virtual void	menuItemDestroyed ()
virtual void	actionGroupDestroyed ()

Protected Member Functions
virtual bool	initMenuItems ()
	Initializes specific menu items to place onto this menu bar.
virtual bool	initActionGroups ()
	Initializes action groups to be used with this menu.
virtual bool	removeMenuItemAtPosition (int iPos)
	Removes the menu item at the specified position from the ordered list and the menu if it has been created.
virtual void	addNewMenuItem (DtPopupMenuItem &item, int iPos)
	Adds a new menu item to internal structures and creates if needed.
virtual QAction *	createMenuItem (const DtPopupMenuItem &item)
	Creates and returns the new menu item.
virtual void	attachMenuItems ()
	Using the mappings from type to validator and action, maps the created actions and connects them to the appropriate messages.
virtual void	attachMenuItem (const DtPopupMenuItem &item)
	Attaches a menu item based on the specific type.
virtual void	addCompletedItemsToMenu ()
	Adds the completed items to the menu.
virtual void	addAttachedMenus ()
	Adds any menus to this menu via the attachMenu command by creating them via the menu widget factory.
virtual void	setIcon (DtMenuItemType iType)
	Uses internal structures to see if this menu item needs an icon associated with it.
virtual void	attachValidators (bool b)
	Cycles through menu items and attaches/detatches validators according to flag.
virtual void	initConnections ()
	Initializes connections used for validations on this popup menu.
virtual DtPopupMenuItem *	popupMenuItem (DtMenuItemType iType, bool actionable=false)
	Returns the DtPopupMenuItem associated with a particular type.
virtual DtActionValidatorMap *	actionValidatorMapEntry (DtMenuItemType iType)
	Returns a DtActionValidatorMap associated with the particular type.
virtual void	removeOrderedMenuItem (int iPos)
	Removes the item only from the ordered list.
virtual int	addOrderedItem (const DtPopupMenuItem &item, int iPos)
	Adds an item to the ordered list. Returns the position added to in the ordered list.
virtual void	setMapMenuItemsTo (DtPopupMenu *menu)
	Set proxy menu.
virtual void	addActionGroup (DtActionGroup *)
	Adds a new action group to internal list (if does not exist)
virtual bool	matchesName (QString menu, QString name) const
virtual DtActionGroup *	internalGetActionGroupForType (DtMenuItemType type)
	Checks internal groups then checks getActionGroupForType.
virtual QAction *	addNewActionToActionGroup (const DtPopupMenuItem &item)
	Creates a new menu item and adds it to its action group.
virtual void	addAllActionsFor (DtActionGroup *)
	Given the group, looks through all menu items that return the given sub group and adds them to the group.

Protected Attributes
QHash< DtMenuItemType, QAction * >	myActions
QHash< DtMenuItemType, DtPopupMenuItem >	myMenuItems
QHash< DtMenuItemType, DtActionValidatorMap >	myActionValidators
QList< DtPopupMenuItem >	myOrderedMenuItems
QHash< DtMenuItemType, QIcon >	myIcons
int	myId
bool	myCreated
bool	myInited
QWidget *	myOwner
DtMainMenuType	myType
bool	myEnableValidations
DtMenuWidget *	myMenuWidget
bool	myDisplay
QHash< DtPopupMenu *, int >	myMenuMappingList
DtPopupMenu *	myMenuItemProxy
	This will be set to a menu that is mapping us so the menuItemForType call will ask myMenuItemProxy menu rather this menu.
QList< DtActionGroup * >	myActionGroups
	These are actions groups that were created outside the menu system.
QHash< DtMenuItemType, DtActionGroup * >	myInternalGroupMappings
QList< DtPopupMenu * >	myAttachedMenus
	Menus that have been attached to this menu.
QList< DtActionGroup * >	myPendingActionGroups
	During post processing step, add menu items to parent action group or menu.
QVector< QString >	myRemovedActionGroups
	List of action groups that need to be ignored.
DtFeatureActionManager *	myFeatureActionManager
bool	myAddFeatures

Static Protected Attributes
static QHash< DtMenuItemType, DtActionValidatorMap >	myGlobalActionValidators

Constructor & Destructor Documentation

DtPopupMenu::DtPopupMenu	(	QWidget *	parent,
		bool	display = true
	)

In your override, if you want to create the menu for right click purposes but do not want the menu to be on the main menu bar, call the parent DtPopupMenu constructor with false as the display parameter.

virtual DtPopupMenu::~DtPopupMenu ( )

virtual

Member Function Documentation

virtual bool DtPopupMenu::init ( DtMainMenuType  iType, DtMenuWidget *  menu, QWidget *  owner, int  iPos = -1, int  iID = -1  )

virtual

Supply an id to identifiy this menu item or -1 to generate a unique id.

Also supply a position to place this menu item on the parent menu bar. If -1, appends item

virtual void DtPopupMenu::insertMenu ( DtMenuWidget *  menuWidget, int  iPos = -1, int  iID = -1  )

virtual

virtual bool DtPopupMenu::setup ( DtMenuWidget *  menuWidget )

virtual

Called from init, sets up the menu items, connections and action groups.

virtual void DtPopupMenu::preCreateMenuItems ( )

virtual

Reimplemented in DtTMCreateMenu.

virtual bool DtPopupMenu::createMenuItems ( )

virtual

Reimplemented in DtTMCreateMenu, and DtTMObjectsMenu.

virtual int DtPopupMenu::id ( ) const

virtual

virtual DtMenuItemType DtPopupMenu::typeFromAction ( QAction *  )

virtual

If this object contains the specified QAction, return the type it is.

virtual DtMenuItemType DtPopupMenu::typeFromName ( const QString &  )

virtual

Returns the type from the menu item name.

virtual QAction* DtPopupMenu::menuItemForType ( DtMenuItemType  iType )

virtual

Returns the QAction for this type (if this menu has it)

virtual bool DtPopupMenu::hasType ( DtMenuItemType  iType )

virtual

Returns true if this menu contains the specified menu item type.

virtual int DtPopupMenu::positionOfMenuItem ( const DtPopupMenuItem &  item )

virtual

Returns the position of the menu item in the ordered list.

Note that this might not be the same as the position in the menu, due to separator addition

virtual int DtPopupMenu::positionOfMenuItem ( DtMenuItemType  iType )

virtual

virtual int DtPopupMenu::menuItemPositionOf ( QAction *  action )

virtual

Returns the true menu item position of the QAction.

This is based on a menu item name match, so, if the menu has two menu items of the same name, it will return the first occurnace. Will return -1 if not found

virtual DtActionGroup* DtPopupMenu::getActionGroupForType ( DtMenuItemType  iType )

virtual

If the newly created menu item is to be added to an action group, add it here.

Reimplemented in DtTMCreateMenu, DtTerrainFileMenu, DtTMNavigationMenu, DtHelpMenu, DtTMObjectsMenu, DtTMViewMenu, DtTMFileMenu, DtTerrainObjectsMenu, DtTMOptionsMenu, DtTerrainOptionsMenu, DtTerrainViewMenu, DtEntityEditorCreateMenu, and DtEntityEditorEditMenu.

virtual DtMainMenuType DtPopupMenu::type ( ) const

virtual

virtual void DtPopupMenu::setOwner ( QWidget *  owner )

virtual

Accessors for owner.

virtual QWidget* DtPopupMenu::owner ( ) const

virtual

virtual void DtPopupMenu::setEnableValidations ( bool  b )

virtual

Call to always make sure all menu items are enabled with b being set to false.

virtual void DtPopupMenu::reconfigureMenu ( QList< DtMenuItemType > &  items, bool  keep  )

virtual

This will reconfigure the menu by either keeping or removing the items in the specified list.

If keep is false, the items in the list will be removed

virtual void DtPopupMenu::updateMenuItems ( )

virtual

Update contents of menu based on any new conditions.

Reimplemented in DtTMCreateMenu.

virtual void DtPopupMenu::seedActionGroups ( )

virtual

Goes through all the menu items and fills in the action groups list.

virtual bool DtPopupMenu::attachMenu ( const QString &  title, DtPopupMenu *  , int  iIndex = -1  )

virtual

This routine will add a DtPopupMenu as a sub menu to this menu.

When this menu does any operation (finding items, names, etc) these menus will be referenced as well. The rules for inserting a new popup menu are: 1) This menu must already be created 2) The menu that is being attached is also created 3) Once the menu is attached, it cannot be unattached, unless the original popup is deleted

bool DtPopupMenu::initialized ( ) const

inline

References myInited.

DtFeatureActionManager * DtPopupMenu::featureActionManager ( ) const

inline

Accessors for featureActionManager.

References myFeatureActionManager.

virtual void DtPopupMenu::setFeatureActionManager ( DtFeatureActionManager *  )

virtual

void DtPopupMenu::setAddFeatures ( bool  b )

inline

References myAddFeatures.

bool DtPopupMenu::addFeatures ( ) const

inline

References myAddFeatures.

virtual QString DtPopupMenu::shortcutFor ( const QString &  feature ) const

virtual

Returns shortcut for specified feature.

virtual void DtPopupMenu::addShortcut ( const QString &  feature, const QString &  shortcut  )

virtual

virtual void DtPopupMenu::replaceShortcut ( const QString &  feature, const QString &  shortcut  )

virtual

virtual bool DtPopupMenu::hasShortcutOverride ( const QString &  feature ) const

virtual

virtual bool DtPopupMenu::hasShortcut ( const QString &  feature ) const

virtual

virtual QString DtPopupMenu::iconFor ( const QString &  feature, QIcon::Mode  mode = QIcon::Normal, QIcon::State  = QIcon::Off, bool  useDefault = false  )

virtual

Returns icon for specified feature. If useDefault is true, finds default icon based on feature name.

virtual QString DtPopupMenu::menuTextForAction ( QAction *  )

virtual

Returns text for the menu (or sub-menu) that contains the action.

virtual QHash<DtMenuItemType, QAction*>& DtPopupMenu::actions ( )

virtual

virtual QList<QAction*> DtPopupMenu::menuActions ( )

virtual

virtual const QList<DtPopupMenu*>& DtPopupMenu::attachedMenus ( ) const

virtual

virtual DtPopupMenuItem* DtPopupMenu::insertMenuItem ( DtMenuItemType  iPos, const QString &  featureName, DtMenuItemType  iType, QString  text, QString  toolTip = QString::null, QString  accel = QString::null, bool  addSeparator = false, bool  toggle = false, bool  isOn = false, const QString &  objectName = ""  )

virtual

The featureName in each of the inserts is a keyword that will be used to look up the feature in the featureActionManager for both shortcuts and icons.

If the featureName is empty, the feature will not be available for lookup nor for placement on a user defined toolbar If iPos is -1, appends the menu item. The type is one that uniquely identifies this menu item (defined in menuItems.h). If iType already exists as part of this menu, the menu item is replaced. If this menu is already created, inserts the new menu item and initializes connections for it. If addSeparator is true a separator will be added to the current action group of this type after the menu item is added. By default a name will be created for this menu item unless supplied as last parameter.

virtual DtPopupMenuItem* DtPopupMenu::insertMenuItem ( DtMenuItemType  iPos, DtMenuItemType  iType, QString  text, QString  toolTip = QString::null, QString  accel = QString::null, bool  addSeparator = false, bool  toggle = false, bool  isOn = false, const QString &  objectName = ""  )

virtual

Call this version to not allow the item to be added to a user defined toolbar.

virtual DtPopupMenuItem* DtPopupMenu::insertToggleMenuItem ( DtMenuItemType  iBefore, const QString &  featureName, DtMenuItemType  iType, QString  text, QString  toolTip = QString::null, QString  accel = QString::null, bool  addSeparator = false, bool  isOn = false, const QString &  objectName = ""  )

virtual

Same as above except sets the myIsToggle flag to true which means that is will be an on/off menu item and rather than having the connection made to the "activated" signal, it will be made to the "toggled(bool)" signal.

virtual DtPopupMenuItem* DtPopupMenu::insertToggleMenuItem ( DtMenuItemType  iBefore, DtMenuItemType  iType, QString  text, QString  toolTip = QString::null, QString  accel = QString::null, bool  addSeparator = false, bool  isOn = false, const QString &  objectName = ""  )

virtual

Call this version to not allow the item to be added to a user defined toolbar.

virtual void DtPopupMenu::addMenuItemSeparator ( DtMenuItemType  iGroup )

virtual

Inserts a separator at the current create position for the specified group.

virtual void DtPopupMenu::removeMenuItem ( DtMenuItemType  iType )

virtual

Removes the menu item of the specified type. If it's already created removes it immediately.

virtual bool DtPopupMenu::removeMenuGroup ( const QString &  gr )

virtual

Removes the menu group and all sub-items from that group.

If the menu has not already been created, will prevent that action group from being used

virtual void DtPopupMenu::removeItemAtPosition ( int  iPos )

virtual

Removes the item at the specified position.

virtual void DtPopupMenu::addIcon ( DtMenuItemType  iType, QString  icon, QIcon::Mode  mode = QIcon::Normal, QIcon::State  = QIcon::Off  )

virtual

Adds an icon to be added when the menu item is created.

If the menu item has already been created, attaches the icon to the menu item. If the menu item already has an icon, replaces it with the new one

virtual void DtPopupMenu::removeIcon ( DtMenuItemType  iType, QIcon::Mode  mode = (QIcon::Mode)-1, QIcon::State  = QIcon::Off  )

virtual

Removes an icon. If the menu item is created also removes it from the menu item.

virtual void DtPopupMenu::addGroup ( DtMenuItemType  iToGroup, DtMenuItemType  iGroup, int  iPos, bool  addSep = false  )

virtual

Inserts the action group at the specified position to the specified group (use -1 to append at current position).

Note that when the group is added it will be added in its current state, and any menu items that are added to that group will not be displayed. The group is added at the specified position

virtual void DtPopupMenu::removeGroup ( DtMenuItemType  iGroup )

virtual

Removes group.

virtual void DtPopupMenu::addMenu ( DtMainMenuType  , int  iPos, bool  addSep  )

virtual

Inserts the menu at the specified position.

These items will be added after all other menu items have been created

virtual void DtPopupMenu::removeMenu ( DtMainMenuType  iGroup )

virtual

Removes group.

virtual void DtPopupMenu::mappingMenu ( DtPopupMenu *  menu, int  iFlags = 0  )

virtual

Call this routine if you want to map menu items.

All menus that are scheduled for mapping must be set before this menu is initialized

virtual void DtPopupMenu::mapMenuItem ( DtMenuItemType  iType, DtPopupMenu &  popupMenu, int  iPos = -1, bool  addSeparator = false  )

virtual

This will look at the target popup menu and take both the menu item definition and the validator map entry defined by the menu item type and add them to this menu.

Note that no information will be changed. If the same menu item type exists in this menu, it is removed

virtual void DtPopupMenu::setPosition ( int  iPos )

virtual

Sets the menu item position if inited. Removes then re-inserts.

virtual bool DtPopupMenu::matchesName ( QString  name )

virtual

Returns true if the supplied name matches the menu name of this menu. Will take & into account.

virtual DtMenuItemType DtPopupMenu::uniqueId ( ) const

virtual

Returns a unique id for this menu (max + 1)

virtual QAction* DtPopupMenu::addMenuItem ( DtMenuItemType &  retId, const QString &  featureName, const QString &  item, const QString &  addToMenu, bool  toggle = false, QObject *  actionReceiver = NULL, const char *  action = NULL, QObject *  validationReceiver = NULL, const char *  validation = NULL, const QString &  tooltip = QString::null, const QString &  accelerator = QString::null, bool  addSep = false  )

virtual

Adds a new menu item given the menu item, path to add, action and validator.

Note this routine is only valid for after the menu system has been created. The addToMenu is the "path" to add the menu item to. If empty, adds it to the top level menu (at the bottom). If addToMenu is a menu item, will add it before that menu item. If addToMenu is a popdown action group, adds it to that group at the end (or before the specified item). If the addToMenu item does not exist, it will assume to create a popdown action group for each item and add it to that. Returns a new unique menu item id for this menu.

If the menu has been created, will return the new menu item

If retId is DtNoMenuItemType, then it will be assigned a uniqueId()

virtual void DtPopupMenu::appendMenuValidator ( DtMenuItemType  iType, QObject *  vCall, const char *  validator  )

virtual

Adds the specified validator to a list of validators that can be called for the menu item.

virtual void DtPopupMenu::appendMenuValidator ( const QString &  menu, QObject *  vCall, const char *  validator  )

virtual

virtual bool DtPopupMenu::removeMenuItem ( const QString &  item )

virtual

Removes the named menu item from the menu.

virtual void DtPopupMenu::setupFrom ( DtMainMenuType  iType, DtPopupMenu *  , QWidget *  , DtMenuWidget *  w  )

virtual

Copies menu item information without creating the menu.

If the menu is already created, will not change any menu items, but will copy over structure information

virtual void DtPopupMenu::renameMenuItem ( DtMenuItemType  iType, QString  text = QString::null, QString  toolTip = QString::null, QString  accel = QString::null  )

virtual

Useful routines for subclasses of existing menus to rename/override default functionality.

If menu item has been created renames existing menu ite,

virtual void DtPopupMenu::positionBefore ( DtMenuItemType  iType, DtMenuItemType  iBefore  )

virtual

Repositioning of menu items.

virtual void DtPopupMenu::positionAfter ( DtMenuItemType  iType, DtMenuItemType  iAfter  )

virtual

virtual QString DtPopupMenu::menuName ( )

virtual

Returns the name of this menu item to place on the menu bar.

Reimplemented in DtTMCreateMenu, DtHelpMenu, DtTMObjectsMenu, DtEntityEditorCreateMenu, DtEntityEditorEditMenu, DtTMViewMenu, DtTMFileMenu, DtTMNavigationMenu, and DtTMOptionsMenu.

virtual void DtPopupMenu::addActionAndValidatorForType ( DtMenuItemType  iType, QObject *  aCall, const char *  action, QObject *  vCall = NULL, const char *  validator = NULL  )

virtual

Adds a new action/validator pair.

Supply NULL to have no action. The items passed are SLOTS that will be called via a connection to either the activated signal from the QAction (for the action) or the validateItems signal if something needs to be validated. The QObject* supplied is the item that will be signalled in response to both action and validator

virtual void DtPopupMenu::addActionForType ( DtMenuItemType  iType, QObject *  aCall, const char *  action  )

virtual

virtual void DtPopupMenu::addValidatorForType ( DtMenuItemType  iType, QObject *  vCall, const char *  validator  )

virtual

virtual void DtPopupMenu::addGlobalActionAndValidatorForType ( DtMenuItemType  iType, QObject *  aCall, const char *  action, QObject *  vCall = NULL, const char *  validator = NULL  )

virtual

Replaces on a global level the action/validator pair for the specified type.

virtual DtActionGroup* DtPopupMenu::actionGroupWithName ( const QString &  ) const

virtual

Returns an action (or action group) with the specified name.

These will only return valid items after the menu has been created

virtual QAction* DtPopupMenu::actionWithName ( const QString &  ) const

virtual

virtual void DtPopupMenu::clearMenuItems ( )

virtual

Frees memory associated with menu items. Do not call unless the menu is about to be destroyed.

virtual void DtPopupMenu::removeFeatureActions ( )

virtual

void DtPopupMenu::validateItems ( )

signal

Sent when items want to be validated. Emitted from the validate() method.

virtual void DtPopupMenu::validate ( )

virtualslot

Reimplemented in DtTMViewMenu, and DtTerrainObjectsMenu.

virtual void DtPopupMenu::menuItemDestroyed ( QAction *  )

virtualslot

Reimplemented in DtTMCreateMenu.

virtual void DtPopupMenu::actionGroupDestroyed ( DtActionGroup *  )

virtualslot

Reimplemented in DtTMCreateMenu.

virtual void DtPopupMenu::featureActionManagerDestroyed ( )

virtualslot

virtual void DtPopupMenu::popupRemoved ( QObject *  )

protectedvirtualslot

virtual void DtPopupMenu::menuItemDestroyed ( )

protectedvirtualslot

virtual void DtPopupMenu::actionGroupDestroyed ( )

protectedvirtualslot

virtual bool DtPopupMenu::initMenuItems ( )

protectedvirtual

Initializes specific menu items to place onto this menu bar.

Override this routine to create your menu items.

Reimplemented in DtTMCreateMenu, DtTMNavigationMenu, DtHelpMenu, DtTMViewMenu, DtTMObjectsMenu, DtTerrainFileMenu, DtTMFileMenu, DtTMOptionsMenu, DtTerrainObjectsMenu, DtTerrainViewMenu, DtTerrainOptionsMenu, DtEntityEditorCreateMenu, DtEntityEditorEditMenu, and DtEntityEditorFileMenu.

virtual bool DtPopupMenu::initActionGroups ( )

protectedvirtual

Initializes action groups to be used with this menu.

Reimplemented in DtTMCreateMenu, DtTMNavigationMenu, DtTerrainObjectsMenu, DtHelpMenu, DtTMViewMenu, DtTMObjectsMenu, DtTMFileMenu, DtTerrainFileMenu, DtTMOptionsMenu, DtTerrainOptionsMenu, DtEntityEditorCreateMenu, and DtEntityEditorEditMenu.

virtual bool DtPopupMenu::removeMenuItemAtPosition ( int  iPos )

protectedvirtual

Removes the menu item at the specified position from the ordered list and the menu if it has been created.

Returns true if the menu was also removed from the menu system, false if not. This will be true if myCreated is true and the menu item is found

virtual void DtPopupMenu::addNewMenuItem ( DtPopupMenuItem &  item, int  iPos  )

protectedvirtual

Adds a new menu item to internal structures and creates if needed.

At this time, if the menu has already been created, the item is appended rather than inserted at the current position.

virtual QAction* DtPopupMenu::createMenuItem ( const DtPopupMenuItem &  item )

protectedvirtual

Creates and returns the new menu item.

If item created is a separator, then what is returned is DtSeparatorType

virtual void DtPopupMenu::attachMenuItems ( )

protectedvirtual

Using the mappings from type to validator and action, maps the created actions and connects them to the appropriate messages.

Reimplemented in DtTMCreateMenu.

virtual void DtPopupMenu::attachMenuItem ( const DtPopupMenuItem &  item )

protectedvirtual

Attaches a menu item based on the specific type.

virtual void DtPopupMenu::addCompletedItemsToMenu ( )

protectedvirtual

Adds the completed items to the menu.

By default calls getActionGroupForType(0) and adds that return value to this menu

Reimplemented in DtTerrainOptionsMenu.

virtual void DtPopupMenu::addAttachedMenus ( )

protectedvirtual

Adds any menus to this menu via the attachMenu command by creating them via the menu widget factory.

virtual void DtPopupMenu::setIcon ( DtMenuItemType  iType )

protectedvirtual

Uses internal structures to see if this menu item needs an icon associated with it.

virtual void DtPopupMenu::attachValidators ( bool  b )

protectedvirtual

Cycles through menu items and attaches/detatches validators according to flag.

Called from setEnableValidations

virtual void DtPopupMenu::initConnections ( )

protectedvirtual

Initializes connections used for validations on this popup menu.

Reimplemented in DtTMObjectsMenu.

virtual DtPopupMenuItem* DtPopupMenu::popupMenuItem ( DtMenuItemType  iType, bool  actionable = false  )

protectedvirtual

Returns the DtPopupMenuItem associated with a particular type.

If actionable is false, returns the first occurance, else returns the first actionable occurance

virtual DtActionValidatorMap* DtPopupMenu::actionValidatorMapEntry ( DtMenuItemType  iType )

protectedvirtual

Returns a DtActionValidatorMap associated with the particular type.

virtual void DtPopupMenu::removeOrderedMenuItem ( int  iPos )

protectedvirtual

Removes the item only from the ordered list.

virtual int DtPopupMenu::addOrderedItem ( const DtPopupMenuItem &  item, int  iPos  )

protectedvirtual

Adds an item to the ordered list. Returns the position added to in the ordered list.

virtual void DtPopupMenu::setMapMenuItemsTo ( DtPopupMenu *  menu )

protectedvirtual

Set proxy menu.

virtual void DtPopupMenu::addActionGroup ( DtActionGroup *  )

protectedvirtual

Adds a new action group to internal list (if does not exist)

virtual bool DtPopupMenu::matchesName ( QString  menu, QString  name  ) const

protectedvirtual

virtual DtActionGroup* DtPopupMenu::internalGetActionGroupForType ( DtMenuItemType  type )

protectedvirtual

Checks internal groups then checks getActionGroupForType.

virtual QAction* DtPopupMenu::addNewActionToActionGroup ( const DtPopupMenuItem &  item )

protectedvirtual

Creates a new menu item and adds it to its action group.

virtual void DtPopupMenu::addAllActionsFor ( DtActionGroup *  )

protectedvirtual

Given the group, looks through all menu items that return the given sub group and adds them to the group.

Sets myProcess flag to true

Member Data Documentation

QHash<DtMenuItemType, QAction*> DtPopupMenu::myActions

protected

QHash<DtMenuItemType, DtPopupMenuItem> DtPopupMenu::myMenuItems

protected

QHash<DtMenuItemType, DtActionValidatorMap> DtPopupMenu::myActionValidators

protected

QList<DtPopupMenuItem> DtPopupMenu::myOrderedMenuItems

protected

QHash<DtMenuItemType, QIcon> DtPopupMenu::myIcons

protected

int DtPopupMenu::myId

protected

bool DtPopupMenu::myCreated

protected

bool DtPopupMenu::myInited

protected

Referenced by initialized().

QWidget* DtPopupMenu::myOwner

protected

DtMainMenuType DtPopupMenu::myType

protected

bool DtPopupMenu::myEnableValidations

protected

DtMenuWidget* DtPopupMenu::myMenuWidget

protected

bool DtPopupMenu::myDisplay

protected

QHash<DtPopupMenu*, int> DtPopupMenu::myMenuMappingList

protected

DtPopupMenu* DtPopupMenu::myMenuItemProxy

protected

This will be set to a menu that is mapping us so the menuItemForType call will ask myMenuItemProxy menu rather this menu.

QHash<DtMenuItemType, DtActionValidatorMap> DtPopupMenu::myGlobalActionValidators

staticprotected

QList<DtActionGroup*> DtPopupMenu::myActionGroups

protected

These are actions groups that were created outside the menu system.

QHash<DtMenuItemType, DtActionGroup*> DtPopupMenu::myInternalGroupMappings

protected

QList<DtPopupMenu*> DtPopupMenu::myAttachedMenus

protected

Menus that have been attached to this menu.

QList<DtActionGroup*> DtPopupMenu::myPendingActionGroups

protected

During post processing step, add menu items to parent action group or menu.

QVector<QString> DtPopupMenu::myRemovedActionGroups

protected

List of action groups that need to be ignored.

DtFeatureActionManager* DtPopupMenu::myFeatureActionManager

protected

Referenced by featureActionManager().

bool DtPopupMenu::myAddFeatures

protected

Referenced by addFeatures(), and setAddFeatures().

---

The documentation for this class was generated from the following file:

• include/commonWgt/popupMenu.h
