DtSdcObject Class Reference

DtSdcObject is the base class from which all Draw Control Objects are derived. More...

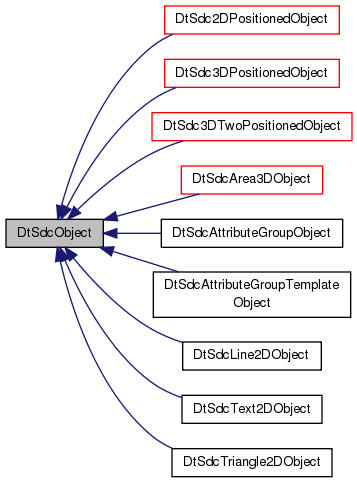

Inheritance diagram for DtSdcObject:

Public Member Functions
	DtSdcObject (DtExerciseConn *exConn, unsigned id, const DtString &objName)
	Parameterized constructor.
virtual	~DtSdcObject ()
	Virtual destructor.
virtual unsigned	id () const
	id accessor
virtual void	setId (unsigned id)
	id mutator
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setVisible (bool yesNo)
virtual bool	visible () const
virtual bool	flashing () const
virtual void	setFlashing (bool yesNo)
virtual const DtSdcColor &	color () const
virtual void	setColor (const DtSdcColor &color)
virtual void	setRemoteGraphicSet (const std::string &setName)
virtual void	update ()=0
	update the internal publisher and tick

Protected Attributes
unsigned	myId
DtEnvironmentProcessPublisher	myPublisher
bool	myVisible
DtSdcColor	myEmptyColor

Private Member Functions
	DtSdcObject ()
	Default constructor.
	DtSdcObject (const DtSdcObject &orig)
	Copy constructor Private and unimplemented.
DtSdcObject &	operator= (const DtSdcObject &rhs)
	Assignment operator Private and unimplemented.

Detailed Description

DtSdcObject is the base class from which all Draw Control Objects are derived.

DtSdcObject defines the interface and storage that is common to all Stealth Draw Control Objects. This includes a local id (that should be unique to the sender - see the DtStealthRemoteDrawer class for an id generator) and a DtStealthDrawControlPdu that is used to send the object on the network to remote stealths. The local id is combined with the sender id of the application / federate sending the draw object to create the object's full id.

It is important to note that Draw Control Objects are not true objects in the DIS / HLA-RPR sense; they are sent as data interactions, and will only be seen by listeners that are in the exercise / federation at the time they are sent.

Constructor & Destructor Documentation

DtSdcObject::DtSdcObject	(	DtExerciseConn *	exConn,
		unsigned	id,
		const DtString &	objName
	)

Parameterized constructor.

Parameters

id	(locally) unique id to use for this object

virtual DtSdcObject::~DtSdcObject ( )

virtual

Virtual destructor.

DtSdcObject::DtSdcObject ( )

private

Default constructor.

Private and unimplemented. You must construct a DtSdcObject with an id

DtSdcObject::DtSdcObject ( const DtSdcObject &  orig )

private

Copy constructor Private and unimplemented.

Not copyable.

Member Function Documentation

DtSdcObject& DtSdcObject::operator= ( const DtSdcObject &  rhs )

private

Assignment operator Private and unimplemented.

Not copyable.

virtual unsigned DtSdcObject::id ( ) const

virtual

id accessor

Returns

The (local) id of this draw object

virtual void DtSdcObject::setId ( unsigned  id )

virtual

id mutator

This is useful for assigning a unique Id after cloning an object using the copy constructor.

Parameters

id	A (locally unique) id for this draw object

virtual const DtGlobalObjectDesignator& DtSdcObject::globalId ( ) const

virtual

virtual void DtSdcObject::setVisible ( bool  yesNo )

virtual

virtual bool DtSdcObject::visible ( ) const

virtual

virtual bool DtSdcObject::flashing ( ) const

virtual

Reimplemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcEllipsoidCuboidBase, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

virtual void DtSdcObject::setFlashing ( bool  yesNo )

virtual

Reimplemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcEllipsoidCuboidBase, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

virtual const DtSdcColor& DtSdcObject::color ( ) const

virtual

Reimplemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcEllipsoidCuboidBase, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

virtual void DtSdcObject::setColor ( const DtSdcColor &  color )

virtual

Reimplemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcEllipsoidCuboidBase, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

virtual void DtSdcObject::setRemoteGraphicSet ( const std::string &  setName )

virtual

Reimplemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcEllipsoidCuboidBase, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

virtual void DtSdcObject::update ( )

pure virtual

update the internal publisher and tick

Pure virtual function used to force any changes to the draw control objects to be sent to the network.

Implemented in DtSdcTriangle2DObject, DtSdcText3DObject, DtSdcText2DObject, DtSdcLine3DObject, DtSdcLine2DObject, DtSdcEllipsoidObject, DtSdcEllRectBase, DtSdcCylinderObject, DtSdcCuboidObject, DtSdcAttributeGroupTemplateObject, DtSdcAttributeGroupObject, and DtSdcArea3DObject.

Member Data Documentation

unsigned DtSdcObject::myId

protected

DtEnvironmentProcessPublisher DtSdcObject::myPublisher

protected

bool DtSdcObject::myVisible

protected

DtSdcColor DtSdcObject::myEmptyColor

protected

---

The documentation for this class was generated from the following file:

• include/vrvVrl/legacyStealthControl.h
