makVrf::DtCreateAndEditObjectDialogInterface Class Reference

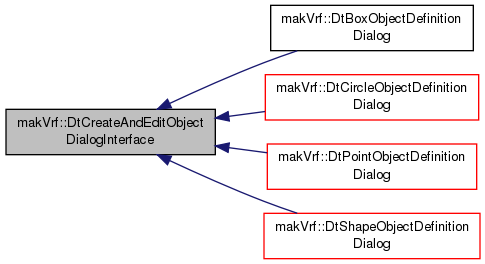

Inheritance diagram for makVrf::DtCreateAndEditObjectDialogInterface:

Public Types
enum	DtDialogInteractionMode { DtCreationMode = 0, DtEditingMode }

Public Member Functions
virtual	~DtCreateAndEditObjectDialogInterface ()
virtual QString	getName ()=0
	Returns the point object's name.
virtual void	setName (const QString &name)=0
	Sets the point object's name.
virtual void	setNameVisible (bool flag)=0
	sets the name field to visible
virtual void	setTitle (const QString &title)=0
virtual void	setAllowOverlaySelection (bool flag)=0
virtual void	hideDialog ()=0
virtual void	closeDialog ()=0
virtual void	populate (const makVrv::DtUniqueID &)=0
virtual void	populate (const DtCreateObjectCommand *cmd)=0
virtual bool	blockSignals (bool)=0
virtual void	setForce (int)=0
	Set force.

Public Attributes
boost::signal< void()>	signal_dialogClosing
	This signal gets emitted when the dialog is closing.
boost::signal< void()>	signal_dialogUpdated
	This signal gets emitted when the dialog is updated.
boost::signal< void(const std::string &)>	signal_nameChanged
	This signal gets emitted when the name is updated.
boost::signal< void(const std::string &)>	signal_labelChanged
	This signal gets emitted when the label is updated.
boost::signal< void(bool)>	signal_reviewMouseClicks
	This signal get emitted when the "enable/disable mouse clicks for automatic creation" option is toggled.
boost::signal< void(const DtVector &)>	signal_locationAdded
	This signal gets emitted when a location is added to the dialog.
boost::signal< void(const DtVector &)>	signal_locationSet
	This signal gets emitted when a location is set into the dialog.
boost::signal< void(const std::string &)>	signal_overlayNameChanged
	This signal gets emitted when the overlay name changes in the dialog.
boost::signal< void(int)>	signal_forceChanged
	This signal gets emitted when the force changes in the dialog.
boost::signal< void(bool)>	signal_publishObjectChanged
	This signal gets sent when object publication changes.
boost::signal< void(int)>	signal_colorChanged
	This signal gets sent when color has changed.

Protected Member Functions
virtual void	setupGui ()=0
	Sets up the visuals.

Member Enumeration Documentation

enum makVrf::DtCreateAndEditObjectDialogInterface::DtDialogInteractionMode

Enumerator:

DtCreationMode
DtEditingMode

Constructor & Destructor Documentation

virtual makVrf::DtCreateAndEditObjectDialogInterface::~DtCreateAndEditObjectDialogInterface ( )

inlinevirtual

Member Function Documentation

virtual QString makVrf::DtCreateAndEditObjectDialogInterface::getName ( )

pure virtual

Returns the point object's name.

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setName ( const QString &  name )

pure virtual

Sets the point object's name.

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setNameVisible ( bool  flag )

pure virtual

sets the name field to visible

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setTitle ( const QString &  title )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setAllowOverlaySelection ( bool  flag )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::hideDialog ( )

pure virtual

Implemented in makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, and makVrf::DtShapeObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::closeDialog ( )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::populate ( const makVrv::DtUniqueID &  )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, and makVrf::DtPropDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::populate ( const DtCreateObjectCommand *  cmd )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual bool makVrf::DtCreateAndEditObjectDialogInterface::blockSignals ( bool  )

pure virtual

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setForce ( int  )

pure virtual

Set force.

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, and makVrf::DtBoxObjectDefinitionDialog.

virtual void makVrf::DtCreateAndEditObjectDialogInterface::setupGui ( )

protectedpure virtual

Sets up the visuals.

Implemented in makVrf::DtShapeObjectDefinitionDialog, makVrf::DtPointObjectDefinitionDialog, makVrf::DtCircleObjectDefinitionDialog, makVrf::DtBoxObjectDefinitionDialog, vrfCustomControlObjectExample::DtCustomControlObjectDefinitionDialog, and makVrf::DtIndirectFireObjectDefinitionDialog.

Member Data Documentation

boost::signal<void ()> makVrf::DtCreateAndEditObjectDialogInterface::signal_dialogClosing

This signal gets emitted when the dialog is closing.

boost::signal<void ()> makVrf::DtCreateAndEditObjectDialogInterface::signal_dialogUpdated

This signal gets emitted when the dialog is updated.

boost::signal<void (const std::string&)> makVrf::DtCreateAndEditObjectDialogInterface::signal_nameChanged

This signal gets emitted when the name is updated.

boost::signal<void (const std::string&)> makVrf::DtCreateAndEditObjectDialogInterface::signal_labelChanged

This signal gets emitted when the label is updated.

boost::signal<void (bool)> makVrf::DtCreateAndEditObjectDialogInterface::signal_reviewMouseClicks

This signal get emitted when the "enable/disable mouse clicks for automatic creation" option is toggled.

boost::signal<void (const DtVector&)> makVrf::DtCreateAndEditObjectDialogInterface::signal_locationAdded

This signal gets emitted when a location is added to the dialog.

boost::signal<void (const DtVector&)> makVrf::DtCreateAndEditObjectDialogInterface::signal_locationSet

This signal gets emitted when a location is set into the dialog.

boost::signal<void (const std::string&)> makVrf::DtCreateAndEditObjectDialogInterface::signal_overlayNameChanged

This signal gets emitted when the overlay name changes in the dialog.

boost::signal<void (int)> makVrf::DtCreateAndEditObjectDialogInterface::signal_forceChanged

This signal gets emitted when the force changes in the dialog.

boost::signal<void (bool)> makVrf::DtCreateAndEditObjectDialogInterface::signal_publishObjectChanged

This signal gets sent when object publication changes.

boost::signal<void (int)> makVrf::DtCreateAndEditObjectDialogInterface::signal_colorChanged

This signal gets sent when color has changed.

---

The documentation for this class was generated from the following file:

• include/vrfGuiCoreQt/createAndEditObjectDialogInterface.h
