makVrf::DtTaskSetDialogInterface Class Reference

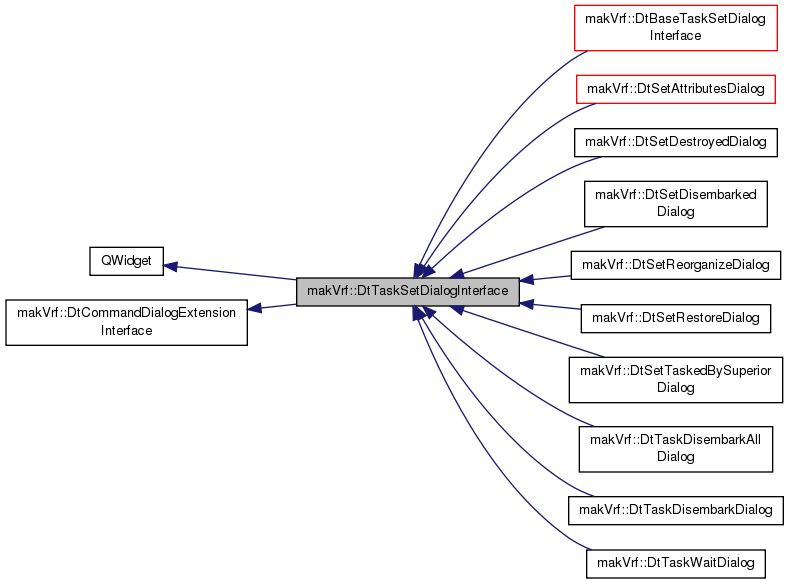

Inheritance diagram for makVrf::DtTaskSetDialogInterface:

Public Member Functions
	DtTaskSetDialogInterface (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0)
virtual	~DtTaskSetDialogInterface ()
virtual void	connectSignals (const std::vector< makVrv::DtSimEntry * > &)
	Setup signals to cancel dialog if all objects deleted that this dialog is representing.
virtual bool	editStatement (const std::vector< makVrv::DtSimEntry * > &, const DtSimStatement *)
	Edits the current statement. Return true if the statement can be edited.
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &)
	Sets up dialog by asking logic to do it.
virtual void	selectionChanged (const QString &selection)
	Notify dialog of selection changes from attached dialogs.
virtual void	sendSetRequest (std::vector< std::string > names, const DtSetDataRequest &)
	Sends signal to send out set.
virtual bool	insertMapFocusHandler (DtMapFocusHandler *, int index=-1)
	If a dialog has manages map focus handlers, inserts this map focus handler into the chain.
virtual void	initializeFromAction (DtVrfTaskSetAction *)
	Intializes contents from action as an action could have relevant properties assigned to it containing additional data.
virtual void	sendTaskRequest (std::vector< std::string > names, const DtSimTask &)
	Sends signal to send out task.
virtual void	sendCommandRequest (const DtSimCommandObjectWrapper &)
	Sends signal to send out command.
virtual std::vector< std::string >	names () const
void	setPartOfPlan (bool b)
bool	partOfPlan () const
virtual void	cancel ()
	Sends out cancel signal.
virtual void	setOKEnabled (bool b)
	Sets whether or not the OK button is enabled.
virtual bool	valid () const
	Override to return whether or not extension is valid.
virtual QWidget *	widget ()
	Returns the widget.
const std::vector < makVrv::DtSimEntry * > &	connectedTo () const
Public Member Functions inherited from makVrf::DtCommandDialogExtensionInterface
virtual	~DtCommandDialogExtensionInterface ()
virtual void	run (const std::vector< makVrv::DtSimEntry * > &)=0
	Override to run the dialog.
virtual bool	wantsSelectionOfObjectInCommandMode () const =0
	Override to return false if, when this task is used as part of a simulation command, it does not want to allow to choose an object to apply the command to.
virtual void	onCancel ()=0

Protected Member Functions
virtual void	slot_objectAboutToBeRemoved (makVrv::DtSimObjectEntry &)

Protected Attributes
makVrv::DtDe &	myDe
bool	myPartOfPlan
std::vector< makVrv::DtSimEntry * >	myConnectedTo

Additional Inherited Members
Public Attributes inherited from makVrf::DtCommandDialogExtensionInterface
boost::signal< void()>	signal_cancelled
boost::signal< void(bool)>	signal_validStateChanged
	Signal sent when the task becomes valid (or invalid)
boost::signal< void(std::vector < std::string > names, const DtSetDataRequest &)>	signal_sendSetRequest
boost::signal< void(std::vector < std::string > names, const DtSimTask &)>	signal_sendTaskRequest
boost::signal< void(const DtSimCommandObjectWrapper &)>	signal_sendCommandRequest
boost::signal< void(const std::vector< std::string > &, const DtSimTask &, DtVrfTaskSetMenu *)>	signal_commandActivated
boost::signal< void(const DtSimCommandObjectWrapper &)>	signal_simCommandActivated
boost::signal< void(const std::vector < makVrv::DtSimEntry * > &)>	signal_stopWatching

Constructor & Destructor Documentation

makVrf::DtTaskSetDialogInterface::DtTaskSetDialogInterface	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0
	)

virtual makVrf::DtTaskSetDialogInterface::~DtTaskSetDialogInterface ( )

virtual

Member Function Documentation

virtual void makVrf::DtTaskSetDialogInterface::connectSignals ( const std::vector< makVrv::DtSimEntry * > &  )

virtual

Setup signals to cancel dialog if all objects deleted that this dialog is representing.

virtual bool makVrf::DtTaskSetDialogInterface::editStatement ( const std::vector< makVrv::DtSimEntry * > &  , const DtSimStatement *    )

virtual

Edits the current statement. Return true if the statement can be edited.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtBaseTaskSetDialogInterface, makVrf::DtSimulationCommandSetGlobalWeatherDialog, makVrf::DtSimulationCommandIssuePlanDialog, makVrf::DtLaunchCounterMeasuresTaskDialog, makVrf::DtSetRadarModeDialog, makVrf::DtSimulationCommandSetTimeOfDayDialog, makVrf::DtSimulationCommandDeleteDialog, makVrf::DtSimulationCommandRestartPlanDialog, makVrf::DtReleaseBombTaskDialog, makVrf::DtTaskFireAtTargetDialog, makVrf::DtSimulationCommandAbandonPlanDialog, makVrf::DtSetResourcesDialog, makVrf::DtTaskMoveIntoFormationDialog, makVrf::DtScriptedTaskDialog, makVrf::DtSetFormationDialog, makVrf::DtSetAppearanceDialog, makVrf::DtSetCapabilitiesDialog, makVrf::DtSetDestroyedDialog, makVrf::DtSetDisembarkedDialog, makVrf::DtSetReorganizeDialog, makVrf::DtSetRestoreDialog, makVrf::DtSetTaskedBySuperiorDialog, makVrf::DtTaskDisembarkAllDialog, makVrf::DtTaskDisembarkDialog, and makVrf::DtTaskWaitDialog.

virtual void makVrf::DtTaskSetDialogInterface::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  )

virtual

Sets up dialog by asking logic to do it.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtReleaseBombTaskDialog, makVrf::DtLaunchCounterMeasuresTaskDialog, makVrf::DtBaseTaskSetDialogInterface, makVrf::DtScriptedTaskDialog, makVrf::DtSetResourcesDialog, makVrf::DtTaskDIGuyAnimationDialog, makVrf::DtSetDIGuyAppearanceDialog, makVrf::DtSetRadarModeDialog, makVrf::DtSetEmitterDialog, makVrf::DtTaskFireAtTargetDialog, makVrf::DtSetFormationDialog, makVrf::DtSetAppearanceDialog, and makVrf::DtSetCapabilitiesDialog.

virtual void makVrf::DtTaskSetDialogInterface::selectionChanged ( const QString &  selection )

virtual

Notify dialog of selection changes from attached dialogs.

Put in place to allow simCommand dialogs to notify their extension dialogs–the dialogs that fill in the specific command/task/set information–to be notified of which entity(s) they are being applied to. In many cases not necessary to the base class is a no op. However, derived class may wish to make use of this information.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtSimulationCommandIssuePlanDialog.

virtual void makVrf::DtTaskSetDialogInterface::sendSetRequest ( std::vector< std::string >  names, const DtSetDataRequest &    )

virtual

Sends signal to send out set.

virtual bool makVrf::DtTaskSetDialogInterface::insertMapFocusHandler ( DtMapFocusHandler *  , int  index = -1  )

virtual

If a dialog has manages map focus handlers, inserts this map focus handler into the chain.

Default is a no-op and will return false (not handled)

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtBaseFilteredListViewTaskSetDialog.

virtual void makVrf::DtTaskSetDialogInterface::initializeFromAction ( DtVrfTaskSetAction *  )

virtual

Intializes contents from action as an action could have relevant properties assigned to it containing additional data.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtScriptedTaskDialog.

virtual void makVrf::DtTaskSetDialogInterface::sendTaskRequest ( std::vector< std::string >  names, const DtSimTask &    )

virtual

Sends signal to send out task.

virtual void makVrf::DtTaskSetDialogInterface::sendCommandRequest ( const DtSimCommandObjectWrapper &  )

virtual

Sends signal to send out command.

Reimplemented in makVrf::DtBaseTaskSetDialogInterface.

virtual std::vector<std::string> makVrf::DtTaskSetDialogInterface::names ( ) const

virtual

void makVrf::DtTaskSetDialogInterface::setPartOfPlan ( bool  b )

inline

bool makVrf::DtTaskSetDialogInterface::partOfPlan ( ) const

inline

virtual void makVrf::DtTaskSetDialogInterface::cancel ( )

virtual

Sends out cancel signal.

Reimplemented in makVrf::DtSetDIGuyAppearanceDialog.

virtual void makVrf::DtTaskSetDialogInterface::setOKEnabled ( bool  )

inlinevirtual

Sets whether or not the OK button is enabled.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtBaseTaskSetDialogInterface.

virtual bool makVrf::DtTaskSetDialogInterface::valid ( ) const

inlinevirtual

Override to return whether or not extension is valid.

Implements makVrf::DtCommandDialogExtensionInterface.

Reimplemented in makVrf::DtBaseFilteredListViewTaskSetDialog, makVrf::DtTaskFireCruiseMissileDialog, makVrf::DtSetAttributesDialog, makVrf::DtTaskPatrolBetweenDialog, makVrf::DtBaseTaskSetDialogInterface, and makVrf::DtBaseYesNoTaskSetDialog.

virtual QWidget* makVrf::DtTaskSetDialogInterface::widget ( )

inlinevirtual

Returns the widget.

Implements makVrf::DtCommandDialogExtensionInterface.

const std::vector<makVrv::DtSimEntry*>& makVrf::DtTaskSetDialogInterface::connectedTo ( ) const

inline

virtual void makVrf::DtTaskSetDialogInterface::slot_objectAboutToBeRemoved ( makVrv::DtSimObjectEntry &  )

protectedvirtual

Member Data Documentation

makVrv::DtDe& makVrf::DtTaskSetDialogInterface::myDe

protected

bool makVrf::DtTaskSetDialogInterface::myPartOfPlan

protected

std::vector<makVrv::DtSimEntry*> makVrf::DtTaskSetDialogInterface::myConnectedTo

protected

---

The documentation for this class was generated from the following file:

• include/vrfGuiCoreQt/DtTaskSetDialogInterface.h
