makVrv::Dt3DLineModelInstanceSegmentInterface Class Reference

Dt3DLineModelInstanceSegmentInterface is an abstract class providing a common interface for line model instance segments. More...

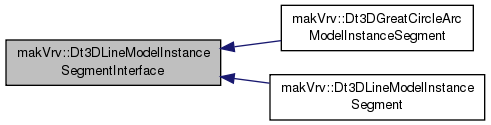

Inheritance diagram for makVrv::Dt3DLineModelInstanceSegmentInterface:

Public Member Functions
	Dt3DLineModelInstanceSegmentInterface ()
	CTOR.
	~Dt3DLineModelInstanceSegmentInterface ()
	DTOR.
virtual void	setStartPoint (const osg::Vec3d &startPoint)=0
	Set the start point.
virtual void	setEndPoint (const osg::Vec3d &endPoint)=0
	Set the end point.
virtual void	setColor (const osg::Vec4 &color)=0
	Set the segment's color.
virtual void	setVertexColor (unsigned int vertexIndex, const osg::Vec4 &color)=0
	Set the color of one end of the segment.
virtual void	setWidth (double lineWidth)=0
	Set the segment width in pixels.
virtual double	width () const =0
	Get the segment width in pixels.
virtual void	setStipplePattern (unsigned int stipplePattern, int repeatFactor=1)=0
	Set the line's stipple pattern.
virtual osg::Node *	rootNode ()=0
	Get the root of the model instance segment.
virtual const std::vector < osg::Vec3 > &	pickableVertices () const =0
	Get the vertex list for this segment's pickable.
virtual void	update ()=0
	Indicate that its time to prepare actual scene graph data to be rendered.

Detailed Description

Dt3DLineModelInstanceSegmentInterface is an abstract class providing a common interface for line model instance segments.

Constructor & Destructor Documentation

makVrv::Dt3DLineModelInstanceSegmentInterface::Dt3DLineModelInstanceSegmentInterface

(

)

CTOR.

makVrv::Dt3DLineModelInstanceSegmentInterface::~Dt3DLineModelInstanceSegmentInterface

(

)

DTOR.

Member Function Documentation

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setStartPoint ( const osg::Vec3d &  startPoint )

pure virtual

Set the start point.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setEndPoint ( const osg::Vec3d &  endPoint )

pure virtual

Set the end point.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setColor ( const osg::Vec4 &  color )

pure virtual

Set the segment's color.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setVertexColor ( unsigned int  vertexIndex, const osg::Vec4 &  color  )

pure virtual

Set the color of one end of the segment.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setWidth ( double  lineWidth )

pure virtual

Set the segment width in pixels.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual double makVrv::Dt3DLineModelInstanceSegmentInterface::width ( ) const

pure virtual

Get the segment width in pixels.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::setStipplePattern ( unsigned int  stipplePattern, int  repeatFactor = 1  )

pure virtual

Set the line's stipple pattern.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual osg::Node* makVrv::Dt3DLineModelInstanceSegmentInterface::rootNode ( )

pure virtual

Get the root of the model instance segment.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual const std::vector<osg::Vec3>& makVrv::Dt3DLineModelInstanceSegmentInterface::pickableVertices ( ) const

pure virtual

Get the vertex list for this segment's pickable.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

virtual void makVrv::Dt3DLineModelInstanceSegmentInterface::update ( )

pure virtual

Indicate that its time to prepare actual scene graph data to be rendered.

Implemented in makVrv::Dt3DGreatCircleArcModelInstanceSegment, and makVrv::Dt3DLineModelInstanceSegment.

---

The documentation for this class was generated from the following file:

• include/vrvOsg/Dt3DLineModelInstanceSegmentInterface.h
