A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to another object. More...

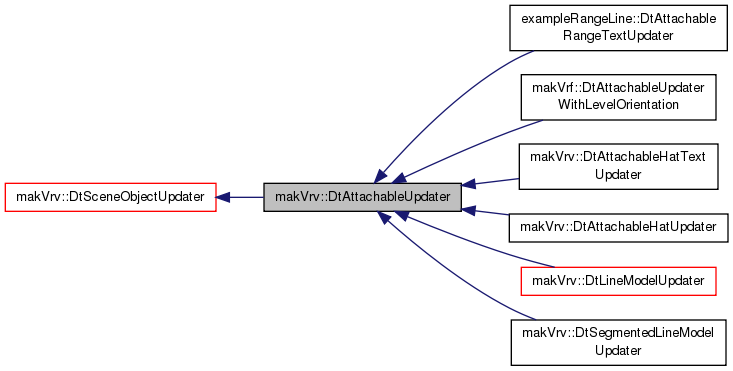

Inheritance diagram for makVrv::DtAttachableUpdater:

[legend]

Classes
class	AttachedPoint
	Common base class for all attachments. More...
class	LinearAttachedPoint
	AttachPoint used to attach to a point that is proportionally positioned between 2 other points. More...
class	ObjectAttachedPoint
	AttachedPoint used to attach to a scene object. More...
class	VertexAttachedPoint
	AttachPoint used to attach to a position provided through the updater interface. More...

Public Types
enum	AttachedPointType { AttachedPointTypeVertex, AttachedPointTypeObject, AttachedPointTypeProportional, AttachedPointTypeDeprecatedObject, AttachedPointTypeInvalidObject }
	Types of attachments. More...
enum	AttachedPointMode { AttachedPointModePositionAndOrientation, AttachedPointModePositionOnly, AttachedPointModeOrientationOnly }

Public Member Functions
	DtAttachableUpdater (DtDe &de, DtUniqueID id, bool suppressTick=false)
	CTOR.
virtual	~DtAttachableUpdater ()
	DTOR.
virtual void	addAttachedPoint (const DtVector &position, int targetVertexIndex)
	Add a (vertex) attach point.
virtual void	addAttachedPoint (DtUniqueID uniqueID, int targetVertexIndex)
	Add a (object) attach point.
virtual void	addAttachedPoint (DtUniqueID uniqueID, int vtx1, int vtx2, double proportion, int targetVertexIndex)
	Add a (linear) attach point.
virtual const AttachedPoint &	attachedPoint (int targetVertexIndex) const
	Returns the attached point at the given vertex.
virtual void	setPositionOffset (const DtVector &offset)
	positionally offset the attach points by this amount.
virtual void	setPositionOffset (const DtVector &offset, int vtx)
	positionally offset the specific attach point by this amount.
virtual void	setOrientationOffset (const DtTaitBryan &offset)
	rotationally offset the attach points by this amount.
virtual void	setAttachedPointMode (unsigned int mode, int vtx)
	Set whether an attached point updates position, orientation, or both.
virtual void	update (DtTime tNow)
	Calls doAttachment() followed by updateSceneObject()
virtual void	doAttachment (DtTime tNow)
	Find the actual position and orientation based on the attach points and offsets.
Public Member Functions inherited from makVrv::DtSceneObjectUpdater
	DtSceneObjectUpdater (DtDe &de, DtUniqueID id, bool suppressTick=false)
	CTOR.
virtual	~DtSceneObjectUpdater ()
	Virtual DTOR.
virtual bool	needsUpdate (DtTime tNow)
	The check function called by DtTickableManager to verify if an update is required.
virtual DtTime	lastUpdateTime () const
	Get the time-stamp of the last update.
virtual void	setSceneObject (DtSceneObject *sceneObject)
	Set the scene object to be updated.
DtSceneObject *	findSceneObject ()
	Get the current scene object for this updater.
DtUniqueID	uniqueId () const
	Returns the distributed object id of this updater.
virtual void	setUpdaterPosition (int vtx, const DtVector &pos)
	Set the position of a scene object vertex.
virtual const DtVector &	updaterPosition (int vtx) const
	Get the position of a scene object vertex.
virtual void	setUpdaterOrientation (int vtx, const DtTaitBryan &ori)
	Set the orientation of a scene object vertex.
virtual const DtTaitBryan &	updaterOrientation (int vtx) const
	Get the orientation of a scene object vertex.
void	updateSceneObject (DtTime tNow)
	Update the scene object position and orientation at each vertex and set the last updated time-stamp.
virtual void	terrainScaleTransformsIfNeeded ()
	Scales the transforms if the terrain scaling flag is set.

Protected Types
typedef std::vector < AttachedPoint * >	AttachedPointsVector

Protected Member Functions
virtual void	slot_attachedSceneObjectToBeDeleted (const DtUniqueID &)
virtual void	slot_attachedUpdaterToBeDeleted (const DtUniqueID &id)
virtual bool	pointLocationAndOrientation (AttachedPoint *point, double simTime, DtVector &location, DtTaitBryan &orientation)
virtual void	removeAttachedPoint (int vtx, DtVector *positionOffset=0)
	Returns current position offset in supplied pointer.
Protected Member Functions inherited from makVrv::DtSceneObjectUpdater
virtual void	slot_sceneObjectToBeDeleted (const DtUniqueID &id)
	Signal that this updater is being destroyed.

Protected Attributes
AttachedPointsVector	myAttachedPoints
DtVector	myPositionOffset
DtTaitBryan	myOrientationOffset
Protected Attributes inherited from makVrv::DtSceneObjectUpdater
DtDe &	myDe
	The display engine.
DtUniqueID	myUniqueId
	This distributed object's unique identifier.
DtSceneObject *	mySceneObject
	A pointer to the current scene object being updated.
DtTime	myLastUpdateTime
	The last time stamp when the updateSceneObject() was called.
DtSceneObject::TransformList	myTransforms
	Local copy of the vertex positions and orientations.
const DtDeSharedState &	myDeSharedState
	This is kept to make terrain scale updating cheaper ( by one virtual function call ).
bool	myInManager
	If tick was suppressed, then this updater is not on the tickableManager.

Additional Inherited Members
Public Attributes inherited from makVrv::DtSceneObjectUpdater
boost::signal< void(const DtUniqueID &) >	signal_updaterToBeDeleted
	Signal that this updater is being destroyed.

Detailed Description

A DtAttachableUpdater updates a scene an object that can be positioned in the scene by (possibly) attaching it to another object.

Member Typedef Documentation

typedef std::vector<AttachedPoint*> makVrv::DtAttachableUpdater::AttachedPointsVector

protected

Member Enumeration Documentation

enum makVrv::DtAttachableUpdater::AttachedPointType

Types of attachments.

Enumerator:

AttachedPointTypeVertex
AttachedPointTypeObject
AttachedPointTypeProportional
AttachedPointTypeDeprecatedObject
AttachedPointTypeInvalidObject

enum makVrv::DtAttachableUpdater::AttachedPointMode

Enumerator:

AttachedPointModePositionAndOrientation
AttachedPointModePositionOnly
AttachedPointModeOrientationOnly

Constructor & Destructor Documentation

makVrv::DtAttachableUpdater::DtAttachableUpdater	(	DtDe &	de,
		DtUniqueID	id,
		bool	suppressTick = `false`
	)

CTOR.

virtual makVrv::DtAttachableUpdater::~DtAttachableUpdater ( )

virtual

DTOR.

Member Function Documentation

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	const DtVector &	position,
		int	targetVertexIndex
	)

virtual

Add a (vertex) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	uniqueID,
		int	targetVertexIndex
	)

virtual

Add a (object) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual void makVrv::DtAttachableUpdater::addAttachedPoint	(	DtUniqueID	uniqueID,
		int	vtx1,
		int	vtx2,
		double	proportion,
		int	targetVertexIndex
	)

virtual

Add a (linear) attach point.

If multiple attach points are specified each will update its corresponding vertex in the scene object being updated

virtual const AttachedPoint& makVrv::DtAttachableUpdater::attachedPoint ( int targetVertexIndex ) const

virtual

Returns the attached point at the given vertex.

This method returns a copy of the current state of the attached point. If an attached point with the given index could not be found, this method returns an AttachedPoint with type AttachedPointTypeInvalidObject.

virtual void makVrv::DtAttachableUpdater::setPositionOffset ( const DtVector & offset )

virtual

positionally offset the attach points by this amount.

This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setPositionOffset	(	const DtVector &	offset,
		int	vtx
	)

virtual

positionally offset the specific attach point by this amount.

This is in the coordinate system of the object attached to. Will be used in conjunction with the overall position offset

virtual void makVrv::DtAttachableUpdater::setOrientationOffset ( const DtTaitBryan & offset )

virtual

rotationally offset the attach points by this amount.

This is in the coordinate system of the object attached to

virtual void makVrv::DtAttachableUpdater::setAttachedPointMode	(	unsigned int	mode,
		int	vtx
	)

virtual

Set whether an attached point updates position, orientation, or both.

virtual void makVrv::DtAttachableUpdater::update ( DtTime tNow )

virtual

Calls doAttachment() followed by updateSceneObject()

Implements makVrv::DtSceneObjectUpdater.

Reimplemented in makVrv::DtAttachableEntityFanUpdater, makVrv::DtLineModelUpdater, makVrv::DtSegmentedLineModelUpdater, and makVrv::DtAttachableIntervisibilityUpdater.

virtual void makVrv::DtAttachableUpdater::doAttachment ( DtTime tNow )

virtual

Find the actual position and orientation based on the attach points and offsets.

virtual void makVrv::DtAttachableUpdater::slot_attachedSceneObjectToBeDeleted ( const DtUniqueID & )

protectedvirtual

virtual void makVrv::DtAttachableUpdater::slot_attachedUpdaterToBeDeleted ( const DtUniqueID & id )

protectedvirtual

virtual bool makVrv::DtAttachableUpdater::pointLocationAndOrientation	(	AttachedPoint *	point,
		double	simTime,
		DtVector &	location,
		DtTaitBryan &	orientation
	)

protectedvirtual

virtual void makVrv::DtAttachableUpdater::removeAttachedPoint	(	int	vtx,
		DtVector *	positionOffset = `0`
	)

protectedvirtual

Returns current position offset in supplied pointer.

Member Data Documentation

AttachedPointsVector makVrv::DtAttachableUpdater::myAttachedPoints

protected

DtVector makVrv::DtAttachableUpdater::myPositionOffset

protected

DtTaitBryan makVrv::DtAttachableUpdater::myOrientationOffset

protected

The documentation for this class was generated from the following file:

include/vrvCore/DtAttachableUpdater.h
