DtExtEntityStateRepository class extends the DtExtEntityBaseStateRepository to be able to handle extended attributes. More...

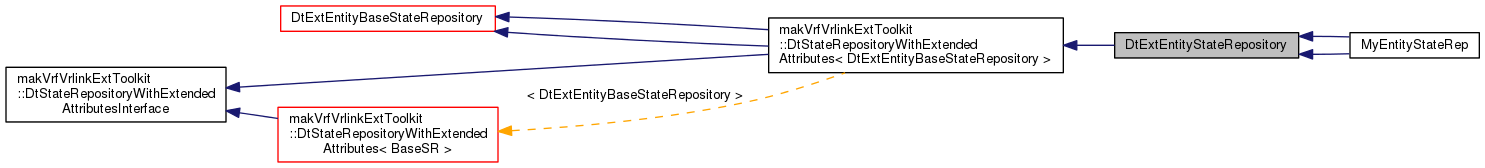

Inheritance diagram for DtExtEntityStateRepository:

[legend]

Classes
struct	PropertyDecoderInfo

struct	PropertyEncoderInfo

Public Types
typedef void(*	PropertyDecoder )(const char buffer, unsigned size, int version, void usr)

typedef void(*	PropertyEncoder )(std::vector< char > &buffer, void *usr)

Public Member Functions
	DtExtEntityStateRepository ()
	Default CTOR. More...

	DtExtEntityStateRepository (const DtExtEntityStateRepository &orig)
	Copy CTOR. More...

virtual	~DtExtEntityStateRepository ()
	Virtual DTOR. More...

virtual bool	isInitialized () const
	Returns true if one of the initialize() functions has been called. More...

DtExtEntityStateRepository &	operator= (const DtExtEntityStateRepository &orig)
	Assignment operator. More...

virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...

virtual int	compare (const DtExtEntityStateRepository *rhs)
	Compares us against the supplied state repository and returns what's changed. More...

virtual const DtRwProperties &	stateProperties () const

virtual const DtRwProperties &	parameterProperties () const

virtual void	setUuidString (const DtString &uuidStr)

virtual DtString	uuidString () const
	Returns a string version of the VRF UUID of this object, if it can be determined. More...

void	mapPropertiesToRecordTypes (const DtRwProperties *properties, std::map< unsigned, DtString > &recTypesToAttrNames)
	Maps properties to DIS record types, if configured. Called from constructors. More...

virtual bool	updatePropertiesFromAttributes (bool updatesOnly=true)
	Updates properties with new data from the extended attributes. More...

virtual void	updateAttributesFromProperties ()
	Updates extended attributes from our properties. More...

virtual void	addPropertyDecoder (const DtString &propName, PropertyDecoder decoder, void *usr, unsigned disRecordType=0)
	Adds an additional property and a function that to decode it. More...

virtual void	addPropertyEncoder (const DtString &propName, PropertyEncoder encoder, void *usr, unsigned disRecordType=0)
	Adds an additional property and a function that to encode it. More...

virtual void	removePropertyEncodersAndDecoders ()
	Removes all additional property encoders and decoders. More...

virtual bool	createVrfObjectDataMessage ()
	Allocates myVrfObjectDataMessage, a DtIfVrfObjectData used by VR-Forces as extended VRF object data message information. More...

virtual void	giveOwernshipOfProperties ()
	Tells the state rep to take ownership of the state and parameter properties, giving it responsibility to delete them on destruction. More...

virtual DtTime	lastPropertyEncodeTime () const
	Last time properties were encoded. More...

virtual DtTime	lastPropertyDecodeTime () const
	Last time properties were decoded. More...

Initialization functions. One of these must be called to support extended attributes.
virtual void	initialize (DtRwProperties stateProps, DtRwProperties paramProps)
	Initializes the state rep with state properties and parameter properties that have have already been initialized. More...

virtual void	initialize (const DtRwProperties &stateProps, const DtRwProperties &paramProps)
	Initializes the state rep by making a copy of the given state properties and parameter properties that have have already been initialized. More...

virtual void	initialize ()
	Initializes the state rep without any state or parameter properties. More...


virtual bool	sensorsKilled () const
	Functions for accessing the sensors killed state. More...

virtual void	setSensorsKilled (bool killed)


virtual void	addPropertyUpdatedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType fcn, void *usrData)
	Callbacks invoked just after state and parameter properties have been updated when the parameter or state properties have been updated. More...

virtual void	removePropertyUpdatedCallback (DtNoArgumentCallbackList::DtCallbackFunctionType fcn, void *usrData)

Public Member Functions inherited from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >
	DtStateRepositoryWithExtendedAttributes ()
	Constructor. More...

	DtStateRepositoryWithExtendedAttributes (const DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository > &orig)
	Copy Constructor. More...

	DtStateRepositoryWithExtendedAttributes ()
	Constructor. More...

	DtStateRepositoryWithExtendedAttributes (const DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository > &orig)
	Copy Constructor. More...

virtual	~DtStateRepositoryWithExtendedAttributes ()
	Destructor. More...

virtual	~DtStateRepositoryWithExtendedAttributes ()
	Destructor. More...

DtStateRepositoryWithExtendedAttributes < DtExtEntityBaseStateRepository > &	operator= (const DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository > &orig)
	Assignment Operator. More...

DtStateRepositoryWithExtendedAttributes < DtExtEntityBaseStateRepository > &	operator= (const DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository > &orig)
	Assignment Operator. More...

virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size)
	Set the attribute with the given name. More...

virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size)
	Set the attribute with the given name. More...

virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtGetAttributeFilter filter=DtNoAttributeFilter, bool markAsRead=true) const
	Get a pointer to attribute value for the attribute with the given name. More...

virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtGetAttributeFilter filter=DtNoAttributeFilter, bool markAsRead=true) const
	Get a pointer to attribute value for the attribute with the given name. More...

virtual void	getAttributeNames (std::list< DtString > &attrNames) const
	Populates a list of all extended attribute names. More...

virtual void	getAttributeNames (std::list< DtString > &attrNames) const
	Populates a list of all extended attribute names. More...

virtual void	setRecordTypeAttributeNameMapping (const std::map< unsigned, DtString > &mapping)
	Sets the mapping between record types and attribute names. More...

virtual void	addRecordTypeAttributeNameMapping (unsigned recordType, const DtString &attrName)
	Adds a mapping between record type and attribute name. More...

virtual void	setObjectClassHandle (const RTI::ObjectClassHandle &objClassHdl)
	Sets the object class handle for the published/reflected object. More...

virtual void	printData () const
	Print data to the DtInfo stream. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...

virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...

virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size, DtGetAttributeFilter filter=DtNoAttributeFilter) const
	Get a pointer to attribute value for the attribute with the given handle. More...

virtual const DtAttributesByNameMap &	attributesByName () const
	Returns the mapping of all attributes by name. More...

virtual const DtAttributesByHandleMap &	attributesByHandle () const
	Returns the mapping of all attributes by handle. More...

virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Overridden to handle the saved attribute indices. More...

virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records, const DtSimulationAddress &address)

virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType=0) const

virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const

virtual void	addAttributeRecord (DtStandardVariableRecord *record)

virtual void	clearAttributeRecords ()

Public Member Functions inherited from DtExtEntityBaseStateRepository
	DtExtEntityBaseStateRepository ()
	default constructor More...

virtual	~DtExtEntityBaseStateRepository ()
	destructor More...

	DtExtEntityBaseStateRepository (const DtExtEntityBaseStateRepository &orig)
	copy constructor More...

DtExtEntityBaseStateRepository &	operator= (const DtExtEntityBaseStateRepository &orig)
	assignment operator More...

virtual int	compare (const DtExtEntityBaseStateRepository *rhs)
	Compares us against the supplied state repository and returns what's changed. More...

virtual int	compareToMostRecent ()
	Returns what has changed since the last time we called compare. More...

virtual int	compareArtParts (const std::list< int > &)
	Compares articulated parts in the local copy to current values and returns a non-zero value if modified. More...

virtual int	compareArtParts (const DtArticulatedPart source, const DtArticulatedPart target)
	Compares each value that is valid, and, if any have changed, returns DtChanged_Other. More...

virtual bool	locationsDifferent (bool updateIfDifferent)
	Returns true if our stashed location is different than our current location. More...

virtual void	setDiGuyStateRepository (DtDIGuyObjectStateRepository *diGuyStateRep)
	If the DI guy repository being set is not of the extended type, then create one of the extended type (passing in the di guy state rep into the copy constructor) before setting in the base class. More...

virtual void	setBodyWeight (double)
	DI-Guy extension. Get/set body weight. More...

virtual double	bodyWeight () const

bool	needsVrfDataUpdate () const
	Returns true if the vrf object data has been modified. More...

void	clearVrfDataNeedsUpdate ()

bool	hasVrfObjectDataMessage () const
	Returns true if at least on vrf object data message has been processed by this entity. More...

void	setHasVrfObjectDataMessage (bool)
	Sets whether or not has an object data message. More...

virtual DtExtDiGuyStateRepository *	extDiGuyStateRepository ()

virtual const DtExtDiGuyStateRepository *	extDiGuyStateRepository () const

virtual void	createDiGuyStateRep ()
	Overrides the one in base, creates an extended DI-Guy object state repository instead. More...

virtual bool	setupFromVrfObjectData (const DtIfVrfObjectData &data)
	Override to set myHasVrfObjectDataMessage to true. More...

virtual void	setSendVrfObjectDataRecord (bool shouldSend)
	Whether a separate VrfObjectData message should be sent to convey additional VRF object information. More...

virtual bool	shouldSendVrfObjectDataRecord () const

Public Member Functions inherited from DtVrfExtensions
	DtVrfExtensions ()

virtual	~DtVrfExtensions ()

	DtVrfExtensions (const DtVrfExtensions &orig)

DtVrfExtensions &	operator= (const DtVrfExtensions &orig)

virtual const DtString &	name () const

virtual void	setName (const DtString &n)

virtual const DtString &	vrfObjectLabel () const

virtual void	setVrfObjectLabel (const DtString &l)

virtual const DtString &	echelonId () const

virtual void	setEchelonId (const DtString &l)

virtual const DtString &	overlayParent () const

virtual void	setOverlayParent (const DtString &l)

virtual bool	isVrfSimulated () const

virtual void	setIsVrfSimulated (bool vrf)

virtual DtU32	vrfSessionId () const

virtual void	setVrfSessionId (DtU32 id)

virtual void	setVrfMessageVersionSupported (DtU32 id)

virtual DtU32	vrfMessageVersionSupported () const

virtual void	setObjectType (const DtObjectType &)

virtual const DtObjectType &	objectType () const

virtual void	setIsSubordinateOfForce (bool b)

virtual bool	isSubordinateOfForce () const

virtual int	superType () const

virtual void	setHasPlan (bool yesNo)

virtual bool	hasPlan () const

virtual void	setIsCurrentlyTasked (bool yesNo)

virtual bool	isCurrentlyTasked () const

virtual void	setRulesOfEngagement (const DtString &)

virtual const DtString &	rulesOfEngagement () const

virtual void	addRangeItem (const DtRangeItem &)
	Adds, removes and returns items in the range item list. More...

virtual void	removeRangeItem (int index)

virtual void	setRangeItems (const DtRangeItems &)

const DtRangeItems &	rangeItems () const

virtual DtIfVrfObjectData *	vrfObjectDataMessage () const

virtual void	setIndependentlyTasked (bool yesNo)

virtual bool	independentlyTasked () const

virtual void	setUnderFire (bool yesNo)

virtual bool	underFire () const

virtual void	setExecutingPlan (bool yesNo)

virtual bool	executingPlan () const

virtual void	setExtendedData (const std::map< DtString, DtString > &)
	Gets/sets extended data. More...

virtual const std::map < DtString, DtString > &	extendedData () const

virtual void	setExtendedData (const DtString &key, const DtString &value)

virtual DtString	extendedData (const DtString &) const

virtual void	setBoundingVolume (const DtVector32 &)
	Sets/gets bounding volume and bounding volume offset of an entity. More...

virtual const DtVector32 &	boundingVolume () const

virtual void	setBoundingVolumeOffset (const DtVector32 &)

virtual const DtVector32 &	boundingVolumeOffset () const

Static Public Member Functions
static DtExtEntityStateRepository *	create ()
	Creator method. More...

Static Public Member Functions inherited from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >
static DtStateRepositoryWithExtendedAttributes < DtExtEntityBaseStateRepository > *	create ()
	Create a new state repository. More...

static DtStateRepositoryWithExtendedAttributes < DtExtEntityBaseStateRepository > *	create ()
	Create a DtVrfAggregateEntityStateRepository. More...

static void	setAttributeNameToHandleMap (const RTI::ObjectClassHandle &classHdl, const DtAttributeNameToHandleMap &attrNameToHdl)
	Set the attribute name to handle mapping. More...

static const DtAttributeNameToHandleMap &	attributeNameToHandleMap (const RTI::ObjectClassHandle &classHdl)
	Get the attribute name to handle mapping. More...

Static Public Member Functions inherited from DtExtEntityBaseStateRepository
static DtExtEntityBaseStateRepository *	create ()

Static Public Member Functions inherited from DtVrfExtensions
static void	setExpectedVrfMessageVersion (DtU32 version)
	The expected VRF message version of this application. More...

static DtU32	expectedVrfMessageVersion ()

Protected Member Functions
virtual void	initializeVrfObjectDataProperties ()
	Initializes the state rep to handle VRF object data properties. More...

virtual void	encodePropertyIfNeeded (const DtSymbolString &propName, DtReaderWriter *propRw)
	Encode a particular property if an update is needed. More...

Protected Member Functions inherited from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >
virtual void	markRecordAsUpdated (const DtStandardVariableRecord *record, unsigned recIdx) const
	Marks the attribute record internally as having been updated since last checked. More...

virtual void	markAllRecordsAsUpdated () const
	Marks all received records as updated. More...

virtual unsigned	recordType (const DtString &attrName) const
	Returns the record type for the attribute with a given name. More...

virtual const DtString &	attributeName (unsigned recType) const
	Returns the attribute name for the attribute with the given record type. More...

virtual unsigned	nextVrfAttributeRecordType ()
	Returns the next VRF attribute record type to use for new attributes. More...

DtExtendedAttributeInfo *	cacheNameAttributeMapping (const RTI::AttributeHandle &attrHdl, const DtString &attrName) const
	Caches the mapping of attribute name to attribute info and returns the info. More...

Protected Member Functions inherited from DtExtEntityBaseStateRepository
virtual void	extensionModified ()

Protected Attributes
DtRwProperties *	myStateProperties

DtRwProperties *	myParameterProperties

bool	myOwnsProperties

bool	myIsInitialized

std::list< PropertyDecoderInfo >	myAdditionalDecoders

std::list< PropertyEncoderInfo >	myAdditionalEncoders

std::vector< char >	myPropertyBuffer

DtClock	myClock

DtTime	myLastEncodeTime

DtTime	myLastDecodeTime

bool	mySensorsKilled

bool	myReceivedVrfObjectDataVersion

bool	myReceivedVrfPropertyVersion

int	myPropertyVersion

DtString	myUUIDString

DtRangeItems	myRangeItemsCache

DtNoArgumentCallbackList	myPropertyUpdatedCallbacks

Protected Attributes inherited from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >
std::map< DtString, unsigned >	myAttributeInfo
	Map of attributes to their indices within the VR-Link attribute records. More...

std::set< DtString >	myUpdatedAttributes

std::vector< char >	myTempBuffer

unsigned	myNextVrfAttributeRecordType

DtAttributeNameToHandleMap *	myAttributeHandlesByName

DtAttributesByHandleMap	myAttributesByHandle
	Attributes by handle. More...

DtAttributesByNameMap	myAttributesByName
	Attributes by name. More...

std::map< unsigned, DtString >	myNamesByRecordType
	Mappings between attribute names and DIS variable record types, for those attributes that have this set. More...

std::map< DtString, unsigned >	myRecordTypesByName

Protected Attributes inherited from DtExtEntityBaseStateRepository
DtExtEntityBaseStateRepository *	myLastCopy

bool	myVrfObjectDataUpdated

bool	myHasVrfObjectDataMessage
	If true, a vrf object data message has been seen for this object. By default, this is false. More...

bool	mySendVrfObjectDataRec

Protected Attributes inherited from DtVrfExtensions
DtString	myName

DtIfVrfObjectData *	myVrfObjectDataMessage

Additional Inherited Members
Static Protected Attributes inherited from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >
static std::map < RTI::ObjectClassHandle, DtAttributeNameToHandleMap >	theAttributeHandlesByName
	A map of attribute handles by name for each object class supported by this repository. More...

Static Protected Attributes inherited from DtVrfExtensions
static DtU32	theExpectedVrfMessageVersion

Detailed Description

DtExtEntityStateRepository class extends the DtExtEntityBaseStateRepository to be able to handle extended attributes.

Member Typedef Documentation

typedef void(* DtExtEntityStateRepository::PropertyDecoder)(const char *buffer, unsigned size, int version, void *usr)

typedef void(* DtExtEntityStateRepository::PropertyEncoder)(std::vector< char > &buffer, void *usr)

Constructor & Destructor Documentation

DtExtEntityStateRepository::DtExtEntityStateRepository ( )

Default CTOR.

DtExtEntityStateRepository::DtExtEntityStateRepository ( const DtExtEntityStateRepository & orig )

Copy CTOR.

virtual DtExtEntityStateRepository::~DtExtEntityStateRepository ( )

virtual

Virtual DTOR.

Member Function Documentation

static DtExtEntityStateRepository* DtExtEntityStateRepository::create ( )

static

Creator method.

Caller responsible for deletion.

virtual void DtExtEntityStateRepository::initialize	(	DtRwProperties *	stateProps,
		DtRwProperties *	paramProps
	)

virtual

Initializes the state rep with state properties and parameter properties that have have already been initialized.

This can be more efficient if you are maintaining the properties lists elsewhere and want updates to be decoded directly into those lists. Does not take ownership of these properties. They must be deleted elsewhere.

virtual void DtExtEntityStateRepository::initialize	(	const DtRwProperties &	stateProps,
		const DtRwProperties &	paramProps
	)

virtual

Initializes the state rep by making a copy of the given state properties and parameter properties that have have already been initialized.

Maintains ownership of the new properties and will delete them on destruction.

virtual void DtExtEntityStateRepository::initialize ( )

virtual

Initializes the state rep without any state or parameter properties.

No properties will be processed unless you add a specific property encoder or decoder using addPropertyEncoder or addPropertyDecoder.

virtual bool DtExtEntityStateRepository::isInitialized ( ) const

virtual

Returns true if one of the initialize() functions has been called.

DtExtEntityStateRepository& DtExtEntityStateRepository::operator= ( const DtExtEntityStateRepository & orig )

Assignment operator.

virtual DtStateRepository* DtExtEntityStateRepository::clone ( bool copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from makVrfVrlinkExtToolkit::DtStateRepositoryWithExtendedAttributes< DtExtEntityBaseStateRepository >.

Reimplemented in MyEntityStateRep, and MyEntityStateRep.

virtual int DtExtEntityStateRepository::compare ( const DtExtEntityStateRepository * rhs )

virtual

Compares us against the supplied state repository and returns what's changed.

virtual const DtRwProperties& DtExtEntityStateRepository::stateProperties ( ) const

inlinevirtual

References DtRwProperties::emptyProperties().

virtual const DtRwProperties& DtExtEntityStateRepository::parameterProperties ( ) const

inlinevirtual

References DtRwProperties::emptyProperties().

virtual void DtExtEntityStateRepository::setUuidString ( const DtString & uuidStr )

virtual

virtual DtString DtExtEntityStateRepository::uuidString ( ) const

virtual

Returns a string version of the VRF UUID of this object, if it can be determined.

VRF has multiple ways of sending the UUID. This method only works when the UUID is sent via the object's extendedData. If sent by other means, such as using state properties (which is the default in 4.6 and later), the returned string will be empty.

Reimplemented from DtExtEntityBaseStateRepository.

virtual bool DtExtEntityStateRepository::sensorsKilled ( ) const

virtual

Functions for accessing the sensors killed state.

virtual void DtExtEntityStateRepository::setSensorsKilled ( bool killed )

virtual

void DtExtEntityStateRepository::mapPropertiesToRecordTypes	(	const DtRwProperties *	properties,
		std::map< unsigned, DtString > &	recTypesToAttrNames
	)

Maps properties to DIS record types, if configured. Called from constructors.

virtual bool DtExtEntityStateRepository::updatePropertiesFromAttributes ( bool updatesOnly = true )

virtual

Updates properties with new data from the extended attributes.

Used to update properties after receiving an object update. If updatesOnly is true (default), only attributes updated since last property update will be processed. Returns true if any properties were updated.

virtual void DtExtEntityStateRepository::updateAttributesFromProperties ( )

virtual

Updates extended attributes from our properties.

Used to update attributes before publishing an object update.

virtual void DtExtEntityStateRepository::addPropertyDecoder	(	const DtString &	propName,
		PropertyDecoder	decoder,
		void *	usr,
		unsigned	disRecordType = `0`
	)

virtual

Adds an additional property and a function that to decode it.

Can be used to extend this class to look for additional properties that are not defined in the parameter database for the entity. Is also used by default for VRF object data. Properties will be decoded in the order in which the decoders are added to the list. If disRecordType, properties with the g specified record type will use this decoder.

virtual void DtExtEntityStateRepository::addPropertyEncoder	(	const DtString &	propName,
		PropertyEncoder	encoder,
		void *	usr,
		unsigned	disRecordType = `0`
	)

virtual

Adds an additional property and a function that to encode it.

Can be used to extend this class to look for additional properties that are not defined in the parameter database for the entity. Is also used by default for VRF object data. Properties will be encoded in the order in which the encoders are added to the list. If disRecordType, the property will be encoded with the specified record type.

virtual void DtExtEntityStateRepository::removePropertyEncodersAndDecoders ( )

virtual

Removes all additional property encoders and decoders.

virtual bool DtExtEntityStateRepository::createVrfObjectDataMessage ( )

virtual

Allocates myVrfObjectDataMessage, a DtIfVrfObjectData used by VR-Forces as extended VRF object data message information.

Overrides the default version to create a DtIfVrfObjectDataStateProperties, which can be more efficiently updated from state properties.

Reimplemented from DtVrfExtensions.

virtual void DtExtEntityStateRepository::giveOwernshipOfProperties ( )

virtual

Tells the state rep to take ownership of the state and parameter properties, giving it responsibility to delete them on destruction.

virtual DtTime DtExtEntityStateRepository::lastPropertyEncodeTime ( ) const

inlinevirtual

Last time properties were encoded.

virtual DtTime DtExtEntityStateRepository::lastPropertyDecodeTime ( ) const

inlinevirtual

Last time properties were decoded.

virtual void DtExtEntityStateRepository::addPropertyUpdatedCallback	(	DtNoArgumentCallbackList::DtCallbackFunctionType	fcn,
		void *	usrData
	)

virtual

Callbacks invoked just after state and parameter properties have been updated when the parameter or state properties have been updated.

virtual void DtExtEntityStateRepository::removePropertyUpdatedCallback	(	DtNoArgumentCallbackList::DtCallbackFunctionType	fcn,
		void *	usrData
	)

virtual

virtual void DtExtEntityStateRepository::initializeVrfObjectDataProperties ( )

protectedvirtual

Initializes the state rep to handle VRF object data properties.

virtual void DtExtEntityStateRepository::encodePropertyIfNeeded	(	const DtSymbolString &	propName,
		DtReaderWriter *	propRw
	)

protectedvirtual

Encode a particular property if an update is needed.

Member Data Documentation

DtRwProperties* DtExtEntityStateRepository::myStateProperties

protected

DtRwProperties* DtExtEntityStateRepository::myParameterProperties

protected

bool DtExtEntityStateRepository::myOwnsProperties

protected

bool DtExtEntityStateRepository::myIsInitialized

protected

std::list<PropertyDecoderInfo> DtExtEntityStateRepository::myAdditionalDecoders

protected

std::list<PropertyEncoderInfo> DtExtEntityStateRepository::myAdditionalEncoders

protected

std::vector<char> DtExtEntityStateRepository::myPropertyBuffer

protected

DtClock DtExtEntityStateRepository::myClock

protected

DtTime DtExtEntityStateRepository::myLastEncodeTime

protected

DtTime DtExtEntityStateRepository::myLastDecodeTime

protected

bool DtExtEntityStateRepository::mySensorsKilled

protected

bool DtExtEntityStateRepository::myReceivedVrfObjectDataVersion

protected

bool DtExtEntityStateRepository::myReceivedVrfPropertyVersion

protected

int DtExtEntityStateRepository::myPropertyVersion

mutableprotected

DtString DtExtEntityStateRepository::myUUIDString

mutableprotected

DtRangeItems DtExtEntityStateRepository::myRangeItemsCache

mutableprotected

DtNoArgumentCallbackList DtExtEntityStateRepository::myPropertyUpdatedCallbacks

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfExtObjects/extEntityStateRepository.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
