DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository > Class Template Reference

Implements the DtLocalExtendedPropertiesNetInterface class template. More...

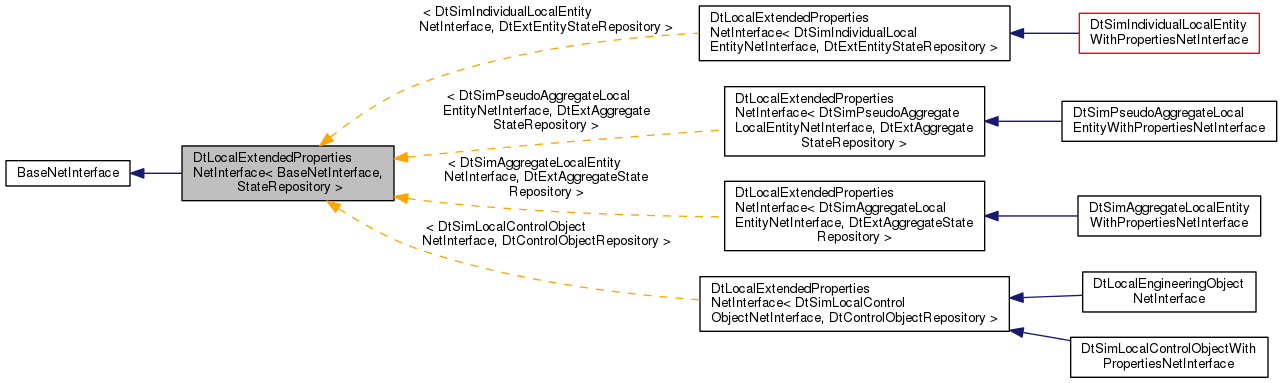

Inheritance diagram for DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >:

Public Member Functions
	DtLocalExtendedPropertiesNetInterface (const DtString &name, DtVrfObject *vrfObject, DtReaderWriterRegistry *parentRegistry=0, bool publishObject=true)
	read/writable constructor More...
	DtLocalExtendedPropertiesNetInterface (const DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository > &orig, DtReaderWriterRegistry *parentRegistry=0)
	copy constructor More...
const DtLocalExtendedPropertiesNetInterface &	operator= (const DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository > &orig)
	assignment operator More...
virtual	~DtLocalExtendedPropertiesNetInterface ()
	destructor More...
virtual bool	initExtendedProperties ()
	Initializer. More...
virtual void	onTick ()
	Overridden to tick the ExtendedAttributes object publisher. More...
virtual void	updatePublisher ()
	Calls the base class updatePublisher() and then updates the extended property attributes. More...
virtual void	updateUuid ()

Static Public Member Functions
static DtSimObjectNetInterface *	creator (const DtString &name, DtVrfObject *vrfObject, DtReaderWriterRegistry *parentRegistry, bool publishObject)

Protected Member Functions
	DtLocalExtendedPropertiesNetInterface ()
	default constructor More...

Protected Attributes
bool	myIsUninitialized

Detailed Description

template<typename BaseNetInterface, typename StateRepository>
class DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >

Implements the DtLocalExtendedPropertiesNetInterface class template.

Extends an existing local net interface class to give it the ability to publish extended properties.

Constructor & Destructor Documentation

template<typename BaseNetInterface, typename StateRepository>

DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::DtLocalExtendedPropertiesNetInterface ( )

inlineprotected

default constructor

template<typename BaseNetInterface, typename StateRepository>

DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::DtLocalExtendedPropertiesNetInterface ( const DtString &  name, DtVrfObject *  vrfObject, DtReaderWriterRegistry *  parentRegistry = 0, bool  publishObject = true  )

inline

read/writable constructor

template<typename BaseNetInterface, typename StateRepository>

DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::DtLocalExtendedPropertiesNetInterface ( const DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository > &  orig, DtReaderWriterRegistry *  parentRegistry = 0  )

inline

copy constructor

template<typename BaseNetInterface, typename StateRepository>

virtual DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::~DtLocalExtendedPropertiesNetInterface ( )

inlinevirtual

destructor

Member Function Documentation

template<typename BaseNetInterface, typename StateRepository>

const DtLocalExtendedPropertiesNetInterface& DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::operator= ( const DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository > &  orig )

inline

assignment operator

template<typename BaseNetInterface, typename StateRepository>

virtual bool DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::initExtendedProperties ( )

inlinevirtual

Initializer.

template<typename BaseNetInterface, typename StateRepository>

virtual void DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::onTick ( )

inlinevirtual

Overridden to tick the ExtendedAttributes object publisher.

template<typename BaseNetInterface, typename StateRepository>

virtual void DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::updatePublisher ( )

inlinevirtual

Calls the base class updatePublisher() and then updates the extended property attributes.

Reimplemented in MyIndividualLocalEntityNetInterface.

template<typename BaseNetInterface, typename StateRepository>

virtual void DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::updateUuid ( )

inlinevirtual

template<typename BaseNetInterface, typename StateRepository>

static DtSimObjectNetInterface* DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::creator ( const DtString &  name, DtVrfObject *  vrfObject, DtReaderWriterRegistry *  parentRegistry, bool  publishObject  )

inlinestatic

Member Data Documentation

template<typename BaseNetInterface, typename StateRepository>

bool DtLocalExtendedPropertiesNetInterface< BaseNetInterface, StateRepository >::myIsUninitialized

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfobjcore/localExtendedPropertiesNetInterface.h
