DtShapeElement Class Reference

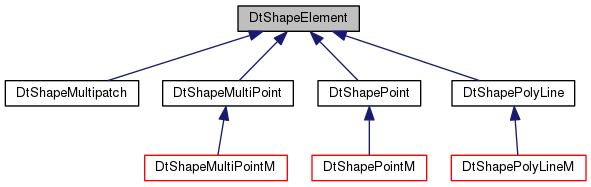

Inheritance diagram for DtShapeElement:

Public Member Functions
	DtShapeElement (double elevationFactor)
virtual	~DtShapeElement ()
virtual bool	load (FILE *f, bool loadMeasures=false, const DtShapeProjection *projection=NULL)=0
virtual void	setElevation (double elev)=0
virtual void	calculateMaxMins (double &myMaxHigh, double &myMinHigh)=0
virtual DtGroup *	import (DtShapeReader *reader)=0
virtual bool	importAsFeature (DtShapeVectorReader *reader, DtSpecificationID specID, DtSpecification &s)=0
virtual void	setFactorToMtrs (double elevationFactor)
virtual DtInt32	numPoints ()=0
virtual DtShapePoint *	point (int i)=0

Protected Attributes
double	myElevationFactor

Constructor & Destructor Documentation

DtShapeElement::DtShapeElement

(

double

elevationFactor

)

virtual DtShapeElement::~DtShapeElement ( )

virtual

Member Function Documentation

virtual bool DtShapeElement::load ( FILE *  f, bool  loadMeasures = false, const DtShapeProjection *  projection = NULL  )

pure virtual

Implemented in DtShapeMultipatch, DtShapePointM, DtShapePoint, DtShapePointZ, DtShapePolyLine, DtShapeMultiPoint, and DtShapePolyLineZ.

virtual void DtShapeElement::setElevation ( double  elev )

pure virtual

Implemented in DtShapeMultipatch, DtShapePoint, DtShapePolyLine, and DtShapeMultiPoint.

virtual void DtShapeElement::calculateMaxMins ( double &  myMaxHigh, double &  myMinHigh  )

pure virtual

Implemented in DtShapeMultipatch, DtShapePoint, DtShapePolyLine, and DtShapeMultiPoint.

virtual DtGroup* DtShapeElement::import ( DtShapeReader *  reader )

pure virtual

Implemented in DtShapeMultipatch, DtShapePoint, DtShapePolyLine, and DtShapeMultiPoint.

virtual bool DtShapeElement::importAsFeature ( DtShapeVectorReader *  reader, DtSpecificationID  specID, DtSpecification &  s  )

pure virtual

Implemented in DtShapeMultipatch, DtShapePoint, DtShapePolyLine, and DtShapeMultiPoint.

virtual void DtShapeElement::setFactorToMtrs ( double  elevationFactor )

virtual

virtual DtInt32 DtShapeElement::numPoints ( )

pure virtual

Implemented in DtShapePoint, DtShapeMultipatch, DtShapePolyLine, and DtShapeMultiPoint.

virtual DtShapePoint* DtShapeElement::point ( int  i )

pure virtual

Implemented in DtShapePoint, DtShapeMultipatch, DtShapePolyLine, DtShapeMultiPoint, DtShapeMultiPointZ, DtShapeMultiPointM, DtShapePolyLineM, and DtShapePolyLineZ.

Member Data Documentation

double DtShapeElement::myElevationFactor

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/shape/shapeElement.h
