A DtTaskVisualization describes a graphic to be displayed in the GUI to visualize the behavior of the current task. More...

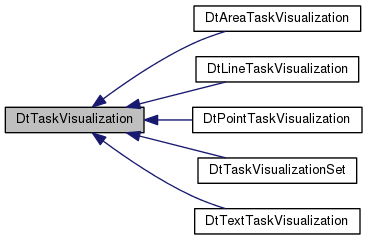

Inheritance diagram for DtTaskVisualization:

[legend]

Public Member Functions
	DtTaskVisualization (const DtString &name, const DtString &taskComp, const DtVrfObject *taskedObject)
	Constructor. More...

virtual	~DtTaskVisualization ()
	Destructor. More...

virtual const DtString &	name () const
	Returns the visualization name. More...

virtual const DtString &	taskComponent () const
	Returns the task component name. More...

virtual const DtUUID &	taskedObject () const
	Returns the UUID of the object being tasked. More...

virtual void	update (DtBoost::shared_ptr< DtBulkEnvironmentProcessManager > bulkMgr)
	Updates the visualization object data. More...

virtual void	stopUpdates ()
	Stops updating the task visualization object data. More...


virtual unsigned	red () const
	Color of the visualization object. More...

virtual unsigned	green () const

virtual unsigned	blue () const

virtual unsigned	alpha () const

virtual void	setColor (unsigned red, unsigned green, unsigned blue, unsigned alpha)


virtual const DtVector64 &	locationOffset () const
	The location offset of the vertex in the visualization. More...

virtual void	setLocationOffset (const DtVector64 &offset)

Protected Member Functions
virtual void	calculateOffsetLocation (const DtVector &location, DtVector &offsetLocation)
	Offsets the given geocentric location using the current location offset and converts it to a new geocentric location suitable for publishing to VR-Vantage. More...

virtual bool	isPublished () const =0
	Returns true if the visualization is already published. More...

virtual void	publishDrawControlObjects (DtBoost::shared_ptr< DtBulkEnvironmentProcessManager > bulkMgr)
	Creates the visualization object for publication to the network. More...

virtual void	createDrawControlObjects (DtExerciseConn *exConn)=0
	Creates the draw control objects for this task visualization. More...

virtual void	unpublishDrawControlObjects ()=0
	Removes the visualization object from the network. More...

virtual void	updateDrawControlObjects ()=0
	Updates the visualization object data. Must call publish first. More...

virtual unsigned	nextId ()
	Returns an ID number to be used when creating remote draw objects. More...

Protected Attributes
DtString	myName

DtString	myTaskComponent

const DtVrfObject *	myTaskedObject

unsigned	myRed

unsigned	myGreen

unsigned	myBlue

unsigned	myAlpha

DtVector64	myLocationOffset
	Location offset in forward, right, down entity coordinates. More...

DtTaskVisualizationPublisherCreator *	myEnvProcPublisherCreator

Friends
class	DtTaskVisualizationSet

Detailed Description

A DtTaskVisualization describes a graphic to be displayed in the GUI to visualize the behavior of the current task.

For instance, it could be a point showing the location where the entity is moving or an arrow indicating the path the entity will take.

Constructor & Destructor Documentation

DtTaskVisualization::DtTaskVisualization	(	const DtString &	name,
		const DtString &	taskComp,
		const DtVrfObject *	taskedObject
	)

Constructor.

virtual DtTaskVisualization::~DtTaskVisualization ( )

virtual

Destructor.

Member Function Documentation

virtual const DtString& DtTaskVisualization::name ( void ) const

inlinevirtual

Returns the visualization name.

virtual const DtString& DtTaskVisualization::taskComponent ( ) const

inlinevirtual

Returns the task component name.

virtual const DtUUID& DtTaskVisualization::taskedObject ( ) const

inlinevirtual

Returns the UUID of the object being tasked.

References DtUUID::uuid().

virtual unsigned DtTaskVisualization::red ( ) const

virtual

Color of the visualization object.

virtual unsigned DtTaskVisualization::green ( ) const

virtual

virtual unsigned DtTaskVisualization::blue ( ) const

virtual

virtual unsigned DtTaskVisualization::alpha ( ) const

virtual

virtual void DtTaskVisualization::setColor	(	unsigned	red,
		unsigned	green,
		unsigned	blue,
		unsigned	alpha
	)

virtual

virtual const DtVector64& DtTaskVisualization::locationOffset ( ) const

virtual

The location offset of the vertex in the visualization.

Offsets are relative to either the simulation object to which the vertex is attached or, for fixed location vertices, the tasked entity.

virtual void DtTaskVisualization::setLocationOffset ( const DtVector64 & offset )

virtual

virtual void DtTaskVisualization::update ( DtBoost::shared_ptr< DtBulkEnvironmentProcessManager > bulkMgr )

virtual

Updates the visualization object data.

Reimplemented in DtTaskVisualizationSet.

virtual void DtTaskVisualization::stopUpdates ( )

virtual

Stops updating the task visualization object data.

Reimplemented in DtTaskVisualizationSet.

virtual void DtTaskVisualization::calculateOffsetLocation	(	const DtVector &	location,
		DtVector &	offsetLocation
	)

protectedvirtual

Offsets the given geocentric location using the current location offset and converts it to a new geocentric location suitable for publishing to VR-Vantage.

virtual bool DtTaskVisualization::isPublished ( ) const

protectedpure virtual

Returns true if the visualization is already published.

Implemented in DtLineTaskVisualization, DtTaskVisualizationSet, DtPointTaskVisualization, DtTextTaskVisualization, and DtAreaTaskVisualization.

virtual void DtTaskVisualization::publishDrawControlObjects ( DtBoost::shared_ptr< DtBulkEnvironmentProcessManager > bulkMgr )

protectedvirtual

Creates the visualization object for publication to the network.

Object is added to the given bulk environment process manager.

Reimplemented in DtLineTaskVisualization, and DtTaskVisualizationSet.

virtual void DtTaskVisualization::createDrawControlObjects ( DtExerciseConn * exConn )

protectedpure virtual

Creates the draw control objects for this task visualization.

Implemented in DtLineTaskVisualization, DtTaskVisualizationSet, DtPointTaskVisualization, DtTextTaskVisualization, and DtAreaTaskVisualization.

virtual void DtTaskVisualization::unpublishDrawControlObjects ( )

protectedpure virtual

Removes the visualization object from the network.

Implemented in DtLineTaskVisualization, DtTaskVisualizationSet, DtPointTaskVisualization, DtTextTaskVisualization, and DtAreaTaskVisualization.

virtual void DtTaskVisualization::updateDrawControlObjects ( )

protectedpure virtual

Updates the visualization object data. Must call publish first.

Implemented in DtLineTaskVisualization, DtTaskVisualizationSet, DtPointTaskVisualization, DtTextTaskVisualization, and DtAreaTaskVisualization.

virtual unsigned DtTaskVisualization::nextId ( )

protectedvirtual

Returns an ID number to be used when creating remote draw objects.

Friends And Related Function Documentation

friend class DtTaskVisualizationSet

friend

Member Data Documentation

DtString DtTaskVisualization::myName

protected

DtString DtTaskVisualization::myTaskComponent

protected

const DtVrfObject* DtTaskVisualization::myTaskedObject

protected

unsigned DtTaskVisualization::myRed

protected

unsigned DtTaskVisualization::myGreen

protected

unsigned DtTaskVisualization::myBlue

protected

unsigned DtTaskVisualization::myAlpha

protected

DtVector64 DtTaskVisualization::myLocationOffset

protected

Location offset in forward, right, down entity coordinates.

DtTaskVisualizationPublisherCreator* DtTaskVisualization::myEnvProcPublisherCreator

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfobjcore/taskVisualization.h
