This UI element will provide basical functionality for allowing a system to define rules that can determine if there is something about the system the user needs to fix in order to make it a working system. More...

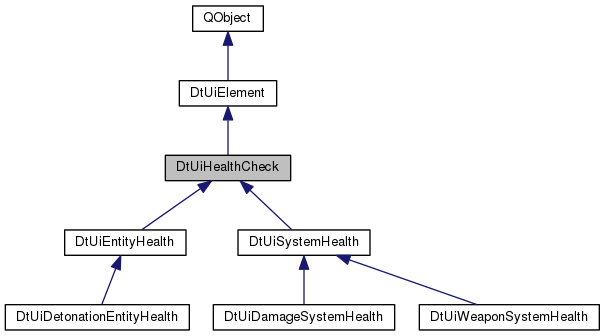

Inheritance diagram for DtUiHealthCheck:

[legend]

Public Member Functions
	DtUiHealthCheck (makVrv::DtDe &)
	Constructor. More...

virtual	~DtUiHealthCheck ()
	Destructor. More...

virtual void	createControls (QWidget *)
	If additional widgets or connections need to be made do it here. The parent is the myWidget member. More...

virtual void	attemptHealthFix (const QString &)

virtual void	setAsHealthy ()

virtual void	addHealthCheck (const DtHealthCheck &, bool rerun=false)
	Add a new health check (which will be cloned) into this system check. If last flag is true will also rerun health check. More...

virtual void	setCheckHealthOnSetup (bool)

bool	checkHealthOnSetup () const

Public Member Functions inherited from DtUiElement
	DtUiElement (makVrv::DtDe &)
	Constructor. More...

virtual	~DtUiElement ()
	Destructor. More...

virtual bool	blockSignals (bool)

virtual void	init (QWidget widget, QWidget label, DtReaderWriter originalData, DtReaderWriter backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual void	init (QWidget widget, QWidget label, const std::vector< DtReaderWriter * > &originalData, const std::vector< DtReaderWriter * > &backupData, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual void	init (QWidget widget, QWidget label, const DtObjectType &, const DtString &platformType, DtElementChangedCallbackFcn=boost::bind(&DtUiElement::theNullFunction, _1))

virtual DtString	displayUnits () const

virtual void	setDisplayUnits (const DtString &units)

virtual void	setLabelText (const QString &)

virtual DtString	sourceUnits () const

virtual void	setSourceUnits (const DtString &units)

virtual void	setFromSystemParameterData (const DtSystemParameterData data, const DtComponentSystemDefinition )
	Sets data of this UiElement from the specified system parameter data. More...

virtual void	objectParametersModified ()
	This method is called any time that any of the parameters for the object are modified. More...

virtual void	connectedTo (QObject *)
	Called when this item is connected to any signal emitted by the given item. More...

virtual void	processUiEvent (const DtUiElementEvent &)
	Process ui event. Default does nothing. More...

virtual void	setModelModified (DtModelSetEntry *)
	Called when the model is modified. Default is no-op. More...

virtual DtString	uniqueName () const
	Returns a unique name for this element. More...

virtual bool	supportsSystems () const
	Returns true if this element supports systems. More...

virtual const DtString &	platformType () const
	Returns the type of platform this entity represents. More...

virtual void	setPlatformType (const DtString &)
	Sets the type of platform for this entity. More...

virtual void	setObjectTypes (const std::vector< DtObjectType > &)
	Sets the object type this element represents. More...

virtual void	aboutToShow ()
	Called when about to show as part of a properties dialog. Default is no-op. More...

const std::vector < DtReaderWriter * > &	values () const

const std::vector < DtReaderWriter * > &	backupValues () const

virtual bool	isModified () const

virtual bool	isValid () const
	Used to enable/disable the OK button. More...

virtual void	decorateElement ()
	Sets element decoration depending on the isModified state of the element. More...

virtual void	setFromParameters (DtReaderWriter *parentRw)
	Calls setFromParameters with std::vector of parameter. More...

virtual void	setFromParameters (const std::vector< DtComponentSystemDefinition * > &)
	For those UI elements that work with system definitions this method will be implemented. More...

virtual void	setFromParameters (const std::vector< DtReaderWriter * > &parentRw)

virtual bool	restoreFromBackup ()
	Restores this element from a backup created with the specified name. More...

QHBoxLayout *	findLayoutThatHas (QWidget w, QBoxLayout layout)
	iterates through the items in layout to find w. Also checks sub-layouts More...

QBoxLayout *	findUsableLayoutFor (QWidget *w)
	Returns the existing HBoxLayout owned by w. More...

const std::vector< DtObjectType > &	objectTypes () const

const std::vector < DtComponentSystemDefinition * > &	systems () const

virtual void	sendEvent (const DtUiElementEvent &)

virtual bool	allValuesTheSame () const

virtual bool	isMixedValue () const
	If widget is line edit and the value is mixedText returns true, else the subclass will need to return this value. More...

virtual void	setEnabled (bool)
	If this item is not enabled it cannot be modified. More...

virtual bool	enabled () const

virtual void	setControllingCheckBox (QCheckBox *)

QCheckBox *	controllingCheckBox ()

virtual void	populateParentValues (std::string elementName)
	caches the data from the parent file into myParentValues in case the user reverts it More...

Public Attributes
QTreeWidget *	myHealth

Public Attributes inherited from DtUiElement
QWidget *	myWidget

QWidget *	myLabel

Protected Types
typedef std::vector < DtHealthCheck * >	HealthChecks

Protected Slots
virtual void	fix ()

virtual bool	checkHealth ()

Protected Slots inherited from DtUiElement
virtual void	elementChanged ()

virtual void	enableIfChecked ()
	Connected to if the enable_if_checked property is set, and there is a matching check box for the enable_if_checked property. More...

virtual void	disableIfChecked ()
	Connected to if the disable_if_checked property is set, and there is a matching check box for the disable_if_checked property. More...

Protected Member Functions
virtual bool	canAddHealthCheck (const DtHealthCheck &) const

virtual void	addHealthChecks ()=0

virtual QString	tab () const =0
	Which tab to show the warning icon on. More...

virtual QString	affects () const =0
	What this affects (system or entity) More...

virtual bool	checkup (QString &toolTip)=0
	Fill in tool tip with what to display for overall health if fails. More...

virtual void	cure (DtHealthCheck *)=0
	Attempt to fix the failed health check. More...

virtual void	failed (DtHealthCheck *, const QString &error)

virtual void	checkout (const QString &toolTip)
	Called after checkup complete. More...

Protected Member Functions inherited from DtUiElement
virtual double	sourceToDisplayUnits (double) const

virtual double	displayToSourceUnits (double) const

virtual QString	units () const

virtual void	updateLabelTitle ()
	Updates label title based on valid units. More...

virtual QString	labelTitle () const
	Returns the unmodified label title. More...

Protected Attributes
HealthChecks	myHealthChecks

bool	myCheckHealthOnSetup

Protected Attributes inherited from DtUiElement
DtString	myDisplayUnits

DtString	mySourceUnits

std::vector< DtReaderWriter * >	myValues
	Assumes 1 - 1 order that original and backup are same index in lists. More...

std::vector< DtReaderWriter * >	myBackupValues

DtReaderWriter *	myParentValue

bool	myIsNew

DtElementChangedCallbackFcn	myElementChangedCallbackFunction

DtUnit	mySource

DtUnit	myDestination

makVrv::DtDe &	myDe

DtString	myPlatformType

std::vector< DtObjectType >	myObjectTypes

std::vector < DtComponentSystemDefinition * >	mySystems

const DtComponentSystemDefinition *	mySystemDefinition

bool	myEnabled

std::vector< QObject * >	myConnectedTo

int	myUniqueId

QCheckBox *	myControllingCheckBox

QPushButton *	myRevertToParentButton

Additional Inherited Members
Public Types inherited from DtUiElement
typedef boost::function < DtUiElement *(makVrv::DtDe &)>	CreatorFunction

typedef std::map< std::string, CreatorFunction >	UiElementFactoryMap

Public Slots inherited from DtUiElement
virtual void	toggleDisplayed (bool display)

Signals inherited from DtUiElement
void	uiEvent (const DtUiElementEvent &)

void	changed ()

Static Public Member Functions inherited from DtUiElement
static void	registerUiTypes ()
	Factory methods for creating ui elements. More...

static DtUiElement *	createUiElement (makVrv::DtDe &, const DtString &type)

static bool	hasCreator (const DtString &)

static void	theNullFunction (DtUiElement *)

static UiElementFactoryMap &	elementFactory ()

static QString	mixedText ()

static void	setMixedText (const QString &)

Static Protected Attributes inherited from DtUiElement
static UiElementFactoryMap	theFactory

Detailed Description

This UI element will provide basical functionality for allowing a system to define rules that can determine if there is something about the system the user needs to fix in order to make it a working system.

Member Typedef Documentation

typedef std::vector<DtHealthCheck*> DtUiHealthCheck::HealthChecks

protected

Constructor & Destructor Documentation

DtUiHealthCheck::DtUiHealthCheck ( makVrv::DtDe & )

Constructor.

virtual DtUiHealthCheck::~DtUiHealthCheck ( )

virtual

Destructor.

Member Function Documentation

virtual void DtUiHealthCheck::createControls ( QWidget * parent )

virtual

If additional widgets or connections need to be made do it here. The parent is the myWidget member.

Reimplemented from DtUiElement.

virtual void DtUiHealthCheck::attemptHealthFix ( const QString & )

virtual

virtual void DtUiHealthCheck::setAsHealthy ( )

virtual

virtual void DtUiHealthCheck::addHealthCheck	(	const DtHealthCheck &	,
		bool	rerun = `false`
	)

virtual

Add a new health check (which will be cloned) into this system check. If last flag is true will also rerun health check.

virtual void DtUiHealthCheck::setCheckHealthOnSetup ( bool )

virtual

bool DtUiHealthCheck::checkHealthOnSetup ( ) const

inline

virtual bool DtUiHealthCheck::canAddHealthCheck ( const DtHealthCheck & ) const

protectedvirtual

virtual void DtUiHealthCheck::addHealthChecks ( )

protectedpure virtual

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual QString DtUiHealthCheck::tab ( ) const

protectedpure virtual

Which tab to show the warning icon on.

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual QString DtUiHealthCheck::affects ( ) const

protectedpure virtual

What this affects (system or entity)

Implemented in DtUiDamageSystemHealth, DtUiDetonationEntityHealth, and DtUiWeaponSystemHealth.

virtual bool DtUiHealthCheck::checkup ( QString & toolTip )

protectedpure virtual

Fill in tool tip with what to display for overall health if fails.

Implemented in DtUiEntityHealth, and DtUiSystemHealth.

virtual void DtUiHealthCheck::cure ( DtHealthCheck * )

protectedpure virtual

Attempt to fix the failed health check.

Implemented in DtUiEntityHealth, and DtUiSystemHealth.

virtual void DtUiHealthCheck::failed	(	DtHealthCheck *	,
		const QString &	error
	)

protectedvirtual

virtual void DtUiHealthCheck::checkout ( const QString & toolTip )

protectedvirtual

Called after checkup complete.

virtual void DtUiHealthCheck::fix ( )

protectedvirtualslot

virtual bool DtUiHealthCheck::checkHealth ( )

protectedvirtualslot

Member Data Documentation

QTreeWidget* DtUiHealthCheck::myHealth

HealthChecks DtUiHealthCheck::myHealthChecks

protected

bool DtUiHealthCheck::myCheckHealthOnSetup

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/simulationObjectEditorImpl/uiHealthCheck.h
