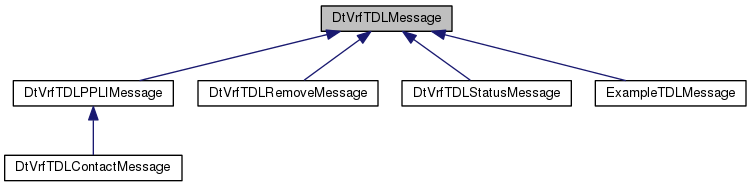

Inheritance diagram for DtVrfTDLMessage:

Public Member Functions
	DtVrfTDLMessage ()
	default constructor More...

	DtVrfTDLMessage (const DtVrfTDLMessage &orig)
	copy constructor: shallow; copies values only More...

const DtVrfTDLMessage &	operator= (DtVrfTDLMessage &orig)
	assignment operator: shallow; assigns values only More...

virtual	~DtVrfTDLMessage ()
	destructor More...

virtual int	tdlMessageType () const
	TDL Message type. More...

virtual DtVrfTDLMessage *	clone () const

virtual int	messageVersion () const

virtual int	headerVersion () const

virtual int	getContentType (const char *buffer)
	Given the message buffer, get the content type from it. More...

virtual void	printDataToString (DtString &str)
	Print message. More...

virtual void	setRecipient (const DtSimulationAddress &recipient)
	The recipient of this message. More...

virtual const DtSimulationAddress &	recipient () const

virtual void	setSender (const DtSimulationAddress &recipient)
	The sender of this message. More...

virtual const DtSimulationAddress &	sender () const

virtual int	netRepSize () const
	The number of bytes on the network for this message. Returns the sum of the fixed and variable sizes. More...

virtual const char *	netRep ()
	The buffer which is the content for this message. More...

virtual void	setToNet (char *buffer)
	Sets the contents of this object into the memory buffer specified by myNetRep. More...

virtual bool	setFromNet (const char *buffer, int bufferSize)
	Sets the content from the net by calling setFixedFromNet and setVariableFromNext. More...

virtual int	fixedSize () const
	Returns the size of the fixed portion of this message. More...

virtual int	variableSize () const
	Returns the variable data size. More...

virtual void	setMarkingText (const DtString &)
	Accessor for marking text of the item sending this message. More...

virtual const DtString &	markingText () const

virtual void	setUUID (const DtString &)
	Accessor for the UUID for this item. More...

virtual const DtString &	uuid () const

virtual void	setTimeStamp (unsigned int)
	Accessor for time stamp. More...

virtual unsigned int	timeStamp () const

Static Public Member Functions
static DtVrfTDLMessage *	creator ()

static void	setFactory (DtVrfTDLMessageFactory *)
	Factory accessors. More...

static DtVrfTDLMessageFactory *	factory ()

Protected Member Functions
virtual char *	createNetworkBuffer ()
	Creates the network buffer of the size needed. More...

virtual void	setFixedToNet (char *buffer)
	Sets the fixed portion of the buffer to the net. Returns the pointer at the end of this fixed portion. More...

virtual int	setFixedFromNet (const char *buffer)
	Sets the fixed portion from the buffer into internal structures and variables. More...

virtual const char *	setVariableFromNet (const char buffer, const char fixedBuffer, int messageVersion)
	Sets the variable portion into internal structures. More...

virtual char *	setVariableToNet (char *buffer)
	Sets the variable portion to the net. More...

Protected Attributes
DtSimulationAddress	myRecipient

DtSimulationAddress	mySender

char *	myNetRep

int	myLastAllocatedSize

DtString	myMarkingText

DtString	myUUID

unsigned int	myTimeStamp

Static Protected Attributes
static DtVrfTDLMessageFactory *	theVrfTDLMessageFactory

Constructor & Destructor Documentation

DtVrfTDLMessage::DtVrfTDLMessage ( )

default constructor

DtVrfTDLMessage::DtVrfTDLMessage ( const DtVrfTDLMessage & orig )

copy constructor: shallow; copies values only

virtual DtVrfTDLMessage::~DtVrfTDLMessage ( )

virtual

destructor

Member Function Documentation

const DtVrfTDLMessage& DtVrfTDLMessage::operator= ( DtVrfTDLMessage & orig )

assignment operator: shallow; assigns values only

virtual int DtVrfTDLMessage::tdlMessageType ( ) const

virtual

TDL Message type.

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLStatusMessage, ExampleTDLMessage, DtVrfTDLContactMessage, and DtVrfTDLRemoveMessage.

virtual DtVrfTDLMessage* DtVrfTDLMessage::clone ( ) const

virtual

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLStatusMessage, ExampleTDLMessage, DtVrfTDLContactMessage, and DtVrfTDLRemoveMessage.

static DtVrfTDLMessage* DtVrfTDLMessage::creator ( )

static

virtual int DtVrfTDLMessage::messageVersion ( ) const

virtual

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLStatusMessage, ExampleTDLMessage, DtVrfTDLContactMessage, and DtVrfTDLRemoveMessage.

virtual int DtVrfTDLMessage::headerVersion ( ) const

virtual

virtual int DtVrfTDLMessage::getContentType ( const char * buffer )

virtual

Given the message buffer, get the content type from it.

virtual void DtVrfTDLMessage::printDataToString ( DtString & str )

virtual

Print message.

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLStatusMessage, ExampleTDLMessage, DtVrfTDLContactMessage, and DtVrfTDLRemoveMessage.

static void DtVrfTDLMessage::setFactory ( DtVrfTDLMessageFactory * )

static

Factory accessors.

static DtVrfTDLMessageFactory* DtVrfTDLMessage::factory ( )

static

virtual void DtVrfTDLMessage::setRecipient ( const DtSimulationAddress & recipient )

virtual

The recipient of this message.

virtual const DtSimulationAddress& DtVrfTDLMessage::recipient ( ) const

virtual

virtual void DtVrfTDLMessage::setSender ( const DtSimulationAddress & recipient )

virtual

The sender of this message.

virtual const DtSimulationAddress& DtVrfTDLMessage::sender ( ) const

virtual

virtual int DtVrfTDLMessage::netRepSize ( ) const

virtual

The number of bytes on the network for this message. Returns the sum of the fixed and variable sizes.

virtual const char* DtVrfTDLMessage::netRep ( )

virtual

The buffer which is the content for this message.

Note that this is not const such that, if neet be, the message content will be created when this is called

virtual void DtVrfTDLMessage::setToNet ( char * buffer )

virtual

Sets the contents of this object into the memory buffer specified by myNetRep.

It is assumed that the memory has been preallocated to the correct size as per netRepSize(). As per network layout will call setFixedToNet first followed by setVariableToNet

virtual bool DtVrfTDLMessage::setFromNet	(	const char *	buffer,
		int	bufferSize
	)

virtual

Sets the content from the net by calling setFixedFromNet and setVariableFromNext.

virtual int DtVrfTDLMessage::fixedSize ( ) const

virtual

Returns the size of the fixed portion of this message.

It is assumed that each subclass of this message will subclass from the DtVrfTDLMessageHeader structure to have it's information be contains therein when restoring and setting to the network

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLContactMessage, DtVrfTDLStatusMessage, and ExampleTDLMessage.

virtual int DtVrfTDLMessage::variableSize ( ) const

virtual

Returns the variable data size.

Reimplemented in DtVrfTDLContactMessage, DtVrfTDLStatusMessage, and ExampleTDLMessage.

virtual void DtVrfTDLMessage::setMarkingText ( const DtString & )

virtual

Accessor for marking text of the item sending this message.

virtual const DtString& DtVrfTDLMessage::markingText ( ) const

virtual

virtual void DtVrfTDLMessage::setUUID ( const DtString & )

virtual

Accessor for the UUID for this item.

virtual const DtString& DtVrfTDLMessage::uuid ( ) const

virtual

virtual void DtVrfTDLMessage::setTimeStamp ( unsigned int )

virtual

Accessor for time stamp.

virtual unsigned int DtVrfTDLMessage::timeStamp ( ) const

virtual

virtual char* DtVrfTDLMessage::createNetworkBuffer ( )

protectedvirtual

Creates the network buffer of the size needed.

virtual void DtVrfTDLMessage::setFixedToNet ( char * buffer )

protectedvirtual

Sets the fixed portion of the buffer to the net. Returns the pointer at the end of this fixed portion.

Reimplemented in DtVrfTDLPPLIMessage, DtVrfTDLStatusMessage, ExampleTDLMessage, and DtVrfTDLContactMessage.

virtual int DtVrfTDLMessage::setFixedFromNet ( const char * buffer )

protectedvirtual

Sets the fixed portion from the buffer into internal structures and variables.

Returns the message version (passed into variable)

Reimplemented in DtVrfTDLPPLIMessage, ExampleTDLMessage, and DtVrfTDLContactMessage.

virtual const char* DtVrfTDLMessage::setVariableFromNet	(	const char *	buffer,
		const char *	fixedBuffer,
		int	messageVersion
	)

protectedvirtual

Sets the variable portion into internal structures.

Returns a pointer at the end of this variable such that a subclass can continue on reading

Reimplemented in DtVrfTDLStatusMessage, ExampleTDLMessage, and DtVrfTDLContactMessage.

virtual char* DtVrfTDLMessage::setVariableToNet ( char * buffer )

protectedvirtual

Sets the variable portion to the net.

Reimplemented in DtVrfTDLStatusMessage, ExampleTDLMessage, and DtVrfTDLContactMessage.

Member Data Documentation

DtVrfTDLMessageFactory* DtVrfTDLMessage::theVrfTDLMessageFactory

staticprotected

DtSimulationAddress DtVrfTDLMessage::myRecipient

protected

DtSimulationAddress DtVrfTDLMessage::mySender

protected

char* DtVrfTDLMessage::myNetRep

protected

int DtVrfTDLMessage::myLastAllocatedSize

protected

DtString DtVrfTDLMessage::myMarkingText

protected

DtString DtVrfTDLMessage::myUUID

protected

unsigned int DtVrfTDLMessage::myTimeStamp

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfmsgs/vrfTDLMessage.h
