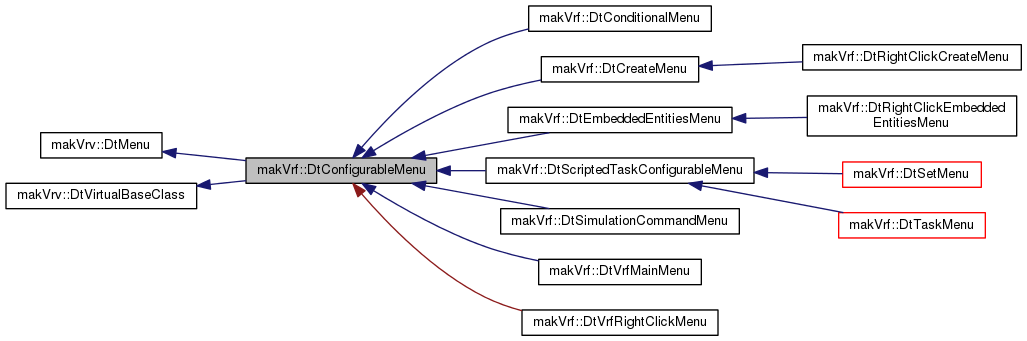

Inheritance diagram for makVrf::DtConfigurableMenu:

Public Member Functions
	DtConfigurableMenu (makVrv::DtDe &, const std::string &className)
	CTOR. More...

virtual	~DtConfigurableMenu ()
	DTOR. More...

virtual DtSubMenuConfiguration &	menuConfiguration ()
	Returns the configuration for the menu to be used. May be effected directly. More...

virtual DtConfigurableMenuAssembler &	menuAssembler ()
	Returns the assembler for the menu to be used. May be effected directly. More...

virtual void	registerMenu (makVrv::DtMenu *customMenu)
	Use to register your own complex menu object. More...

virtual void	registerMenuItem (makVrv::DtMenuItem *customMenuItem)
	Use to register your own complex menu item object. More...

virtual void	createSimpleMenu (std::string menuText, makVrv::DtMenuPath menuIdPath, int weight=-1)

virtual void	createSimpleMenuAfter (std::string menuText, makVrv::DtMenuPath menuIdPath, makVrv::DtMenuPath afterIdPath)

virtual void	createSimpleMenuBefore (std::string menuText, makVrv::DtMenuPath menuIdPath, makVrv::DtMenuPath beforeIdPath)

virtual void	createSimpleMenuItem (std::string itemText, makVrv::DtMenuPath itemIdPath, DtSimpleMenuItemAction action, void usr=NULL, int weight=-1)

virtual void	createSimpleMenuItemAfter (std::string itemText, makVrv::DtMenuPath itemIdPath, makVrv::DtMenuPath afterIdPath, DtSimpleMenuItemAction action, void usr=NULL)

virtual void	createSimpleMenuItemBefore (std::string itemText, makVrv::DtMenuPath itemIdPath, makVrv::DtMenuPath beforeIdPath, DtSimpleMenuItemAction action, void usr=NULL)

virtual void	mergeMenu (makVrv::DtQtMenuAssembler &assembler, makVrv::DtMenuConfiguration &configuration)
	Merges in the assembler and configuration into the supplied assembler and configuration. More...

virtual void	mergeMenu (makVrv::DtQtMenuAssembler &assembler)
	Merges in the assembler into the supplied assembler. More...

virtual void	mergeMenu (makVrv::DtMenuConfiguration &configuration)
	Merges in the configuration into the supplied configuration. This merges all the menu paths together. More...

Public Member Functions inherited from makVrv::DtMenu
	DtMenu (DtDe &de, const std::string &menuIdName)
	CTOR. More...

virtual	~DtMenu ()
	DTOR. More...

virtual const std::string &	menuIdName () const
	Get the menu id name, the menu id name is not the same thing as the visible menu text. More...

virtual QMenu *	createMenu (DtDe &, QWidget *parent)=0
	Build a menu. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Static Public Member Functions
static bool	hasMenuPath (const makVrv::DtMenuConfiguration &menus, const makVrv::DtMenuPath &sourcePath, const std::string &item, makVrv::DtMenuPath &foundPath)

Public Attributes
boost::signals2::signal< void(DtConfigurableMenu *)>	signal_menuRecreated
	Signal sent when this menu is recreated from it's original creation. More...

boost::signals2::signal< void(QAction *)>	signal_validateMenuItem

Protected Member Functions
virtual void	initMenuItems (makVrv::DtDe &de)

DtConfigurableMenuAssembler &	assembler ()

DtSubMenuConfiguration &	configuration ()

virtual void	createMenuConfiguration (makVrv::DtDe &)
	Creates the menu configuration by creating the assembler and adding menu items. More...

Protected Attributes
DtConfigurableMenuAssembler	myAssembler

DtSubMenuConfiguration	myConfiguration

bool	myInitialized

makVrv::DtSignalConnectionManager	myConnections

Protected Attributes inherited from makVrv::DtMenu
DtDe &	myDe

std::string	myMenuIdName

Constructor & Destructor Documentation

makVrf::DtConfigurableMenu::DtConfigurableMenu	(	makVrv::DtDe &	,
		const std::string &	className
	)

CTOR.

virtual makVrf::DtConfigurableMenu::~DtConfigurableMenu ( )

virtual

DTOR.

Member Function Documentation

virtual DtSubMenuConfiguration& makVrf::DtConfigurableMenu::menuConfiguration ( )

inlinevirtual

Returns the configuration for the menu to be used. May be effected directly.

Reimplemented in makVrf::DtCreateMenu, makVrf::DtSimulationCommandMenu, makVrf::DtVrfMainMenu, makVrf::DtConditionalMenu, makVrf::DtEmbeddedEntitiesMenu, and makVrf::DtVrfRightClickMenu.

virtual DtConfigurableMenuAssembler& makVrf::DtConfigurableMenu::menuAssembler ( )

inlinevirtual

Returns the assembler for the menu to be used. May be effected directly.

Reimplemented in makVrf::DtCreateMenu, makVrf::DtSimulationCommandMenu, makVrf::DtVrfMainMenu, makVrf::DtVrfRightClickMenu, makVrf::DtConditionalMenu, and makVrf::DtEmbeddedEntitiesMenu.

virtual void makVrf::DtConfigurableMenu::registerMenu ( makVrv::DtMenu * customMenu )

virtual

Use to register your own complex menu object.

You must then use the menuConfig() function to add it to the path you wish to add it to. If you want to make a simple menu, use createSimpleMenu() instead (see that function for details)

virtual void makVrf::DtConfigurableMenu::registerMenuItem ( makVrv::DtMenuItem * customMenuItem )

virtual

Use to register your own complex menu item object.

You must then use the menuConfig() function to add it to the path you wish to add it to. If you want to make a simple menu item, use createSimpleMenuItem() instead (see that function for details)

virtual void makVrf::DtConfigurableMenu::createSimpleMenu	(	std::string	menuText,
		makVrv::DtMenuPath	menuIdPath,
		int	weight = `-1`
	)

virtual

virtual void makVrf::DtConfigurableMenu::createSimpleMenuAfter	(	std::string	menuText,
		makVrv::DtMenuPath	menuIdPath,
		makVrv::DtMenuPath	afterIdPath
	)

virtual

virtual void makVrf::DtConfigurableMenu::createSimpleMenuBefore	(	std::string	menuText,
		makVrv::DtMenuPath	menuIdPath,
		makVrv::DtMenuPath	beforeIdPath
	)

virtual

virtual void makVrf::DtConfigurableMenu::createSimpleMenuItem	(	std::string	itemText,
		makVrv::DtMenuPath	itemIdPath,
		DtSimpleMenuItemAction *	action,
		void *	usr = `NULL`,
		int	weight = `-1`
	)

virtual

virtual void makVrf::DtConfigurableMenu::createSimpleMenuItemAfter	(	std::string	itemText,
		makVrv::DtMenuPath	itemIdPath,
		makVrv::DtMenuPath	afterIdPath,
		DtSimpleMenuItemAction *	action,
		void *	usr = `NULL`
	)

virtual

virtual void makVrf::DtConfigurableMenu::createSimpleMenuItemBefore	(	std::string	itemText,
		makVrv::DtMenuPath	itemIdPath,
		makVrv::DtMenuPath	beforeIdPath,
		DtSimpleMenuItemAction *	action,
		void *	usr = `NULL`
	)

virtual

virtual void makVrf::DtConfigurableMenu::mergeMenu	(	makVrv::DtQtMenuAssembler &	assembler,
		makVrv::DtMenuConfiguration &	configuration
	)

virtual

Merges in the assembler and configuration into the supplied assembler and configuration.

see the other mergeMenu() functions

virtual void makVrf::DtConfigurableMenu::mergeMenu ( makVrv::DtQtMenuAssembler & assembler )

virtual

Merges in the assembler into the supplied assembler.

This merges menu registrations between two menus

virtual void makVrf::DtConfigurableMenu::mergeMenu ( makVrv::DtMenuConfiguration & configuration )

virtual

Merges in the configuration into the supplied configuration. This merges all the menu paths together.

static bool makVrf::DtConfigurableMenu::hasMenuPath	(	const makVrv::DtMenuConfiguration &	menus,
		const makVrv::DtMenuPath &	sourcePath,
		const std::string &	item,
		makVrv::DtMenuPath &	foundPath
	)

static

virtual void makVrf::DtConfigurableMenu::initMenuItems ( makVrv::DtDe & de )

protectedvirtual

DtConfigurableMenuAssembler& makVrf::DtConfigurableMenu::assembler ( )

inlineprotected

DtSubMenuConfiguration& makVrf::DtConfigurableMenu::configuration ( )

inlineprotected

virtual void makVrf::DtConfigurableMenu::createMenuConfiguration ( makVrv::DtDe & )

inlineprotectedvirtual

Creates the menu configuration by creating the assembler and adding menu items.

Reimplemented in makVrf::DtCreateMenu, makVrf::DtSimulationCommandMenu, makVrf::DtVrfMainMenu, makVrf::DtVrfRightClickMenu, and makVrf::DtConditionalMenu.

Member Data Documentation

boost::signals2::signal<void (DtConfigurableMenu*)> makVrf::DtConfigurableMenu::signal_menuRecreated

Signal sent when this menu is recreated from it's original creation.

DtConfigurableMenuAssembler makVrf::DtConfigurableMenu::myAssembler

protected

DtSubMenuConfiguration makVrf::DtConfigurableMenu::myConfiguration

protected

bool makVrf::DtConfigurableMenu::myInitialized

protected

makVrv::DtSignalConnectionManager makVrf::DtConfigurableMenu::myConnections

protected

boost::signals2::signal<void (QAction*)> makVrf::DtConfigurableMenu::signal_validateMenuItem

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfGuiCommonQt/configurableMenu.h
