makVrf::DtSimpleLabelWidget Class Reference

These classes will define simple label widgets. These widgets are not variables – they are simply display elements. More...

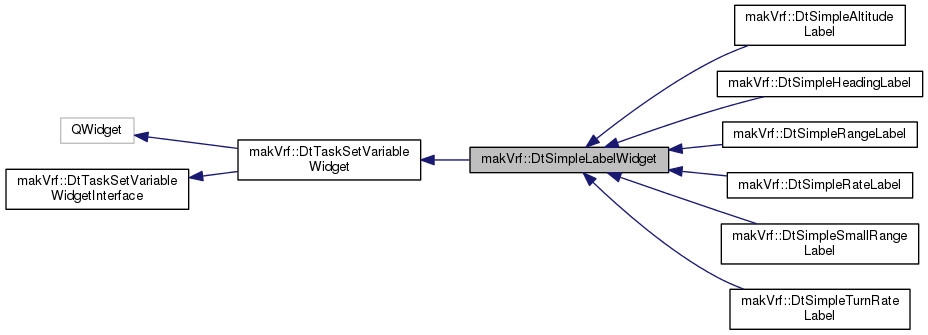

Inheritance diagram for makVrf::DtSimpleLabelWidget:

Public Member Functions
	DtSimpleLabelWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtSimpleLabelWidget ()
virtual void	setLabel (const QString &)
	QString version for property. More...
virtual QString	label () const
virtual void	setVariableData (const std::string &)
	No-op. More...
virtual makVrv::DtUnicode	elementDisplayDefault () const
	Return the default level of display (Application or Default) More...
virtual void	setDefaultValue (const std::string &)
	Default value to set in control. More...
virtual void	setupFrom (const std::vector< makVrv::DtSimEntry * > &data)
	Sets up widget with currently selected item. Since this is a GUI only element this is not implemented. More...
virtual void	setRange (double, double)
	Sets the range of the item. This widget does not support that. More...
virtual DtReaderWriter *	createBoundVariable (const std::string &)
	Creates the bound variable. Since this is a GUI only element, not implemented. More...
virtual void	setupFromBoundVariable (const DtReaderWriter *)
	Sets up from bound variable. Since this is a GUI only element, not implemented. More...
virtual bool	guiElementOnly () const
	This is a GUI element only. More...
virtual bool	isValid () const
	Indicates the current selection is valid. More...
virtual void	refreshLabels ()
virtual bool	supportsDisplayNotation (const makVrv::DtUnicode &type) const =0
	What this widget supports and the unit notation. More...
virtual makVrv::DtUnicode	unitNotation () const =0
Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
	DtTaskSetVariableWidget (makVrv::DtDe &de, QWidget *parent, const Qt::WindowFlags &flags=0, const CreationFlags &cflags=NormalMode)
virtual	~DtTaskSetVariableWidget ()
virtual void	setToolTip (const QString &)
	Sets the tool tip. More...
virtual void	setLabel (const std::string &)
	Display label. More...
virtual void	setVariableData (const QString &)
	QString version calls std::string version. More...
virtual QString	variableData () const
virtual void	setIsInternal (bool)
	Whether or not value is internal. Internal values will not be shown to the user on the scripted task dialog. More...
virtual bool	isInternal () const
virtual void	setTopLineVisible (bool)
	Hides top line. More...
virtual bool	topLineVisible () const
virtual void	createTopLine ()
	Creates top line. More...
virtual void	setIndent (int)
	Sets the indent level for the contents of this widget, except for the title line. More...
virtual int	indent () const
virtual void	setTopLabelChecked (bool)
	Sets the top label to be checked/unchecked and calls topLabelChecked if the check box is visible. More...
virtual bool	topLabelChecked () const
virtual void	setRange (const DtRange &)
virtual void	setRangeTop (double)
virtual void	setRangeTop (int)
virtual double	rangeTop () const
virtual void	setRangeBottom (double)
virtual void	setRangeBottom (int)
virtual double	rangeBottom () const
virtual const DtRange &	getRange () const
virtual void	setTopLabelIsCheckable (bool)
	Sets whether or not the top label is checkable. More...
virtual bool	topLabelIsCheckable () const
virtual void	getDefaultSpecificTitles (QString &defaultTitle, QString &specificTitle) const
virtual void	setDefaultSpecificTitles (const QString &defaultTitle, const QString &specificTitle)
virtual void	setupDefaultSpecificFromVariableData (const DtString &var)
	Format is allowdefault=[defaultTitle],[specificTitle]. More...
virtual std::string	variableDataFromUiDesigner (const QDomElement &, const DtScriptedTaskVariableLayoutConverter &) const
	Given the Ui designer properties create a string that will represent the variable data for those properties. More...
virtual std::string	scriptedTaskVariableName () const
	In most cases this is the objectName of the object, however, in some cases (as in radio button) this could be a name that is shared amongst like objects, so, that is returned instead. More...
virtual void	setSelection (const std::set< makVrv::DtUniqueID > &selection)
	The selection set can be used to determine the diplay units to show. More...
virtual void	setSelection (const std::vector< makVrv::DtSimEntry * > &data)
virtual const std::set < makVrv::DtUniqueID > &	selection () const
Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
	DtTaskSetVariableWidgetInterface ()
virtual	~DtTaskSetVariableWidgetInterface ()
virtual void	widgetInitializedForDialog (DtScriptedTaskDialog *, const std::vector< makVrv::DtSimEntry * > &data)
	Called when the widget is initialized from a scripted task dialog. Default implementation is to do nothing. More...
virtual DtTaskSetVariableWidgetExtensionInterface *	parameterContents (QWidget *parent, const Qt::WindowFlags &flags=0) const
	If there are any, returns contents for this variable for variable extension. Default is no extension. More...

Static Public Member Functions
static makVrv::DtUnicode	codeVariableType ()
static std::string	designerGroup ()
static std::string	headerFile ()
static std::string	variableName ()
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidget
static bool	includeInQtDesigner ()
Static Public Member Functions inherited from makVrf::DtTaskSetVariableWidgetInterface
static bool	canBeUsedAsWidget ()
	Whether or not this shows up as a usable variable widget. More...
static void	initializeForQtDesignerExtension (makVrv::DtDe &de, QDesignerFormEditorInterface *core)
	Implement at class level to perform Qt Designer custom widget initialization. Please refer to Qt documentation for designer modifications. More...
static bool	includeInQtDesigner ()

Public Attributes
QLabel *	myLabel
Public Attributes inherited from makVrf::DtTaskSetVariableWidget
boost::signals2::signal< void(bool)>	signal_topLevelCheckStateChanged
int	myIndent
QVBoxLayout *	myVariableWidgetLayout
QHBoxLayout *	mySpacedLayout
QVBoxLayout *	myVariableContentLayout
	When creating subclasses of this item, use the variable content layout to add your content. More...
QWidget *	myTopLine
QLabel *	myTopLabel
QWidget *	myChoiceCanvas
QRadioButton *	myUseDefault
QRadioButton *	myUseSpecific
QSpacerItem *	myTopSeparator
QHBoxLayout *	myTopLineLayout
QSpacerItem *	mySpacerItem

Protected Member Functions
virtual void	slot_onUnitChanged (const makVrv::DtUnicode &category, const makVrv::DtUnicode &type)
virtual void	selectionChanged (const std::set< makVrv::DtUniqueID > &)
	Called when the selection has changed via setSelection. More...

Protected Attributes
QString	myLabelText
Protected Attributes inherited from makVrf::DtTaskSetVariableWidget
makVrv::DtDe &	myDe
makVrv::DtSignalConnectionManager	myConnections
bool	myTopLabelIsCheckable
DtRange	myRange
bool	myIsInternal
CreationFlags	myCreationFlags
QString	myVariableData
std::set< makVrv::DtUniqueID >	mySelection

Additional Inherited Members
Public Types inherited from makVrf::DtTaskSetVariableWidgetInterface
enum	CreationFlags { NormalMode = 0x00000000, QtDesignerMode = 0x00000001 }
Signals inherited from makVrf::DtTaskSetVariableWidget
void	validityUpdated ()
	Signal which can be emitted to indicate the validity of the current widget selection has changed. More...
Protected Slots inherited from makVrf::DtTaskSetVariableWidget
virtual void	topLabelCheckStateChanged ()
Properties inherited from makVrf::DtTaskSetVariableWidget
QString	label
bool	isInternal
int	indent
QString	variableData

Detailed Description

These classes will define simple label widgets. These widgets are not variables – they are simply display elements.

Constructor & Destructor Documentation

makVrf::DtSimpleLabelWidget::DtSimpleLabelWidget	(	makVrv::DtDe &	de,
		QWidget *	parent,
		const Qt::WindowFlags &	flags = 0,
		const CreationFlags &	cflags = NormalMode
	)

virtual makVrf::DtSimpleLabelWidget::~DtSimpleLabelWidget ( )

virtual

Member Function Documentation

virtual void makVrf::DtSimpleLabelWidget::setLabel ( const QString &  )

virtual

QString version for property.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual QString makVrf::DtSimpleLabelWidget::label ( ) const

virtual

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtSimpleLabelWidget::setVariableData ( const std::string &  )

inlinevirtual

No-op.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual makVrv::DtUnicode makVrf::DtSimpleLabelWidget::elementDisplayDefault ( ) const

virtual

Return the default level of display (Application or Default)

Reimplemented in makVrf::DtSimpleSmallRangeLabel.

virtual void makVrf::DtSimpleLabelWidget::setDefaultValue ( const std::string &  )

inlinevirtual

Default value to set in control.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtSimpleLabelWidget::setupFrom ( const std::vector< makVrv::DtSimEntry * > &  data )

inlinevirtual

Sets up widget with currently selected item. Since this is a GUI only element this is not implemented.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual void makVrf::DtSimpleLabelWidget::setRange ( double  , double    )

inlinevirtual

Sets the range of the item. This widget does not support that.

Reimplemented from makVrf::DtTaskSetVariableWidget.

virtual DtReaderWriter* makVrf::DtSimpleLabelWidget::createBoundVariable ( const std::string &  )

inlinevirtual

Creates the bound variable. Since this is a GUI only element, not implemented.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual void makVrf::DtSimpleLabelWidget::setupFromBoundVariable ( const DtReaderWriter *  )

inlinevirtual

Sets up from bound variable. Since this is a GUI only element, not implemented.

Implements makVrf::DtTaskSetVariableWidgetInterface.

virtual bool makVrf::DtSimpleLabelWidget::guiElementOnly ( ) const

inlinevirtual

This is a GUI element only.

Reimplemented from makVrf::DtTaskSetVariableWidgetInterface.

virtual bool makVrf::DtSimpleLabelWidget::isValid ( void  ) const

inlinevirtual

Indicates the current selection is valid.

Reimplemented from makVrf::DtTaskSetVariableWidget.

static makVrv::DtUnicode makVrf::DtSimpleLabelWidget::codeVariableType ( )

inlinestatic

References makVrv::DtUnicode::tr().

static std::string makVrf::DtSimpleLabelWidget::designerGroup ( )

inlinestatic

static std::string makVrf::DtSimpleLabelWidget::headerFile ( )

inlinestatic

static std::string makVrf::DtSimpleLabelWidget::variableName ( )

inlinestatic

virtual void makVrf::DtSimpleLabelWidget::refreshLabels ( )

virtual

virtual bool makVrf::DtSimpleLabelWidget::supportsDisplayNotation ( const makVrv::DtUnicode &  type ) const

pure virtual

What this widget supports and the unit notation.

Implemented in makVrf::DtSimpleHeadingLabel, makVrf::DtSimpleTurnRateLabel, makVrf::DtSimpleRateLabel, makVrf::DtSimpleAltitudeLabel, makVrf::DtSimpleSmallRangeLabel, and makVrf::DtSimpleRangeLabel.

virtual makVrv::DtUnicode makVrf::DtSimpleLabelWidget::unitNotation ( ) const

pure virtual

Implemented in makVrf::DtSimpleHeadingLabel, makVrf::DtSimpleTurnRateLabel, makVrf::DtSimpleRateLabel, makVrf::DtSimpleAltitudeLabel, makVrf::DtSimpleSmallRangeLabel, and makVrf::DtSimpleRangeLabel.

virtual void makVrf::DtSimpleLabelWidget::slot_onUnitChanged ( const makVrv::DtUnicode &  category, const makVrv::DtUnicode &  type  )

protectedvirtual

virtual void makVrf::DtSimpleLabelWidget::selectionChanged ( const std::set< makVrv::DtUniqueID > &  oldSelection )

protectedvirtual

Called when the selection has changed via setSelection.

Reimplemented from makVrf::DtTaskSetVariableWidget.

Member Data Documentation

QLabel* makVrf::DtSimpleLabelWidget::myLabel

QString makVrf::DtSimpleLabelWidget::myLabelText

protected

---

The documentation for this class was generated from the following file:

• /data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrfGuiDataEntryWidgets/simpleLabelWidgets.h
