Interface for an Arc Model instance. More...

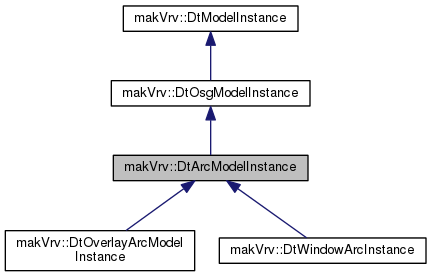

Inheritance diagram for makVrv::DtArcModelInstance:

Public Member Functions
	DtArcModelInstance (DtDe &de)
	CTOR. More...

virtual	~DtArcModelInstance ()
	DTOR. More...

virtual void	setOverlay (unsigned int overlayId)
	Set the overlay the model will be rendered on. More...

virtual void	setPosition (int vtx, const DtVector &position)
	Set the position of a vertex in the arc When vtx is 0,. More...

virtual bool	realize (DtModelDefinition &definition)
	Attempt to realize a definition. More...

virtual void	update ()


virtual void	setOrigin (const DtVector &position)
	Set/Get the position of the arc's origin Akin to calling setPosition(0, position) More...

virtual DtVector	origin () const


virtual void	setOrientation (DtTaitBryan orientation)
	Set/Get the global orientation of the arc. More...

virtual DtTaitBryan	orientation () const


virtual void	setDimensions (double x, double y)
	Set/Get the axis lengths of the ellipse used to draw the arc The default values are (0, 0) More...

virtual bool	getDimensions (double &x, double &y) const


virtual void	setScale (float scale)
	Set/Get the scale factor of the arc The default value is 1. More...

virtual float	scale () const


virtual void	setVisible (bool isVisible)
	Set/Get whether the arc is visible The default is value is True (visible) More...

virtual bool	isVisible () const


virtual void	setMaxAngleSegment (double angleSegmentMax)
	Set/Get the max angle segment used when building the geometry The default value is (PI / 2) / 9.0. More...

virtual double	maxAngleSegment () const


virtual void	setStartAngle (double startAngle)
	Set/Get the start angle of the arc, in radians The default value is 0. More...

virtual double	startAngle () const


virtual void	setEndAngle (double endAngle)
	Set/Get the end angle of the arc, in radians The default value is PI. More...

virtual double	endAngle () const


virtual void	setStipplePattern (unsigned int stipplePattern)
	Set/Get the stipple line pattern of the arc The default value is 0xFFFF (solid line). More...

virtual unsigned int	stipplePattern () const


virtual void	setLineWidth (float width)
	Set/Get the line width of the arc Uses DtLineSegmentInterface::setWidth The default value is 1.0. More...

virtual float	lineWidth () const


virtual void	setColor (float r, float g, float b, float a)
	Set/Get the color of the arc Valid range for argument values are 0.0 - 1.0. More...

virtual bool	getColor (float &r, float &g, float &b, float &a) const


virtual void	setEventsEnabled (bool, unsigned long long userData)
	Set/Get to handle or not handle mouse events The default value is False. More...

virtual bool	eventsEnabled () const


virtual void	setGroup (int groupNum)
	Set/Get the group this overlay will be drawn in The higher the group number, the "closer" to the eyepoint this overlay will be drawn. More...

virtual int	group () const

Public Member Functions inherited from makVrv::DtOsgModelInstance
virtual	~DtOsgModelInstance ()
	DTOR. More...

virtual bool	cloneInstance (DtModelDefinition &definition)
	Attempt to clone the basic geometry. More...

virtual void	addToConnector (DtOsgSceneConnector *connector)
	Brief Tell the model instance to add itself to the provided node. More...

virtual bool	removeFromConnector (DtOsgSceneConnector *connector)
	Brief Tell the model instance to remove itself from the provided node. More...

virtual bool	saveModelToFile (const std::string &filename) const
	Attempt to save the model to a file. More...

virtual void	enableColorBlending (bool b)
	Enable / disable coloring on all models in the scene object Note about enableColorBlending: If this particular model has instancing enabled then this flag is set to false and color blending is handled by the instance manager. More...

virtual void	setBlendColor (float r, float g, float b, float a)
	set the model's color More...

virtual void	enableTexture (bool onOff)

virtual osg::Node *	rootNode ()
	Get the model instance's root node. More...

virtual const osg::Node *	rootNode () const

virtual osg::Node *	sensorNode ()
	Get the model instance's sensor node, . More...

virtual const osg::Node *	sensorNode () const

virtual void	addDynamicSensorRegion (const std::string &region)
	Add an active region state. More...

virtual void	setDynamicSensorRegion (const std::string &region, bool state)
	Set the state of an active region. More...

virtual bool	dynamicSensorRegion (const std::string &region)
	Get the current state of the specified sensor region. More...

SensorRegionStateMap const	dynamicSensorRegionMap () const
	Get the map containing all regions and their current states. More...

virtual void	slot_atcGlobalModelEnableChanged ()
	Slot to handle the global alpha to coverage signal for entities. More...

virtual bool	alphaToCoverageEnabled ()
	Get the current setting for alpha to coverage for this model. More...

virtual void	registerLightPoints (const std::string &groupName, bool daylightControlledLights)
	loop over all this models light points and register them with the light point manager daylightControlled is only used if the light points do not already have a type specified More...

Public Member Functions inherited from makVrv::DtModelInstance
	DtModelInstance (DtDe &de)
	CTOR. More...

virtual	~DtModelInstance ()
	DTOR. More...

const std::string &	realizedDefinitionName () const
	Get the name of the definition that this model instance was realized with. More...

const DtVector &	boundingBoxExtents () const
	Get the bounding box extents of the model instance. More...

void	getBoundingBoxExtents (double &x, double &y, double &z) const
	Get the bounding box extents of the model instance. More...

const DtVector &	boundingBoxCenter () const
	Get the bounding box center of the model instance. More...

void	getBoundingBoxCenter (double &x, double &y, double &z) const
	Get the bounding box center of the model instance. More...

void	getBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
	Get the bounding box min/max of the model instance. More...

const DtVector &	allGeometryboundingBoxExtents () const
	functions for getting the allGeometry versions of the extents (they are calculated by traversing as if all switch paths are active) More...

void	getAllGeometryBoundingBoxExtents (double &x, double &y, double &z) const
	Get the all geometry version of bounding box extents of the model instance. More...

const DtVector &	allGeometryboundingBoxCenter () const
	Get the all geometry version of bounding box center of the model instance. More...

void	getAllGeometryBoundingBoxCenter (double &x, double &y, double &z) const
	Get the all geometry version of bounding box center of the model instance. More...

void	getAllGeometryBoundingBoxComponents (DtVector &minimum, DtVector &maximum)
	Get the all geometry version of bounding box min/max of the model instance. More...

virtual void	setContributesToBound (bool trueOrFalse)
	Set whether this model instance contributes to an object's overall bounding volume. More...

bool	contributesToBound () const
	Get whether this model instance contributes to an object's overall bounding volume. More...

Protected Member Functions
virtual void	setArcVertex (unsigned int index, double x, double y, double z)=0
	Set a vertex in myArc. More...

virtual double	calculateHeight (const DtVector &heightVertex) const =0
	Calculate the height of the arc given a height vertex This function requires at least 1 call to setPosition(1, SomeVector) and returns 0.0 otherwise. More...

virtual void	createArcIfNecessary ()
	Create myArc according to current state. More...

virtual void	deleteArc ()
	Delete myArc. More...

virtual void	updateColors ()
	Update the vertex colors. More...

Protected Member Functions inherited from makVrv::DtOsgModelInstance
	DtOsgModelInstance (DtDe &de)
	CTOR. More...

virtual void	updateColorBlending ()
	calls update color blending with the model root. More...

virtual void	updateColorBlending (osg::Node *node)

virtual void	enableTexture (osg::Node *root, bool onOff)

virtual void	updateBoundingBoxViaContents ()

virtual void	setRootNode (osg::Node *node)
	Set the model instance's root node. More...

virtual void	setUpDepthTest (osg::StateSet *stateSet)
	Helper function to set up a depth test on a state set taking into account whether reverse z is enabled or not. More...

Protected Attributes
std::vector< osg::Vec3d >	myDefinedVertices

osg::Vec3d	myPosition

osg::Vec2d	myDimensions

DtDcm	myOrientationDcm

DtTaitBryan	myOrientationTaitBryan

bool	myVisible

double	myMaxAngleSegment

float	myScale

osg::Vec4	myColor

float	myLineWidth

unsigned int	myStipplePattern

double	myStartAngle

double	myEndAngle

DtSegmentedLine *	myArc

int	myGroup

unsigned int	myOverlay

bool	myEventsEnabled

unsigned long long	myUserData

Protected Attributes inherited from makVrv::DtOsgModelInstance
osg::ref_ptr< osg::Node >	myModelRoot

osg::ref_ptr< osg::StateSet >	myCachedState

SensorRegionStateMap	mySensorRegionMap

AlphaToCoverageState	myAlphaToCoverageState

DtSignalConnectionManager	myConnections

bool	myModelInstanceShaderSet
	Has this model instance had a shader generated for it? Used for classes (ex. More...

Protected Attributes inherited from makVrv::DtModelInstance
DtDe &	myDe

std::string	myRealizedModelDefinitionName

DtVector	myBoundingBoxCenter

DtVector	myBoundingBoxExtents

DtVector	myBoundingBoxMinimum

DtVector	myBoundingBoxMaximum

DtVector	myAllGeometryBoundingBoxCenter

DtVector	myAllGeometryBoundingBoxExtents

DtVector	myAllGeometryBoundingBoxMinimum

DtVector	myAllGeometryBoundingBoxMaximum

bool	myContributesToBound

bool	myColorBlendingEnabled

float	myBlendRed

float	myBlendBlue

float	myBlendGreen

float	myBlendAlpha

Private Member Functions
	DtArcModelInstance ()
	Default Constructor not implemented. More...

	DtArcModelInstance (const DtArcModelInstance &)
	Copy Constructor not implemented - Copy not allowed. More...

DtArcModelInstance &	operator= (const DtArcModelInstance &)
	Assignment Operator not implemented - Copy not allowed. More...

Additional Inherited Members
Public Types inherited from makVrv::DtOsgModelInstance
enum	AlphaToCoverageState { USE_GLOBAL, FORCE_OFF, FORCE_ON }
	The possible states of a control point. More...

typedef boost::unordered_map < std::string, bool >	SensorRegionStateMap
	Dynamic Sensor Region methods. More...

Static Public Member Functions inherited from makVrv::DtOsgModelInstance
static osg::Vec4	readVec4 (const std::string &paramName, const DtModelDefinition &definition, const osg::Vec4 &initValue=osg::Vec4(1, 1, 1, 1))

static osg::Vec3	readVec3 (const std::string &paramName, const DtModelDefinition &definition, const osg::Vec3 &initValue=osg::Vec3(1, 1, 1))

Static Public Member Functions inherited from makVrv::DtModelInstance
static float	readFloat (const std::string &paramName, const DtModelDefinition &definition)

static DtVector	readVector (const std::string &paramName, const DtModelDefinition &definition)

Public Attributes inherited from makVrv::DtOsgModelInstance
boost::signalslib::signal < void(const std::string &) >	signal_dynamicSensorRegionAdded
	Signal raised when a dynamic sensor region is added. More...

boost::signalslib::signal < void(const std::string &, bool) >	signal_dynamicSensorRegionChanged
	Signal raised when a dynamic sensor region's state changes. More...

boost::signalslib::signal < void(bool)>	signal_atcModeEnableChanged
	Signal raised when alpha to coverage for this model is changed. More...

Public Attributes inherited from makVrv::DtModelInstance
boost::signalslib::signal < void(DtModelInstance *)>	signal_modelInstanceChanged

Detailed Description

Interface for an Arc Model instance.

An arc with the following geometric parameters:

Start Angle: Change which part of the ellipse is used to draw the arc
End Angle: Change which part of the ellipse is used to draw the arc
Position: Change the position of the arc's origin
Dimensions: Change the dimensions of the ellipse used to draw the arc
Max Angle Segment: Affects the number of vertices used by changing the angular difference between vertices along the arc. If you want to use X vertices to draw the arc, then set Max Angle Segment equal to PI / X

An arc with the following geometric parameters:

Line Width: Change the width of all of the arc's line segments
Line Color: Change the color of all of the arc's line segments
Line Stipple Pattern: Change the stipple pattern of all of the arc's line segments

Special Considerations:

In a 2D plane, the positive Y-Axis is 0 radians with clockwise being the positive direction
If the start and end angle are 0 and 2 * PI respectively, an ellipse is drawn
If the height of the arc is 0, a line is drawn

Constructor & Destructor Documentation

makVrv::DtArcModelInstance::DtArcModelInstance ( DtDe & de )

CTOR.

virtual makVrv::DtArcModelInstance::~DtArcModelInstance ( )

virtual

DTOR.

makVrv::DtArcModelInstance::DtArcModelInstance ( )

private

Default Constructor not implemented.

makVrv::DtArcModelInstance::DtArcModelInstance ( const DtArcModelInstance & )

private

Copy Constructor not implemented - Copy not allowed.

Member Function Documentation

DtArcModelInstance& makVrv::DtArcModelInstance::operator= ( const DtArcModelInstance & )

private

Assignment Operator not implemented - Copy not allowed.

virtual void makVrv::DtArcModelInstance::setOverlay ( unsigned int overlayId )

virtual

Set the overlay the model will be rendered on.

virtual void makVrv::DtArcModelInstance::setPosition	(	int	vtx,
		const DtVector &	position
	)

virtual

Set the position of a vertex in the arc When vtx is 0,.

The passed in vertex becomes the origin of the arc

When vtx is 1,

The passed in vertex becomes the end vertex of the arc
The origin becomes the start vertex of the arc
The origin of the arc is updated to be the midpoint between the start/end vertices
The x-dimension is set to be the distance between the start and end vertices

When vtx is 2,

The passed in vertex is used to infer the height of the arc via calculateHeight()
NOTE: This call requires a setPosition(1, [SomeVertex]) call first to define the arc 'normal'

virtual void makVrv::DtArcModelInstance::setOrigin ( const DtVector & position )

virtual

Set/Get the position of the arc's origin Akin to calling setPosition(0, position)

virtual DtVector makVrv::DtArcModelInstance::origin ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setOrientation ( DtTaitBryan orientation )

virtual

Set/Get the global orientation of the arc.

virtual DtTaitBryan makVrv::DtArcModelInstance::orientation ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setDimensions	(	double	x,
		double	y
	)

virtual

Set/Get the axis lengths of the ellipse used to draw the arc The default values are (0, 0)

virtual bool makVrv::DtArcModelInstance::getDimensions	(	double &	x,
		double &	y
	)		const

virtual

virtual void makVrv::DtArcModelInstance::setScale ( float scale )

virtual

Set/Get the scale factor of the arc The default value is 1.

virtual float makVrv::DtArcModelInstance::scale ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setVisible ( bool isVisible )

virtual

Set/Get whether the arc is visible The default is value is True (visible)

Implements makVrv::DtModelInstance.

virtual bool makVrv::DtArcModelInstance::isVisible ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setMaxAngleSegment ( double angleSegmentMax )

virtual

Set/Get the max angle segment used when building the geometry The default value is (PI / 2) / 9.0.

virtual double makVrv::DtArcModelInstance::maxAngleSegment ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setStartAngle ( double startAngle )

virtual

Set/Get the start angle of the arc, in radians The default value is 0.

virtual double makVrv::DtArcModelInstance::startAngle ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setEndAngle ( double endAngle )

virtual

Set/Get the end angle of the arc, in radians The default value is PI.

virtual double makVrv::DtArcModelInstance::endAngle ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setStipplePattern ( unsigned int stipplePattern )

virtual

Set/Get the stipple line pattern of the arc The default value is 0xFFFF (solid line).

virtual unsigned int makVrv::DtArcModelInstance::stipplePattern ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setLineWidth ( float width )

virtual

Set/Get the line width of the arc Uses DtLineSegmentInterface::setWidth The default value is 1.0.

virtual float makVrv::DtArcModelInstance::lineWidth ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

virtual

Set/Get the color of the arc Valid range for argument values are 0.0 - 1.0.

The default values are (0, 0, 0, 1)

virtual bool makVrv::DtArcModelInstance::getColor	(	float &	r,
		float &	g,
		float &	b,
		float &	a
	)		const

virtual

virtual void makVrv::DtArcModelInstance::setEventsEnabled	(	bool	,
		unsigned long long	userData
	)

virtual

Set/Get to handle or not handle mouse events The default value is False.

virtual bool makVrv::DtArcModelInstance::eventsEnabled ( ) const

virtual

virtual void makVrv::DtArcModelInstance::setGroup ( int groupNum )

virtual

Set/Get the group this overlay will be drawn in The higher the group number, the "closer" to the eyepoint this overlay will be drawn.

Use this function to stack overlay objects in the particular order you want them displayed The default value is 1.

virtual int makVrv::DtArcModelInstance::group ( ) const

virtual

virtual bool makVrv::DtArcModelInstance::realize ( DtModelDefinition & definition )

virtual

Attempt to realize a definition.

If the model instance can't realize the definition it should return false. This instance requires the definition be of schema "Line". This instance does not make use of the "DefaultStippleRepeat" parameter.

Reimplemented from makVrv::DtOsgModelInstance.

virtual void makVrv::DtArcModelInstance::update ( )

virtual

virtual void makVrv::DtArcModelInstance::setArcVertex	(	unsigned int	index,
		double	x,
		double	y,
		double	z
	)

protectedpure virtual

Set a vertex in myArc.

Implemented in makVrv::DtOverlayArcModelInstance, and makVrv::DtWindowArcInstance.

virtual double makVrv::DtArcModelInstance::calculateHeight ( const DtVector & heightVertex ) const

protectedpure virtual

Calculate the height of the arc given a height vertex This function requires at least 1 call to setPosition(1, SomeVector) and returns 0.0 otherwise.

Implemented in makVrv::DtOverlayArcModelInstance, and makVrv::DtWindowArcInstance.

virtual void makVrv::DtArcModelInstance::createArcIfNecessary ( )

protectedvirtual

Create myArc according to current state.

Reimplemented in makVrv::DtOverlayArcModelInstance.

virtual void makVrv::DtArcModelInstance::deleteArc ( )

protectedvirtual

Delete myArc.

virtual void makVrv::DtArcModelInstance::updateColors ( )

protectedvirtual

Update the vertex colors.

Member Data Documentation

std::vector<osg::Vec3d> makVrv::DtArcModelInstance::myDefinedVertices

protected

osg::Vec3d makVrv::DtArcModelInstance::myPosition

protected

osg::Vec2d makVrv::DtArcModelInstance::myDimensions

protected

DtDcm makVrv::DtArcModelInstance::myOrientationDcm

protected

DtTaitBryan makVrv::DtArcModelInstance::myOrientationTaitBryan

protected

bool makVrv::DtArcModelInstance::myVisible

protected

double makVrv::DtArcModelInstance::myMaxAngleSegment

protected

float makVrv::DtArcModelInstance::myScale

protected

osg::Vec4 makVrv::DtArcModelInstance::myColor

protected

float makVrv::DtArcModelInstance::myLineWidth

protected

unsigned int makVrv::DtArcModelInstance::myStipplePattern

protected

double makVrv::DtArcModelInstance::myStartAngle

protected

double makVrv::DtArcModelInstance::myEndAngle

protected

DtSegmentedLine* makVrv::DtArcModelInstance::myArc

protected

int makVrv::DtArcModelInstance::myGroup

protected

unsigned int makVrv::DtArcModelInstance::myOverlay

protected

bool makVrv::DtArcModelInstance::myEventsEnabled

protected

unsigned long long makVrv::DtArcModelInstance::myUserData

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvOsg/DtArcModelInstance.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
