Rooted singleton that holds value about current state of sound settings. More...

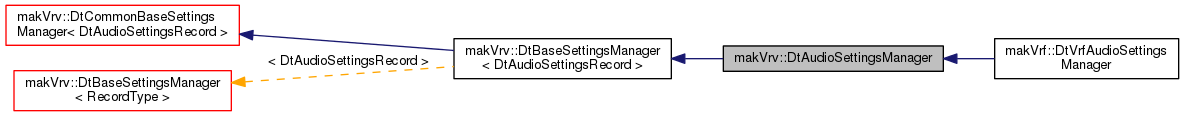

Inheritance diagram for makVrv::DtAudioSettingsManager:

Public Member Functions
virtual	~DtAudioSettingsManager ()
	Virtual DTOR. More...

Controls for the sound settings.
virtual void	setAudioEnabled (bool val)
	Set the master audio enabled state. More...

virtual bool	audioEnabled () const
	Get the master audio enabled state. More...

virtual void	setVolume (double val)
	Set the master audio volume. More...

virtual double	volume () const
	Get the master audio volume. More...

virtual void	setAudioPlaybackDevice (const std::string &val)
	Set the device that audio should be played back on. More...

virtual std::string	audioPlaybackDevice () const
	get the name of the device that the audio should be played back on More...

virtual void	setAudioCaptureDevice (const std::string &val)
	Set the device that audio should be captured from. More...

virtual std::string	audioCaptureDevice () const
	get the name of the device that the audio should be captured from More...

virtual void	setShowCaptureDeviceSettings (bool val)
	Set whether or not the capture device selection dialog is present in the audio settings dialog. More...

virtual bool	showCaptureDeviceSettings () const
	Get whether or not the capture device selection dialog is present in the audio settings dialog. More...

virtual void	setSpeedOfSound (double val)
	Set the speed of sound (in meters/second). More...

virtual double	speedOfSound () const
	Get the speed of sound (in meters/second). More...

virtual void	setMaxVoices (int val)
	Set the maximum number of simultaneous playing sounds. More...

virtual int	maxVoices () const
	Get the number of maximum voices. More...

virtual void	setMaximumOutputDecibelCapability (double val)
	Set the maximum loudness that the sound hardware that this application is playing on is capable of producing. More...

virtual double	maximumOutputDecibelCapability () const
	Get the maximum loudness that the sound system can generate. More...

virtual void	setEnvironmentalProcessingEnabled (bool val)
	Set the environmental processing enabled state. More...

virtual bool	environmentalProcessingEnabled () const
	Get the environmental processing enabled state. More...

Setting Persistence Methods
void	setFromRecord (const DtAudioSettingsRecord &rec)
	Set the current settings' state from the given record. More...

void	getRecord (DtAudioSettingsRecord &rec) const
	Store the current settings' state in the given record. More...

Public Member Functions inherited from makVrv::DtBaseSettingsManager< DtAudioSettingsRecord >
	DtBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR. More...

virtual	~DtBaseSettingsManager ()
	Virtual DTOR. More...

virtual void	initializeBackup ()
	Creates a backup of the settings' current state. More...

Public Member Functions inherited from makVrv::DtCommonBaseSettingsManager< DtAudioSettingsRecord >
	DtCommonBaseSettingsManager (DtDe &de, const std::string &name, const std::string &displayName, const std::string &ext)
	CTOR The name, displayName, and extension parameters are used for creating the settings object (DtDeSettings) and backup, and for constructing the filename when readin/writing the records to disk. More...

virtual	~DtCommonBaseSettingsManager ()
	Virtual DTOR. More...

virtual void	autoSaveIfNecessary ()
	Saves the current settings as defaults if autosave is enabled. More...

virtual void	setAutoSave (bool doit)
	Sets whether autosave is enabled for the settings manager. More...

virtual bool	autoSave () const
	Gets whether autosave is enabled for the settings manager. More...

virtual void	setUseDefaultSettingsRecord (bool useit)
	Sets whether setting initialization should check for a default record. More...

virtual bool	useDefaultSettingsRecord () const
	Gets whether setting initialization should check for a default record. More...

virtual DtDeSettings *	settings ()
	Accessor for the manager's DtDeSettings object. More...

virtual const DtDeSettings *	settings () const
	Accessor for the manager's DtDeSettings object (const). More...

virtual DtSettingsBackup *	settingsBackup ()
	Accessor for the manager's settings backup. More...

virtual const DtSettingsBackup *	settingsBackup () const
	Accessor for the manager's settings backup (const). More...

virtual void	loadDefaults ()
	Initializes the settings and creates a backup. More...

virtual void	saveDefaultSettings ()
	Saves the current settings' state as the default (on disk). More...

virtual void	loadDefaultSettings (bool loadOnlyFactorySettings)
	Loads the default settings from disk. More...

virtual void	importSettings (const std::string &filePath)
	Load the settings' state from the given file. More...

virtual void	exportSettings (const std::string &filePath) const
	Save the current settings' state to the given file. More...

virtual void	getSplitRecord (std::vector< DtAudioSettingsRecord > &rec, std::vector< std::string > &fileNames)
	For directory support, split the main record into different sub-records and give them each a file name. More...

virtual void	addRecords (DtAudioSettingsRecord &rec, DtAudioSettingsRecord &combinedRec)
	For directory support, when reading in a directory, add the records from each file to the combined record. More...

Public Member Functions inherited from makVrv::DtVirtualBaseClass
	DtVirtualBaseClass ()
	Do nothing constructor. More...

virtual	~DtVirtualBaseClass ()
	Virtual do nothing destructor. More...

Static Public Member Functions
static DtAudioSettingsManager &	instance (DtDe &de)
	Get an instance of the settings manager. More...

Public Attributes
Boost signals for changed settings
boost::signalslib::signal < void(bool)>	signal_enableAudioChanged
	Emitted when the audio enabled setting is changed. More...

boost::signalslib::signal < void(double)>	signal_volumeChanged
	Emitted when the audio volume is changed. More...

boost::signalslib::signal < void(std::string)>	signal_audioPlaybackDeviceChanged
	Emitted when the audio playback device setting is changed. More...

boost::signalslib::signal < void(std::string)>	signal_audioCaptureDeviceChanged
	Emitted when the audio capture device setting is changed. More...

boost::signalslib::signal < void(bool)>	signal_showCaptureDeviceSettingsChanged
	Emitted when the show audio capture device settings is changed. More...

boost::signalslib::signal < void(double)>	signal_speedOfSoundChanged
	Emitted when the speed of sound is changed. More...

boost::signalslib::signal < void(double)>	signal_maxVoicesChanged
	Emitted when the max voices are changed. More...

boost::signalslib::signal < void(double)>	signal_maximumOutputDecibelCapabilityChanged
	Emitted when the sound system capability changed. More...

boost::signalslib::signal < void(bool)>	signal_environmentalProcessingEnabledChanged
	Emitted when the environmental audio processing enabled setting is changed. More...

Protected Member Functions
	DtAudioSettingsManager (DtDe &de)
	Protected CTOR ( use instance(..) ). More...

Protected Attributes
bool	myAudioEnabled

double	myVolume

std::string	myAudioPlaybackDevice

std::string	myAudioCaptureDevice

bool	myShowCaptureDeviceSettings

double	mySpeedOfSound

int	myMaxVoices

double	myMaximumOutputDecibelCapability

bool	myEnvironmentalProcessingEnabled

Protected Attributes inherited from makVrv::DtCommonBaseSettingsManager< DtAudioSettingsRecord >
DtSignalConnectionManager	myConnections

std::string	myName

std::string	myExtension

std::string	myDisplayName

bool	myUseDefaultSettingsRecordFlag

bool	myAutoSaveFlag

DtSettingsBackup *	mySettingsBackup

DtDe &	myDe

Friends
template<typename ManagerClass >
ManagerClass &	defaultManagerInstanceFunction (DtDe &, bool)
	Befriend the manager instance functions for instance retrieval/creation. More...

template<typename ManagerClass >
void	defaultManagerRegisterInstanceFunction (DtDe &, ManagerClass *)
	Befriend the manager instance functions for instance retrieval/creation. More...

Additional Inherited Members
Protected Types inherited from makVrv::DtBaseSettingsManager< DtAudioSettingsRecord >
typedef DtRecordSettingsBackup < DtBaseSettingsManager < DtAudioSettingsRecord > , DtAudioSettingsRecord >	RecordBackupType

Detailed Description

Rooted singleton that holds value about current state of sound settings.

Constructor & Destructor Documentation

virtual makVrv::DtAudioSettingsManager::~DtAudioSettingsManager ( )

virtual

Virtual DTOR.

makVrv::DtAudioSettingsManager::DtAudioSettingsManager ( DtDe & de )

protected

Protected CTOR ( use instance(..) ).

Member Function Documentation

static DtAudioSettingsManager& makVrv::DtAudioSettingsManager::instance ( DtDe & de )

static

Get an instance of the settings manager.

Parameters

[in] de is the display engine root for the singleton.

virtual void makVrv::DtAudioSettingsManager::setAudioEnabled ( bool val )

virtual

Set the master audio enabled state.

When set, this switch will allow all sounds to be played. When not set, all sounds will be prevented from playing.

Parameters

[in] val is the new enabled state: true for on, false for off.

Reimplemented in makVrf::DtVrfAudioSettingsManager.

virtual bool makVrv::DtAudioSettingsManager::audioEnabled ( ) const

virtual

Get the master audio enabled state.

Return values

true	for audio is enabled.
false	otherwise.

See Also: setAudioEnabled()

virtual void makVrv::DtAudioSettingsManager::setVolume ( double val )

virtual

Set the master audio volume.

This value controls the gain as heard from the listener's position.

Parameters

[in] val is the new volume.

virtual double makVrv::DtAudioSettingsManager::volume ( ) const

virtual

Get the master audio volume.

Returns: The master audio volume.

See Also: setVolume()

virtual void makVrv::DtAudioSettingsManager::setAudioPlaybackDevice ( const std::string & val )

virtual

Set the device that audio should be played back on.

Parameters

[in] deviceName is the name of the device that should be used for audio playback

virtual std::string makVrv::DtAudioSettingsManager::audioPlaybackDevice ( ) const

virtual

get the name of the device that the audio should be played back on

Returns: The name of the current audio device for audio playback

virtual void makVrv::DtAudioSettingsManager::setAudioCaptureDevice ( const std::string & val )

virtual

Set the device that audio should be captured from.

Parameters

[in] deviceName is the name of the device that should be used for audio capture

virtual std::string makVrv::DtAudioSettingsManager::audioCaptureDevice ( ) const

virtual

get the name of the device that the audio should be captured from

Returns: The name of the current audio device for audio capture

virtual void makVrv::DtAudioSettingsManager::setShowCaptureDeviceSettings ( bool val )

virtual

Set whether or not the capture device selection dialog is present in the audio settings dialog.

Parameters

[in] val is the new enabled state: true for on, false for off.

virtual bool makVrv::DtAudioSettingsManager::showCaptureDeviceSettings ( ) const

virtual

Get whether or not the capture device selection dialog is present in the audio settings dialog.

See Also: setShowCaptureDeviceSettings()

virtual void makVrv::DtAudioSettingsManager::setSpeedOfSound ( double val )

virtual

Set the speed of sound (in meters/second).

This value controls the speed of sound which can depend on many external factors. This allows the user to choose the speed for their situation

Parameters

[in] val is the new speed of sound.

See Also: DtAudioSettingsManager::setSpeedOfSound.

virtual double makVrv::DtAudioSettingsManager::speedOfSound ( ) const

virtual

Get the speed of sound (in meters/second).

Returns: The speed of sound.

See Also: setSpeedOfSound()

virtual void makVrv::DtAudioSettingsManager::setMaxVoices ( int val )

virtual

Set the maximum number of simultaneous playing sounds.

Parameters

[in] val is the new number of active voices.

virtual int makVrv::DtAudioSettingsManager::maxVoices ( ) const

virtual

Get the number of maximum voices.

Returns: the number of maximum voices

See Also: setMaxVoices()

virtual void makVrv::DtAudioSettingsManager::setMaximumOutputDecibelCapability ( double val )

virtual

Set the maximum loudness that the sound hardware that this application is playing on is capable of producing.

This is used to calibrate where played sounds start to falloff sounds.

Parameters

[in] val is the loudness in decibels.

virtual double makVrv::DtAudioSettingsManager::maximumOutputDecibelCapability ( ) const

virtual

Get the maximum loudness that the sound system can generate.

Returns: the maximum decibels that the audio hardware can generate

See Also: setmaximumOutputDecibelCapability()

virtual void makVrv::DtAudioSettingsManager::setEnvironmentalProcessingEnabled ( bool val )

virtual

Set the environmental processing enabled state.

When set, this switch will allow all sounds to be played with environmental effects processing such as lowpass filtering based on distance, so high frequency sounds get filtered out the further a sound source is. When not set, all sounds will be played without filtering

Parameters

[in] val is the new enabled state: true for on, false for off.

virtual bool makVrv::DtAudioSettingsManager::environmentalProcessingEnabled ( ) const

virtual

Get the environmental processing enabled state.

Return values

true	for processing is enabled.
false	otherwise.

See Also: setEnvironmentalProcessingEnabled()

void makVrv::DtAudioSettingsManager::setFromRecord ( const DtAudioSettingsRecord & rec )

virtual

Set the current settings' state from the given record.

Implements makVrv::DtBaseSettingsManager< DtAudioSettingsRecord >.

void makVrv::DtAudioSettingsManager::getRecord ( DtAudioSettingsRecord & rec ) const

virtual

Store the current settings' state in the given record.

Implements makVrv::DtBaseSettingsManager< DtAudioSettingsRecord >.

Friends And Related Function Documentation

template<typename ManagerClass >

ManagerClass& defaultManagerInstanceFunction	(	DtDe &	de,
		bool	allowedInSlave
	)

friend

Befriend the manager instance functions for instance retrieval/creation.

Manager requirements: 1) Static instance function 2) Protected DtSignalConnectionManager named myConnections. 3) Member functioned called loadDefaults which takes no arguments. and loads the default settings of the manager or factory from disk. 4) define defaultManagerInstanceFunction as friend. 5) define defaultManagerRegisterInstanceFunction as friend (see below). 5) Protected Constructor which only takes a DtDe reference.

*  class Manager
*  {
*  public:
*     static Manager& instance(DtDe& de);
*     void loadDefaults();
*  protected:
*     template <typename ManagerClass>
*     friend ManagerClass& defaultManagerInstanceFunction(DtDe& de, bool);
*     template <typename ManagerClass>
*     friend void defaultManagerRegisterInstanceFunction(DtDe& de, ManagerClass* mgr)
*     Manager(DtDe&);
*     DtSignalConnectionManager myConnections;
*  };
*

Then simply in the implementation of instance call defaultManagerInstanceFunction with the de object and return the return value.

*  Manager& Manager::instance(DtDe& de)
*  {
*     return defaultManagerInstanceFunction<Manager>(de);
*  }
*

template<typename ManagerClass >

void defaultManagerRegisterInstanceFunction	(	DtDe &	de,
		ManagerClass *	mgr
	)

friend

Befriend the manager instance functions for instance retrieval/creation.

*  static void Manager::registerInstance(DtDe& de, Manager* mgr)
*  {
*     defaultManagerRegisterInstanceFunction(de,mgr);
*  }
*  ...else where call.
*  // Assuming class NewManager : public Manager
*  Manager::registerInstance(de,new NewManager(de));
*

Member Data Documentation

boost::signalslib::signal<void(bool)> makVrv::DtAudioSettingsManager::signal_enableAudioChanged

Emitted when the audio enabled setting is changed.

See Also: DtSharedAudioSettings::setAudioEnabled.

boost::signalslib::signal<void(double)> makVrv::DtAudioSettingsManager::signal_volumeChanged

Emitted when the audio volume is changed.

See Also: DtSharedAudioSettings::setVolume.

boost::signalslib::signal<void(std::string)> makVrv::DtAudioSettingsManager::signal_audioPlaybackDeviceChanged

Emitted when the audio playback device setting is changed.

See Also: DtSharedAudioSettings::setAudioPlaybackDevice.

boost::signalslib::signal<void(std::string)> makVrv::DtAudioSettingsManager::signal_audioCaptureDeviceChanged

Emitted when the audio capture device setting is changed.

See Also: DtSharedAudioSettings::setAudioCaptureDevice.

boost::signalslib::signal<void(bool)> makVrv::DtAudioSettingsManager::signal_showCaptureDeviceSettingsChanged

Emitted when the show audio capture device settings is changed.

See Also: DtSharedAudioSettings::setShowCaptureDeviceSettings.

boost::signalslib::signal<void(double)> makVrv::DtAudioSettingsManager::signal_speedOfSoundChanged

Emitted when the speed of sound is changed.

See Also: DtSharedAudioSettings::setSpeedOfSound.

boost::signalslib::signal<void(double)> makVrv::DtAudioSettingsManager::signal_maxVoicesChanged

Emitted when the max voices are changed.

See Also: DtSharedAudioSettings::setMaxVoices.

boost::signalslib::signal<void(double)> makVrv::DtAudioSettingsManager::signal_maximumOutputDecibelCapabilityChanged

Emitted when the sound system capability changed.

See Also: DtSharedAudioSettings::setmaximumOutputDecibelCapability.

boost::signalslib::signal<void(bool)> makVrv::DtAudioSettingsManager::signal_environmentalProcessingEnabledChanged

Emitted when the environmental audio processing enabled setting is changed.

See Also: DtSharedAudioSettings::setEnvironmentalProcessingEnabled.

bool makVrv::DtAudioSettingsManager::myAudioEnabled

protected

double makVrv::DtAudioSettingsManager::myVolume

protected

std::string makVrv::DtAudioSettingsManager::myAudioPlaybackDevice

protected

std::string makVrv::DtAudioSettingsManager::myAudioCaptureDevice

protected

bool makVrv::DtAudioSettingsManager::myShowCaptureDeviceSettings

protected

double makVrv::DtAudioSettingsManager::mySpeedOfSound

protected

int makVrv::DtAudioSettingsManager::myMaxVoices

protected

double makVrv::DtAudioSettingsManager::myMaximumOutputDecibelCapability

protected

bool makVrv::DtAudioSettingsManager::myEnvironmentalProcessingEnabled

protected

The documentation for this class was generated from the following file:

/data/exports/nrhent7-1/nightly/docs/vrForces.vrf4-10-branch/include/vrvAudio/DtAudioSettingsManager.h

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
